Yamaha CD-C600 Manual

INTRODUCTION

Features

• 5-Discs Carousel Auto-changer
• Full Opening Disc Tray for Changing 5 Discs at a Time
• PLAYXCHANGE; Disc Changing Capability while Playing back Another
• Optical Digital Output
• CD-R, CD-RW Disc Playability (For details, refer to the "Playable Disc and File Format" section.)
• MP3, WMA Disc Playability
• MP3, WMA File Playability Stored on USB Device (For details, refer to the "Playable Disc and File Format" section.)
• iPod Playability
• Program Play (Audio CD only)
• Random-Sequence Play (except iPod)
• Single Track/File, Entire Disc/Folder/Whole device Repeat Play
• Repeat A-B Play (Audio CD only)
• Adjustable Display Information and Brightness
• PURE DIRECT Function

Supplied accessories

Please check that you have received all of the following parts.

• Power cable
• Remote control
• Batteries (AA, R6, UM-3) (×2)
• RCA stereo cable

About this manual

• indicates a tip for your operation.
• In this manual, audio CDs are referred to as "Audio CD", MP3/WMA discs as "Data Disc", and MP3/WMA files stored on the USB device as "USB".
• The and icons indicate music data formats that can be used in the operation.
• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of differences between the manual and the product, the product has priority.

CONTROLS AND FUNCTIONS

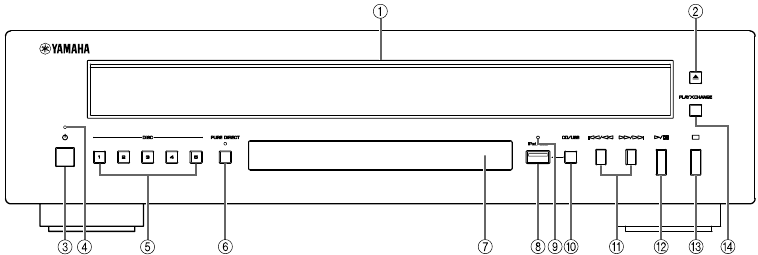

Front panel

1. Disc tray
   Loads a disc.
2. (Open/Close)
   Opens or closes the disc tray. For loading and unloading discs, see "Loading and Playing Discs".
3. (Power)
   Press inward to the ON position to turn on the power.

• The power indicator above lights up when this unit is turned on.
• You can turn this unit to a standby status with STNDBY/ON on the remote control.
• This unit is equipped with the Auto standby function. By turning on the function, this unit turns to the standby mode automatically when disc playback is stopped for 30 minutes. For details, see "Using the Advanced Setup".

4. Power indicator
   Lights up as follows:
   ON: Bright
   Standby mode: Dark
   OFF: Off
5. DISC (1-5)
   Selects a desired disc and starts playback.
6. PURE DIRECT
   Turns on or off the PURE DIRECT mode to improve audio quality.

• The PURE DIRECT indicator lights up.
• The digital output is turned off.
• The front panel display is turned off during playback and only the minimum required indicators and messages are displayed during in the operation.

Note
Connect using the ANALOG OUT terminals when you use PURE DIRECT mode (refer to "Rear panel connections").

7. Remote control sensor
   Receives signals from the remote control.
8. iPod/USB port
   Connect your iPod or USB device. See "Playing Back iPod/USB Device" for details.
9. iPod/USB indicator
   Off: CD mode is selected.
   Orange: Connection ready.
   Green: iPod/USB is connected and playable files have been detected (playback ready).
10. CD/USB
    Switches between CD mode and iPod/USB mode. See "Playing Back iPod/USB Device".

When the iPod/USB indicator is not lit, this unit is in the CD mode.

11. (Skip/Search backward),
    (Skip/Search forward)
    : Skips to the next track.
    : Skips back to the beginning of the current track.
    (twice): Skips to the previous track.
    Press and hold or to search backward/forward.
12. (Play) / (Pause)
    Starts or pauses playback. Press again to resume playback.
13. (Stop)
    Stops playback.
14. PLAYXCHANGE
    Opens the disc tray during playback without interrupting disc playback. See "Loading and Playing Discs" for details.
15. Disc select indicator
    The numbers corresponding to the trays containing discs light up. The enclosed number indicates the currently selected disc.
    Note
    The number corresponding to an empty tray may light up before the tray is selected. When the disc tray is closed after loading/ replacing discs, this unit searches discs starting from tray 1. During the search, the tray numbers corresponding to empty trays go off. When a disc is detected, the searching finishes there and the remaining trays are left unsearched.
16. Playback status Indicator
    Lights up when this unit is in the play or pause mode.
17. Source type indicator
    Indicates the type of content being played back.
18. Play mode indicator
    Indicates the selected disc play mode (1DISC or 5DISC). See "MODE" for details.
19. Time and playback mode indicator
    Indicates the current playback mode and the status of the time display (see "Controls and Functions" for time display).

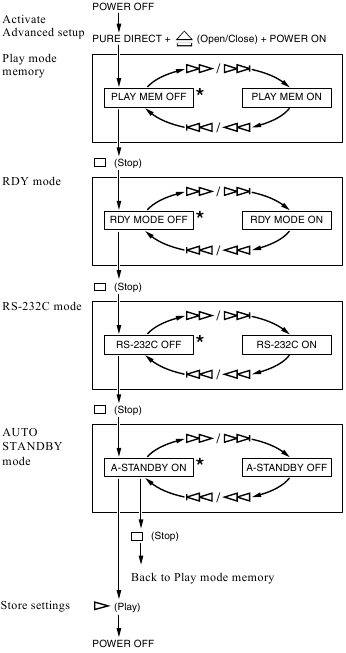

20. Advanced setup indicator
    Indicates the enabled special modes. See "USING THE ADVANCED SETUP" for details.
21. Multi-information display

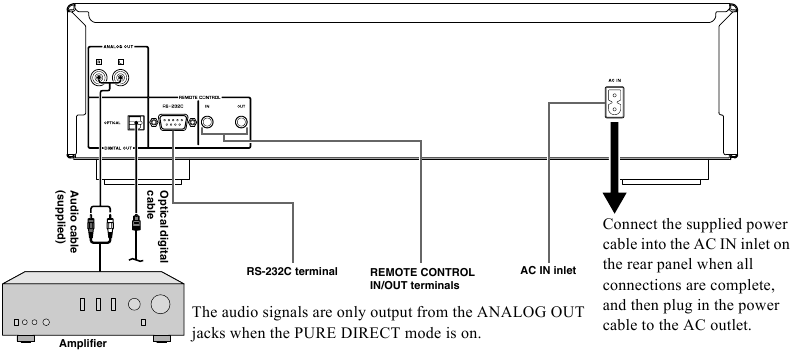

Rear panel connections

Before making any connection, switch OFF the power to the unit, the amplifier and any other component.

• VOLTAGE SELECTOR (Asia and General models only)
  Voltages are as follows:
  AC 110/120/220/230-240 V, 50/60 Hz


The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local voltage BEFORE plugging the power cable into the AC wall outlet. Improper setting of the VOLTAGE SELECTOR may cause damage to this unit and create a potential fire hazard.
Rotate the VOLTAGE SELECTOR clockwise or counterclockwise to the correct position using a straight slot screwdriver.

For Custom Installer

• REMOTE CONTROL IN/OUT terminals
  These terminals are used for custom installation system. When this unit is connected to the components for custom installation system, you can operate this unit with the system remote control.
  Connect the REMOTE CONTROL IN terminal of this unit to the output terminal of the central controller for custom installation system.
  By connecting the REMOTE CONTROL OUT terminal of this unit to the input terminal for remote control of the other component, you can also operate it with the system remote control. In this way, up to 6 components can be connected in series.
• RS-232C terminal
  This unit is also equipped with an RS-232C terminal. Consult your dealer for details.

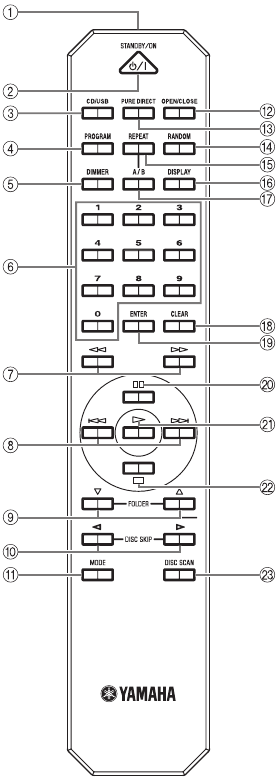

Remote control

1. Infrared signal transmitter
   Sends infrared signals to this unit.
2. STANDBY/ON
   Turns this unit on or to the standby mode while (Power) on the front panel is pressed inward to the ON position.
   Note
   You can operate this unit only when the (Power) on the front panel is pressed inward to the ON position.
3. CD/USB
   Switches between CD mode and iPod/USB mode (see "Playing Back iPod/USB Device").
   This setting is retained even if you turn off this unit.
4. PROGRAM
   Turns on or off the program playback mode. See "Program playback".
5. DIMMER
   Each time you press DIMMER, the brightness level changes by 4 levels.
   This setting is retained even if you turn off this unit.
6. Numeric buttons
   Use to select directly a track on the disc or a file in the current folder.
7. (Search backward), (Search forward)
   Searches tracks backward/forward while the button is pressed.
8. (Skip backward), (Skip forward)
   : Skips to the next track.
   : Skips back to the beginning of the current track.
   (twice): Skips to the previous track.
9. FOLDER (Folder down), (Folder up)

   :Skips to the previous folder.
   : Skips to the next folder.
   Refer to the "Playing Back iPod/USB Device" section for details.
10. DISC SKIP (Previous disc), (Next disc)
    Skips to the previous/next disc.
11. MODE
    Switches the disc play mode between 1DISC mode and 5DISC mode.
    In 1DISC mode, only the selected disc is played back.
    In 5DISC mode, all discs on the tray are played back in sequence.
12. OPEN/CLOSE
    Opens or closes the disc tray. You can load or replace five discs at a time. See "Loading and Playing Discs" for details.
13. PURE DIRECT
    Turns on or off the PURE DIRECT mode to improve audio quality. See "Front Panel" for details.
    This setting is retained even if you turn off this unit.
14. RANDOM
    Turns on or off the random sequence playback mode.
    Note
    The random playback mode is canceled when the disc is ejected.
15. REPEAT
    Repeats playback of a single track or all tracks. Each time you press REPEAT during playback, the repeat playback mode changes as follows:
    • REP TRACK (single repeat playback): A single track is played back repeatedly.
    • REP ALL (all repeat playback): All tracks (the entire disc) are played back repeatedly.

    • REP FOLDER (folder repeat playback): All files (the entire folder) are played back repeatedly.

Repeat play also works with program play and random-sequence play.

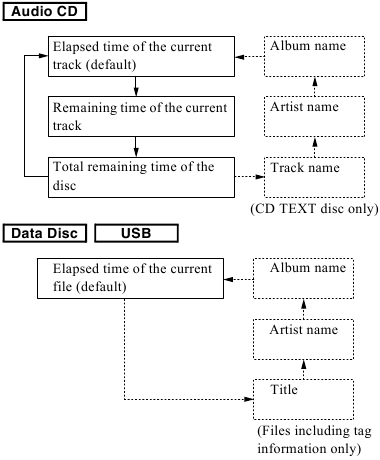

16. DISPLAY
    Switches the time display. Each time you press DISPLAY during playback, the time display changes as follows:

17. A/B
    Repeats playback of a specified section of a track. To set the starting and end points (A and B), press A/B twice during playback.
    To cancel repeat A-B, press A/B again.

Notes

• You cannot set repeat A-B from one track to another track.
• You cannot set repeat A-B for Data Disc and USB.
• If you stop playback by pressing (Stop), repeat A-B is canceled.
• You cannot use repeat A-B when this unit is in the PURE DIRECT mode.

18. CLEAR
    Erases the programmed track.
19. ENTER
    Confirms a track number entered when you are programming tracks.
20. (Pause)
    Pauses playback. Press or to resume playback.
21. (Play)
    Starts playback.
22. (Stop)
    Stops playback.
23. DISC SCAN
    Scans loaded discs and plays a section of 10 seconds in each disc, allowing you to search for a desired disc. To cancel scanning and switch to the normal playback, press DISC SCAN again or press (Play).

Notes

• While scanning, the disc tray number being played back blinks in the display. The number stops blinking and lights up when playing back the disc is finished.
• If the disc being played back has a long blank space between tracks, you will hear no sound during disc scan.

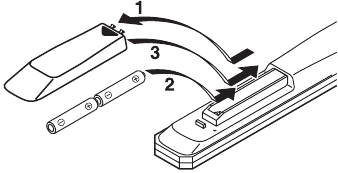

Installing batteries in the remote control

1. Press the part and slide the battery compartment cover off.
2. Insert the two supplied batteries (AA, R6, UM-3) according to the polarity markings (+ and –) on the inside of the battery compartment.
3. Slide the cover back until it snaps into place.

Using the remote control

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the front panel of this unit during operation.

Notes on batteries

• Change all of the batteries if you notice that the operation range of the remote control decreases.
• Use AA, R6, UM-3 batteries.
• Make sure that the polarities are correct. See the illustration inside the battery compartment.
• Remove the batteries if the remote control is not used for an extended period of time.
• Do not use old batteries together with new ones.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.
• If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
• Do not throw away batteries with general house waste; dispose of them correctly in accordance with your local regulations.

Handling the remote control

• The area between the remote control and this unit must be clear of large obstacles.
• Do not spill water or other liquids on the remote control.
• Do not drop the remote control.
• Do not leave or store the remote control in the following types of conditions:
  • places of high humidity, such as near a bath
  • places of high temperature, such as near a heater or a stove
  • places of extremely low temperatures
  • dusty places
• Do not expose the remote control sensor to strong lighting, in particular, an inverter type fluorescent lamp; otherwise, the remote control may not work properly. If necessary, position this unit away from direct lighting.

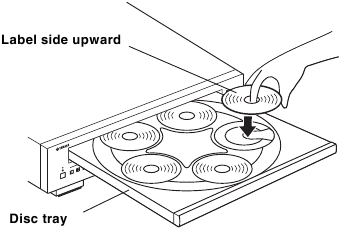

LOADING AND PLAYING DISCS

You can load or replace five discs at a time.

1. Press OPEN/CLOSE to open the disc tray and load discs.
   Use the disc guides to align the discs correctly in the tray.
   Note
   To play back an 8 cm (3 inch) CD, place it in the inner recessed area of the disc tray. Do not put a normal (12 cm (5 inch)) CD on top of an 8 cm CD.

2. Press OPEN/CLOSE to close the disc tray.
3. Press MODE to select a desired disc play mode (1DISC or 5DISC) confirming it on the display.
   1DISC: Only the selected disc is played back.
   5DISC: All discs on the tray are played back in sequence.
4. Press (Play) to start playback from the first track or file of disc 1.
5. (If necessary) Select a desired disc by using DISC SKIP , or a DISC (1-5) button on the front panel.

Program playback

In the program playback mode, you can play back tracks in a programmed sequence.

Notes

• You can program and play back tracks in any order from all of the loaded discs (1-5).
• The programmed tracks are erased when the disc is ejected, this unit is turned off, or this unit is turned to the standby mode.

1. Press PROGRAM while playback is stopped.
   This unit is set to the program editing mode.
2. Select a disc with one of the DISC (1-5) buttons on the front panel or DISC SKIP on the remote control.
3. Select a track by using the numeric buttons and ENTER.
4. Repeat steps 2 and 3 to program the next track.
   You can program up to 24 tracks.

To cancel the programmed track, press CLEAR.

5. Press .
   Playback starts from the beginning of the programmed sequence.

To erase all programmed tracks, press CLEAR when the playback is stopped.

PLAYXCHANGE

PLAYXCHANGE is a function that allows you to replace discs during disc playback without interrupting it. Press the PLAYXCHANGE button on the front panel to open the disc tray and replace discs.

Never try to load a disc in the position marked x in the figure below. This may cause damage to the unit and the disc, because that is where the disc being played back is located.

Note
DISC SKIP buttons do not work while the disc tray is open.

PLAYING BACK iPod/USB DEVICE

Connecting iPod/USB devices

Notes

• Use the USB cable supplied with your iPod. If no USB cable is supplied, purchase one from Apple Inc.
• Turn off your iPod.
• Do not use a USB hub

Playing back iPod

1. Press CD/USB to select the iPod/USB mode.
   The iPod/USB indicator on the front panel lights up in orange, then changes to green when playback is ready.
2. Start playback.
   Operate your iPod to start playback, select a track, pause, and stop playback.

You can also use the following buttons: (Playback), (Pause), (Stop), (Skip backward), (Skip forward), (Search backward), and (Search forward) on this unit or Remote Control.

Note
iPod may not function properly with this unit if software on iPod is not updated. Be sure to use the latest version of iPod software.

Playing back USB devices

1. Press CD/USB to select the iPod/USB mode.
   The iPod/USB indicator on the front panel lights up.
2. Start playback.
   Filename is displayed in the front panel display and playback starts automatically in order by date and time of creation if playable files are in the USB device.
3. Select a track.
   Press FOLDER on the remote control to select a folder, and then press or numeric buttons to select a track.
4. Stop playback.
   Press s (Stop).

See "Playable Disc and File Format" for more information on MP3/WMA playback.

Disconnecting iPod/USB devices

Stop playback, and then disconnect your iPod or USB device. It is recommended that you press CD/USB to switch to the CD mode, confirm that the CD/USB indicator goes off, and then disconnect your iPod/USB device.

Do not disconnect your iPod or USB device while playing back from the connected device, or while "USB READING" appears in the front panel display.

Supported iPod/USB devices

Supported iPod models

• iPod classic (including 120GB model)
• iPod nano (2nd, 3rd and 4th generations)
• iPod touch (1st and 2nd generations)

(as of April 2009)

Notes

• iPod is licensed on the condition that individuals perform privately duplication and playback of uncopyrighted material or material legally approved of duplication and playback. Infringement of copyright is prohibited by law.
• Yamaha and suppliers accepts no liability for the loss of data saved on iPod connected to this unit. As a precaution, it is recommended that the files are made backup copies.

Supported USB devices

This unit supports USB mass storage class devices (e.g., flash memories, card readers or portable audio players) that use FAT16 or FAT32 format.

Notes

• Some devices may not work properly even if they meet the requirements.
• This unit does not support encrypted USB memory devices.
• Do not connect devices other than USB mass storage class devices: USB chargers, USB hubs, PCs, external HDD, etc.
• When you insert two or more memory cards at the same time into a card reader connected to the iPod/USB port on this unit, only one of the memory cards is recognized.
• Yamaha and suppliers accepts no liability for the loss of data saved on the USB devices connected to this unit. As a precaution, it is recommended that the files are made backup copies.
• Playability of and power supply to all kinds of USB devices are not guaranteed.

PLAYABLE DISC AND FILE FORMAT

Playable MP3 and WMA files on the USB device and Data Disc

MP3

Format	Bitrate (kbps)	Sampling frequency (kHz)
MPEG 1 Audio Layer-3	32-320 *	32/44.1/48
MPEG 2 Audio Layer-3, 2	8-160 *	16/22.05/24
MPEG-2.5 Audio Layer-2	8-160 *	8/11.025/12

*Variable bitrate is also supported.

WMA

• Version 8
• Version 9 (Standard and variable bitrates are supported. Professional and Lossless are not supported.)

Profile	Bitrate (kbps)	Sampling frequency (kHz)
High Profile	32-320 *	32/44.1/48
Mid Profile	16-32	16/22.05

*Variable bitrate is also supported.

Notes

• Playback for Data Disc starts in alphanumeric order.
• Playback for USB starts in order by date and time of creation.
• Copyright-protected WMA (DRM) files cannot be played back by this unit.
• The disc must be ISO 9660 compatible.
• Elapsed time may not be displayed correctly while playing back variable bitrate contents.

	Data Disc	USB
Maximum file number	999	32767
Maximum folder number	256	256
Maximum file number per folder	512	512

Playable discs

Use compact discs bearing the marks below.

	Compact discs (digital audio)
	CD-R, CD-RW digital audio discs CD-R or CD-RW discs bearing one of the following phrases. FOR CONSUMER FOR CONSUMER USE FOR MUSIC USE ONLY Finalized CD-R or CD-RW discs. Note This compact disc player may not be able to play some CD-R/CD-RW discs or discs on which recording was not made correctly.
	CD-TEXT discs The disc title, artist name, and track name are also displayed in addition to the time displays when playing back a CD with CD TEXT.

To play back an 8-cm (3-inch) CD
Place it in the inner recessed area of the disc tray. Do not put a normal (12-cm) CD on top of an 8-cm (3-inch) CD.

To prevent a malfunction of this unit:

• Do not use any nonstandard shaped disc (heart, etc.) available on the market because it might damage the unit.

• Do not use a disc with tape, stickers, or paste on it. If you use such a disc, the disc may get stuck in the unit, or damage to the unit may result

Handling compact discs

• Always handle with care so that the playing surface is not scratched. Do not warp discs.

• To keep clean the playing surface, wipe with a clean, dry cloth. Do not use any type of disc cleaner, spray, or any other chemical-based liquid.
• Do not wipe with a circular motion; wipe straight outward from the center.

• Use a soft-tipped pen when writing on the label side of the disc.
• When a disc is not being used, remove it from this unit and store in an appropriate case.
• Do not expose discs to direct sunlight, high temperature or high humidity for a long time.

Note: Do not use any lens cleaners as they may be a cause of malfunction.

USING THE ADVANCED SETUP

This unit is equipped with the following four special modes, which may be useful for special purposes at stores or offices.

Note
The special mode functions are incompatible with iPod

Play mode memory
Retains the current playback mode (REPEAT and RANDOM) after turning off the power, saving the time of setting the playback mode again each time you turn on the power.
The track number is also retained so playback starts with the same track automatically when you turn on the power again.
The RESUM indicator in the front panel display lights up when enabled.

Ready mode
Pauses playback after each track, allowing you to start the next track at any desired timing.
The RDY indicator in the front panel display lights up when enabled.

RS-232C ON/OFF
Turns on or off the RS-232C terminal on the rear panel.
Turn it on when you use the RS-232C feature.
This mode is disabled with shipment.

Auto standby mode
When this function is enabled, this unit turns to the standby mode automatically if any of the following conditions lasts for 30 minitutes:

1. CD playback is stopped while in the CD mode (including when no disc or unsupported disc is loaded).
2. CD playback is in a pause position.
3. No USB device is connected while in the iPod/USB mode.
4. Unsupported USB device is connected while in the iPod/USB mode (iPod/USB indicator remains lit in orange).

Note
This unit does not turn to the standby mode automatically when a supported USB device or iPod is connected (when iPod/USB indicator is lit in green).

To activate and configure Advanced setup, follow the steps above. Use the buttons on the front panel.
Next time you turn on the power, the unit turns on with the settings that you specified above.
*: Default setting

TROUBLESHOOTING

If the unit fails to operate normally, check the following points to determine whether the problem can be corrected by the simple measures suggested. If it cannot be corrected, or if the problem is not listed in the Problems column, disconnect the power cable and contact your authorized Yamaha dealer or service center for help.

Problems	Possible Causes	Solutions
This unit fails to turn on.	The power cable is not connected to the AC IN inlet on the rear panel or not plugged in the wall outlet.	Connect the power cable firmly.
This unit suddenly turns off.	Auto standby mode is set to on.	Set the auto standby mode to off.
The disc tray does not close completely.	A foreign object is obstructing the tray.	Carefully check the disc tray and remove the foreign object.
Disc playback does not start or a disc number does not light upon display.	The disc is damaged.	Check the disc carefully; replace it if necessary.
	There is moisture on the laser pickup.	Wait 20 to 30 minutes after turn on this unit ON before trying to play back a disc.
	The disc is loaded upside down.	Reload the disc with the label side up.
	The disc is dirty.	Clean the disc.
	The format of the MP3 or WMA file is not compatible with this unit.	Replace the disc with a correctly recorded disc playable with this unit.
	The CD-RW (ReWritable) disc is not recorded correctly.	Replace the disc with a correctly recorded disc playable with this unit.
	The disc is a non-standard disc not playable with this unit.	Replace the disc with a correctly recorded disc playable with this unit.
	This unit is in iPod/USB mode.	Switch to disc mode by pressing CD/USB.
iPod playback does not start though iPod is connected.	The connected iPod is not compatible with this unit.	Connect an iPod compatible with this unit. The compatible iPod are as follows: iPod classic (including 120GB model) iPod nano (2nd, 3rd and 4th generations) iPod touch (1st and 2nd generations) (As of April 2009)
	This unit is in disc mode.	Switch to iPod/USB mode by pressing CD/ USB.
USB playback does not start.	Improper USB device connections.	Connect the iPod/USB device again.
	The format of the MP3 or WMA file is not compatible with this unit.	Replace the file with a correctly recorded file playable with this unit.
	This unit is in disc mode.	Switch to iPod/USB mode by pressing CD/ USB.
Playback is delayed, or begins at the wrong place.	The disc may be scratched or damaged.	Check the disc carefully; replace it if necessary.
No sound.	Improper output cable connections.	Connect the cables properly. If the problem persists, the cables may be defective.
	Improper amplifier operation.	Set the amplifier controls to the correct input selection.
Sound of a component connected to the DIGITAL OUT jacks is not played.	PURE DIRECT is turned on.	Turn PURE DIRECT off. Or make an analog connection.
Sound "skips".	This unit is being subjected to vibrations or impacts.	Relocate this unit.
	The disc is dirty.	Clean the disc.
Sound "hums".	Improper cable connections.	Securely connect the audio cables. If the problem persists, the cables may be defective.
Noise from a nearby tuner.	The tuner is too close to this unit.	Move the tuner and this unit farther apart or turn off this unit.
Noise from inside of the disc tray.	The disc may be warped.	Replace the disc.
The remote control does not work or function properly.	Wrong distance or angle.	The remote control functions within a maximum range of 6 m (20 ft) and no more than 30 degrees off-axis from the front panel.
	Direct sunlight or lighting (from an inverter type of fluorescent lamp, etc.) is striking the remote control sensor of this unit.	Reposition this unit.
	The batteries are weak.	Replace all batteries.

SPECIFICATIONS

Audio Section
Frequency response		2 Hz - 20 kHz, ± 0.5 dB
Harmonic distortion + noise (1 kHz)		0.003% or less
S/N ratio		105 dB or more
Dynamic range		96 dB or more
Output voltage (1 kHz, 0 dB)		2.0 ± 0.3 V
Laser Diode Properties
Material		GaAlAs
Wavelength		790 nm
Laser Output		max. 1.23 μW*
General
Power requirements	U.S.A. and Canada models	AC 120 V, 60 Hz
	Australia model	AC 240 V, 50 Hz
	Europe model	AC 230 V, 50 Hz
	Asia and General models	AC 110-120/220-240 V, 50/60 Hz
Operating temperature		+5°C to +35°C (+41°F to +95°F)
Power consumption		16 W
Standby power consumption		less than 1 W
Dimensions (W × H × D)		435 × 116 × 405 mm (17 1/8 × 4 5/8 × 16 in)
Weight		6.2 kg (13.7 lbs)

* This output is the value measured at a distance of about 200 mm from the objective lens surface on the Optical Pick-up Block.

Please note that all specifications are subject to change without notice.

CAUTION

READ THIS BEFORE OPERATING YOUR UNIT.

1. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2. Install this sound system in a well ventilated, cool, dry, clean place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. For proper ventilation, allow the following minimum clearances.
   Top: 2.5 cm (1 inch)
   Rear: 2.5 cm (1 inch)
   Sides: 2.5 cm (1 inch)
3. Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds.
4.
   Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.
5. Avoid installing this unit where foreign objects may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:
   • Other components, as they may cause damage and/or discoloration on the surface of this unit.
   • Burning objects (i.e. candles), as they may cause fire, damage to this unit, and/or personal injury.
   • Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user and/or damage to this unit.
6. Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.
7. Do not plug in this unit to a wall outlet until all connections are complete.
8. Do not operate this unit upside-down. It may overheat, possibly causing damage.
9. Do not use force on switches, knobs and/or cords.
10. When disconnecting the power cable from the wall outlet, grasp the plug; do not pull the cable.
11. Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.
12. Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.
13. To prevent damage by lightning, keep the power cord disconnected from a wall outlet or the unit during a lightning storm.
14. Do not attempt to modify or fix this unit. Contact qualified Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons.
15. When not planning to use this unit for long periods of time (i.e. vacation), disconnect the power cable from the wall outlet.
16. Install this unit near the wall outlet and where the power cable can be reached easily.
17. Be sure to read the "TROUBLESHOOTING" section in this manual on common operating errors before concluding that this unit is faulty.
18. Before moving this unit, press to turn off this unit and then disconnect the power cable from the wall outlet.
19. The batteries shall not be exposed to excessive heat such as sunshine, fire or like.
20. VOLTAGE SELECTOR (Asia and General models only)
    The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the wall outlet. Voltages are:
    AC 110/120/220/230-240 V, 50/60 Hz

As long as this unit is connected to the wall outlet, it is not disconnected from the AC power source even if you turn off this unit by .

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LASER SAFETY
This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

This unit emits visible laser radiation when open. Avoid direct eye exposure to beam. When this unit is plugged into the wall outlet, do not place your eyes close to the opening of the disc tray and other openings to look into inside.

The laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Yamaha CD-C600 Manual
