KONQUEST KBP-2910W Manual

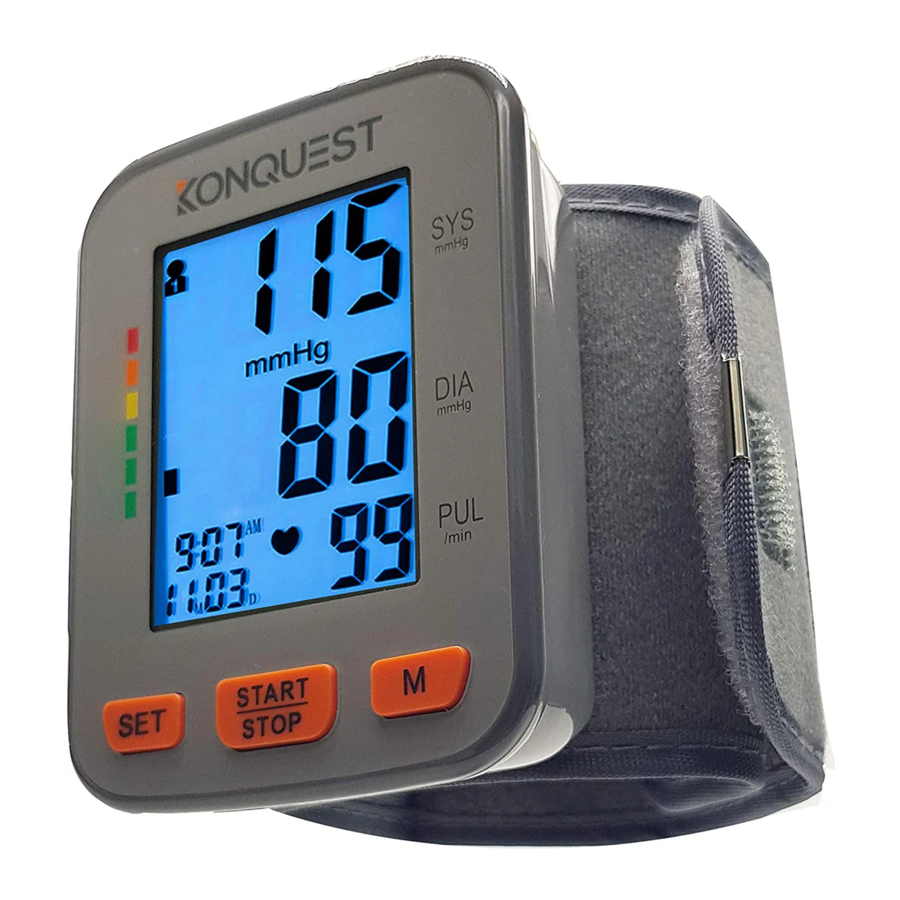

PRODUCT STRUCTURE

1. START/STOP button
2. LCD display screen
3. Systolic blood pressure
4. Diastolic blood pressure
5. Pulse rate
6. Memory button
7. Set button
8. Blood pressure classification indicator
9. Wrist cuff

DISPLAY DESCRIPTION

1. Group/Users
2. Low battery indicator
3. WHO Blood pressure classification indicator
4. Last 3 results average
5. Irregular heartbeat indicator
6. Time
7. Date
8. Systolic blood pressure
9. Diastolic blood pressure
10. Pulse rate

QUICK START

1. Install batteries. Figure A.

2. Remove clothing from wrist area. Figure B.

3. Rest for several minutes prior to testing.
4. Wrap cuff around left wrist. Figure C.

5. Sit in a comfortable position and place wrist level with heart. Figure D.

6. Press " START/STOP " Button to start testing. Figure E.


WHO BLOOD PRESSURE CLASSIFICATION INDICATOR

The KBP-2704A is equipped with a classification indicator based on established guidelines from the World Health Organization. The chart below (color coded on monitor unit) indicates test results.

HEALTH REMINDER

Hypertension is a dangerous disease that can affect the quality of life. It can lead to a lot of problems including heart failure, kidney failure, and cerebral hemorrhaging.

By maintaining a healthy lifestyle and visiting your physician on a regular basis, hypertension and relative diseases are much easier to control when diagnosed in their early stages.

Note: Do not be alarmed if an abnormal reading occurs. A better indication of an individual's blood pressure occurs after 2-3 readings are taken at the same time each day over an extended period of time. Consult your physician if test results remain abnormal.
