Konquest KBP-7173A User Manual

Arm blood pressure monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

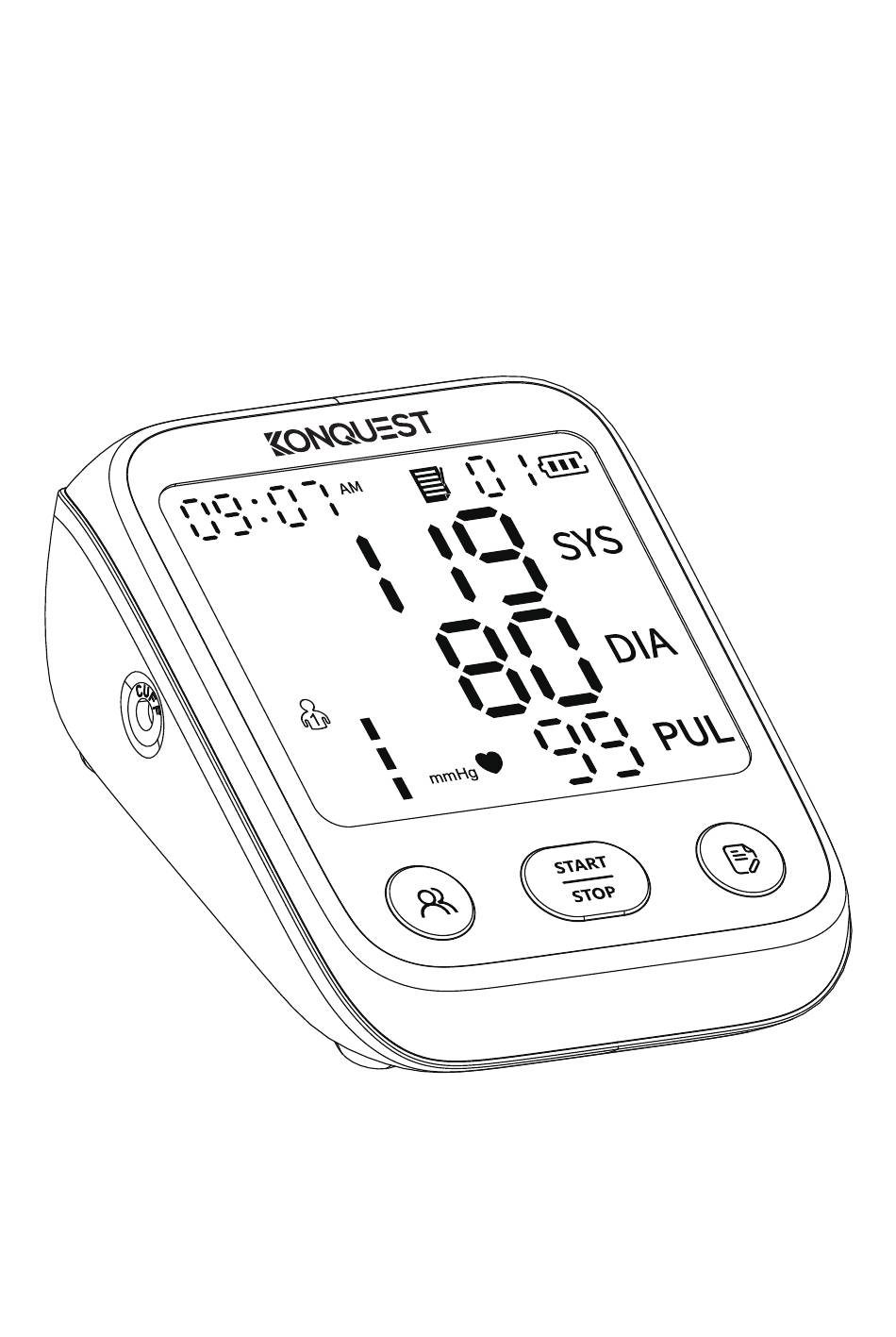

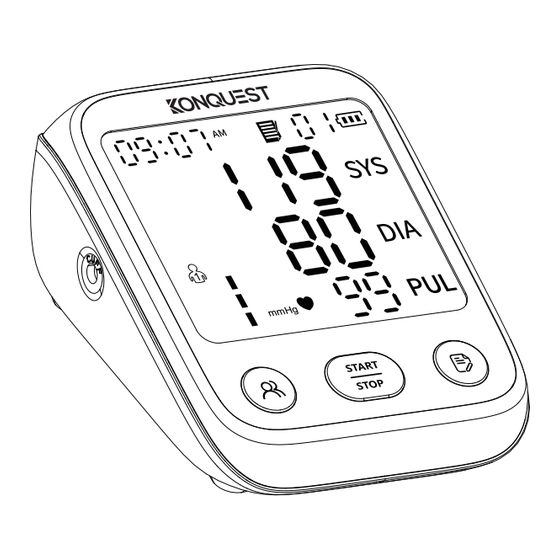

Arm Blood Pressure Monitor
User Manual
Model: KBP-7173A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBP-7173A and is the answer not in the manual?

Questions and answers

Related Manuals for Konquest KBP-7173A

Summary of Contents for Konquest KBP-7173A

  • Page 1 Arm Blood Pressure Monitor User Manual Model: KBP-7173A...

  • Page 3: Table Of Contents

    Table of Contents 1. Unpacking Inspection ..............1 2. Packing List .................. 1 3. Safety Precautions ..............2 4. Product Composition ..............3 5. Intended Use / Instructions for Use .......... 3 6. Contraindication ................3 7. Product Parts ................4 8.

  • Page 4: Unpacking Inspection

    Thank you for purchasing the Arm Blood Pressure Monitor. The monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood movement through your brachial artery and converts the movements into a digital reading. The device can be used in homecare environment, and the patient is an intended operator, and all the functions can be safely used.

  • Page 5: Safety Precautions

    3. Safety Precautions Knowledge of the warning signs and symbols is crucial to the safe and proper use of this device. Kindly get informed on the following signs and symbols which you might encounter within this user manual or on the label: Warning information, refer to the attached document Device classification: type BF applied part...

  • Page 6: Product Composition

    Manufacturer Date of manufacture Serial number Lot number EU authorized representative 4. Product Composition This product is composed of the main body and cuff. 5. Intended Use / Instructions for Use The Arm Blood Pressure Monitor is intended to measure the systolic blood pressure and diastolic blood pressure, as well as the pulse rate of the adult person via non-invasive oscillometric technique at medical facilities or at home.

  • Page 7: Product Parts

    7. Product Parts (1) Main Body LCD Screen User Selection/ General Setting Button START/STOP Button Memory Button Power Input of Type-C Charging Port (2) Display Screen 1. Date and Time 2. Average Value Icon 3. "Keep Still" Indication 4. Bluetooth Icon 5.

  • Page 8: Color Indicator

    8. 3-color Indicator Yellow Indicator Light for Mild High Red Indicator Light for High Green Indicator Light for Normal Blood Pressure or Hypertension Blood Pressure or Hypertension Systolic Blood Diastolic Blood Color Hierarchical Pressure (mmHg) Pressure (mmHg) Display Relationship ≥160 ≥100 and (or) 140-159...

  • Page 9: Function Setting

    Remove the batteries if you do not intend to use the device for a long time (over 3 months). (2) Type-C Connection for Power Supply In addition to the batteries, the power can also be supplied by plugging into d.c. 5V external power supply through a Type-C port.
  • Page 10 User 1 User 3 (Guest Mode) User 2 (2) Date And Time Setting In the power-off mode, press the " " button for about 3 seconds to enter the date setting interface, and the "year" will flash. Press the " "...

  • Page 11: How To Apply The Arm Cuff

    (3) Unit Display Setting There are two units of blood pressure display, mmHg and kPa. The default unit is mmHg. In the power-off mode, press the " " button for about 5 seconds to enter the unit selection. Press the " "...
  • Page 12 (2) Place your hand through the cuff loop. Pull the cuff until it reaches your upper arm. Note: The bottom edge of the arm cuff should be 0.79-1.18 inches (2-3cm) above the elbow. The air tube should be on the inside of your arm and aligned with your middle finger.
  • Page 13 • Make sure that the air tube is positioned on the inside of your arm and wrap the cuff securely, so it can not move around your arm. Note: Repeated measurement will result in blood congestion in the arm, which will affect the measurement result. How to avoid blood congestion and ensure the repeated measurement is accurate? You can raise the left hand and hold the fist several times, or...

  • Page 14: How To Take Proper Measurements

    12. How To Take Proper Measurements (1) Preparation Before Measurement -- Take off the clothes on the arm. -- Always measure in the same arm (generally the left arm). -- Remain still and keep quiet during the measurement. -- Relax as much as possible and do not talk during measurement.
  • Page 15 (2) Taking A Measurement 1) Fasten the arm cuff following the instruction of "HOW TO APPLY THE ARM CUFF". Start the measurement after wearing the cuff correctly. 2) Press the " " button. After all icons are turned on, the monitor will start inflating for measurement and display "...
  • Page 16 Note: If you feel uncomfortable during the measurement, press the " " button immediately to stop the measure- ment. Please consult your doctor if unexpected readings are obtained. (3) Memory Function 1) Each measured value is stored automatically under the appropriate user group.
  • Page 17 3) Delete Memory In the Standby mode, press the " " button to select the user group whose measured values need to be deleted. Press the " " button to power off the device and press the " " button once to activate the screen. Then keep pressing the "...

  • Page 18: Specifications

    (5) "Keep Still" Indication The " " icon flashes when you move during the measurement, which may cause incorrect measurement results. Please adjust your posture and measure again. 13. Specifications Model AOJ-30G Display LED screen Measuring Method Oscillometric measurement Measuring Part Upper arm Pneumatic Pressure...
  • Page 19 Memory It can be used for 3 users (User 1, User 2 and Guest mode).199 sets for each user. Gues mode without memory. Dimension 130 mm (L) x 100 mm (W) x 60 mm (H) (5.12 inches x 3.94 inches x 2.36 inches) Screen Size 81.2mm (L) x 70.9mm (W) (4.2 inches)

  • Page 20: Contraindications, Precautions, Warnings And Prompt Instructions

    Transportation and Avoid strong impact, direct impact, Storage exposure or rain during transportation. Environment The device shall be stored indoors at the temperature of -20℃~55℃ and the relative humidity of 10%~93%. Atmospheric condition: 70kPa-106kPa without corrosive gas and with good ventilation. 14.
  • Page 21 ● DO NOT take medicine based on readings from the device. Contact your physician for specific information about your blood pressure. The patient should not self-diagnose or self-medicate per measured results. Kindly adhere to the instructions of your physician or health provider. ●...
  • Page 22 you experience skin irritation or discomfort. ● Consult with your physician before using this monitor if you have had a mastectomy. ● Consult with your physician before using this monitor if you have severe blood flow problems or blood disorders, because the cuff inflation can cause bruising.

  • Page 23: Common Q & A On Blood Pressure

    necessary, all equipment involved must be checked for normal operation. ● The use of accessories and transducers other than those specified or provided by the manufacturer is prohibited. Failure to adhere to this might result in increased electro- magnetic emissions or decreased electromagnetic immunity of the device.
  • Page 24 not placed right, no arterial pressure value will be obtained, and the blood pressure value might be much higher than it is. Therefore, properly position the cuff. ● The cuff is not tight enough. If the cuff is loose, the compression force might fail to transmit to the artery, causing the blood pressure value to be much higher than it is.

  • Page 25: Abnormal Phenomena And Handling

    16. Abnormal Phenomena and Handling If the measurement is abnormal, any of the following symbols may appear. Kindly use the recommended method for measurement. Errors Cause/Solution Er U The pressure cannot reach 30 mmHg (4 kPa) in 12 seconds. Er H The inflation reaches 295mmHg, and it deflates automatically after 20ms.
  • Page 26 * Troubleshooting Anomaly Possible Faulty Solution Failure to Whether the power is Replace the batteries or power on insufficient insert the Type-C charging cable for power supply Whether the positive Install the batteries and negative poles of correctly the battery are installed reversely Whether the air tube Insert the air tube plug...

  • Page 27: Cleaning And Disinfection

    17. Cleaning and Disinfection (1) Cleaning The device can be cleaned with a soft, clean cloth damp- ened with a small amount of neutral detergent or water. Do not use corrosive cleaning agents, and take care not to o immerse any part of the monitor in any fluid. (2) Disinfection Recommended Disinfecting Agent 70% Isopropanol solution...
  • Page 28 It is suggested to disinfect the monitor before and after use each time. Each time of disinfection shall be completed within 1min. The number of repeated disinfection each time shall not exceed 2 times. (3) Disposal Dispose of the monitor, other components and optional accessories according to applicable local regulations.

  • Page 29: Upkeep And Maintenance

    18. Upkeep and Maintenance Water or neutral detergent - Always keep the surface of the device clean and tidy, helpful to prolong its service life. - If the device is dirty, please wipe with a dry soft cloth. If the dirt cannot be eliminated easily, wipe with a soft cloth stained with water or neutral detergent, and then dry with a dry cloth.

  • Page 30: Appendix 1 Emc Information

    19. Appendix 1 EMC Information Guidance and manufacturer's declaration - Electromagnetic emission The Arm Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the Arm Blood Pressure Monitor should assure that it is used in such an environment.
  • Page 31 Guidance and manufacturer's declaration - Electromagnetic immunity The Arm Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the arm Blood Pressure Monitor should assure that it is used in such an environment. Immunity test IEC 60601 test Compliance level...
  • Page 32 Radiated RF 10 V/m 10 V/m IEC61000-4-3 80 MHz - 2,7 80 MHz - 2,7 GHz GHz 80 % AM at 80 % AM at 1 kHz 1 kHz NOTE: UT is the a.c. mains voltage prior to application of the test level Guidance and manufacturer’s declaration - electromagnetic Immunity...
  • Page 33 1720 1700– Pulse 1990 1800; modulation 1845 CDMA 217 Hz 1900; 1970 1900; DECT; Band 1, 3, 4, 25; UMTS 2450 2400– Bluetooth, Pulse 2570 WLAN, modulation 802.11 217 Hz b/g/n, RFID 2450, Band 7 5240 5100- WLAN Pulse 5800 802.11 modulation 5500...
  • Page 34 Guidance and manufacturer’s declaration - electromagnetic Immunity Radiated RF Test Moduation IEC 60601-1-2 Compliance IEC61000-4-39 Frequency Test Level level (A/m) (Test (A/m) specifications 30 kHz ENCLOSURE 134.2 kHz Pulse PORT modulation IMMUNITY to 2.1 kHz proximity 13.56 kHz Pulse magnetic modulation fields) 50 kHz...
  • Page 36 Manual version: A0 Software version: V1.0 Revision date: 2022-08...
