INTRODUCTION

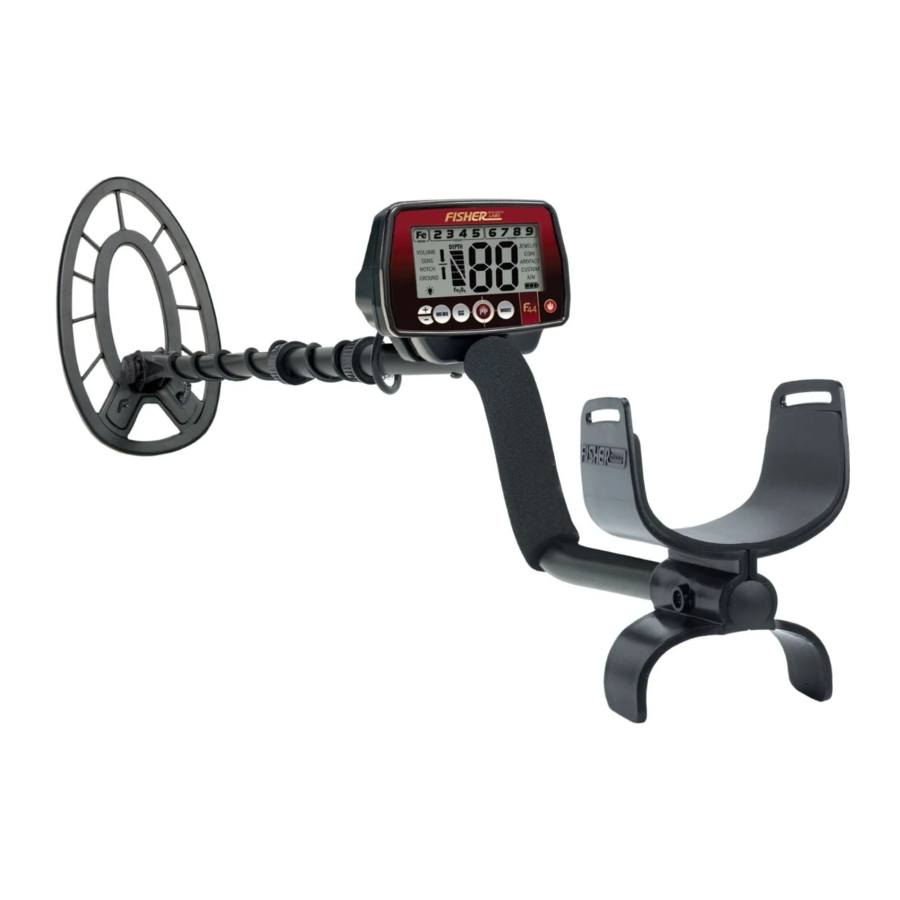

The F44 is the result of many years of software engineering and features the latest advancements in lightweight design and target accuracy. The F44 can be used with its default modes, or use the Custom mode to create your own setup. No longer will weather be a force that stops you from enjoying your sport, the F44 is completely weatherproof. Laugh at the rain.

The F44 operates at a frequency of 7.69 kHz and comes with a 11" triangulated concentric elliptical searchcoil. The F44 shares searchcoil compatibility with the F11 and F22.

TERMINOLOGY

The following terms are used throughout the manual and are standard terminology among detectorists.

RELIC
A relic is an object of interest by reason of its age or its association with the past. Many relics are made of iron, but can also be made of bronze or precious metals.

IRON
Iron is a common, low-grade metal that is an undesirable target in certain metal detecting applications. Examples of undesirable iron objects are old cans, pipes, bolts and nails. Sometimes the desired target is made of iron. Property markers, for instance, contain iron. Valuable relics can also be composed of iron; cannon balls, old armaments and parts of old structures and vehicles can also be composed of iron.

FERROUS
Metals which are made of, or contain iron.

ELIMINATION
Reference to a metal being "eliminated" means the detector will not emit a tone, nor display a Target-ID, when a metal object passes through the searchcoil's detection field.

DISCRIMINATION
When the detector emits different tones for different types of metals, and when the detector "eliminates" certain metals, we refer to this as the detector "discriminating" among different types of metals.
Discrimination is an important feature of professional metal detectors. Discrimination allows the user to ignore trash and otherwise undesirable objects.

PINPOINTING
Pinpointing is the process of finding the exact location of a buried object. Long-buried metals can appear exactly like the surrounding soil and can therefore be very hard to isolate from the soil.

V.C.O.
Meaning "voltage controlled oscillator," the V.C.O. audio method causes both the audio pitch and the volume to rise as signal strength increases. V.C.O. improves the user's ability to interpret a target's size and depth. Very weak signals (for small or very deeply buried objects) have the faintest volume and the lowest pitch. Larger objects, and those closer to the searchcoil, will induce a higher volume and higher pitch sound.

GROUND CANCELATION
Ground Cancelation is the ability of the detector to ignore, or "see through," the earth's naturally occurring minerals, and only sound a tone when a metal object is detected. This detector incorporates proprietary circuitry to eliminate false signals from many mineralized soils.

CONTENTS OF BOX

The following detector components are in the box:

ASSEMBLY

Tool Required: #1 Phillips Screwdriver

1. Remove the Screw from the Armrest.
   Slide the Armrest over the end of the S-Rod.
   Attach with Screw and Lock-Nut.
2. Attach Control Housing with Screws; install back screw first.
   NOTE:
   • The Handgrip fits under the Control Housing. Handgrip may partially cover one mounting hole. Peel back Handgrip to expose the front hole.
   • Ensure the headphone jack cover is properly seated before attaching the control housing.

Place Headphone Jack Cover in recessed pocket so it is level with the surface of the housing and held in place between the housing and S-Rod.

Forcing in MIDDLE STEM with CAM LOCK raised may form a burr on cam lock. If this happens, remove burr with knife to allow insertion.

*Note: Very tall users can purchase the optional Extended Lower Stem (TUBE5X), for extended reach.

3. Position S-Rod upright.
4. Rotate the LOCKING COLLAR fully in the counterclockwise direction.
5. Insert your finger inside the tube and make sure the INTERNAL CAM LOCK is flush with the inside of the tube.
6. Insert the MIDDLE STEM into the S-ROD, with the SILVER BUTTON pointed upward.
7. Rotate the MIDDLE STEM until the SILVER BUTTON locates in the hole.
8. Twist the LOCKING COLLAR fully in the clockwise direction until it locks.
9. Repeat this process on the LOWER STEM.
10. Using the BOLT and KNURLED KNOB, attach the SEARCHCOIL to the LOWER STEM.
11. Adjust the LOWER STEM to a length that lets you maintain a comfortable upright posture with your arm relaxed at your side, and the SEARCHCOIL parallel to the ground in front of you.
12. Wind the CABLE securely around the STEMS, leaving slack at the bottom.
13. Connect CABLE PLUG to housing.
    Do not twist the Cable or Plug. Turn Locking Ring only. Use minimal finger pressure to start the threads. Do not cross-thread. When the Locking Ring is fully engaged over the threaded connector, give it a firm turn to make sure it is very tight. When the Locking Ring is fully engaged over the threaded connector, it may not cover all of the threads.

BATTERIES

The detector requires two AA batteries. We recommend ALKALINE batteries (not included).
Do not use ordinary "Zinc Carbon" batteries.
Do not use "Heavy Duty" batteries.

Rechargeable batteries can also be used. If you use rechargeables, we recommend using a "Nickel Metal Hydride" rechargeable battery. The battery compartment is located on the right side of the Control Housing. Both batteries should be installed with the negative terminal down.

Remove battery tube:

1. Slide the battery door off.
2. Extend the handle on the battery tube (with your finger or by using the tab on the battery door to pry the handle into the extended position)
3. Pull on the handle to remove (do not use the battery door tab to pull the tube out of the control housing, as this may cause damage to the battery door)

To install battery tube:

1. Position the handle on the battery tube in the lowered position.
2. Firmly push down on the battery tube, until the battery tube handle is flushed with the housing. (The battery tube will only insert one way, with the brass contacts facing towards the display and the hinged side of the handle towards the back.)

BATTERY LIFE

Expect 25 to 30 hours of life from 2 AA Alkaline batteries. Rechargeable batteries provide about 15 hours of usage per charge. Backlight increases power consumption and decreases battery life, with significant power drain at maximum brightness.

BATTERY INDICATOR

The battery icon has three segments plus an outline segment. The amount of battery voltage for two ALKALINE batteries is indicated as follows:

	All segments black: >2.8 volts
	Right segment grey, other two black: >2.6 volts
	Right segment off, other two black: >2.4 volts
	Right segment off, mid grey, left black: >2.2 volts
	Right and mid segments off, left black: >2.0 volts
	Right and mid segments off, left grey: >1.8 volts
	All segments off, outline flashing: < 1.8 volts

It is recommended to change the batteries when you see the one black segment.

SPEAKER VOLUME AND BATTERY CHARGE

You may notice the speaker volume drop while one battery segment is illuminated. With the outline flashing, low speaker volume will be very apparent.

QUICK-START DEMONSTRATION

1. Supplies Needed
   • Nail (made of iron)
   • U.S. Quarter (or silver coin)
   • U.S. Nickel
   • Gold Ring
   • U.S. Dime
   • U.S. Penny, dated after 1982 (post-1982 pennies are made of Zinc) (Most newer non-U.S. coinage also contains mostly Zinc)
2. Position the Detector
   1. Place the detector on a table with the searchcoil hanging over the edge (or have a friend hold the detector with the searchcoil off the ground).

   2. Keep the searchcoil away from walls, floors and metal objects.
   3. Remove watches, rings and jewelry.
   4. Turn off lights or appliances whose electromagnetic emissions may cause interference.
   5. Pivot the searchcoil back.
   6. Press to power on. A series of 10 numbers will sequence across the screen, this is the serial number.
   7. Press twice. All target categories are now illuminated.
3. Demonstrate DISCRIMINATION Feature:
   1. Pass all objects over the searchcoil and notice the different tones. Notice the target icon indicators and the large two digit target ID number displayed for each item.
      Nail: low tone
      Nickel: medium tone
      Zinc Penny: medium tone
      Gold Ring: most gold rings will register with a medium tone
      Dime: high tone
      Quarter: high tone
   2. Press button twice, to Jewelry Mode. Notice Fe graphic is now removed.
   3. Wave nail over searchcoil. It will not be detected because it has been "discriminated out."
4. Demonstrate NOTCH Feature:
   1. Press until "NOTCH" is illuminated.
   2. Press until Icon "3" is flashing, then wait until icon stops flashing(approximately 5 seconds). The icon will be blanked out.
   3. Pass nickel over the searchcoil. It will not be detected. The nickel has been "notched" out.
   4. Press 4 times, target icon 3 is now flashing, then wait until icon stops flashing (approximately 5 seconds). The icon will now be notched back in.
      Only one target category can be notched at a time. Repeat the process to notch additional categories.
5. Demonstrate DEPTH Indicator:
   1. Pass the Nickel close to the searchcoil (about 1" away).
   2. Notice the depth bar graph indicating a shallow target.
   3. Wave the Nickel farther away from the searchcoil and notice additional bar graph segments illuminating, indicating a deeper target.
6. Demonstrate PINPOINT feature:
   1. Press and hold . "PP" momentarily appears on the screen.
   2. Hold a coin motionless over the searchcoil.
   3. Lower coin toward searchcoil and then raise coin away from searchcoil.
   4. Notice the sound changes as the coin distance varies.
   5. Notice the depth indicator changes as the coin moves up and down.

THE BASICS OF METAL DETECTING

This metal detector is intended for locating buried metal objects. When searching for metals, underground or on the surface, you have the following challenges and objectives:

1. Ignoring signals caused by ground minerals.
2. Ignoring signals caused by metal objects you do not want to find, like nails.
3. Identifying a buried metal object before you dig it up.
4. Estimating the size and depth of objects, to facilitate digging them up.
5. Eliminating the effects of electromagnetic interference from other electronic devices.

Your metal detector is designed with these things in mind.

Ground Minerals

All soils contain minerals. Signals from ground minerals can interfere with the signals from metal objects you want to find. All soils differ, and can differ greatly, in the type and amount of ground minerals present. This detector has proprietary circuitry to automatically eliminate interfering signals from minerals that occur naturally in the ground.

NOTE: This detector will not completely eliminate interference from all types of minerals. For example, the detector IS NOT designed for use on wet sand saltwater beaches. Another example of soil this detector will not eliminate is any soil containing large concentrations of iron oxides, which are usually red in color.

Trash

If searching for coins, you want to ignore items like aluminum foil and nails. You can see the Target-ID of the buried objects, listen to the sounds and then decide what you want to dig up. Or, you can eliminate unwanted metals from detection by using the different Modes or NOTCH feature or use the Custom mode to create your own discrimination settings.

Identifying Buried Objects

Metal objects are identified along the 9-segment Conductivity graphic symbols and with a large 2-digit target ID number in the center of the screen. Both are indicators of the relative electrical conductivity of different objects. Segments to the right indicate more conductive targets. Iron objects will be illuminated with the Fe symbol. The Fe (iron) category will display target ID numbers from 1 to 19.
Gold, nickel and brass objects will be illuminated in the "Gold" group
Silver and copper objects will be illuminated in the "Silver" group .

Size and Depth of Buried Objects

The 6-segment graphic indicates the relative depth of a buried metal object. This graphic can indicate the relative size of different objects or their distance from the searchcoil. For a given object, the more distance between it and the searchcoil, the more segment lines illuminated.

Electromagnetic Interference

The searchcoil produces a magnetic field and then detects changes in that magnetic field caused by the presence of metal objects. This magnetic field the detector creates is also susceptible to the electromagnetic energy produced by other electronic devices. Electric fences, cell phones, cell phone towers, power lines, microwave ovens, lighting fixtures, TVs, computers, motors, etc., all produce EMI which can interfere with the detector and cause it to beep erratically.
The SENSITIVITY control lets you reduce the strength of this magnetic field and therefore lessen its susceptibility to EMI. You may want to operate at maximum strength, but the presence of EMI may make this impossible. If you experience erratic behavior or "false" signals, reduce the sensitivity.

USING THE DEVICE

Sweep Method
Sweep the detector side-to-side over the ground.
Keep the searchcoil parallel to the ground as you sweep; do not lift the searchcoil at the ends of your sweeps.
Searchcoil motion is required for target detection.

11" WATERPROOF SEARCHCOIL

This detector is equipped with an 11" triangulated elliptical concentric waterproof searchcoil. This lightweight, ruggedly constructed searchcoil can be fully submerged into water. The bottom portion of the pole assembly can also be submerged, but the control housing and the searchcoil cable plug connection into the housing must not be submerged. The weatherproofing on the F44 was designed to allow hunting in inclement weather but it was not designed to withstand submersion in water.

Accessory searchcoils are also available for purchase; see back cover or visit www.fisherlab.com. A smaller searchcoil offers more precision and fits into tight spaces. Larger searchcoils provide for more ground coverage on each sweep and penetrate deeper into the ground. Biaxial searchcoils provide better penetration in mineralized soils.

OPERATION and CONTROLS

THE DISPLAY

Target Category Icons
Icons will turn from outlined to solid indicating a detected target. A "blank" position indicates a Notched-out target category.

DEPTH INDICATOR
Coin-sized objects will be detected up to 10" deep. The 6-segment graphic indicator is calibrated to coin-sized objects.
Objects other than coins will still register on the 6-segment depth scale, but the depth indication will be relative. For example, all 6 segments illuminated could indicate a coin buried 10" deep, but could also be a very large object several feet deep. Use the Depth Indicator in conjunction with the Target Category Icons and the aid of Pinpoint to gain more information about the buried target.

OVERLOAD WARNING
If a metal object or highly magnetic soil are too close to the searchcoil, the detector will overload and a "--" will appear on the screen. The detector will make a rapid, repeating mid-tone warning sound. Overload will not harm the detector, but the detector will not function under these conditions. If overload occurs, raise the searchcoil to detect the target from a greater distance, or move to a different location.

MENU

The Menu is located on the left side of the screen. During normal operation the Menu is inactive and the text icons are faded. Press the button to cycle through the menu options. When active, the icon will be bold. Each press of the moves to the next Menu item. Use within each menu item to make adjustments up or down. Here is a description of the Menu options:

VOLUME

Adjust speaker volume from 0 to 20. The default setting is 7. With a setting of "0", the detector will function as normal but it will not emit any sound when targets are detected.
The F44 has FeTone, adjustable Iron audio, a feature to reduce the volume of iron targets to minimize user fatigue.
Volume settings of 10 – 20 are available to control the volume level of the iron targets. As you increase volume from 10 to 20, iron-volume changes from silent to maximum. At each of the 10 – 20 volume settings, nonferrous target response remains at maximum volume. At volume settings 0 – 9 both ferrous and nonferrous targets have equal volume.

Example: at volume setting 15, nonferrous target volume is maximum, ferrous target volume is at "5", or half volume.

Table describes ferrous and nonferrous volume at each setting

Volume
Setting	Nonferrous	Ferrous
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	0
11	10	1
12	10	2
13	10	3
14	10	4
15	10	5
16	10	6
17	10	7
18	10	8
19	10	9
20	10	10

Volume settings will be saved when the detector is turned off.

SENS

Adjust the sensitivity from 1 to 20. The default setting is 12. The higher the number, the more sensitive the detector.
If the detector beeps erratically or beeps when there are no metal objects being detected, reduce the sensitivity.
The searchcoil produces a magnetic field and then detects changes in that magnetic field caused by the presence of metal objects. This magnetic field the detector creates is also susceptible to electromagnetic energy (EMI) produced by other electronic devices. Electric fences, cell phones, cell phone towers, etc., all produce EMI which can interfere with the detector and cause it to beep when no metal is present and sometimes to beep erratically.
Sensitivity settings will be saved when the detector is turned off.

NOTCH

The Notch control allows you to accept or reject different types of metals per each target category group. All categories are eligible for NOTCH. Each mode, Jewelry, Coin, Artifact and Custom, has its own set of notches.

With Notch menu active, press "+" or "-" to program the Notch feature. Each press of the "+" or "-" cycles to a new category and the active position is indicated by a flashing icon. Select desired category and wait 5 seconds or press the menu button for immediate notch setting. That category will reverse status. If the icon had previously been illuminated it will now disappear indicating the category has been eliminated from detection. Likewise, an icon that is not visible on the display will re-illuminate, indicating that category is now notched in and targets will be detected.

All of the 9 target categories can be notched, but only one category can be notched at a time. All Notch settings are saved when the detector is turned off.

GROUND

Adjust the Ground setting from 0 to 99. This provides for manual adjustment of the detector's internal ground setting, which you will usually want to set at the same value as soil's Ground Phase value. See the Ground Cancelation section of the manual for an explanation of Ground Phase.

When adjusting the Ground setting manually, only a two digit ground phase number will be present. Note that when adjusting the Ground setting, the displayed setting changes by 1 number only after 10 keypad presses. The detector actually has 1,000 different ground settings to choose from, but uses only 2 digits to display the number. Reasons for this manual ground cancelation feature are explained in the Ground Cancelation section of the manual.

The Ground menu option is only available in the All Metal (A/M) Mode. In all other modes, the Ground menu option will not appear on the screen, but the manual Ground setting carries over into the Jewelry, Coin, Artifact and Custom modes and Pinpoint.
The Ground setting is not saved when the detector is powered off.

BACKLIGHT

Available adjustment is from 0 to 5. This option controls the brightness of the display backlight. When the backlight is on, is illuminated. In daylight, the backlight can be turned on but will not be visible, draining the batteries. So be sure is not illuminated when a backlighting is not required.

OPERATING MODES

There are four discrimination modes: JEWELRY, COIN, ARTIFACT and CUSTOM, and ALL METAL (A/M) mode. JEWELRY and COIN modes have preset notch settings. You can change all 9 target category notch settings in all four discrimination modes and these changes will be saved on shutdown. Pressing the MODE button will cycle through the modes. The active Mode will have bold text. Use NOTCH to change discrimination settings in each mode. The NOTCH function does not work in All Metal mode.

JEWELRY Mode preset NOTCH: Fe (Iron) category notched out.
COIN Mode preset NOTCH: Fe (Iron) and Target Category groups 2 (Foil) and 4 (Aluminum) notched out.
ARTIFACT Mode: All Target Categories enabled.
CUSTOM Mode: User definable.

FACTORY RESET

To reset your F44 to the default factory settings:

1. Turn the detector off.
2. Hold the MENU button down while pressing the Power button.
   NOTE: This reset will erase any custom tone settings you may have entered in the Custom Mode.

PINPOINT

Press and hold to activate. Searchcoil motion is not required; a motionless searchcoil over a metal target will induce sound.
Audio is V.C.O. The 2-digit number displayed indicates target depth, in inches.
The scale is calibrated to coin-sized objects.
After you have identified a target using a motion mode of detection, press and hold the to identify the target's exact location. This technique can yield more information about the target's shape and size and also find its exact location to facilitate extraction.

Pinpoint as follows:

1. Press and hold
2. Position the searchcoil just barely off the ground and to the side of the target.
3. Move the searchcoil slowly across the target.
   The target is located directly under where the sound is loudest.

Pinpoint Retuning:
Retuning in the Pinpoint Mode is useful in narrowing down the location of a target. To retune the detector, release the button and immediately depress it again. When the user releases the " is displayed momentarily on the screen. The " " indicates the detector is retuning to the incoming signal level.

1. To narrow the response further, position the center of the searchcoil near the center of the response pattern, but not directly over the center.
2. Release .
3. Immediately press-and-hold again.
4. Repeat this narrowing procedure to narrow the field of detection further.

Note: Depth indication is less accurate after narrowing.

COIL DRIFT
If you plan to use PINPOINT for continuous searching, realize that drift will occur over time, causing the detector to gain or lose sensitivity. Periodic retuning of the detector is required to minimize drift; release and press periodically to retune.

PINPOINTING USING MOTION MODES

(without using )

1. Sweep over target in narrowing side-to-side patterns.
2. Visualize a "center line" on the ground where "beep" occurs.
3. Rotate 90° and now sweep along this imaginary line.
4. Visualize a second "center line" on the ground where "beep" occurs.
5. The "X" center pinpoints the target location.

TARGET IDENTIFICATION

Target-ID

This is a motion detector. The coil must be moving for the detector to sense metal except when in Pinpoint. If you stop the coil over a metal object it will null-out and go silent. When metal objects are detected, the detector will emit a sound, a Target ID Category icon will illuminate and a 2-digit Target-ID number will appear on the screen. Possible Target-ID numbers range from 1 to 99. This number represents the electrical conductivity of the target; higher numbers indicate more highly conductive targets.
Target indicators on the screen only represent the last object detected. This detector has fast target response and is able to detect different objects in very close proximity. Therefore, the Target-ID displayed may change rapidly as you sweep the searchcoil.
Three seconds after a target is detected, the ID numbers will time-out and disappear and the Target Category Icon will change to the non-illuminated state.
Solid illumination of a singular target category indicates the detector is confident of the target identification. If target-ID confidence is low, the detector will assign several possible categories with the most likely target category solid black and less likely target categories shaded gray.

Iron/Gold and Silver Indicators

The group border momentarily flashes when an object in that group is present.
The border flashes independently of the notch settings.
Relic hunters will frequently seek out iron-laden sites as good prospective treasure-hunting sites. The iron indicator alerts the user to the presence of iron, even if iron has been discriminated out. Relic hunters can search free of iron-target audio, yet still be alerted to the presence of ferrous objects or search with no discrimination and use the FeTone feature to decrease the Audio Volume of ferrous targets

4-Tone Target Identification

The detector will provide 1 of 4 sounds for any metal object detected: a bass, low, medium or high tone. This audio feedback system is useful in conjunction with the visual Category Icon system described above.

See chart below for description of tones induced by different metals in different modes:

	Iron	Gold				Silver
	Fe	2	3	4	5	6	7	8	9
	Iron	Foil	Nickel	Alum	Zn	Dime	Qtr	Half	Dollar
Jewelry	Bass	Med	Med	Med	Med	High	High	High	High
Coin	Bass	Bass	Med	Bass	Low	High	High	High	High
Artifact	Bass	Med	Med	Med	Med	High	High	High	High
Custom	User definable (default VCO)
AM	VCO

Ferrous, gold and silver targets will generally register within their corresponding category icon ranges. Targets that are not gold or silver register within the same range according to their electrical conductivity.

Note the electrical conductivity of a target depends on both its composition and size. Silver is more conductive than gold so it registers farther to the right; and the larger the silver object, the farther it registers to the right. There are a wide variety of metals and no target can be identified for certain until unearthed. See coin reference table below.

Target-ID Coin Reference

Below are known Target-IDs for some reference coins:

Merovingian Triens (gold, France)	21
Celtic Potin (copper+lead)	27
Russian Scale Peter I, 1705, Silver, 0.25 gr.	34-36
US Nickel	34-36
Roman Nummus (bronze)	40
2 Euro Coin	43-47
British 20p	45-46
USSR, 5 kopeek, 1961, Bronze, D 25 mm.	46
Bulgarian 1 lev	47-49
1 Euro Coin	48-56
Medieval double sol coin (France)	50
British £1	57-62
US Dime	64-66
Polish Zloty (Pre-WWII) 2zl (1933 silver)	75-76
US Quarter	74-77
US Silver Dollar	90-92
Russian, 1 ruble Nikolay II,1896, Silver, D 34 mm.	97-98

Jewelry, Coin and Artifact modes have predefined audio tones for the various Target Category groupings. The All Metal mode has a single proportional tone (V.C.O.) for all categories. The Custom mode is programmable and users can assign any tone to any of the Target Category groups. The Custom modes default tone for all categories is a single proportional tone (V.C.O.). V.C.O. varies in pitch and volume depending on the depth and size of the target. The custom tones are automatically saved when the unit is turned off.

Custom Mode Programmable Tones

To program your Custom mode tones:

1. Press button until CUSTOM is activated.
2. Press and hold for approximately 1 second. The Fe icon will start flashing.
3. Press button to cycle through target categories.
4. To select a tone for the desired category, press "+" or "-" to cycle through 5 tone options (0=VCO, 1=bass, 2=low, 3=medium, 4=high).
5. To exit the tone selection mode, press .
6. To continue setting tones for additional categories Press to set selection and cycle to next target category. To exit the tone selection mode, press .

DEPTH & TARGET DISPLAY

READING THE DISPLAY
The display shows the PROBABLE identification of the metal detected, as well as its PROBABLE depth.
The detector will register a target upon each sweep of the searchcoil, when a buried target has been located and identified. If, upon repeated passes over the same spot the target identification reads inconsistently, the target is probably a trash item. With practice, you will learn to unearth only the repeatable signals.
Target-ID numbers, as indicated on the Coin Reference chart, are highly accurate when those items are detected. However, there are many other metallic items that will register within these groups, so identification is not always accurate. Multiple targets in close proximity to each other, especially if one is above the other in the soil matrix, can display non-typical ID and Depth, or "mask" out the deeper target altogether. The greater the distance between the target and the searchcoil, the less accurate the target identification.
Depth indication in the Pinpoint mode is accurate on coin-sized objects as defined in the category groups, but it too can be inaccurate if multiple targets of varying depth and conductivities are in close proximity of each other.

GOLD TARGETS: Gold objects will generally register in the "GOLD" group with smaller items in groups 2 & 3 and larger items in groups 4 & 5. Gold flakes will register under iron.

SILVER TARGETS: Silver objects will register in the "Silver" group, A U.S. dime will ID in group 6, a US quarter in group 7, a U.S. half dollar in group 8 and a U.S. dollar in group 9.

1-19. All sizes of iron objects will register on the far-left side of the scale. This could indicate a worthless item such as a nail, or a more valuable historic iron relic.

20-29. Aluminum foil, such as a gum wrapper, will register as foil. A small broken piece of pull tab may also register here.

30-39. U.S. Nickels, most newer pull-tabs from beverage cans, the type intended to stay attached to the can, will register here. Many gold rings will also register here.

40-49. Many medium-sized gold rings also register here. A few newer pull-tabs and many gold rings will also register here. S-CAP: Older screw caps from glass bottles and large gold rings (like a class ring) could also register here. Some nonU.S. coins of recent vintage will also register here.

50-59. US. Zinc coins and many non-U.S. coins of recent vintage are classified here.

60-69. Copper coins, small silver coins (U.S. dime)

70-79. Medium sized silver coins (U.S. quarters)

80-89. Large silver coins (U.S. half dollars).

90-99. Very Large silver coins (U.S. silver dollar). When used in areas outside the U.S., these categories identify coins or metal objects of high relative conductivity (such as silver coins or relics), or large objects made of any type of metal.

The target indications are visual references. Many other types of metal can fall under any one of these categories. While the detector will eliminate or indicate the presence of most common trash items, it is impossible to accurately classify ALL buried objects.

See Target-ID Coin Reference Chart.

GROUND CANCELATION

WHAT IS GROUND CANCELATION?
Why do I need to cancel out the ground?
All soils contain minerals. Signals from ground minerals are often tens or hundreds of times as strong as the signal from a buried metal object. The magnetism of iron minerals, found in nearly all soils, causes one type of interfering signal. Dissolved mineral salts, found in some soils, are electrically conductive, causing another type of interfering signal.
Ground Cancelation is the process by which the metal detector cancels the unwanted signals coming from the ground minerals while still detecting the signals from buried metal objects. This is accomplished by matching the detector's Ground setting to the Phase of the ground signal.
When the detector is calibrated to the soil, the result will be deeper target detection, quieter operation and more accurate target identification.
The most accurate GROUND value is the value displayed when "pumping" the searchcoil over the ground in an area free of metal.

Ground Grab Computerized Ground Cancelation:
This control allows you to set the detector's internal ground setting equal to the Phase of the ground you are searching over.
Press-and-hold to invoke automatic ground cancelation. This will "grab" the ground value and store it in the detector.
In order to calibrate the detector to the most accurate ground value, pump the searchcoil up and down over the ground while standing in one place over a patch of ground free of metal.

1. Press-and-hold .
2. Start with searchcoil 6" above the ground; lower it to about 1" from the ground.
3. Continue the pumping motion up and down until the 2-digit number stabilizes and remains a constant value.
4. At the point where the 2-digit number stops changing, the detector has correctly measured the ground Phase.
5. Release to set the detector's internal ground setting equal to the last value displayed.
   During GROUND GRAB, the detector jumps into ALL METAL operation. The sound you hear is the sound of the ground.
6. Note: GROUND GRAB will not automatically balance over highly conductive soils, such as a wet salt water beach. Automatic balancing is not possible in soils with ground values less than 40. The screen will display "--" and an alarm will sound if over metal or in ground with a value less than 40.

Ground Balance Error Indicator
When using a metal detector the Ground Phase conditions can change from location to location and even within smaller areas only yards apart. Performance can suffer if the detector is not ground balanced properly so it is important to know when the conditions have changed.
The Ground Balance Error arrows will show the user when to rebalance the detector; the downward pointing arrow icon will illuminate and blink when the ground phase condition is lower than the ground balance setting, and the upward pointing arrow icon will illuminate and blink when the ground phase condition is higher than the ground balance setting. When these conditions occur you should rebalance the detector.

UP ARROW:
Blinking means ground phase value has increased above ground balance set point.

DOWN ARROW:
Blinking means ground phase value has dropped below ground balance set point.

MANUAL GROUND ADJUSTMENT

Refer to the GROUND section, on how to manually adjust the detector's internal Ground setting. After selecting Ground in the Menu selections, perform the coil pumping described above, and listen to the audio sounds.

If the Ground setting is incorrect, there will be a difference in the sound as the searchcoil is either moving toward or away from the ground. It sounds like you are either pulling the sound out of the ground, or pushing the sound into the ground.

• If the sound gets louder as you raise the searchcoil, increase the Ground setting.
• If the sound gets louder as you lower the searchcoil, reduce the Ground setting.

Repeat this process of adjusting until there is no sound as you lower or raise the coil.
NOTE: Experienced users often prefer to adjust the Ground setting to get a weak but audible response when lowering the searchcoil. This is called "adjusting for positive response".

Fe₃O₄ BAR GRAPH
The Fe₃O₄ 4-segment bar graph indicates the amount of ground mineralization, independent of type, expressed as an equivalent volume concentration of magnetite (Fe₃O₄). It updates every second. It is sensitive to motion and will give the most accurate readings if you "pump" the searchcoil up and down several times over the ground. The presence of metal or "hot rocks" will cause the readings to be inaccurate. If you stop moving the searchcoil, the bar graph will go blank.

INDICATION %Fe3O4		SUSCEPTIBILITY
4 Bars	-High	0.4 - 1.6	1,000 - 4,000
3 Bars	-Medium	0.1 - 0.4	250 - 1,000
2 Bars	-Low	0.025 - 0.1	60 - 250
1 Bars	-Very Low	0.006 -.025	15 - 60
None	- -	less than.006	less than 15

Magnetic susceptibility is expressed in micro-cgs units. In a salt water environment in the absence of iron minerals, the bar graph indicates relative electrical conductivity.

In soils with greater than 4,000 micro-cgs units magnetic susceptibility, the signal from the soil may saturate ("overload") the circuits. This will not harm the detector but the machine will not be usable in that condition. The solution is to hold the searchcoil several inches above the soil surface so it isn't "seeing as much dirt". By listening and watching you will know how high you need to hold the searchcoil in order to avoid overload.

The highest magnetic susceptibilities are usually found in soils developed over igneous rocks, in alluvial 'black sand" streaks on beaches, and in red clay soils of humid climates.
The lowest magnetic susceptibilities are usually found in white beach sands of tropical and subtropical regions, and soils developed over limestone.

HEADPHONE JACK

This detector has a 1/4" headphone jack. It works with any stereo headphone (not included) that has a 1/4" plug. When the headphone jack is connected, speaker volume is disabled. Using headphones extends battery life and prevents the sounds from bothering bystanders. Headphone use also facilitates detection of the weakest signals.
For safety reasons, do not use headphones near traffic or where other dangers are present. This device is to be used with interconnecting cables shorter than three meters.
The headphone jack has a rubber plug that will help keep foreign material from entering the control box. To insure it remains weatherproof, do not use headphones during rain or very wet conditions.

CHARACTERISTICS & LIMITATIONS

1. This detector comes with a waterproof searchcoil. The searchcoil can be completely submerged into water. The control housing is weatherproof but cannot be submerged in water.
2. BURIED UTILITY LINES. This hobby metal detector is not designed to locate buried pipes or cables. First Texas Products manufactures a complete line of pipe and cable locators for this application. These are sophisticated instruments with functionality different from your hobby metal detector.
3. SEVERE SOIL CONDITIONS. While this detector has proprietary circuitry to cancel out minerals naturally occurring in most soil types, it cannot penetrate the most severe soils and it is not intended for use on wet sand saltwater beaches. However, it is well-suited for detecting on dry sand. Saltwater is highly conductive and requires a more sophisticated type of detector. First Texas Products offers such types of detectors. Other highly mineralized soils, such as those found in some gold prospecting sites, may also limit this detector's capability. If the detector tends to overload, it could indicate you are in an area containing such severe soils.
4. TARGET-ID. The detector's Target-ID system calculates and displays the most probably identification. Target-ID is affected by soil conditions, the searchcoil's distance from the target, the length of time the target has been buried and the target's proximity to other dissimilar targets. Very large metal objects can overload the detector and may be classified inaccurately.
5. REDUCE SENSITIVITY. The primary purpose of the Sensitivity control is to allow the operator to reduce the sensitivity of the detector. All detectorists desire to find objects at maximum depth. However, in today's environment there is a never-ending variety of devices emitting EMI (Electromagnetic Interference) that can interfere with this detector.
   There will be environments where the detector cannot operate at maximum sensitivity. This is not a defect. If you find yourself in such an environment, reduce the sensitivity of the detector. Some environments may have so much EMI it is impossible to detect. Both overhead power lines and buried power lines can interfere with this detector. Power line capacity may be quite different during certain times of the day. For instance, peak hours of electrical use that can occur around 6 p.m. can lead to a lot of EMI. If you experience power line interference, try returning to a given area at a different time of day.

TROUBLESHOOTING GUIDE

SYMPTOM	CAUSE	SOLUTION
The unit chatters/beeps erratically or has low sensitivity	Using detector indoors Using detector near power lines Using 2 detectors in close proximity Environmental electromagnetic interference	Use detector outdoors only Move away from power lines Keep 2 detectors at least 6 meters (20') apart Reduce sensitivity until erratic signals cease
Do not mix old and new batteries. Use alkaline batteries. Do not mix alkaline, standard (zinc-carbon), or rechargeable (NiCad, NiMH, etc.) batteries.
Low speaker volume	Discharged battery Wrong type of battery	Replace battery Use alkaline batteries
Display does not lock on to one Target-ID or detector emits multiple tones	Multiple targets present Highly mineralized soil Sensitivity set too high	Sweep coil at different angles Move to a different area Reduce sensitivity
No power & no sounds	Dead battery Cable not connected securely	Replace batteries Check connections

PRODUCT SPECIFICATIONS

R.F. Operating frequency	7.7kHz
Output power	<100mW
Operating temperature	0°C to 40°C
Rating	2 X AA 1.5V alkaline batteries (3V D.C.)

TREASURE HUNTER'S CODE OF ETHICS

• Always check Federal, State, County and local laws before searching.
• Respect private property and do not enter private property without the owner's permission.
• Take care to refill all holes and leave no damage.
• Remove and dispose of any and all trash and litter found.
• Appreciate and protect our inheritance of natural resources, wildlife and private property.
• Act as an ambassador for all treasure hunters; use thoughtfulness, consideration and courtesy at all times.
• Never destroy historical or archaeological treasures.
• All treasure hunters may be judged by the example you set; always conduct yourself withcourtesy and consideration of others.

5-YEAR LIMITED WARRANTY

To return your detector for service, please first contact First Texas Products for a Return Authorization (RA) Number. Reference the RA number on your package and return the detector within 15 days of calling to:
Fisher Research Labs
1120 Alza Drive
El Paso, TX 79907
Phone: 915-225-0333 ext. 118

www.fisherlab.com

ACCESSORIES

Items Included	Gold Kit PART NUMBER GOLDKIT1	Deluxe Kit PART NUMBER GOLDKIT2	Hardrock Kit PART NUMBER GOLDKIT3
10 1/2" Gold Pan	x	x	x
14" Gold Pan	x	x	x
Classifier		x	x
2 - Shatterproof vials	x	x	x
Snufer Bottle	x	x	x
Black Sand Magnet		x	x
Treasure Scoop		x	x
Tweezers			x
Magnifier			x
Crevice Tool			x
Rock Pick			x
Instructions Booklet	x	x	x
Backpack		x	x

FOR COMPLETE DETAILS VISIT WWW.FISHERLAB.COM • 1-800-685-5050

Documents / Resources

References

• Fisher Research Labs Metal Detectors – First Texas Products

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Fisher F44, F44 11DD Manual
