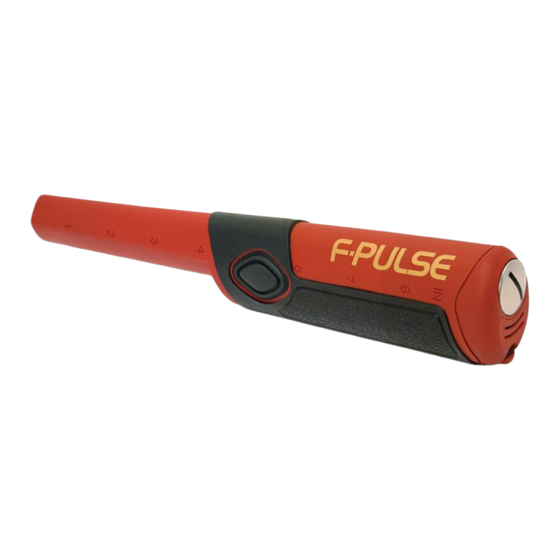

Metal detecting pinpointer
Hide thumbs Also See for F-Pulse:

Advertisement

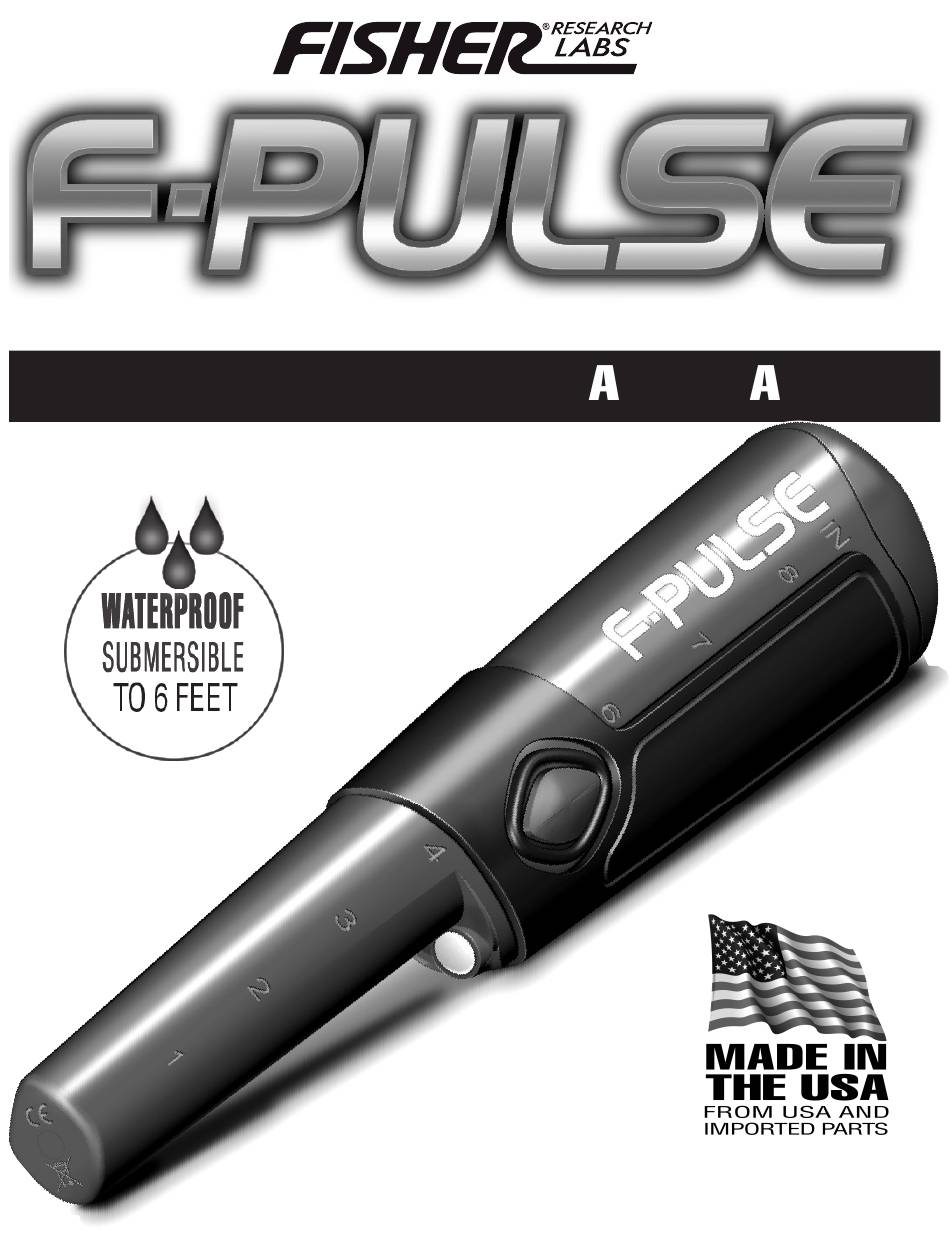

METAL DETECTING PINPOINTER
O W N E R ' S
M
N U
L
Do not use "ZINC-CARBON" or "HEAVY DUTY" batteries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-Pulse and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher F-Pulse

  • Page 1 METAL DETECTING PINPOINTER O W N E R ’ S Do not use “ZINC-CARBON” or “HEAVY DUTY” batteries...
  • Page 2: Table Of Contents

    INDEX F-Pulse features...........4 Battery Low-Battery Warning........5 Critical Low-Battery..........5 Waterproof Design ...........6 Operation ............7 On and Off lashlight...........7 LED F Program the Alarm-type & Sensitivity-level ..8 Default Settings ..........8-9 Re-Tune ............10 Ground-Mineral Calibration......10 Frequency Shifting........10-12 Re-Boot ............12 Lost Mode and Auto Shutoff ......13 Tips on How to Use Pinpointer ......14...
  • Page 3 Congratulations on the purchase of your new F-Pulse Pinpointer. The F-Pulse was designed to be the best- performing pinpointing probe on the market, answering the call from treasure hunters who demand a robust, modern design and a probe that maintains high sensitivity in the most demanding environments.
  • Page 4: F-Pulse Features

    Your F-Pulse pinpointer offers many great features: Function: • Single-Button Operation • Adjustable Sensitivity • Rapid Retune • Lost Alarm Feature Performance: • 360-degree Detection • Waterproof to 6 feet • High Sensitivity Comfortable • Automatic Ground No-Slip Handgrip Calibration...
  • Page 5: Low-Battery Warning

    B TTERIES The F-Pulse operates on 2 AA alkaline, lithium or nickel-metal hydride batteries (not included).You can also use high quality rechargeable batteries. Expect approximately 25 hours of operation from alkaline batteries. Do not use “Zinc-carbon” or “Heavy-duty” batteries. To replace batteries: 1.
  • Page 6: Waterproof Design

    CONTINUED): Waterproof Design: B TTERIES The F-Pulse is waterproof to a depth of 6 feet for 1 hour. The rubber O-ring around the battery cap is vital to maintaining a waterproof seal. IMPORTANT: Check the O-ring. Make sure there is no debris on the O-ring or in the battery cap threads.
  • Page 7: On And Off

    3. Continue to press-and-hold the button and observe the different levels of brightness. • As long as you continue to hold the button, the F-Pulse will cycle from Off, to Bright, then Brighter and Brightest. • At the brightest setting, the light will flash.
  • Page 8: Program The Alarm-Type & Sensitivity-Level

    OPER TION Programming: Alarm and Sensitivity The F-Pulse target alert can be audible, vibratory or both. There are three different sensitivity levels: low, medium and high. Default settings: The default settings for this pinpointer are: • LED: 70% brightness • Alarm: Beep and vibrate •...
  • Page 9 OPER TION 5. Press-and-release the button to change settings. Each press of the button will advance to a different setting. Each setting is indicated with beep(s), vibration(s) or both. 6. To choose a program, stop pressing the button at the desired setting.
  • Page 10: Re-Tune

    The F-Pulse is designed to work with the different frequencies of various detectors, and to enable the user to calibrate the F-Pulse to a frequency that eliminates (or minimizes) interference with your detector. The factory default setting of the F-Pulse may interfere with your...
  • Page 11 1. Turn off the F-Pulse 2. Turn on your metal detector and set the sensitivity to a level at which it is stable (no irregular beeping). 3. Quick-Press to turn F-Pulse power on. (Your metal detector may start beeping). 4. Press-and-Hold the button.
  • Page 12: Re-Boot

    6. When you reach the desired frequency, your metal detector will stop beeping. 7. The pinpointer will alarm one final time after your programming is complete. 8. Ready to hunt. The F-Pulse will retain this programmed frequency setting. Re-Boot If your pinpointer becomes unresponsive and/or locks up, and any sequence of button presses does not return it to normal operation, it’s time to re-boot.
  • Page 13: Lost Mode And Auto Shutoff

    Lost Mode and Auto Shutoff: OPER TION If the F-Pulse is left powered on with no button presses for 5 minutes, it will enter Lost Mode. The unit enters a low-power setting, the LED flashes and the unit beeps every 15 seconds.
  • Page 14: Tips On How To Use Pinpointer

    The F-Pulse is a powerful tool that will drastically reduce the time you spend recovering buried objects while metal detecting. If the target is close to the surface (3 inches or less) the F-Pulse can detect the buried target prior to digging.
  • Page 15 NOTE TO CUSTOMERS OUTSIDE THE U.S.A. This warranty may vary in other countries; check with your distributor for details. Warranty does not cover shipping costs This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 Liability under this warranty is limited to replacement or repair, at our option, of the product returned, shipping cost prepaid, to Fisher Research Labs. Damage due to neglect, accidental damage, misuse of this product or normal wear and tear is not covered by the warranty.
