TurMix Nespresso Manual

OVERVIEW

Packaging content

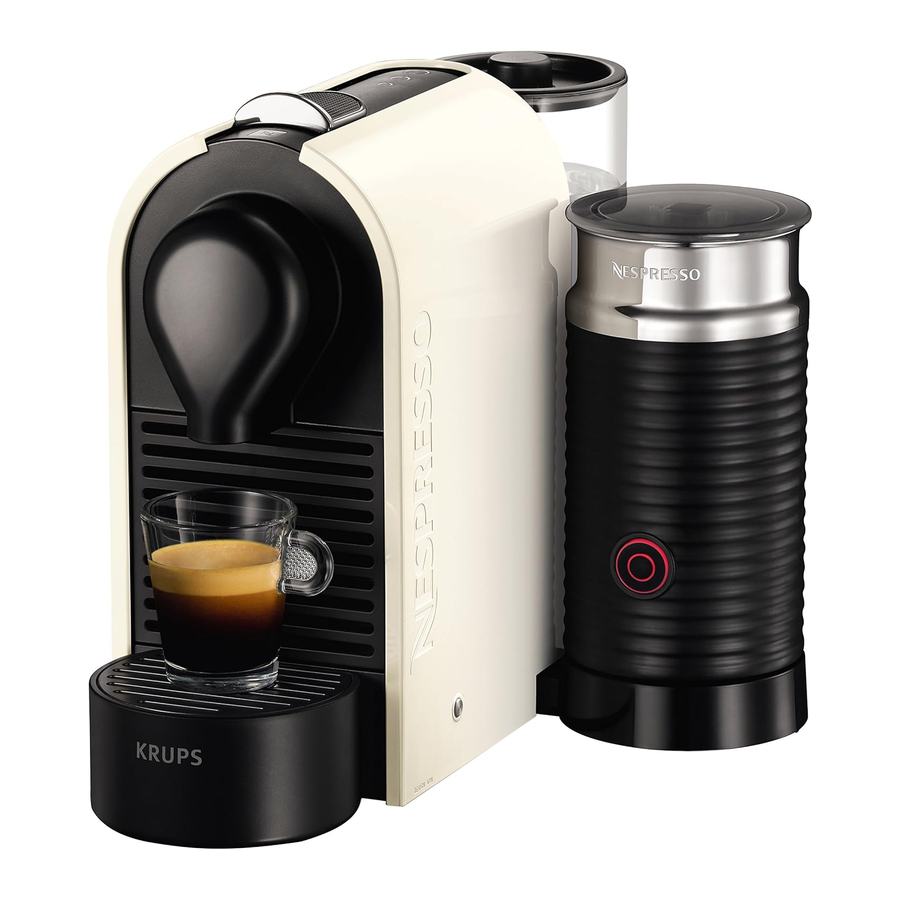

Coffee machine

Nespresso capsules Grand Crus tasting gift

Nespresso Welcome folder

User manual

1. Soft touch controls. All controls are activated by touch.
   Ristretto touch
   Espresso touch
   Lungo touch
2. Slider for capsule insertion
3. Adjustable cup support and drip grid
4. Used capsule container & drip tray
5. Coffee outlet
6. Adjustable water tank and milk frother arm
7. Aeroccino milk frother
8. Water tank
9. Water tank lid
10. Frothing spring (for milk froth)
11. Mixer (for hot milk)
12. Lid
13. Seal
14. Start/stop button
15. Storage area for frothing spring

SPECIFICATIONS

FIRST USE

Read the safety precautions first to avoid risks of fatal electrical shock and fire.

1. Choose position for water tank. Plug the machine into the mains.

2. Rinse the water tank before filling it with potable water. Rinse the Aeroccino.

3. Insert the drip tray, Aeroccino and the capsule container in position. For your safety, operate the machine only with drip tray andcapsule container inposition.

4. Turn the machine ON by opening the slider and pushing it towards the back of the machine. Light will blink on one of the coffee touch controls: heating up for approximately 25 seconds Steady light: ready. The machine can be turned into OFF mode at any time when slider is closed by pushing and holding any touch control for more than 3 sec., confirmed by the other 2 controls flashing.

5. Place a container under coffee outlet. Press the Lungo control. Close the slider to rinse the machine. Repeat three times.


ENERGY SAVING CONCEPT

1. Automatic OFF mode: the machine will turn into OFF mode automatically after 9 minutes of non use.

2. The machine can be turned into OFF mode at any time when slider is closed by pushing any control for more than 3 sec., confirmed by the other 2 controls flashing.

3. To change automatic OFF mode from 9 to 30 minutes, when slider is closed press and hold both the Lungo and Ristretto controls for more than 3sec. Espresso control flashes once for confirmation. To revert back to 9 minutes, repeat the same procedure. Espresso control flashes 3 times for confirmation.


COFFEE PREPARATION

1. Fill the water tank with potable water.

2. Place a cup under the coffee outlet. Turn machine ON by either pushing the slider or touching the controls. Light will blink on one of the coffee touch controls: heating up for approximately 25 seconds. Steady light: ready.

3. Select the Ristretto control (25ml / 0.84 oz), Espresso (40 ml / 1.35 oz) or Lungo (110 ml / 3.7 oz) based on the chosen Grand Cru recommended cup size. You can select the desired coffee size even when the machine is still heating up. The coffee will then flow automatically when the machine is ready.


The machine selects the most frequently chosen cup size (based on last 11 coffees), Espresso as factory setting. You can change this by selecting any other control.

4. Completely open the slider and insert a Nespresso capsule.

5. Close the slider. Preparation will stop automatically.

6. To stop the coffee flow touch the lit control or move the slider towards the back of the machine until it stops.

7. To manually top up your coffee, touch any of the controls immediately from end of preparation and touch lit control again to stop. Max 4 seconds.

8. To change the selected cup size during brewing select the new desired control. The machine will immediately stop if the coffee volume extracted is larger than new desired control.

9. To accommodate a milk recipe glass, shift the cup support to either the left or right side magnets. The capsule will be automatically ejected.


MILK FROTH PREPARATION

Only use the Aeroccino with the connector provided.

Risk of electrical shock and fire! Make sure the under side of the milk frother is dry.

TIP: For optimal milk froth, use whole or semi skimmed milk at refrigerated temperature (about 4-6°C)

1. Attach the relevant whisk.

2. Fill milk frother up to one of the two "max" level.

3. Place the lid on the Aeroccino. For a hot preparation, briefly press button to start. Button lights up Red. Takes approx. 70-80 sec. For cold milk froth, keep button pressed for approx. 2 seconds. Button lights up Blue. Takes approx. 60 sec.

4. Clean after each preparation. Only use non abrasive cloth, never use a brush. Jug is water proof. Do not put in dishwasher.


CLEANING

To ensure hygienic conditions, it is highly recommended emptying/cleaning the used capsule container every day.

1. Do not use any strong or abrasive cleaning agent or solvent cleaner. Do not put in a dishwasher. Never immerse the appliance or part of it in water.

2. Clean the coffee outlet regularly with a damp cloth.


DESCALING

Duration approximately 15 minutes.

Read the safety precautions on the descaling package and refer to the table for the frequency of use (see Descaling section in this manual)

DESCALING MODE
The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descaling kit available at the Nespresso Club to avoid damage to your machine. The following table will indicate the descaling frequency required for the optimum performance of your machine, based on water hardness. For any additional questions you may have regarding descaling, please contact the Nespresso Club.

Nespresso descaling kit: Ref. 3035/CBU-2

1. Empty the drip tray and the used capsule container.

2. Fill the water tank with 1 unit of Nespresso descaling liquid and add 0.5 L /17 oz of water.

3. Place a container (minimum volume: 0.6 L / 20 oz) under the coffee outlet. Activate the machine by pushing one of the cup selection touches.

4. Blinking light: heating up. Steady light: ready

5. To enter the descaling mode, at slider closed push all the 3 controls simultaneously for at least 3 sec. A short beep will confirm it. Open the slider.

6. Push all the 3 controls simultaneously for at least 3sec. A short beep will confirm it. The control area will start blinking quickly. Close the slider to start descaling. Machine stops when water tank is empty.

7. Refill the water tank with the used descaling solution collected in the container and touch any control to repeat the procedure.

8. Empty and rinse the water tank, capsule container, drip tray and cup support thoroughly. Fill water tank with potable water. When ready, touch any control to rinse the machine. Machine will stop when done.

9. To exit the descaling mode, push all the 3 controls simultaneously for at least 3sec. A short beep will confirm this. The machine is now ready for use.


PROGRAMMING THE VOLUME

1. Any control can be programmed. Completely open the slider and insert a Nespresso capsule.

2. Touch and hold the control while closing the slider. Release control when desired volume is reached. The other 2 controls flash for confirmation.


RESET TO FACTORY SETTINGS

1. Press and hold the Espresso & Lungo controls together for at least 4 sec. The other control flashes for confirmation.


Factory settings are:

1. Lungo, Espresso, Ristretto controls 110ml / 3.7oz, 40ml / 1.35 oz., 25ml / 0.84 oz.
2. Automatic OFF mode after 9 minutes.
3. Most frequently chosen cup size as Espresso control at 40ml / 1.35 oz.

EMPTYING THE SYSTEM

(before a period of non-use, for frost protection or before a repair)

1. To note, the machine remains blocked for 10 minutes after emptying! Remove the water tank. Place a container under the coffee outlet.

2. Open slider. Press and hold the Ristretto & Lungo controls together for at least 6 sec. The other control flash for confirmation. Then close the slider to start procedure.

3. Machine turns to OFF mode automatically when empty.


TROUBLESHOOTING

TROUBLESHOOTING MILK FROTH PREPARATION

CONTACT THE NESPRESSO CLUB

As we may not have foreseen all uses of your appliance, should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club or your Nespresso authorised representative. Contact details for your Nespresso Club or your Nespresso authorised representative can be found in the «Welcome to Nespresso » folder in your machine box or at www.nespresso.com

SAFETY PRECAUTIONS

The safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

Caution - When you see this sign, please refer to the safety precautions to avoid possible harm and damage.

Information – When you see this sign, please take note of the advice for the correct and safe usage of your appliance.

• The appliance is intended to prepare beverages according to these instructions.
• Do not use the appliance for other than its intended use.
• This appliance has been designed for indoor and non extreme temperature conditions use only.
• Protect the appliance from direct sunlight, prolonged water splash and humidity.
• This appliance is intended to be used in households and similar applications only such as: staff kitchen areas in shops, offices and other working environments, farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children should not play with the appliance. Cleaning and user maintenance should not be undertaken by children without supervision.
• Children should be supervised to ensure that they not play with the appliance.
• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals repair or failure to comply with the instructions.

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the warranty.
• The appliance must only be connected after installation.
• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep the cord away from heat and damp.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons.
• If the cord is damaged, do not operate the appliance. Return the appliance to the Nespresso Club or to a Nespresso authorised representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 mm² or matching input power.
• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.
• Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar.
• Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
• Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
• Never touch the cord with wet hands.
• Never immerse the appliance or part of it in water or other liquid.
• Never put the appliance or part of it in a dishwasher.
• Electricity and water together is dangerous and can lead to fatal electrical shocks.
• Do not open the appliance. Hazardous voltage inside!
•
  Do not put anything into any openings. Doing so may cause fire or electrical shock!

Avoid possible harm when operating the appliance.

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorised representative for examination, repair or adjustment.
•
  A damaged appliance can cause electrical shocks, burns and fire.
• Always completely close the slider and never open it during operation. Scalding may occur.
• Do not put fingers under coffee outlet, risk of scalding.
•
  Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
• Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorised representative.
• Always fill the water tank with fresh, drinking, cold water.
• Empty water tank if the appliance will not be used for an extended time (holidays, etc.)
• Replace water in water tank when the appliance is not operatedfor a weekend or a similar period of time.
• Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild detergent to clean the surface of the appliance.
• When unpacking the machine, remove the plastic film and dispose.
• This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorised representative. Nespresso quality is only guaranteed when Nespresso capsules are used in Nespresso appliances.
• For your own safety, you should use only parts and appliance accessories from Nespresso that are designed for your appliance.
• All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.

Descaling

• Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day. For the correct amount and procedure to follow, consult the user manual included in the Nespresso descaling kit.

SAVE THESE INSTRUCTIONS
Pass them on to any subsequent user

MORE RECIPES ON
