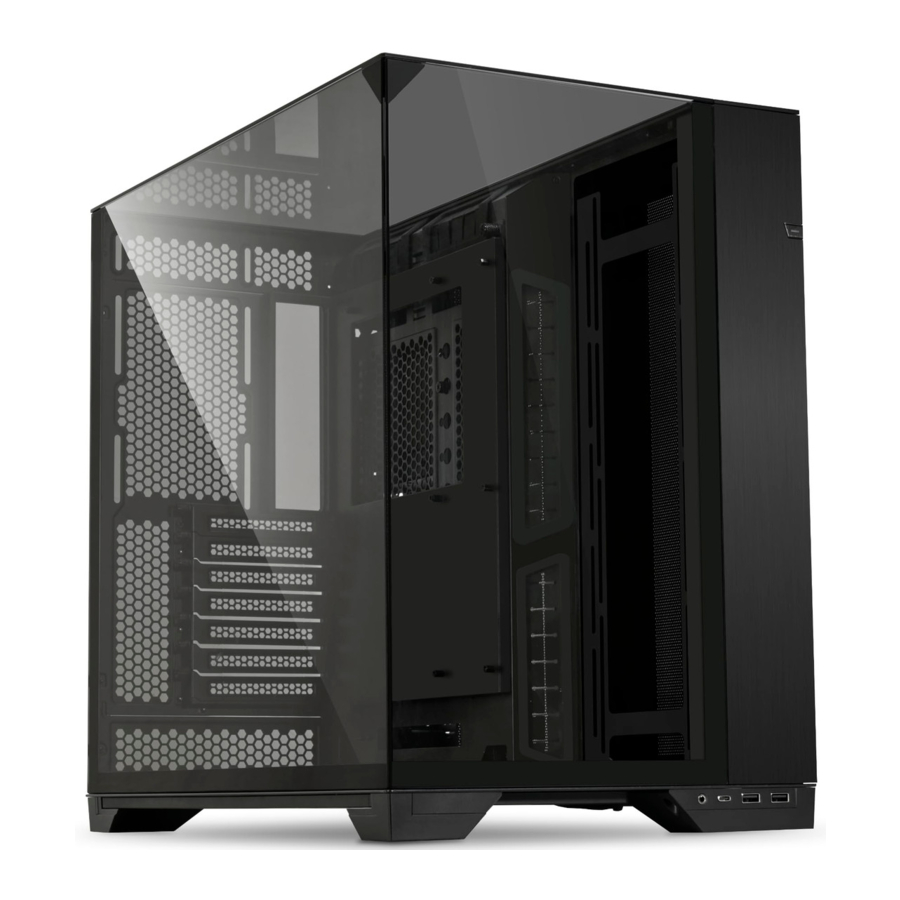

Lian Li 011 VISION Manual

Remove the side panel, top glass and side glass

No need to remove the front glass panel during regular assembly
Remove the front glass panel

1. Remove the protecting clip
2. Peel off the protective film on both sides
3. Recommend to keep the protecting clip on for transportation

Case components

1. Power Button/Reset Button
2. Motherboard High Mode: 120 mm fan x 1
   Motherboard Low Mode: 120 mm fan x 2 or 240 mm radiator x 1
3. Removable fan bracket,
   Support 120 mm fan X 3 or 140 mm fan X 3 or 360 mm radiator X 1 or 280 mm radiator X 1
4. Removable fan bracket,
   Support 120 mm fan X 3 or 140 mm fan X 2 or 360 mm radiator X 1 or 280 mm radiator X 1
5. IO ports: 1 x Audio/Microphone Combo Jack, 2 x USB 3.0, 1 x USB 3.2 Type C
6. Removable Toolless SSD tray, Support 2.5" SSD x 3
7. Removable HDD cage, Support 3.5" HDD x 2 or 2.5" SSD x 2
8. PSU tray, Support ATX PSU x 1

Hardware list

* Exceeded quantity are spare parts.

For graphic card anti-sag bracket kit installation

PSU installation

Way 1: Install Directly

Way 2: Remove the bracket and install

I/O ports function

2.5" SSD installation

Way 1: Swing 180°to open

Way 2: Remove

2.5" SSD, 3.5" HDD installation

If space is needed, the hard drive cage can be removed

2.5" SSD Installation

3.5" HDD Installation

Motherboard installation

Please install the cooler backplate when removing the motherboard tray

Remove the motherboard tray and back plate

Install the back plate and the motherboard tray

First Slot Adjustment in Low Mode

Adjust to install a 240mm radiator at the rear side

Radiator & cooling support

Remove the bottom fan bracket

Remove the side fan bracket

Remove the dust filters

Graphic card anti-sag bracket installation

Installed on ATX motherboard

Installed on M-ATX motherboard

Cable management

Cable holder installation

Use of cable holder

Keep the big cables in the cable holders

Hold the small cables with the velcro straps

Remove the velcro strap to place a controller

Hardware clearance

CPU height clearance

GPU clearance

Radiator and fan combo height clearance

PSU clearance
