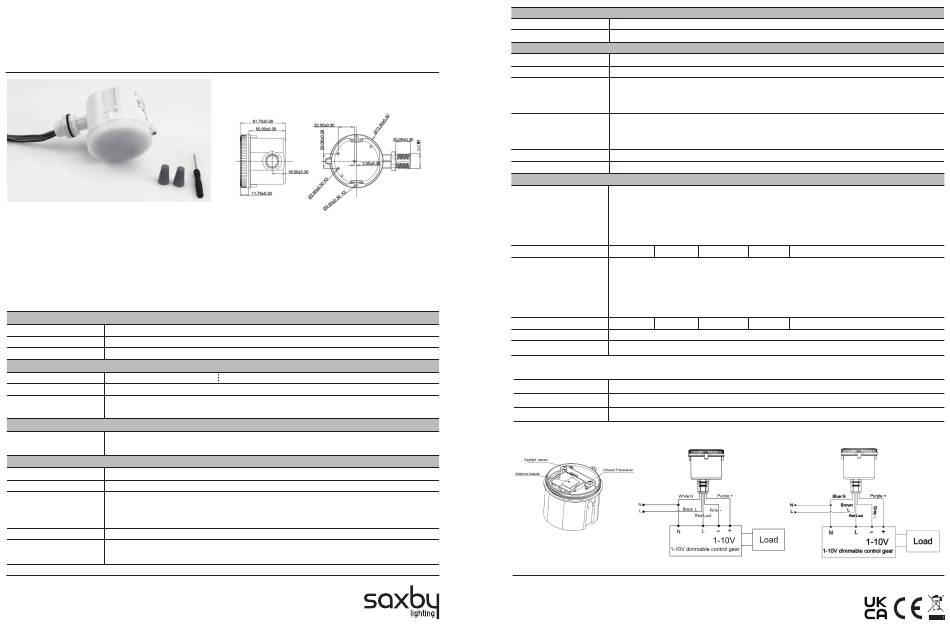

Saxby Lighting Apollo MW Instruction Manual

Instruction manual
Apollo MW Sensor
113266
【Product Feature】
• Operating voltage 120~277V AC
• Patented microwave antenna, mounting height is 15m Max, suitable to install in most of warehouses
• Supports high-sensitivity and low-sensitivity modes (for metal ceilings, metal reflector mounting environments)
• Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function
• Dim+ / Dim- function
• 5 years warranty
【Parameter】
Input
Rated Voltage 120/277VAC 50/60Hz
Stand-by Power ≤1W
Surge Test 1KV (L/N, EN61000-4-5)
Output
Output dimming Mode 1-10VDC Dimming Signal
Load Capacity @120VAC 4A Ballast @277VAC 3A Ballast
Max. Surge Capacity 50A (50% Ipeak, twidth =500us, 230Vac full load, cold start)
80A (50% Ipeak, twidth =200us, 230Vac full load, cold start)
Dim Interface
0-10V Dimming < 50mA（Non-constant source）
10% (1.3-1.7V) 20% (1.8-2.2V) 30% (2.7-3.3V) 50% (4.5-5.5V)
Sensor Parameters
Operating Frequency 5.8 GHz ±75MHz, ISM wave band.
Transmitting Power 3mW Max.
Detecting Radius 1m/s ≥2.5m. @10m ceiling mounting, 1m/s ≥4m @12m ceiling mounting
Test conditions: the product is set to 100% sensitivity, and there is no obvious
occlusion in the room of 60m
Mounting Height 10-15m (ceiling mounting)
3db Beam Angle 80°@XZ plane
96°@YZ plane
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Thank you for purchasing this product. Please read the instruction carefully before
use to ensure safe and satisfactory operation of this product. Please retain these
instruction for future reference.
ON/OFF Signal
, 165cm person.
2
www.saxbylighting.com
Environment
Operating Temperature
Storage Temperature
Certificate Standard
Certificate
Environmental Requirement
Safety Standards
Un: mm
EMC standards
IP Rating
Protection Class
Other
Wiring (UL)
Wiring Colour (UL)
Wiring (CE)
Wiring Colour (CE):
Installation
Package
【Function】
ON-OFF function
2-step dimming
3-step dimming
【Wiring】
V2 18/10/2024
-35~55°C
-40°C~80°C, Humidity: ≤85% (Non-condensing)
cULus, CE, SAA
Compliant to RoHS 2.0, Reach
IEC60669-2-1, IEC60669-1
AS/NZS 60669.1, AS/NZS 60669.2.1
UL60730-1
EN55015, EN61000-3-2, EN61000-3-3, EN61547
AS/NZS CISPR 15, AS/NZS 4268 FCC Part 15C, Part 15B
EN 60950-1, EN301489-1, EN 201489-3, EN300440
IP65
Class II
AWG18 UL1015: Black 105°C 600V Exposed: 810mm±10mm Strip: 9mm Tinned
AWG18 UL1015: Red 105°C 600V Exposed: 810mm±10mm Strip: 9mm Tinned
AWG18 UL1015: White 105°C 600V Exposed: 810mm±10mm Strip: 9mm Tinned
AWG22 UL1015: Pink 105°C 600V Exposed: 810mm±10mm Strip: 9mm Tinned
AWG22 UL1015: Purple 105°C 600V Exposed: 810mm±10mm Strip: 9mm Tinned
Lin: Black N: White Lout: Red -: Pink
VDE(40026038): Red H05RR-F0.75mm Exposed: 900mm±10mm Strip: 9mm Tinned
VDE(40026038): Blue H05RR-F0.75mmExposed: 900mm±10mm Strip: 9mm Tinned
VDE(40026038): Brown H05RR-F0.75mm Exposed: 900mm±10mm Strip: 9mm Tinned
VDE(40026038): Gray H05RR-F0.75mm Exposed: 900mm±10mm Strip: 9mm Tinned
VDE(40026038): Purple H05RR-F0.75mm Exposed: 900mm±10mm Strip: 9mm Tinned
Lin: Brown N: Blue Lout: Red -: Gray
Side-attached
Instruction + White box + White box tags + Clapboard + Carton (K=A)
Stand-by Period be set to "0s"
Stand-by Period be set to "+∞"
Stand-by Period be set to "10s / 1min / 3min / 5min / 10min / 30min"
American Standard
+: Purple
+: Purple
* Product images may vary.
European Standard
