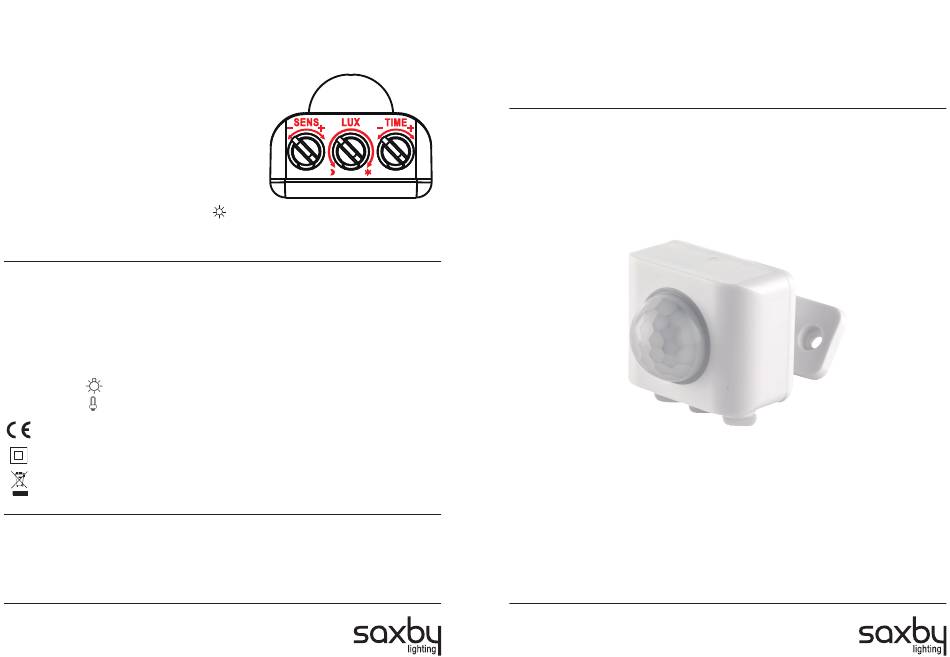

PIR Adjustment
• Turn the SENS knob clockwise on the maximum (+). Turn the LUX knob clockwise on the maximum (sun). Turn the TIME
knob anti-clockwise on the minimum (-).
• Switch on the power, the sensor and its connected lamp will have no signal at the beginning. After Warm-up 30sec, the
sensor can start work. If the sensor receives the induction signal, the lamp will turn on.
While there is no another induction signal any more, the load should stop working
within 10sec±3sec and the lamp would turn off.
• Turn LUX knob anti-clockwise on the minimum (moon). If the ambient
light is more than 10LUX, the sensor would not work and the lamp stop
working too. If the ambient light is less than 10LUX (darkness), the
sensor would work. Under no induction signal condition, the sensor
should stop working within 10sec±3sec.
Note: when testing in daylight, please turn LUX knob to
otherwise the sensor lamp could not work!
If the lamp is more than 60W, the distance between lamp and sensor should be 60cm at least.
Technical data
Supply Voltage: 240V~
Detection Range: 120º / 360º
Power Frequency: 50Hz
Detection Distance: 2-10m (<24ºC)(adjustable)
Ambient Light: <10-2000LUX (adjustable)
Working Temperature: -20~+40ºC
Time Delay: Min.10sec±3sec
Working Humidity: <93%RH
Max.7min±2min
Installation Height: Wall mount 1.8-2.5m / Ceiling mount 2.2-4m
Rated Load: Max.100W
Detection Moving Speed: 0.6-1.5m/s
100W
Conformity with all relevant CE Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
V1 27/11/2020
Saxby Lighting. BH17 7BY
(SUN) position,
Instruction manual
PIR MINI
95284
www.saxbylighting.com
Advertisement
Table of Contents
Related Manuals for Saxby Lighting PIR MINI
Summary of Contents for Saxby Lighting PIR MINI
- Page 1 We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish. For your safety, always switch off the power supply before changing lightbulbs, or cleaning. V1 27/11/2020 Saxby Lighting. BH17 7BY www.saxbylighting.com...
- Page 2 Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory Installation operation of this product. Please retain these instructions for future reference. Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully note the position of each set of wires.
