PIR Adjustment
• Turn the TIME knob anti-clockwise on the minimum (10s). Turn the LUX knob
clockwise on the maximum (sun).
• Switch on the power, the sensor and its connected lamp will have no
signal at the beginning. After Warm-up 30sec, the sensor can start work.
If the sensor receives the induction signal, the lamp will turn on. While there
is no another induction signal any more, the load should stop working within
10sec±3sec and the lamp would turn off.
• Turn LUX knob anti-clockwise on the minimum (moon). If the ambient light is
more than 10LUX, the sensor would not work and the lamp stop working too. If
the ambient light is less than 10LUX (darkness), the sensor would work. Under
no induction signal condition, the sensor should stop working
within 10sec±3sec.
Note: when testing in daylight, please turn LUX knob to
otherwise the sensor lamp could not work!
Technical data
Supply Voltage: 240V~
Detection Range: 180º
Power Frequency: 50Hz
Detection Distance: Max.12m (<24ºC)
Ambient Light: <10-2000LUX (adjustable)
Working Temperature: -20~+40ºC
Time Delay: Min.10sec±3sec
Working Humidity: <93%RH
Max.7min±2min
Power Consumption: approx 0.5W
Rated Load: Max.2000W
Installation Height: 1.8-2.5m
1000W
Detection Moving Speed: 0.6-1.5m/s
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
44
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
V1 16/10/2019
Saxby Lighting. BH17 7BY
LUX
TIME
(SUN) position,
LUX
TIME
Instruction manual

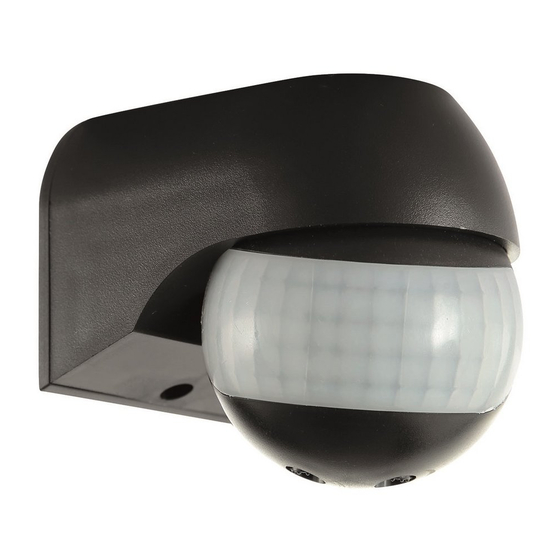

PIR SECURITY DETECTOR WALL
90974, 90975
90974
www.saxbylighting.com
90975
