Summary of Contents for YORKVILLE MM4

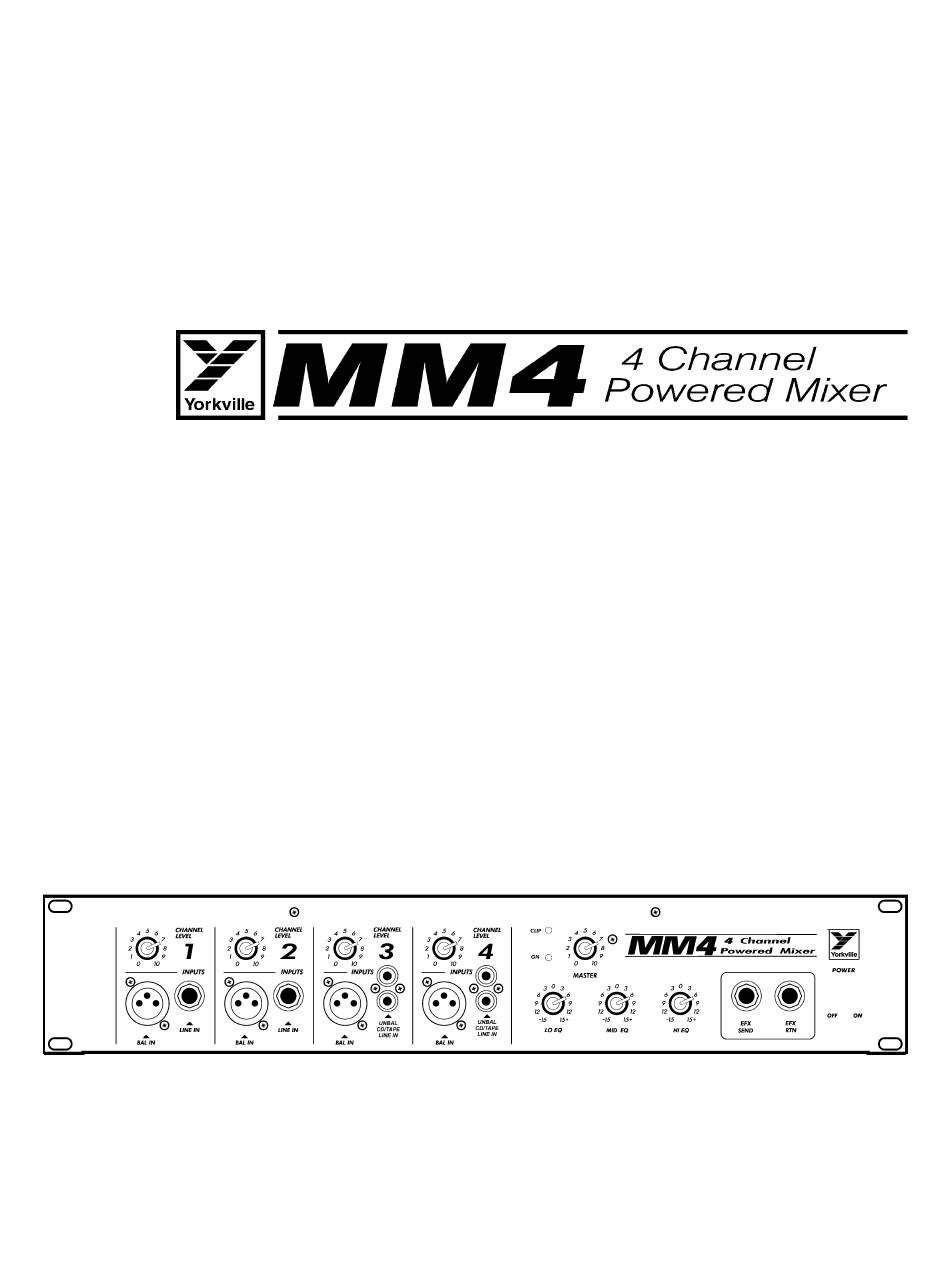

- Page 1 OWNERS MANUAL M A N U E L d e L ’ U T I L I S A T E U R Mm4-v2e.doc 09/28/98 11:22 AM...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS PERTAINING TO A RISK INSTRUCTIONS RELATIVES AU RISQUE OF FIRE, ELECTRIC SHOCK, DE FEU, CHOC ÉLECTRIQUE, OU OR INJURY TO PERSONS. BLESSURES AUX PERSONNES. CAUTION: AVIS: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, NOT REMOVE COVER (OR BACK). -
Page 3: Microphone & Line Inputs
Your new Micromix model mm-4 is the latest addition to our growing Micromix line of powered mixers. We at Yorkville Sound are confident that you will find your new MM-4 to be an efficient and versatile solution to your sound reinforcement needs. This manual contains information to help you get the maximum performance from your Micromix. -
Page 4: Master Control
4. MASTER CONTROL 4. MASTER CONTROL 4. MASTER CONTROL 4. MASTER CONTROL The signals from the four channels are internally routed to the Master section, where they are combined into a monophonic signal. This signal is then routed to the EQ and then to the power amplifier within the MM-4. -
Page 5: Specifications
SPECIFICATIONS Power Output 140 Watts RMS @ 4-Ohms 90 Watts RMS @ 8-Ohms Harmonic Distortion < 1.0% at Full Power Input sensitivity 1.0 Volt RMS Output Load 4-Ohm minimum Power Requirements 117 VAC 60 Hz 360 VA (In Europe) 220 VAC 50 Hz 360 VA... - Page 6 Votre nouveau Micromix modéle MM-4 est la plus récente addition à la gamme de mixeurs amplifiés MICROMIX. Nous sommes confiants chez Yorkville que votre nouveau MM-4 sera la solution souple et efficace à aideront à mieux bénificier du plein rendement de votre Micromix. Nous vous conseillons de prendre le temps nécessaire pour le lire.
- Page 7 4. MASTER CONTROL 4. MASTER CONTROL 4. MASTER CONTROL 4. MASTER CONTROL The signals from the four channels are internally routed to the Master section, where they are combined into a monophonic signal. This signal is then routed to the EQ and then to the power amplifier within the MM-4.
- Page 8 SPECIFICATIONS Puissance De Sortie 140 Watts RMS sur 4-Ohms 90 Watts RMS sur 8-Ohms Distorsion Harmonique < 1.0% a pleine puissance Sensibilite a L’entrée (efx rtn) 1.0 Volt RMS Charge a La Sortie 4-Ohms minimum Alimentation Secteur 117 VAC 60 Hz 360 VA (Modele Export) 220 VAC 50 Hz 360 VA...
- Page 9 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Quality and Innovation Since 1963...
