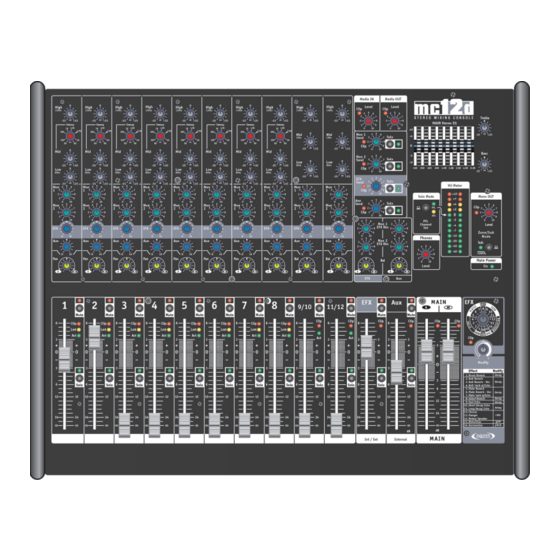

Input Channels 1-8 1. Bal Line Input High 12KHz The Bal Line input ¼-inch TRS (stereo) jack for connecting line-level sources, e.g. instrument amp line outputs. Balanced or Sweep unbalanced sources may be connected us- 1.5K 2.5K ing balanced or unbalanced shielded cable. 2.
10. Pan Control The Pan control affects the main-mix signal (only) going to the L & R masters and the Media Out jacks. 11. Mute Button The Mute Switch disconnects the specified channel from all outputs. The channel can still be monitored through the Phones and on the VU-Meter when the Solo is activated in PFL mode.
Page 6
7. Mon 1 and Mon 2 Controls The Mon 1 and Mon 2 controls are post-EQ and pre-fader; the audio signal is sent to the High respective Mon Send masters and Monitor Out jacks. 12KHz 8. EFX Control The EFX control sends post-EQ, post-fader channel signal to the EFX Send Master and Internal Effects processor.
4. L&R Inserts The L&R Insert ¼-inch TRS (stereo) jacks each acting as a send and a return (Tip=send, Ring=return) to permit patching EQ, compressor/limiter, etc. directly into the main mix out- puts using ‘Y’ insert cables such as the Apex A210SPY or A210SXY. 5.
tor mixes through the headphones and the green LEDs indicate that the Solo feature is active. The red Clip LED indicates clipping in the buss; reduce the Send level or the chan- nel Mon 1 or 2 levels to avoid distortion. 3.
Page 9
9. EFX and Aux Faders, Mute and Solo Switches and LEDs The EFX and Aux faders control the amount of internal and external effects as well as auxiliary input signals being added to the Main mix. The Mute switches permit intro- ducing effects and auxiliary inputs (e.g.
Page 10
Channel Overload Protection: Headphone Monitor Features: Max Gain to Line Out -Mic Input (dB): Max Gain to Line Out -Line Input (dB): Master EQ -1 (type /Channels /Range - dB): Main Outputs ( Line Level): Monitor Outputs (Line Level): Mixer - Signal to Noise Ratio (dB): Mixer - Frequency Response (Tone and EQ Flat,+/-2dB): Mixer - Input Referred Noise to line out, @ 150 Ohms (dBv): Mixer THD (Main out w/ -10dB input):...
Page 11
High High High High High High 12KHz 12KHz 12KHz 12KHz 12KHz 12KHz Sweep Sweep Sweep Sweep Sweep Sweep 1.5K 1.5K 1.5K 1.5K 1.5K 1.5K 2.5K 2.5K 2.5K 2.5K 2.5K 80Hz 80Hz 80Hz 80Hz 80Hz 80Hz Mute Mute Mute Mute Mute Mute Clip Clip...
Page 12
Entrée Canaux 1-8 1. Entrée Ligne Symétrique High 12KHz Utilisez la prise d’entrée Ligne symétrique ¼ de pouce PBM (stéréo) pour le raccordement de sources de niveau ligne, ex. : sorties lignes Sweep d’amplificateur d’instrument. Les sources 1.5K symétriques et asymétriques peuvent être 2.5K raccordés en utilisant des câbles blindés symétriques et asymétriques.
Page 13
9. Commande Aux La commande Aux envoi un signal post-Égalisateur et post-fader à la section Aux Send master et à la prise Aux Send. 10. Commande Pan La commande Pan affect le signal du mélange principal (seulement) acheminé à la section L & R masters et aux prises de sorties Media. 11.
Page 14
7. Commandes Mon 1 et Mon 2 Les commandes Mon 1 et Mon 2 sont post-Égalisateur et pré fader. Le signal audio est High acheminé à la section Mon Send masters et prises de sortie Monitor respectives. 12KHz 8. Commande EFX La commande EFX achemine un signal post-Égalisateur et post-fader à...
3. Prises de Sortie XLR L&R (gauche et droite) Les prises de sorties XLR L&R (Gauche et Droite) sont les prises de sortie du mélange principal. Elles sont contrôlées par les faders L&R Main de la section principale. L’utilisation de câbles symétriques est fortement recommandée. 4.
Page 16
2. Commandes d’envoi Mon 1 et Mon 2, Solo et DELs Clip Les commandes d’envoi Mon 1 et Mon 2 règlent le niveau de leur bus de moniteur respectif acheminé aux prises de sortie Mon 1 et 2. Les boutons Solo isolent leurs mélanges moniteur respectif au casque d’écoute et les DELs vertes indiquent que la fonction Solo est active.
Page 17
7. Niveau Casque d’Écoute La commande Phones level est utilisée pour ajuster le volume du signal à la prise pour casque d’écoute. 8. Section Mono Out La section Mono Out est utilisée principalement pour la commande à distance d’un amplificateur pour subwoofer. Les signaux principaux de gauche et droite sont mélan- gés en un signal mono et ce signal est disponible à...
Page 18
Protection de Surcharge de Canal: Caractéristiques de monitoring avec Casque: Retour effets au Mélange Principal: Retour effets aux Moniteurs: Sorties pour enregistrement: Gain Maximum à la sortie Ligne –Entrée Mic (dB): Gain Maximum à la sortie Ligne –Entrée Ligne (dB): Égalisateur Principal -1 (type /Canaux /Plage - dB): Sorties Principales (Niveau Ligne): Sorties pour Moniteur (Niveau Ligne):...
Page 21
Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
