Habitat Rayner 8172648 Care & Instruction Manual

This product contains a light source of energy efficiency class E.
Care & Instruction Manual
For household and indoor use only
Please read and retain these instructions for future reference
IMPORTANT!-The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire shall be
destroyed.
Installation
1. Remove the support tubes lampshade base and other parts from the package, place all parts on a smooth surface, and lay them all
out in line.
2. Screw tube A into tube B
3. Screw tube B into tube C
4. Screw tube C into tube D
5. Screw tube D into base E.
6. When the installation is completed, pull the cable to its utmost on base.
7. Install the recommended bulb( MAX.60W ES/E27 bulb or LED 6W ES/E27 bulb.) into lampholder,the LED 6W ES/E27 bulb is
included, then insert the plug into socket of power supply cord.
8. If the product fails to light, unplug before investigating
REPLACEMENT LAMP
1. Switch off the mains power supply.
2. Before replacing the bulb, allow it to cool down for at least 10 minutes.
3. Never touch the bulb with your fingers directly, cover it with a cloth.
4. Loosen the bulb and remove it from the lamp.
5. Replace a new bulb with same voltage and wattage
CAUTION! Always disconnect power supply when servicing or cleaning.
Cleaning
- Use a clean dry soft or slightly damp cloth.
- Do not use abrasive cloths or polishes as this may cause damage to the product.
Changing the bulb
IMPORTANT! Ensure that the bulb has cooled down before replacing.
1. Ensure that the power supply has been disconnected.

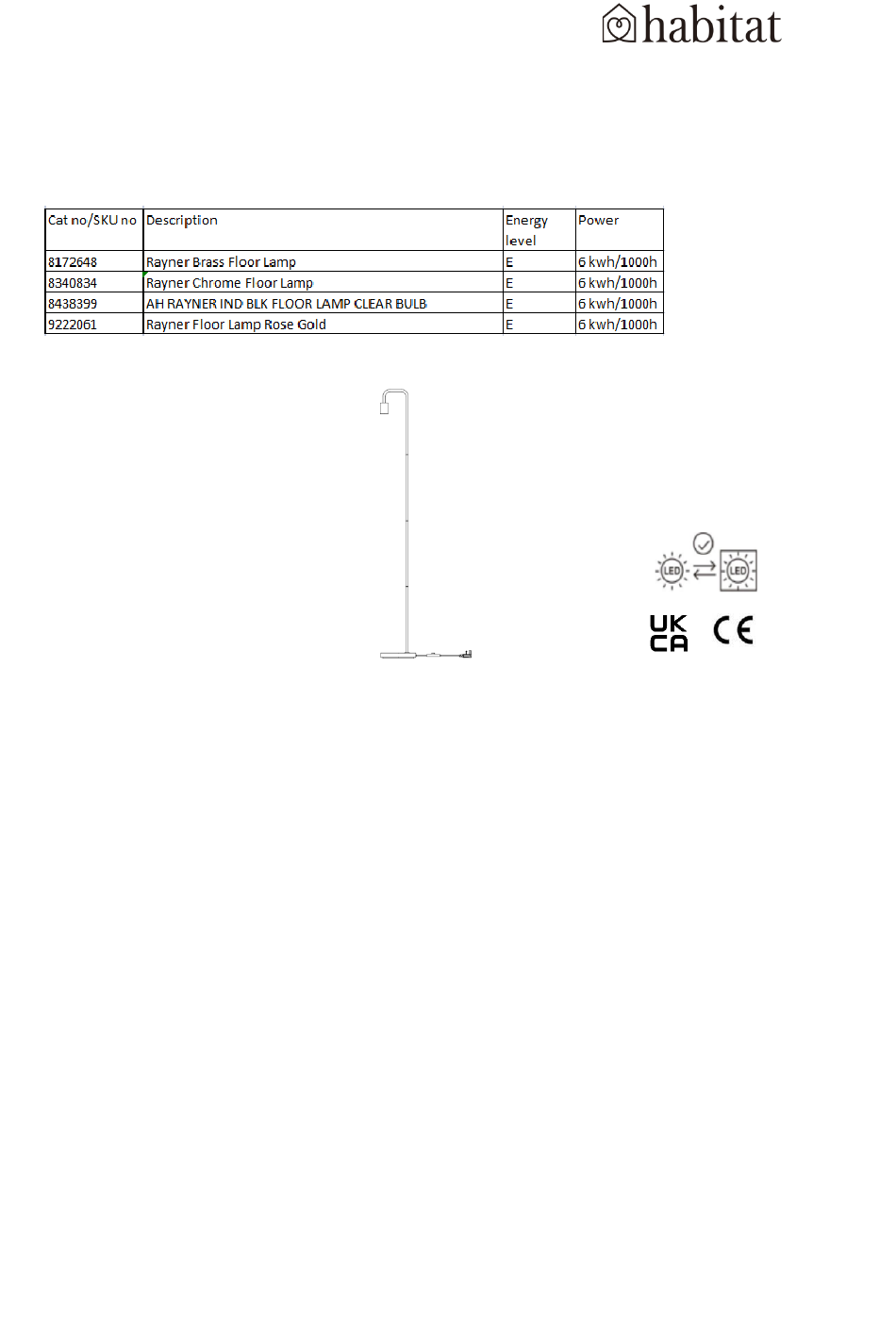

Rayner Brass Floor Lamp-8172648
Rayner Chrome Floor Lamp -8340834
Rayner black floor lamp-8438399
AH Rayner Rose gold floor lamp-9222061
