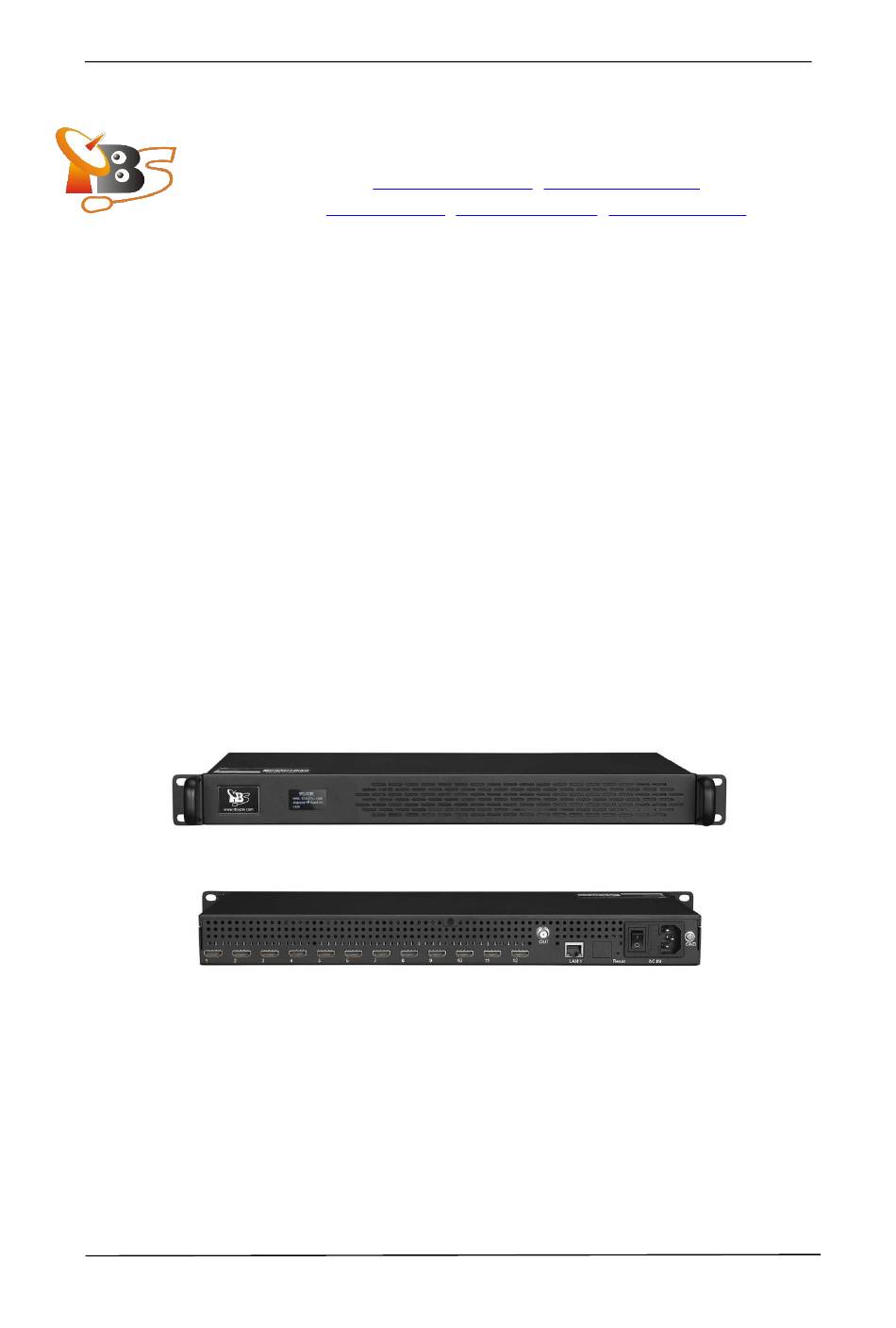

www.tbsiptv.com
TBS Technologies International Ltd.
http://www.tbsiptv.com|
http://www.tbsdtv.com
sales@tbsdtv.com| support@tbsiptv.com|
support@tbsdtv.com
TBS812X 4K@30fps 12-HDMI to
DVB-C/DVB-T/ASI Trans-Modulator Advanced
Encoding User Manual
Address:
East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao'an District, SZ, China, 518055
1 / 21
Advertisement
Related Manuals for TBS technologies TBS812 Series
Summary of Contents for TBS technologies TBS812 Series
- Page 1 TBS Technologies International Ltd. http://www.tbsiptv.com| http://www.tbsdtv.com sales@tbsdtv.com| support@tbsiptv.com| support@tbsdtv.com TBS812X 4K@30fps 12-HDMI to DVB-C/DVB-T/ASI Trans-Modulator Advanced Encoding User Manual Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055 1 / 21...
-
Page 2: Safety Notes
Copyright © TBS Technologies 2005-2024 All Rights Reserved SAFETY NOTES Read the user’s manual before using the equipment, mainly "SAFETY RULES" paragraph. The symbol on the equipment means "SEE USER MANUAL". In this manual may also appear as a Caution or Warning symbol. -
Page 3: Table Of Contents
www.tbsiptv.com Catalog 1. Product Introduction ................4 1.1 Overview ..................4 1.2 Specification ..................5 2. How it works? ..................7 2.1 Control ..................... 7 2.2 Network ...................7 2.3 Encode ..................... 8 3. Modulate ....................12 3.1 DVBC Modulate ................12 3.2 DVBT Modulate ................15 3.3 ASI Modulate .................18 3.4 System ................... -
Page 4: Product Introduction
www.tbsiptv.com 1. Product Introduction 1.1 Overview TBS812X,the new Ultra HD Multi-Standard Trans-Modulator series is a versatile and comprehensive solution designed to meet diverse broadcasting needs. This product series includes three distinct models, each supports to output specific signal types. 1. TBS8122 DVB-C Trans-Modulator: Remux 12 HDMI source to MPTS and convert to DVB-C signals, output in 4 distinct frequencies through a single RF port. -
Page 5: Specification
www.tbsiptv.com 1.2 Specification TBS8122 DVB-C output Model TBS8123 DVB-T output TBS8124 ASI output Video encoding 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, Video Input 1280x720p_60/50hz, 720x576p/i, 720x480p/i, etc. 3840x2160,2560x1600,2560x1440,2048x1152,1920x1080,1680x1056, Encode Size 1280x720,1024x576,720x576,720x480,704x576,640x480,640x360, auto Encode Ability 4k@30fps (3840x2160p@30fps) Maximum Video Codec H.264/H.265 H.264: Baseline, Main, High Profile H.265: Main... - Page 6 www.tbsiptv.com Key Interval (gop) 5~180fps GOP Structure IPPP Bitrate 300~20000Kbps Color depth 8 bit Chroma subsampling 4:2:0 De-interlace Supported: force to do de-interlace when i (interlace) input Audio encoding Audio Codec AAC-LC, AAC-HE 24000/32000/44100/48000/64000/96000/128000/160000/ Audio Bitrate 192000/256000bps Audio Resample 48k, 44.1k, 32k 24000/32000/44100/48000/64000/96000/128000 Bitrate 160000/192000/256000bps...
-
Page 7: How It Works
www.tbsiptv.com Linux Control Web GUI Operating temperature: 0 to 40 deg C Working Environment Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% (non-condensing) Power Consumption Less than 82 Watt Dimension 410mmx 270mmx 125mm Net Weight 2.83 KG 1x HDMI trans-modulator Package Contents 1x AC Power Cable... -
Page 8: Encode
www.tbsiptv.com The IP settings will be applied instantly when manually configured, so rebooting the modulator is unnecessary. The DHCP IP configuration will be applied once you reboot the modulator. 2.3 Encode Encode configurations: Configure settings such as “Video Codec”, “Video Size”, “Frame Rate”, “Bitrate”, “PIDs”, and more. - Page 9 www.tbsiptv.com 1280x720 1680x1056 1920x1080 (Full HD) 2048x1152 2560x1440 (Quad HD) 2560x1600 3840x2160 (4K Ultra HD) “Auto" Mode Explanation: When set to "Auto", the output video size will match the input video size exactly. For instance, if the HDMI input is 1920x1080p at 60Hz, the output resolution will automatically adjust to maintain the same resolution as the input, which is "1920x1080 Bitrate(Kbps): Video Bitrate...
- Page 10 www.tbsiptv.com 32Khz: Audio is resampled to 32Khz. TS Buffer: The length of each TS (Transport Stream) packet can be set to a multiple of 188 bytes, ranging from 188x1 to 188x7. PCR Adjust: This setting allows you to adjust the TS (Transport Stream) PCR (Program Clock Reference) by inserting null packets.
- Page 11 www.tbsiptv.com Apply: After completing the configuration for a single channel, click "Apply" to activate the settings. Source: This option allows you to select the channel source that will be modulated. The available sources range from HDMI-0 to HDMI-7, totaling 12 channels. LCN: ...
-
Page 12: Modulate
www.tbsiptv.com In this case, please verify that the source device is properly outputting media, and check to ensure that the HDMI cable is securely connected. 3. Modulate 3.1 DVB-C Modulate Available Items: This refers to the available sources from the 12x Encoder that are ready for ... - Page 13 www.tbsiptv.com frequencies. Specifically, you can choose to distribute these 12 channels among 4 frequencies, 2 frequencies, 3 frequencies, or even consolidate them all into 1 frequency (provided that each of the 12 encoders is set to a bitrate of, for example, 4Mbps). Due to the inherent nature of channels, bitrate fluctuations can occur even when the bitrate ...
- Page 14 www.tbsiptv.com Fre 2: Put in channel “HDMI-2 & HDMI-3 “ Fre 3: Put in channel “HDMI-4 & HDMI-5 “ Fre 4: Put channel “HDMI-6 & HDMI-7 “ Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055 14 / 21...
-
Page 15: Dvbt Modulate
www.tbsiptv.com Frequency(100-866Mhz): In the context of configuring this DVB-C modulator and its frequency settings, once the initial frequency and bandwidth are established, the subsequent three frequencies will be automatically and deterministically assigned. For instance, if you set the first frequency to 474 MHz with a bandwidth of 8 MHz, the system will automatically and seamlessly assign the second frequency to 482 MHz, the third to 490 MHz, and the fourth to 498 MHz. - Page 16 www.tbsiptv.com channel capacity guidelines: If you set the encoder bitrate to 8Mbps: 1 Channel will occupy 8Mbps of bandwidth. 2 Channels will occupy a total of 16Mbps (8Mbps x 2). 3 Channels will occupy a total of 24Mbps (8Mbps x 3), which is the maximum recommended configuration for a single frequency to avoid overloading the modulator.
- Page 17 www.tbsiptv.com Fre 1 Fre 2 Fre 3 Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055 17 / 21...
-
Page 18: Asi Modulate
www.tbsiptv.com Fre 4 If the bandwidth is specified as "7MHz", for example, and the first frequency is set to "206MHz", the subsequent frequencies will be automatically set as follows: the second frequency will be "213MHz", the third will be "220MHz", and the fourth will be "227MHz", continuing in this pattern for additional frequencies. -
Page 19: System
www.tbsiptv.com Output Bitrate Setting Instructions: When configuring your device, it is important to properly set the "Output Bitrate." To ensure stable and efficient data transmission, we recommend setting the "Output Bitrate" to a value higher than the actual data rate. Recommendation: If the total actual data rate (i.e., the amount of data that needs to be transmitted) is 80Mbps, we recommend setting the "Output Bitrate"... -
Page 20: About
www.tbsiptv.com Change Password: Set a new Web GUI password. System operation: Reboot or Shutdown the Modulator. Upgrade: Firmware update 3.5 About Modulator Firmware information: Hardware Reset: Press and hold “Reset” button around 6 seconds, then release, Hardware reset done. After “Reset”, Modulator IP and web GUI Password will be reset to the default:IP reset and back to “192.168.11.68”.Web GUI password reset and back to “root”... -
Page 21: Oled Display Contents
www.tbsiptv.com 3.6 OLED Display contents Display content of “HDMI To DVB-C/DVB-T/ASI Trans-Modulator”: Page 1:Model Name, IP information, CPU Utilization, MEM Utilization. Page 2:Modulate Frequency information: Fre1: xxxMhz; Fre2: xxxMhz; Fre3: xxxMhz; Fre4: xxxMhz. Display contents of “HMDI To DVB ASI Modulator”: ...
