TBS technologies TBS8112 User Manual

Dvb-s/s2/s2x to dvb-t trans-modulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TBS Technologies International Ltd.
http://www.tbsiptv.com
|
http://www.tbsdtv.com
sales@tbsdtv.com
|
support@tbsiptv.com
|
support@tbsdtv.com
TBS8112 DVB-S/S2/S2X to DVB-T
TRANS-MODULATOR
User Manual
Copyright © TBS Technologies 2009-2022 All Rights Reserved
Address:
East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao'an District, SZ, China, 518055
1 / 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBS8112 and is the answer not in the manual?

Questions and answers

Related Manuals for TBS technologies TBS8112

Summary of Contents for TBS technologies TBS8112

  • Page 1 TBS8112 DVB-S/S2/S2X to DVB-T TRANS-MODULATOR User Manual Copyright © TBS Technologies 2009-2022 All Rights Reserved Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055 1 / 11...

  • Page 2: Safety Notes

    SAFETY NOTES Read the user’s manual before using the equipment, mainly "SAFETY RULES" paragraph. The symbol on the equipment means "SEE USER’S MANUAL". In this manual may also appear as a Caution or Warning symbol. WARNING AND CAUTION statements may appear in this manual to avoid injury hazard or damage to this product or other property.
  • Page 3 Catalog 1. Product Introduction ............................4 1.1 Overview ..............................4 1.2 Specification ............................... 5 2. System Connection and Log in ..........................6 3. Network setting ..............................7 4. Input source setting ............................. 7 4.1 DVB-S/S2/S2X input setting ........................7 4.2 Network TS input setting ........................... 8 4.3 Local file input setting ..........................

  • Page 4: Product Introduction

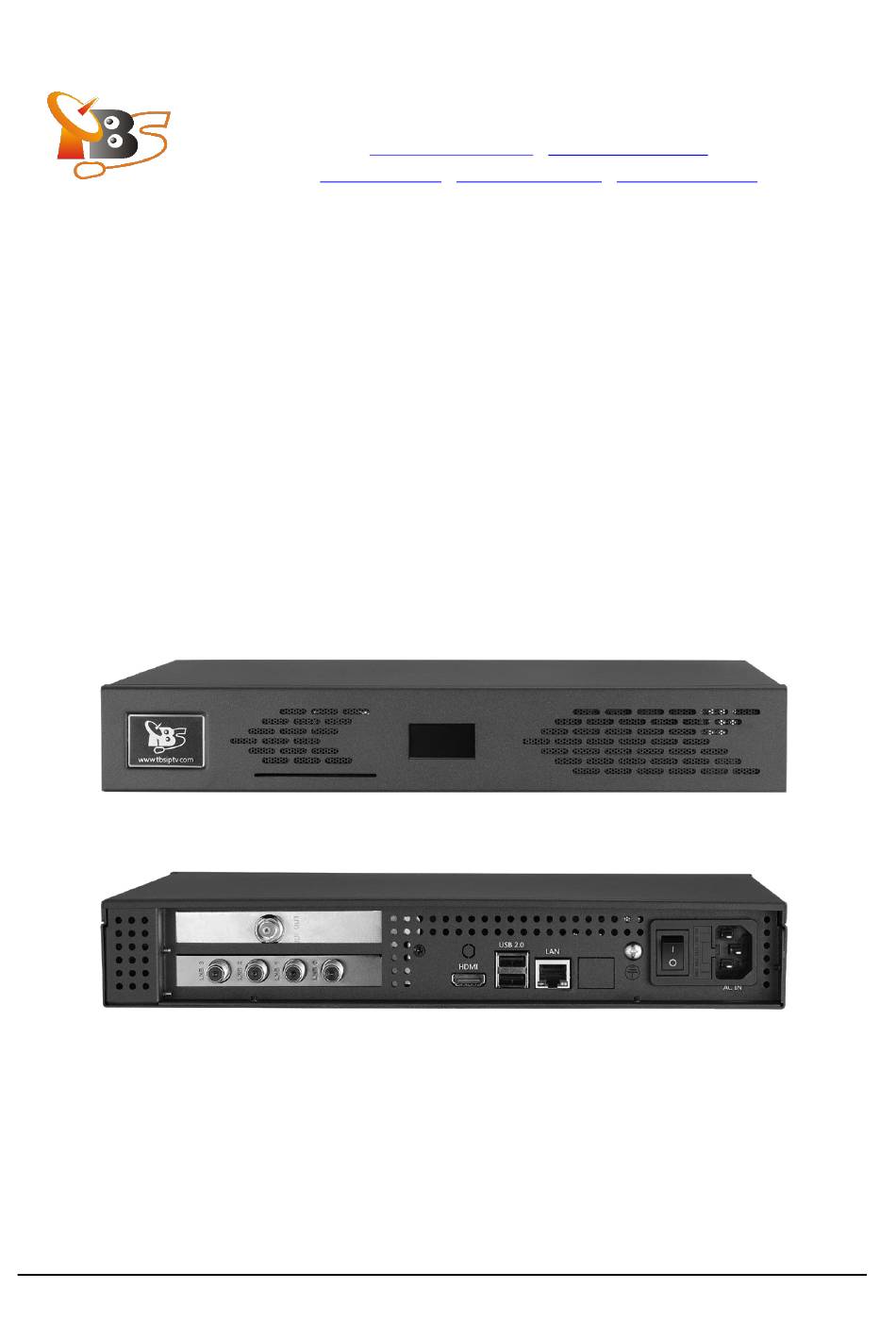

    1. Product Introduction 1.1 Overview TBS8112 is a compact trans-modulation device that is used to convert free DVB-S/S2/S2X satellite TV channels to DVB-T (Digital Terrestrial Television) format. It supports to receive free satellite channels from 4 frequencies via 4 RF port, and output DVB-T channels in 4 frequencies.

  • Page 5: Specification

    1.2 Specification 4 Frequencies DVB-S/S2/S2X satellite input Frequency range 950-2150 MHz Standard DVB-S/S2 DVB-S2X code rate QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, QPSK: 1/4,1/3, 2/5 (S2-MODCODs), 1/2, 8/9, 9/10 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9...
  • Page 6 2. System Connection and Log in ➢ The default IP for TBS8112 DVB-S/S2/S2X to DVB-T trans-modulator is 192.168.8.101:8081. ➢ In first place, check the IP address of the PC. It must be in the same IP range of the device. This means, an IP like 192.168.8.xxx (xxx can be 0 to 255 except 101 to avoid conflict with module IP address).

  • Page 7: Network Setting

    3. Network setting In the network setting page, users can enable the DHCP. Users can change the network parameters for trans-modulator in this page, too. 4. Input source setting 4.1 DVB-S/S2/S2X input setting Adapters: Choose TBS6909se DVB-S/S2/S2X adapter 0-3 (tuner). Delivery Systems: Choose DVB-S, DVB-S2 or DVB-S2X here.
  • Page 8 channels belong to) Frequency (kHz): Enter the transponder’s frequency value here. Symbol Rate (Sym/s): Enter the signal’s symbol rate value here. Polarisation: Choose V or H, according to the signal’s condition. Modulation: Choose the signal’s Modulation here. FEC: Choose the signal’s FEC value here. Click “Scan Channels”...
  • Page 9 TBS8112 support to catch network streams in HTTP, UDP, RTP protocol. Enter the URL of the streams and click “Apply” to catch the network TS. 4.3 Local file input setting TBS8112 trans-modulator supports to convert local SPTS file into DVB-T signal.
  • Page 10 Click and move the selected channels for DVB-T generation. TBS8112 Trans-modulator has 4 DVB-T mod (0-4) for DVB-T channels output. 5.2 DVB-C output setting Network ID: It is the number that identifies the network where the signal is distributed. Enter any value from (0-65535).

  • Page 11: Maintenance

    6. Maintenance 6.1 Instructions for returning by mail ➢ Instruments returned for repair or calibration, either within or out of the warranty period, should be sent with the following information: Name of the Company, name of the contact person, address, telephone number, receipt (in the case of coverage under warranty) and a description of the problem or the service required.
