  • Page 1 TBS Technologies International Ltd. http://www.tbsiptv.com http://www.tbsdtv.com sales@tbsdtv.com support@tbsiptv.com support@tbsdtv.com TBS8113 DVB-S/S2/S2X to DVB-C TRANS-MODULATOR User Manual Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055 1 / 11...

  • Page 2: Safety Notes

    Copyright © TBS Technologies 2009-2022 All Rights Reserved SAFETY NOTES Read the user’s manual before using the equipment, mainly "SAFETY RULES" paragraph. The symbol on the equipment means "SEE USER’S MANUAL". In this manual may also appear as a Caution or Warning symbol.
  • Page 3 Catalog 1. Product Introduction ............................4 1.1 Overview ..............................4 1.2 Specification ............................... 5 2. System Connection and Log in ..........................6 3. Network setting ..............................7 4. Input source setting ............................. 7 4.1 DVB-S/S2/S2X input setting ........................7 4.2 Network TS input setting ........................... 9 4.3 Local file input setting ..........................

  • Page 4: Product Introduction

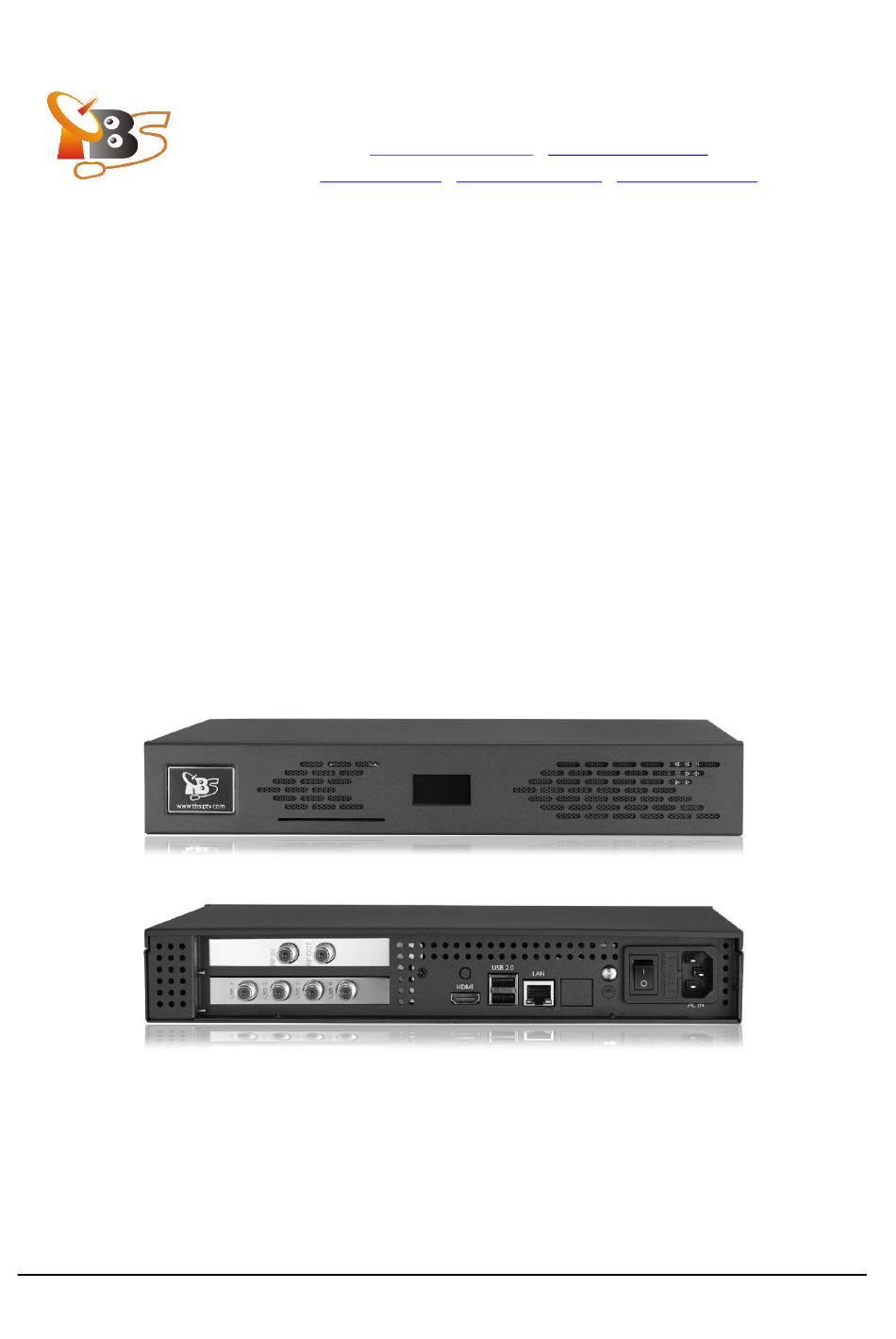

    1. Product Introduction 1.1 Overview TBS8113 is a compact trans-modulation device that is used to convert free DVB-S/S2/S2X satellite TV channels to DVB-C (Digital Terrestrial Television) format. It supports to receive free satellite channels from 4 frequencies via 4 RF port, and output DVB-C channels in 4 frequencies.

  • Page 5: Specification

    1.2 Specification 4 Frequencies DVB-S/S2/S2X satellite input Frequency range 950-2150 MHz Standard DVB-S/S2 DVB-S2X code rate QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, QPSK: 1/4,1/3, 2/5 (S2-MODCODs), 1/2, 9/10 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9...
  • Page 6 2. System Connection and Log in ➢ The default IP for TBS8112 DVB-S/S2/S2X to DVB-C trans-modulator is 192.168.8.101:8081. ➢ In first place, check the IP address of the PC. It must be in the same IP range of the device. This means, an IP like 192.168.8.xxx (xxx can be 0 to 255 except 101 to avoid conflict with module IP address).

  • Page 7: Network Setting

    3. Network setting In the network setting page, users can enable the DHCP. Users can change the network parameters for trans-modulator in this page, too. 4. Input source setting 4.1 DVB-S/S2/S2X input setting Adapters: Choose TBS6909se DVB-S/S2/S2X adapter 0-3 (tuner). Delivery Systems: Choose DVB-S, DVB-S2 or DVB-S2X here.
  • Page 8 channels belong to) Frequency (kHz): Enter the transponder’s frequency value here. Symbol Rate (Sym/s): Enter the signal’s symbol rate value here. Polarisation: Choose V or H, according to the signal’s condition. Modulation: Choose the signal’s Modulation here. FEC: Choose the signal’s FEC value here. Click “Scan Channels”...
  • Page 9 4.2 Network TS input setting TBS8112 support to catch network streams in HTTP, UDP, RTP protocol. Enter the URL of the streams and click “Apply” to catch the network TS. 4.3 Local file input setting TBS8112 trans-modulator supports to convert local SPTS file into DVB-C signal. The Local SPTS file should be: Video format: MPEG-1 MPEG-2 MPEG-4 H264 H.265 Audio format: MPEG-1 MPEG-2 AAC_ADTS AAC_LATM A52 (aka AC3)
  • Page 10 Click and move the selected channels for DVB-C generation. TBS8113 Trans-modulator has 4 DVB-C mod (0-4) for DVB-C channels output. 5.2 DVB-C output setting Network ID: It is the number that identifies the network where the signal is distributed. Enter any value from (0-65535).

  • Page 11: Maintenance

    Transport Stream ID: It is a number that identifies a specific transport stream. Enter any value from (0-65535). Network Name: It is the name that identifies the network where the signal is distributed to . Provider Name: It is the name that identifies the provider of the signal. Output Bitrate: Enter any value from (10-50M) according to your system requirements.
