IndoorCam user manual
Updated December 9, 2024

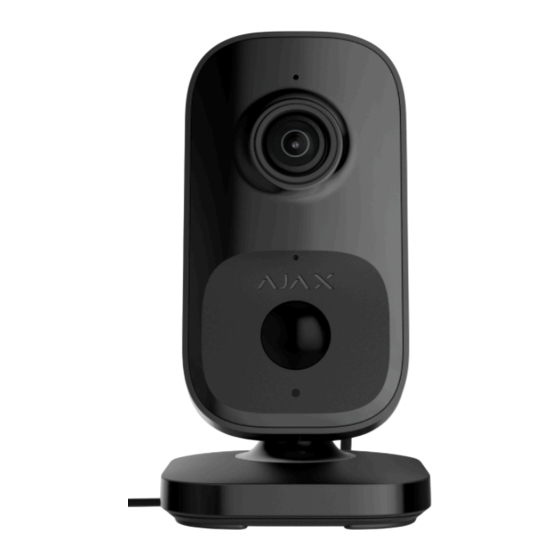

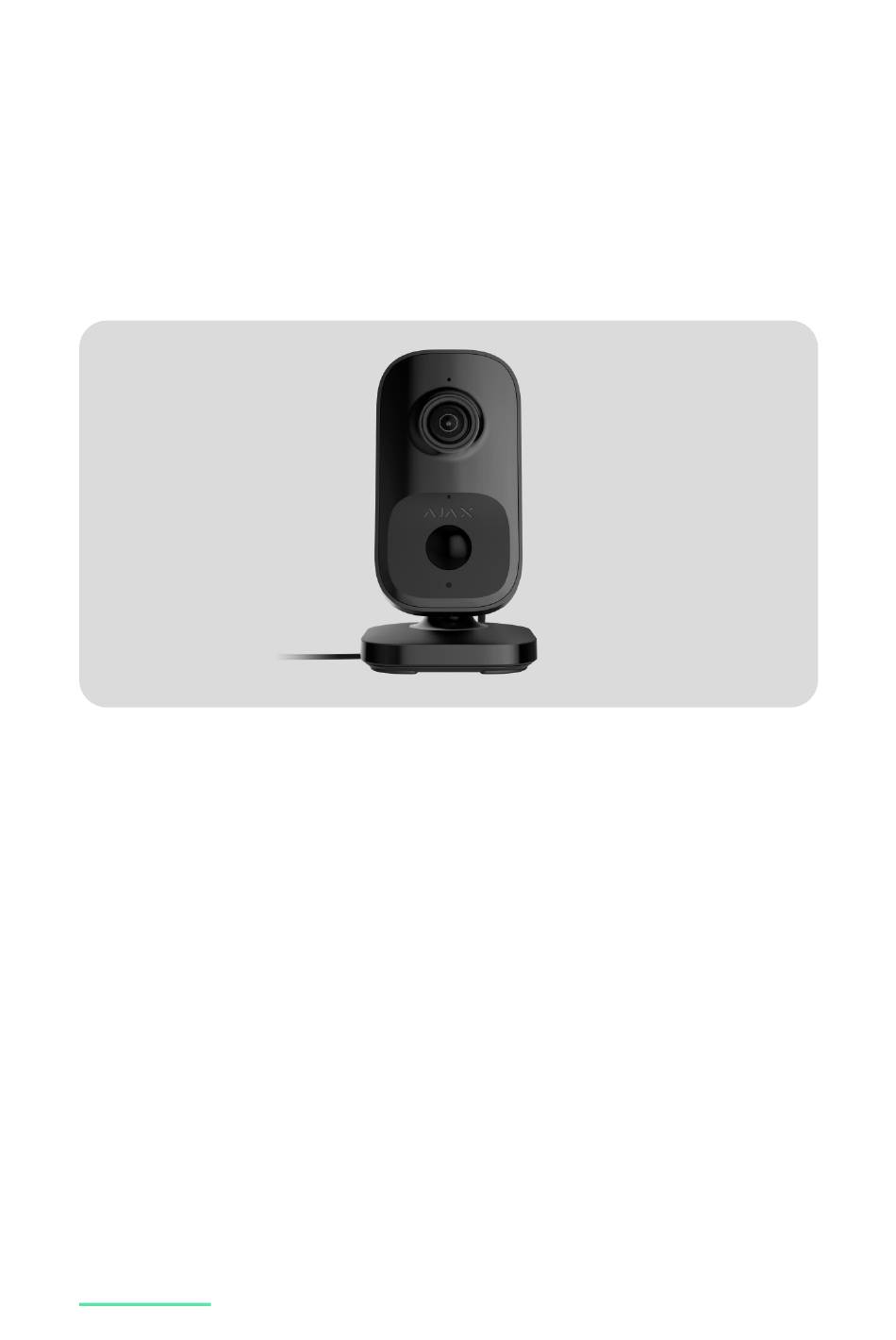

IndoorCam is a Wi-Fi security camera with built-in AI,
PIR sensor, and control via Ajax apps. It features
smart infrared (IR) backlight, movement detection,
and object recognition. The camera allows users to
view archived videos and watch live streams. It is
designed for indoor use only.
IndoorCam is connected to the system via Wi-Fi and
can be paired with a hub as a backup communication
channel. The recorded videos can be stored on an
Ajax NVR
added to the same network or on the Ajax
Cloud Storage archive according to subscription
