DomeCam Mini user manual | Ajax Systems Support

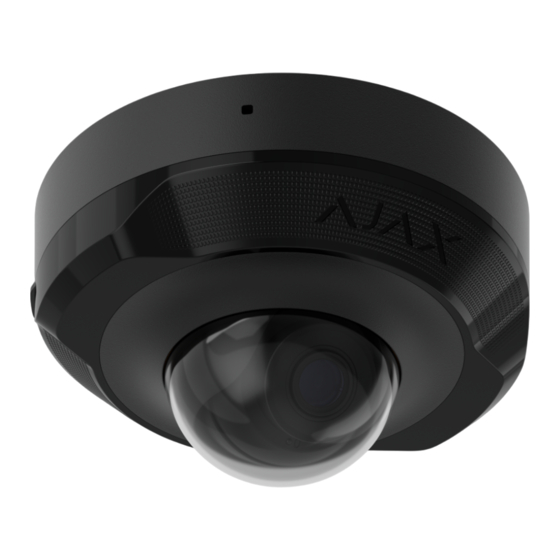

DomeCam Mini is an IP camera with smart infrared (IR) backlight
and an object recognition function. The user can view archived and
live videos in the Ajax apps. To store the captured data, install a
microSD card or connect the camera to NVR with an installed hard
disk.
https://support.ajax.systems/en/manuals/domecam-mini/
DomeCam Mini user manual
Updated November 10, 2023
The device is compatible with all
extenders ocBridge Plus
,
hubs
. Connection to
, and
uartBridge
is not supported.
Language:
Eng
radio signal range
23.11.2023, 18:44
Page 1 of 22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DomeCam Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX DomeCam Mini

Summary of Contents for AJAX DomeCam Mini

  • Page 1 DomeCam Mini is an IP camera with smart infrared (IR) backlight and an object recognition function. The user can view archived and live videos in the Ajax apps. To store the captured data, install a microSD card or connect the camera to NVR with an installed hard disk.

  • Page 2: Functional Elements

    DomeCam Mini (5 Mp/2.8 mm); DomeCam Mini (5 Mp/4 mm); DomeCam Mini (8 Mp/2.8 mm); DomeCam Mini (8 Mp/4 mm). Buy DomeCam Mini Camera versions with other enclosures are also available. All Ajax cameras are available here Functional elements https://support.ajax.systems/en/manuals/domecam-mini/...
  • Page 3 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 1. Faceted lens. Covers the infrared LEDs and diffuses the rays. 2. Transparent protective cover. 3. Camera enclosure. 4. Reset button with an LED indicator. 5. Screws to secure the camera lid. Can be unscrewed with a bundled hexagon key (Ø...

  • Page 4: Operating Principle

    23.11.2023, 18:44 12. Holes for attaching the camera to the surface. 13. Cable connector. 14. QR code with the device ID. Used to add DomeCam Mini to an Ajax system. Operating principle DomeCam Mini is an IP camera that uses artiZcial intelligence (AI) for object recognition.
  • Page 5 Ajax app when the security detector is triggered. Video scenarios The Ajax system offers the capability to use IP cameras for alarm veriZcation. Video scenarios enable the substantiation of alarm triggers with corresponding video from cameras installed at the facility.

  • Page 6: Selecting The Installation Site

    DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Videowall The user can manage videos on the Videowall tab, accessible once at least one camera has been added. This feature ensures quick access to all connected cameras, displayed in accordance with privacy settings.
  • Page 7 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 When choosing the optimal location to install DomeCam Mini, consider the camera’s viewing angle and any potential obstacles that might obstruct its view. Consider the placement recommendations when designing the security system project for your object.

  • Page 8: Installation And Connection

    DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 backlight and blinds the camera in the dark. Installation and connection 1. Remove the faceted lens. 2. Using the bundled hexagon key (Ø 2.5 mm), remove the screws holding the protective cover. Insert a microSD card (not included) into the app.
  • Page 9 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 6. Secure the faceted lens. 7. Connect the Ethernet cable to the camera. If it is powered by PoE, no external power supply is needed; otherwise, connect both the external power supply and the Ethernet cable. Install a...

  • Page 10: Adding To The System

    DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Cloud. 9. Ensure that the camera lens faces the protected area. Adjust it by removing the faceted lens and the protective cover. Adding to the system Before adding a device 1.
  • Page 11 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 1. Select a hub in the Ajax app. 2. Go to the Devices tab. 3. Find DomeCam Mini in the list. Icon Value Live view is available. Live view is not available.
  • Page 12 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 The states display information about the device and its operating parameters. You can Znd out about the states of the camera in Ajax apps: 1. Select a hub in the Ajax app.
  • Page 13 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Please check your wired internet connection. Clicking the icon displays the network parameters. Displays the list of storage devices connected to the camera: Cloud progress); Memory card — data is recorded on a memory card (not included) installed in the camera.
  • Page 14 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Resolution The current camera resolution. Frame Rate The current camera frame rate. Bit Rate The current camera bit rate. The current video codec: H.265; Video Codec H.264. The Motion Detection function status: Motion Detection Off.
  • Page 15 To change camera settings, in an Ajax app: 1. Go to the Devices tab. 2. Select DomeCam Mini from the list. If DomeCam Mini is connected to the video recorder, select NVR and click Cameras. 3. Go to Settings by clicking on the gear icon .
  • Page 16 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Room The room name is displayed in SMS text and notiZcations in the events feed. When this option is enabled, the camera will switch to the armed mode whenever the system is set to Night Mode.
  • Page 17 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 receives a notiZcation with video footage: NotiZcations by camera detectors Human; Animal; Vehicle. The setting also allows the user to specify the duration of the movement and select the armed mode that triggers the notiZcations.
  • Page 18 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Parameters of the displayed text. When the Audio Capture and Playback Audio toggle is enabled, the camera records sound. Allows the user to select zones that are Privacy Zones not displayed on the camera video.
  • Page 19 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 The frequency of polling the Ajax Cloud server is set in the range of 30 to 300 seconds. Сamera–Cloud Polling Interval, s The shorter the interval, the quicker the cloud connection loss will be detected.

  • Page 20: Maintenance

    DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Malfunction When a malfunction is detected, the Ajax app displays a malfunction counter on the device icon. All malfunctions are indicated in the camera States . Fields with malfunctions will be highlighted in red.

  • Page 21: Warranty

    DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Technical speciGcations Technical speciGcations for DomeCam Mini (5 Mp/2.8 mm) Technical speciGcations for DomeCam Mini (5 Mp/4 mm) Technical speciGcations for DomeCam Mini (8 Mp/2.8 mm) Technical speciGcations for DomeCam Mini (8 Mp/4 mm)
  • Page 22 DomeCam Mini user manual | Ajax Systems Support 23.11.2023, 18:44 Contact Technical Support: Email Telegram Subscribe to the newsletter about safe life. No spam Email Subscribe https://support.ajax.systems/en/manuals/domecam-mini/ Page 22 of 22...
