Sealey MOTBKIT.V1 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. INTRODUCTION
Shadow board for MOT approved and compliant tools. Keeps tools organised and in one location. Wall mounting and supplied with fitting
9
kit.

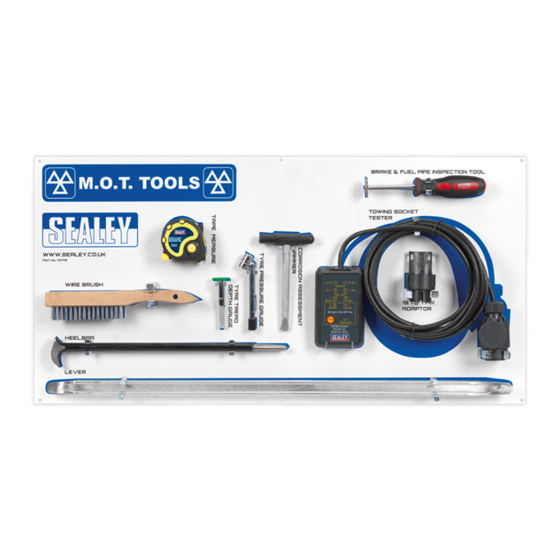

MOTBKIT: Shadow board complete with tools (see list below).
9
MOTB: Shadow board (size: 812 x404mm) supplied without tools. Wall mounting and fitting kit supplied.
9
2. SPECIFICATION
Model No: ......................................................... MOTBKIT.V2
Nett Weight: ................................................................ 5.01kg
Size (W x H): .......................................................... 812 x 404
3. TOOLS
Part No.
AK989 Rubber Measuring Tape 5mtr
H1MOT Corrosion Assessment Hammer
S0837 Heelbar 400mm
TST/DG Tyre Tread Depth Gauge
TSTPG8 Tyre Pressure Gauge with Pocket Clip 6-50psi
TST22 13-Pin Towing Socket Tester 12V
VS0210 Brake & Fuel Pipe Inspection Tool
VSTL760 Tyre Lever 760mm
WB02 Wire Brush
4. INSTALLATION
4.1. Using a 4mm drill, drill through the board at all the marked centres.
4.2.
Before fixing the clips, hold the board in position against the wall and mark through the six fixing holes.
4.3. Drill the wall at the six marked locations and insert the wall plugs.
4.4. Attach the fixings as shown in the list using 4mm bolts, washers and nuts.
4.5. The tape measure clip (item 6) is held on by 2 x 4mm bolts, washers and nuts.
4.6. When all the clips, hooks etc. have been secured, fix the board to the wall by screwing into the wall plugs installed in section 3.3.
© Jack Sealey Limited
MOT TOOL BOARD WITH TOOLS
MODEL NO:
MOTBKIT TOOLS
Description
Original Language Version
MOTBKIT.V1, MOTB.V2
MOTB.V2, MOTKIT.V1 Issue1 16/10/24
