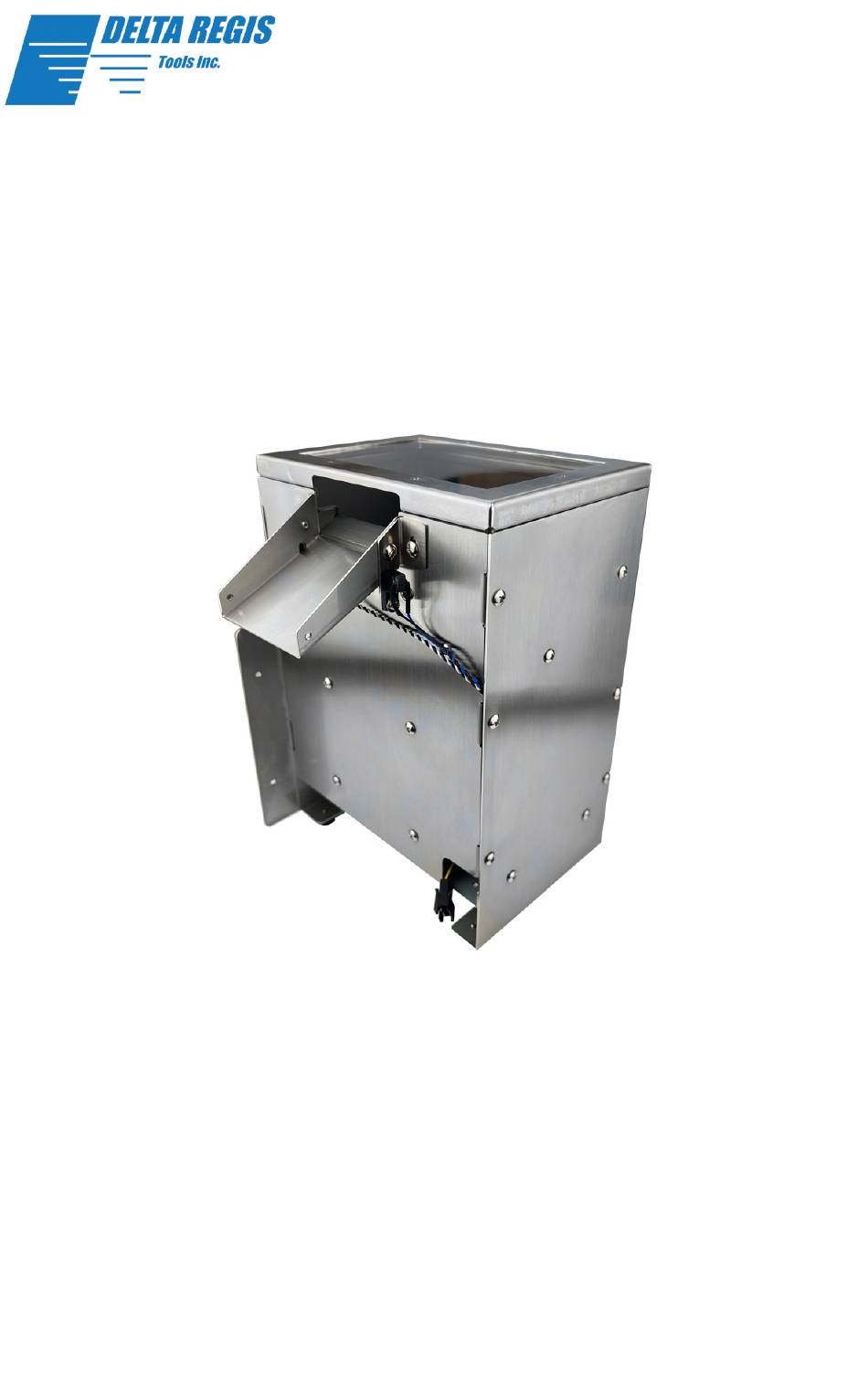

DRFF-620HP / DRFF-800HP/DRFF-1500HP
CAUTION — Please read, understand, and follow all operating and
safety instructions in this manual before using a DRFF bulk hopper.
If you have any questions or concerns, please contact us at:
Delta Regis Tools, Inc.
7370 Commercial Circle
Fort Pierce, FL USA 34951
Delta Regis_DRFF-620_800_1500HP_M_R0.1
Copyright © 2023 Delta Regis Tools Inc
Bulk Hopper
Operation and Setup Manual
Ph +1-772-465-4302
Fx +1-772-465-4368
Email: sales@deltaregis.com
Website: www.deltaregis.com
Advertisement
Related Manuals for Delta Regis DRFF-620HP
Summary of Contents for Delta Regis DRFF-620HP
- Page 1 If you have any questions or concerns, please contact us at: Delta Regis Tools, Inc. Ph +1-772-465-4302 7370 Commercial Circle Fx +1-772-465-4368 Fort Pierce, FL USA 34951 Email: sales@deltaregis.com Website: www.deltaregis.com Delta Regis_DRFF-620_800_1500HP_M_R0.1 Copyright © 2023 Delta Regis Tools Inc...
- Page 2 Do not attempt to disassemble or repair the bulk hopper. Repairs should only be performed by qualified technicians properly trained in the safe operation, troubleshooting, and repair of these devices. Please consult Delta Regis for the location of the nearest service depot. •...
-
Page 3: Product Overview
DRFF-620/800HP Screw Feeder Operation and Setup Manual Product Overview 1 - Programming Key Pad w/LCD 2 - Power Switch 3 - Manual Start Button 4 - Indicator LED 5 - I/O Plug 6 - DC Receptacle 7 - Proximity Sensor www.deltaregis.com... -
Page 4: Installation
DRFF-620/800HP Screw Feeder Operation and Setup Manual Installation NOTE: Before installation, be sure to connect the DC power connector to the screw feeder, the proximity sensor to its harness and if applicable, ensure the feeder’s I/O cable is accessible 1. Remove the highlighted screws from the screw feeder. Screw the mounting plate on the left side of the bulk hopper to the holes on the left side of the screw feeder using provided thumb screws... - Page 5 DRFF-620/800HP Screw Feeder Operation and Setup Manual Installation (Continued) 2. Install the height-adjustable proximity sensor into the screw feeder’s hopper using the included screws and wire tab. (The wire tab is used to route the proximity sensor wire) 3. Install the screw feeder cover and fasten the provided screws.
- Page 6 DRFF-620/800HP Screw Feeder Operation and Setup Manual Adjustments NOTE: Before installing the sensor into the screw feeder, adjust the height of the sensor by adjusting the jamb nuts 1. There are two locking positions “1” and “2” on the sensor bracket. The default installation position is “2”.
- Page 7 DRFF-620/800HP Screw Feeder Operation and Setup Manual Adjustments (Continued) 2. After the sensor is installed, it should not contact with any metal parts in the scooping chamber. Red LED ON = SCREWS PRESENT OFF = NO SCREWS PRESENT 3. Turn ON the bulk hopper. When there are no screws in the screw feeder, the red light on the sensor should be off.
- Page 8 DRFF-620/800HP Screw Feeder Operation and Setup Manual I/O Plug FUNCTION Hopper low material detection (+) Hopper low material detection (-) External Start Programming SET: Press and hold for 3 seconds to enter programming; press again to alternate programs OK: Undefined UP: Up key (plus key) DOWN: Down key (minus key) Program...
-
Page 9: Maintenance
Parts and Accessories If you require parts or accessories for your Delta Regis product, please refer to our website or contact us for further information. Use only genuine Delta Regis parts when servicing these products. - Page 10 There is no warranty of merchantability or fitness of purpose. In no event will Delta Regis Tools, Inc. be liable for business interruptions, loss of profits, harm, injury, damage, personal injury, cost of delay, or any other special, indirect, incidental, or consequential losses, costs, or damages.
- Page 11 DRFF-620/800HP Screw Feeder Operation and Setup Manual www.deltaregis.com...
