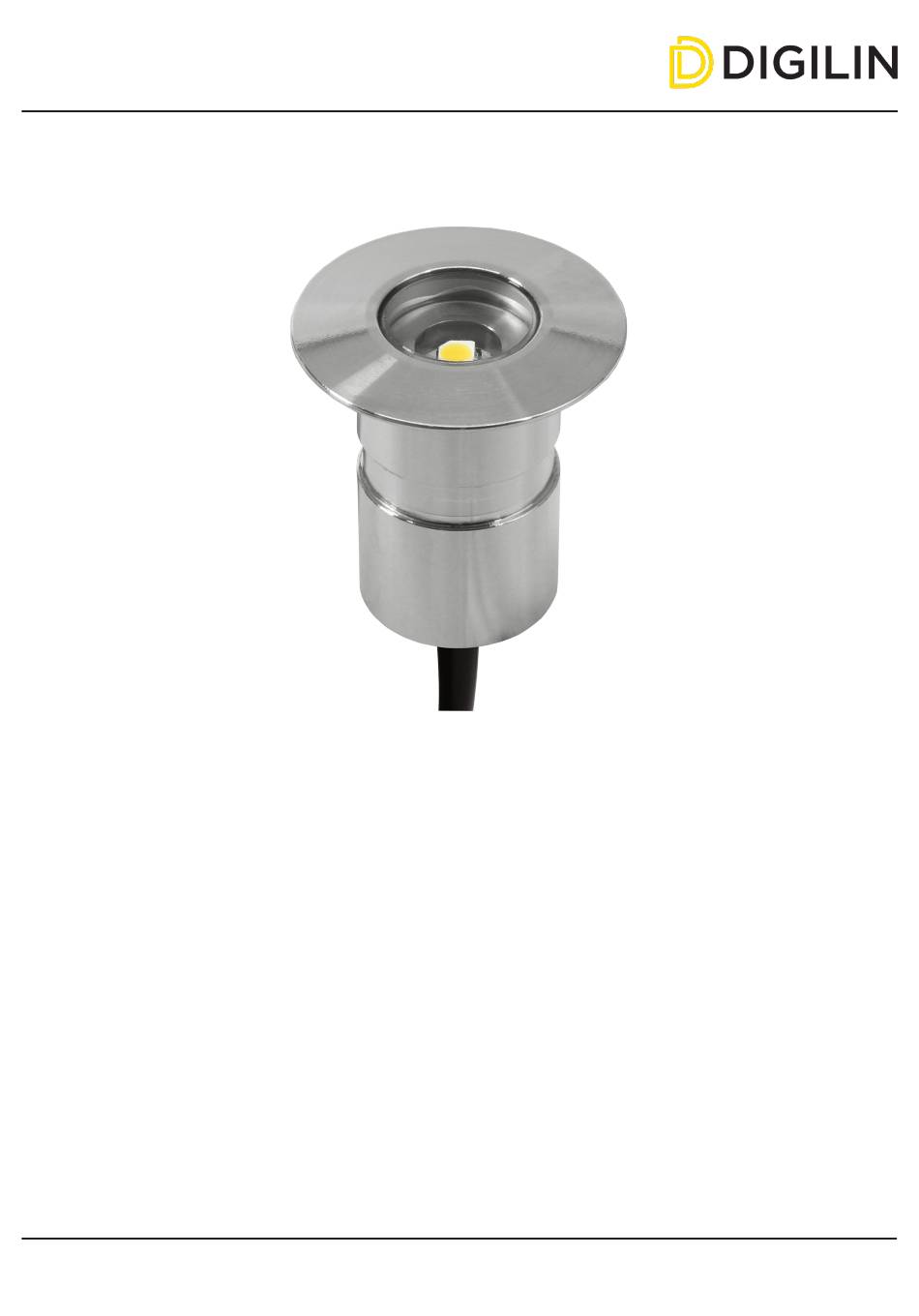

LINK - Pathway & Marker Luminaire
Installation Guide
CAUTION
Installation should only be performed by a qualified professional.
Install in accordance with all appropriate wiring standards.
Never connect a LED luminaire to a driver that is powered. Doing so may result in damage to the LED.
Always make sure the output voltage range and output current of the LED driver match the requirements of the
LED luminaire. Failure to do so may result in damage to both the driver and the luminaire.
Do not install under mechanical stress.
Allow for expansion due to changes in temperature.
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Please be aware that while the system has a very long operational life, faults may occur, and provision needs to
be made for maintenance.
Always turn off power before working on luminaire.
www.digilin.com.au
+617 3899 1267
ABN 76 634 301 376
Document Revision: 240930 - Installation Guide Link
Product specifications are subject to change without notice
1 of 5
