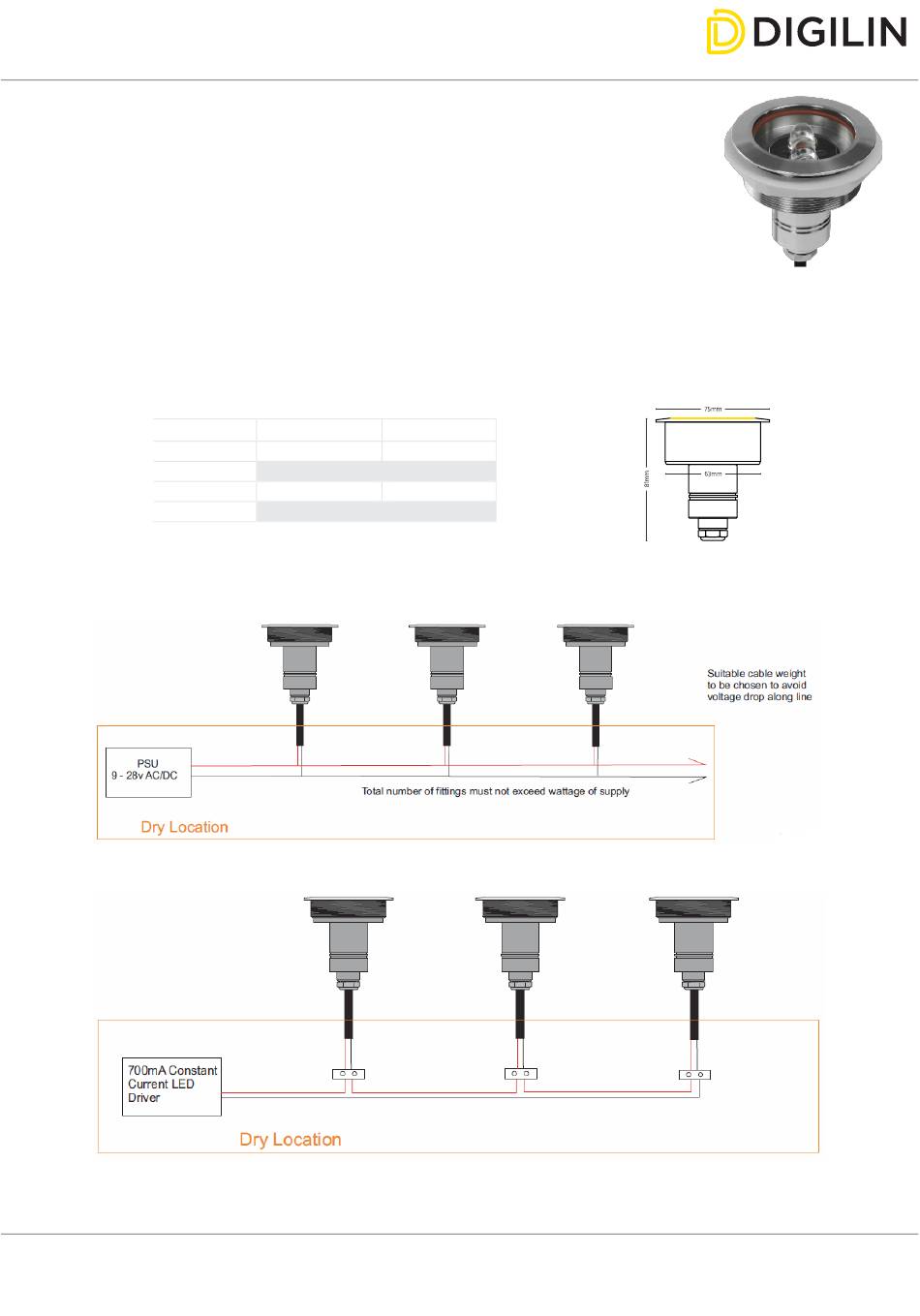

Flare – Wall Wash Uplight
Installation Guide
Notes
Installation should only be performed by a qualified professional
•
Install in accordance with all appropriate wiring standards
•
DALI is not SELV and needs to be wired accordingly
•
Never connect a LED fitting to a driver that is powered. Doing so may result in damage to the LED.
•
Always make sure the output voltage range and output current of the LED driver match the requirements of the
•
LED fitting. Failure to do so may result in damage both the driver and fitting.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
•
similar qualified person.
Do not install under mechanical stress.
•
Allow for expansion due to changes in temperature.
•
Please be aware that while the system has a very long operational life, faults may still occur, and provision needs to be made for maintenance.
•
Always turn off power before working on fitting.
•
Specifications
Dimensions
Weight
Cut out Size
IP Rating
Wiring Diagram
Non-Dim
Dimmable
digilin.com.au
+617 3899 1267
U n i t s
Ø75 x 81
mm
640
g
65
mm
68
Document Rev: 6.0 - 25 January 2022
Product specifications are subject to change without notice
©2022 Digilin Technologies
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Digilin Flare
Summary of Contents for Digilin Flare
- Page 1 Flare – Wall Wash Uplight Installation Guide Notes Installation should only be performed by a qualified professional • Install in accordance with all appropriate wiring standards • DALI is not SELV and needs to be wired accordingly • Never connect a LED fitting to a driver that is powered. Doing so may result in damage to the LED.
- Page 2 Flare - Wall Wash Uplight Installation Guide Installation Fitting Location Panel Mount (Requires rear access) Cut the specified hole size in the mounting Remove the lock nut from the fitting. Feed the cable and fitting through the pre- panel. Maximum panel thickness is 20mm.
- Page 3 Prepare and install conduit as required. The If present, remove the lock nut from the Feed the cable through the conduit Flare requires a conduit with an inner fitting. diameter of at least 63mm for installation and must allow for adequate depth for fitting and cable.
