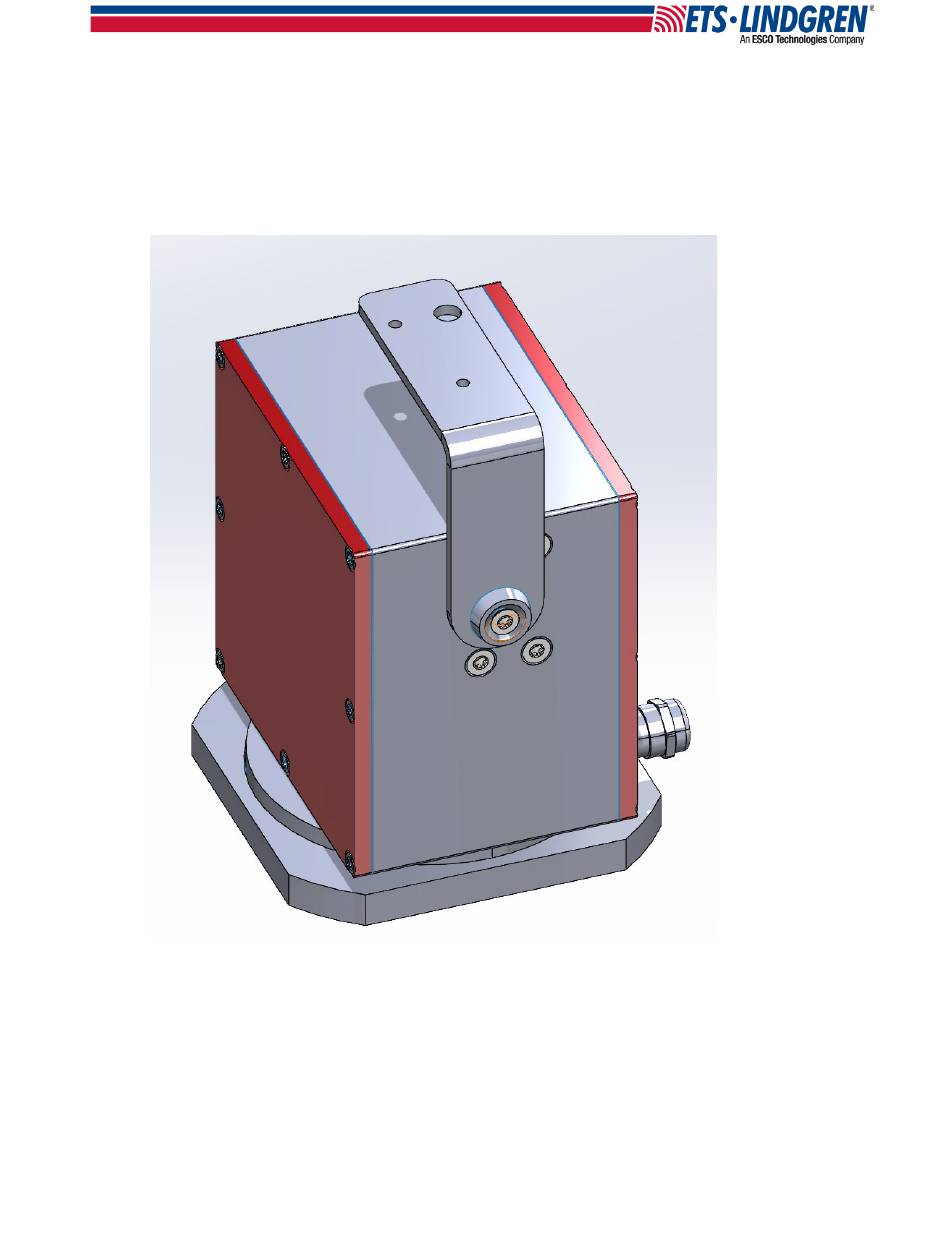

- Page 1 EMCam 4350 Pan/Tilt...
- Page 2 ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve functioning or design. Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein; nor does it convey any license under its patent rights nor the rights of others.
- Page 3 GENERAL ................................4 MOVEMENT ................................. 4 Remote Control ..............................4 Local Control ................................ 4 LED ..................................4 INITIALIZATION ..............................4 REMOTE CONTROL ............................5 PELCO Commands .............................. 5 Settings ................................5 WIRING ................................6 CAMERA BRACKET ............................6 TECHNICAL DATA .............................. 6 ...
-
Page 4: Remote Control

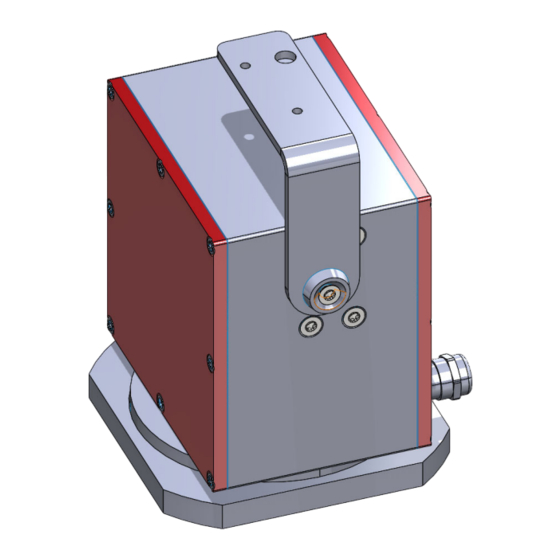

GENERAL The EMCam 4350 PT unit is a pan/tilt (PT) unit for the EMCam 4350 series cameras. The EMCam 4350 series cameras are designed for operation in EMC critical areas. Emissions are very low, and the EMCam 4350 P/T can withstand field strengths of 200 V/m and more. - Page 5 The PT can be moved in either direction unconditionally. The PT should be moved to central position in both directions pan and tilt. To store the current position as the center position of pan and tilt, press UP + DOWN or LEFT + RIGHT simultaneously.
-
Page 6: Camera Bracket
WIRING The EMCam 4350 is connected to the camera via a 4 line cable (M12-A). 4-Pin Receptacle to Camera Color 1 D+ Brown White 3 D_GND Blue 12 V Black Power Supply for the EMCam 4350 15 Pin D-SUB; Pin Plug Connector 5pin M12-A Color Signification...
