Defender Network C-971 Operation Manual

OPERATION MANUAL
Wireless office combo
ИНСТРУКЦИЯ ПОЛЬЗОВАТЕЛЯ
Беспроводной офисный набор
EN Wireless Bluetooth office combo
OPERATION MANUAL
1. Bluetooth mode connection.
Keyboard
Slide the power switch to "ON" position, the power indicator will turn on in
blue color for 5 seconds.
Press the "Connect" button, the indicator
Switch on the connection in your device and search for "Bluetooth Keyboard"
name and click on connect. When it is connected successfully, the indicator
will turn off automatically.

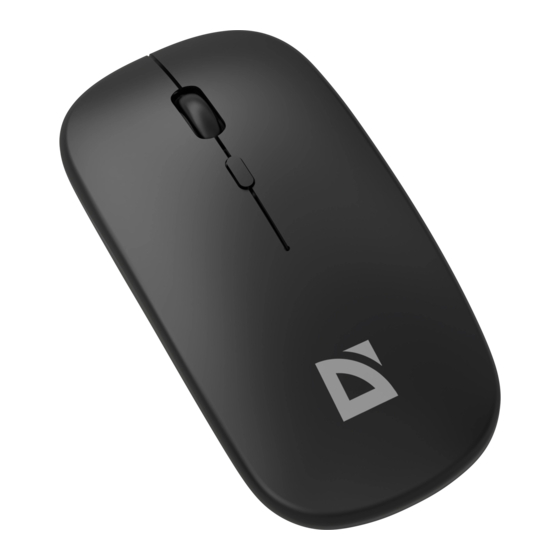

Mouse
Slide the switch on the bottom of the mouse to the "ON" position. Turn on
Bluetooth mode on the device you want to connect the mouse to. Then will
appear device name "BT5.2 Mouse", then click on connect.
Bluetooth channel has versions 5.2.
To reconnect to the device, follow all the steps above.
2. Turn off
Slide the power switch to "OFF" position, the keyboard will be turned off
immediately.
To turn off the mouse, move the switch to the "OFF" position.
3. LED Indicators for keyboard
"CAPS" indicator turns on blue when the Capslock function is on
indicator shows the connection process, refer to the clause 1.
"Charge" indicator turns on red when charging and it will turn off automatically
Network C-971 when the keyboard is fully charged.
When the battery is low, the "Charge" indicator will blink until the keyboard
stops working.
Keys Combinations of the keyboard
Please note: Buttons Control and Command do not work on the Android and
Windows systems.
FN + Control = to turn on the virtual keyboard on the screen (for Android and
Windows systems).
FN+Q shift to Android mode to realize Android function
Esc = Home
F3 = Select all
F6 = Cut
F9 = Next song
F12 = Screen Lock
FN + ↓ =Page Down
FN + Control = to turn on the virtual keyboard on the screen.
FN+W shift to Windows to realize Windows function
FN + Esc = Home
FN + F3 = Select all
FN + F6 = Cut
FN + F9 = Next song
FN + F12 = Screen Lock
FN + ↓ = PgDown
FN + Control = to turn on the virtual keyboard on the screen.
FN+E shift to iOS mode to realize iOS function
Esc = Home
F3 = Select all
F6 = Cut
F9 = Next song
F12 = Screen Lock
FN + ↓ =Page Down
will be flashing in blue color.
F1 = Return F2 = Search
F4 = Copy F5 = Paste
F7 = Previous song F8 = Play/Pause
F10 = Volume- F11 = Volume+
FN + → = End FN + ← = Home
FN + ↑ = Page Up
FN + F1 = Return FN + F2 = Search
FN + F4 = Copy FN + F5 = Paste
FN + F7 = Previous song FN + F8 = Play/Pause
FN + F10 = Volume- FN + F11 = Volume+
FN + → = End FN + ← = Home
FN + ↑ = PgUp
F1 = Return F2 = Search
F4 = Copy F5 = Paste
F7 = Previous song F8 = Play/Pause
F10 = Volume- F11 = Volume+
FN + → = End FN + ← = Home
FN + ↑ = Page Up
EN Wireless Bluetooth office combo
OPERATION MANUAL
Declaration of Conformity
Operation of device (devices) may be affected by strong static, electrical or high-frequency
fields (radio installations, mobile telephones, microwaves, electrostatic discharges)/ If
occurs, Try increasing the distance from the devices causing the interface.
Disposal of batteries, electrical and electronic equipment
This sign on the product, its batteries or package indicates that the product
cannot be disposed together with domestic waste. It should be delivered to an
appropriate battery, electrical and electronic equipment collecting and recycling
company.
Terms and conditions of safe and efficient use of the product
Usage precautions:
1. Use the product for its intended purpose only.
2. Do not disassemble. This product does not contain parts that are entitled to self-
sufficient repair. On the question of maintenance and replacement of a failed item apply
to a dealer or Defender authorized service center. While receiving the product make sure
that it is unbroken and there are no freely moving objects inside the product.
3. Keep away from children under the age of 3. May contain small parts.
4. Keep away from humidity. Never immerse the product in liquids.
5. Keep away from vibrations and mechanical stresses, which can cause mechanical
damaging of the product. In case of mechanical damage, no warranties are provided.
6. Do not use in the presence of visual damage. Do not use when the product is obviously
defective.
7. Do not use the product at temperatures below and above recommended temperatures
(see the operation manual), under the conditions of humidity evaporation, as well as in
hostile environment.
8. Do not put into the mouth.
9. Do not use the product for industrial, medical or manufacturing purposes.
10. In case when shipment of the product was conducted in subzero temperatures, then
before operating, the product should be kept in a warm placement (+16-25°C or 60-77°F)
within 3 hours.
11. Turn off the device each time, when it is not planned to use it for extended period of
time.
12. Do not use the device while driving the vehicle, if it is diverted attention, and in other
cases when the law obliges you to turn off the device.
Product specifications and features can be found on the packaging and on defender-
global.com
Importer: Defender Technology OÜ, Betooni str 11, 11415, Tallinn, Estonia.
Manufacturer: STARWAVE TECHNOLOGY CO., LIMITED. Address: 15/F Huaide International
Bld, No.73 Guangshen Rd Fuyong Segment, Fuyong Boulevard Bao'an District, Shenzhen,
China. Made in China.
Unlimited shelf life. Service life is 2 years. Date of manufacture: see on the package
Manufacturer keeps the right to change package contents and specifications indicated in
this manual. The latest and detailed operation manual is available at www.defender-
global.com
Date of manufacture: see on the package. Made in China.
Warranty service is not effected in the following situations:
1. Expiration of the warranty period (warranty period is settled from the date of sale to the
end user).
2. Incorrect filling in of the warranty card.
3. Incorrect plug in to power grid.
4. Breach to safety of guarantee seals, fixing joint assemblies of the case; presence of
elements of opening on outside and inside parts of the product.
5. If the product designed for household use was used for professional purposes.
6. Damage due to penetration of foreign objects, substances, liquids or insects inside the
product.
7. Damage due to breach to normal work of supply network – 220V +/- 10%. (except of
automatic voltage regulators)
8. If the product was opened and repaired by a person unauthorized for that by the dealer.
9. Incorrect operation or careless handling.
10. Damage to the product due to natural disasters.
11. Presence of elements indicating mechanical damage (fall, hit).
12. Disability of connected devices of other producers.
