3.3 Connecting the ONE_1000 Components
USB-3 to ONE_1000 Module
Interconnection of the USB 3.1 cable to the ONE_1000 acquisition module is established at back
plate "USB-3" interface, item "l" as referred in paragraph 2.1.2. This connection is "electrically hot-
swappable" meaning that the ONE_1000 acquisition module does not require to be powered off
when changing interconnection. However, it is possible that the software needs to be re-initiated.
Please refer to the OneBox product manual for more details.
PSU to ONE_1000 Module
Interconnection of the power adapter to the mains voltage can only be established by using a
regionally safety approved power cord with a IEC320 C14 plug according to rating recommendations
as described in paragraph 1.3.
Please refer to regional installation and power cord safety approvals before use to avoid damage or
injury.
www.imec.com

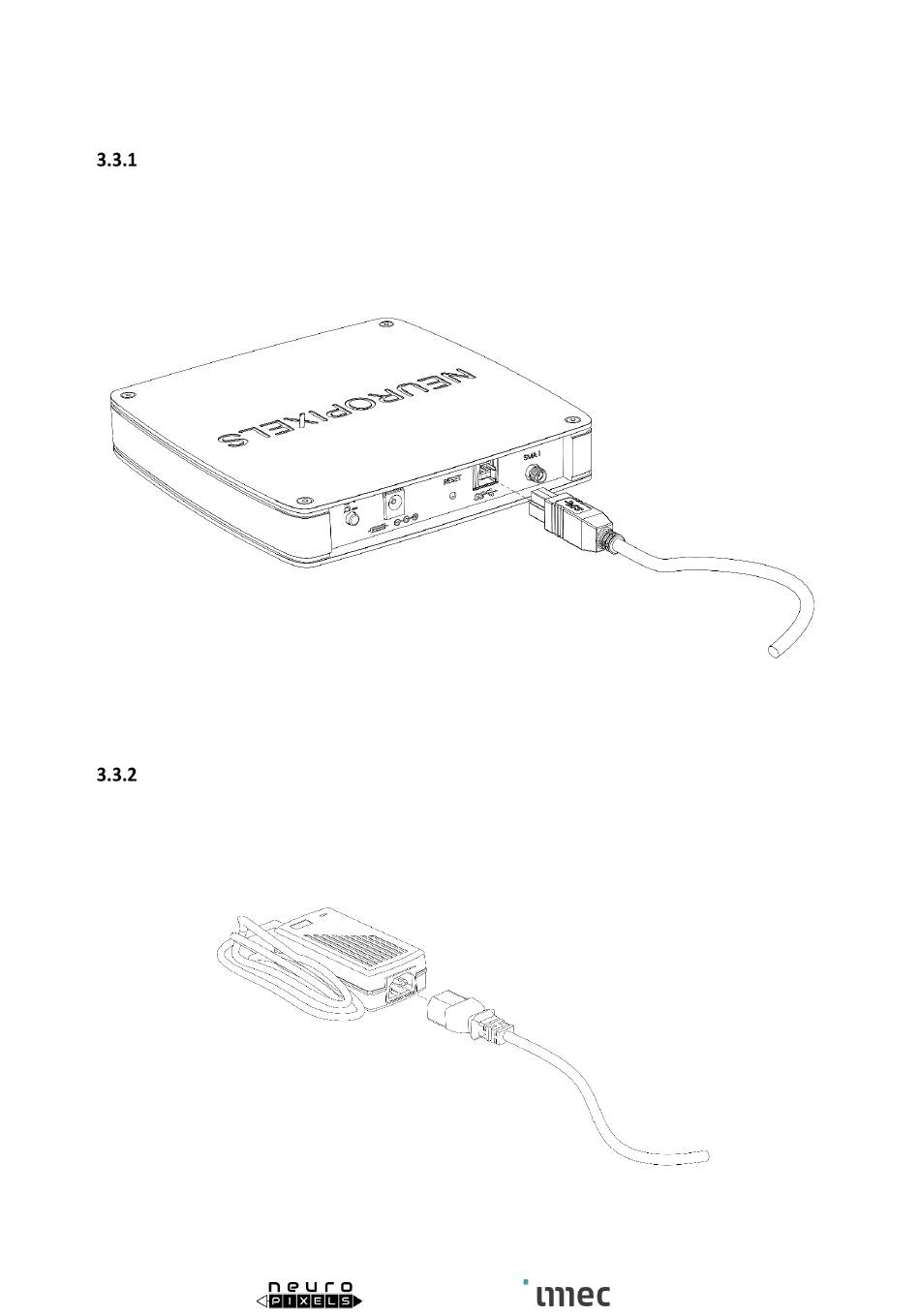

Figure 10: USB-3 connection
Figure 11: Power cord connection
