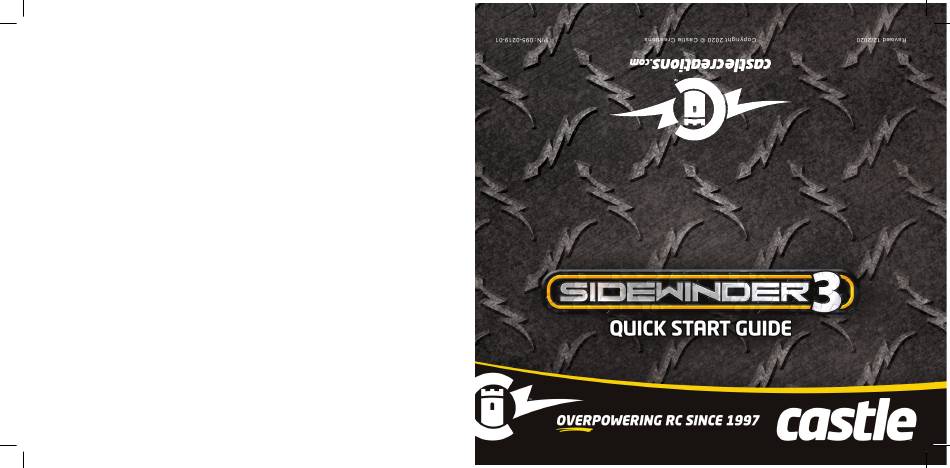

CASTLE SIDEWINDER 3 Quick Start Manual

QUICK START GUIDE QUICK START GUIDE
Install ESC and motor in your vehicle.
1. Solder a high quality battery connector to the ESC.
2. Mount the ESC and motor into the car.
3. Connect the 3 motor wires to the ESC.
4. Connect the ESC Rx lead to CH2 on your receiver.
5. Make sure the ESC's switch is off.
You MUST Calibrate this ESC to your radio before your first run.
1. Connect a battery.
2. Turn on your transmitter and hold full throttle.
3. While holding full throttle on your transmitter, turn the ESC switch
ON. After a few seconds you'll hear multiple tones and the ESC's
red LED will light.
4. Now hold full brake on the transmitter. After a few seconds you'll
hear multiple tones and the ESC's yellow LED will light.
5. Now relax throttle to neutral. After a few seconds you'll hear
multiple tones and ALL the LEDs will light.
6. A few seconds later the ESC will arm with a double tone and you're
ready to go!
