Homelegance B1799T-1 Assembly Instruction

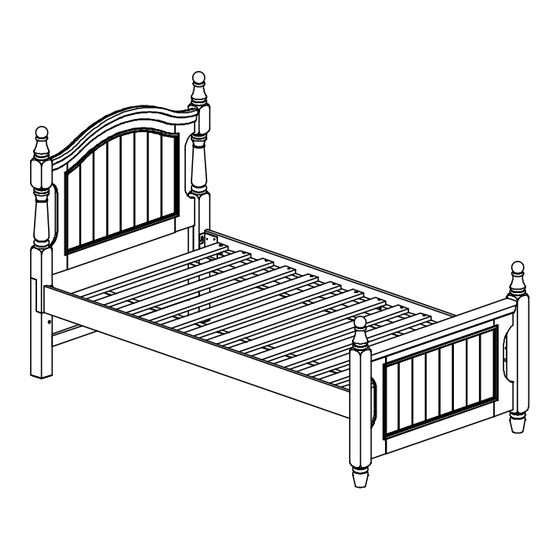

Item No : B1799T-1 / B1799F-1
Description : TWIN & FULL HEADBOARD
TETE DE LIT - LIT JUMEAU & LIT DOUBLE
HEADBOARD / TETE DE LIT
PART LIST
LISTE DE PIECES
NO DESCRIPTION
PANEL HEADBOARD /
1
TETE DE LIT
HEADBOARD LEG - LEFT /
2
PIED GAUCHE
HEADBOARD LEG - RIGHT /
3
PIED DROITE
FINIAL WITH SCREW /
4
FLEURON AVEC LA VIS
5 HEADBOARD SUPPORT BAR / TRAVERSE
NOTE : YOU WILL ALSO NEED A PHILIP SCREWDRIVER (NOT PROVIDED)
4
MADE IN MALAYSIA
ASSEMBLY INSTRUCTION
INSTRUCTIONS D'ASSEMBLANGE
I M P O R T A N T
Place all wooden parts on a clean and smooth surface such
as a rug or carpet to avoid the parts from being scratched.
Check to be sure that you have all parts and hardware.
Remove all wrapping materials, including staples & packing
straps before you start to assemble.
Do not tighten all screws / bolts until all completely assembled.
Keep all hardware parts out of reach of children.
QTY/PCS
1 PC
1 PC
1 PC
2 PCS
1 PC
1
5
2
3
N O T E :
HEADBOARD / TETE DE LIT
HARDWARE LIST
LISTE DE QUINCAILLERIE
NO DESCRIPTION
A JCBB SCREW / BOULON M8 x 45
B JCBB SCREW / BOULON M8 x 35
SPRING WASHER /
C
RONDELLE D'ARRET M8
FLAT WASHER /
D
RONDELLE PLATE M8
E ALLEN KEY / CLE' ALLEN M5
*HARDWARE SET IS IN B1799T-1 / B1799F-1 FOR ASSEMBLY
2x
D
C
B
E
QTY/PCS
6x
D
C
E
A
1 OF 1
6 PCS
2 PCS
8 PCS
8 PCS
1 PC
