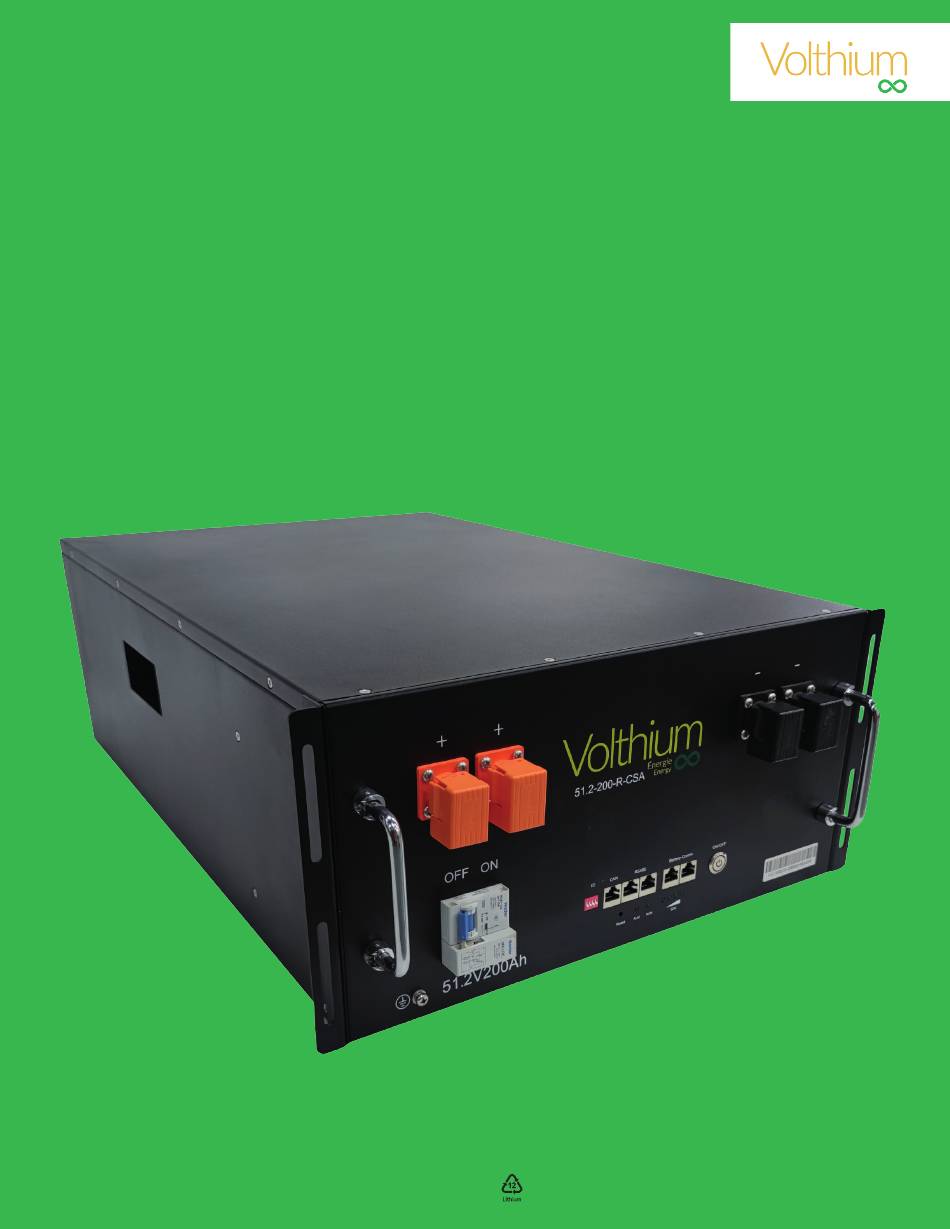

- Page 1 USER MANUAL RACKMOUNT BATTERIES 51.2V Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com...
-
Page 2: Table Of Contents
State of charge (SOC) and voltage when discharging to 50Ah Communication P.10 P.05 Limited ten (10) year warranty Setting up communication to popular of Volthium Energy Inc. inverters P.11-15 P.05-07 Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 3: Description
1 LED = 0 - 25% | 2 LED = 25 - 50% | 3 LED = 50 - 75% | 4 LED = 75 - 100% Note: the MCB Master breaker should be in the OFF position before Switch BMS ON / OFF turning the BMS power switch on or off. Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 4: Charging Voltage And Current
9 amps. Thus, if a full battery is connected to the empty battery, the latter will automatically activate its integrated regulator. Note that the BMS will deactivate the regulator after 3 minutes, and reactivate it automatically if necessary. Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 5: Id Address Per Battery
Depending on the protocol used, the address assignment may vary. Refer to the diagram below. Communication Volthium RACK batteries integrate RS485 and CANBUS communication protocols. Through the communication, the batteries will push the charging parameters. The installer can manually enter the charging parameters of the devices, or configure the devices so that the battery pushes the parameters. - Page 6 • Please set the battery type so that the UPS can communicate with the BMS of the Volthium battery. • Wait for 3 minutes and the BMS values will be available on the inverter display. Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com...
- Page 7 Schneider (in RS485) • Update the battery with the Schneider firmware available from Volthium technical service. RS485-USB cable will be necessary. • Connect the batteries together via the Battery Comm ports only. Each battery has two Battery Comm ports, allowing easy interconnection from one battery to another.
-
Page 8: Connection To Victron
Operating range : -20ºC ~ +60ºC Storage temperature -20 °C ~ +60 °C Relative humidity <95 % Atmospheric pressure 86kPa~106kPa No conductive dust and corrosive gases, no vibration. Essentials Keep away from heat and flame. Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 9: Operation Of The Self-Heating Function
12. The state of charge of the batteries is 50% before shipping, please charge the battery before use. If you encounter specific technical problems not mentioned above, please contact the technical staff. Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 10: State Of Charge (Soc) And Voltage When Discharging To 50Ah
51.2V 200Ah - 50A discharge Voltage Voltage 100% 27.01 100% 54.53 26.02 52.35 25.98 52.29 25.87 52.10 25.72 51.81 25.66 51.70 25.57 51.55 25.40 51.28 25.14 50.85 24.71 50.09 21.64 47.31 Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 11: Limited Ten (10) Year Warranty Of Volthium Energy Inc
("Volthium batteries") against defects in manufacturing and operation, provided they have been used normally and according to the guidelines published by Volthium Energy Inc., for a period of TEN (10) YEARS from the date of retail purchase (as determined by the customer's sales receipt) by the end user ("warranty period"). The guidelines published by Volthium Energy Inc. include, but are not limited to, information contained in technical specifications, user guides, and service communications. -
Page 12: What Is Not Covered By This Warranty
During the first four (4) years of your Volthium brand battery's life, if applicable under this limited warranty, the covered amount for a new replacement battery will be 100%. Starting from the first day of the 5th year of your Volthium brand battery's life, if applicable... -
Page 13: Your Responsibilities
Damages attributable to normal wear and tear or normal aging of Volthium batteries; k) Damages attributable to excessive use of Volthium brand batteries. Volthium Energy Inc. reserves the right to deny a warranty claim if it is determined during inspection that the product has reached its normal end of life even if it remains within its warranty period;... - Page 14 WHAT ENERGY VOLTHTIUM INC. WILL DO IN CASE OF BREACH OF THIS WARRANTY If, during the warranty period, you submit a valid claim to Volthium Energy Inc., Volthium Energy Inc. may, at its discretion : repair your Volthium brand battery using new authentic parts from Volthium Energy Inc.;...
-
Page 15: Limitation Of Liability
You have fourteen (14) calendar days to return your Volthium brand battery from the date of purchase identified on your invoice or the shipping date of your Volthium brand battery. To be eligible for a return, your Volthium brand battery must be new (sealed box) and never used.
