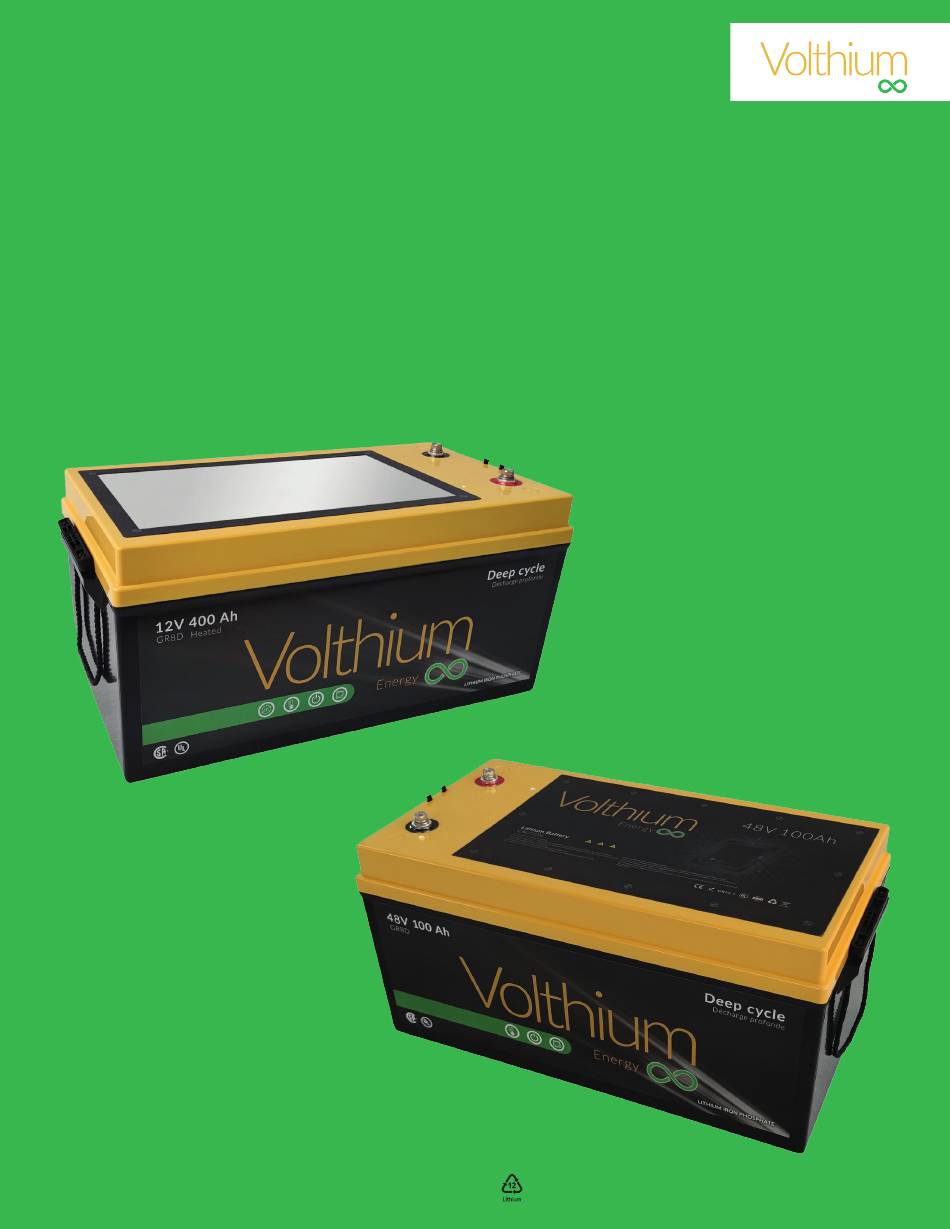

- Page 1 4D AND 8D BATTERY USER MANUAL Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com...
-
Page 2: Table Of Contents
P.09 Installation Limited ten (10) year warranty P.04-05 of Volthium Energy Inc. P.10-14 Communication P.05 Waterproofing Switch P.06 Self-heating system and utility of the H+ Connector Charging the battery P.07 Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 3: 4D And 8D Format Batteries
4D and 8D format batteries Our 4D and 8D batteries are designed for use with off-grid caravans, RVs, solar, boats (service) or any application requiring the use of a deep cycle battery. These batteries can be connected in series to provide a battery bank with a maximum voltage of 51.2 volts (for example, a maximum of four 12.8 volt batteries or two 24 volt batteries). - Page 4 0° Celsius. In low temperature conditions, Volthium batteries with the self-heating option will use the charging current to activate the battery's internal heating pads. Once the cell temperature has reached the prescribed level, the BMS will use the charging current to recharge the battery cells.
-
Page 5: Communication
Communication The battery has two RJ45 ports that allow communication to Volthium compatible accessories. Both ports offer RS485 communication, so it does not matter which port you choose to connect the Volthium accessory to. -
Page 6: Waterproofing
6V, and the battery cannot be discharged, but can still be charged. The self-heating system will also be functional if the switch is in the OFF position. Volthium Energy inc. | T. 514.989.9586 | info@volthium.com | www.volthium.com... -
Page 7: Self-Heating System And Utility
Charging the battery You can recharge your Volthium batteries after each use or when they have been discharged to 20% (state of charge). If the BMS disconnects the battery due to low voltage (0% state of charge), recharge it immediately. -
Page 8: Battery Charging Settings
Battery charging settings Please refer to your battery's datasheet for charging instructions. Here are the general charging parameters for 12.8V and 25.6V Volthium batteries: Charging parameter 12.8V Voltage Parameter 12.8V Bulk Voltage : 14.2V-14.6V Low Voltage Cutoff 11V-11.5V Absorption Voltage : 14.2V-14.6V High Voltage Cutoff... -
Page 9: Caution
- When connecting batteries in series, never exceed 60V (four 12.8V batteries in series). - Do not connect a Volthium battery to batteries of different chemistry or to Volthium batteries of different voltage or capacity. - Do not use deep cycle batteries to start engines. -
Page 10: Limited Ten (10) Year Warranty Of Volthium Energy Inc
("Volthium batteries") against defects in manufacturing and operation, provided they have been used normally and according to the guidelines published by Volthium Energy Inc., for a period of TEN (10) YEARS from the date of retail purchase (as determined by the customer's sales receipt) by the end user ("warranty period"). The guidelines published by Volthium Energy Inc. include, but are not limited to, information contained in technical specifications, user guides, and service communications. - Page 11 During the first four (4) years of your Volthium brand battery's life, if applicable under this limited warranty, the covered amount for a new replacement battery will be 100%. Starting from the first day of the 5th year of your Volthium brand battery's life, if applicable...
- Page 12 Damages attributable to normal wear and tear or normal aging of Volthium batteries; k) Damages attributable to excessive use of Volthium brand batteries. Volthium Energy Inc. reserves the right to deny a warranty claim if it is determined during inspection that the product has reached its normal end of life even if it remains within its warranty period;...
- Page 13 WHAT ENERGY VOLTHTIUM INC. WILL DO IN CASE OF BREACH OF THIS WARRANTY If, during the warranty period, you submit a valid claim to Volthium Energy Inc., Volthium Energy Inc. may, at its discretion : repair your Volthium brand battery using new authentic parts from Volthium Energy Inc.;...
- Page 14 You have fourteen (14) calendar days to return your Volthium brand battery from the date of purchase identified on your invoice or the shipping date of your Volthium brand battery. To be eligible for a return, your Volthium brand battery must be new (sealed box) and never used.
