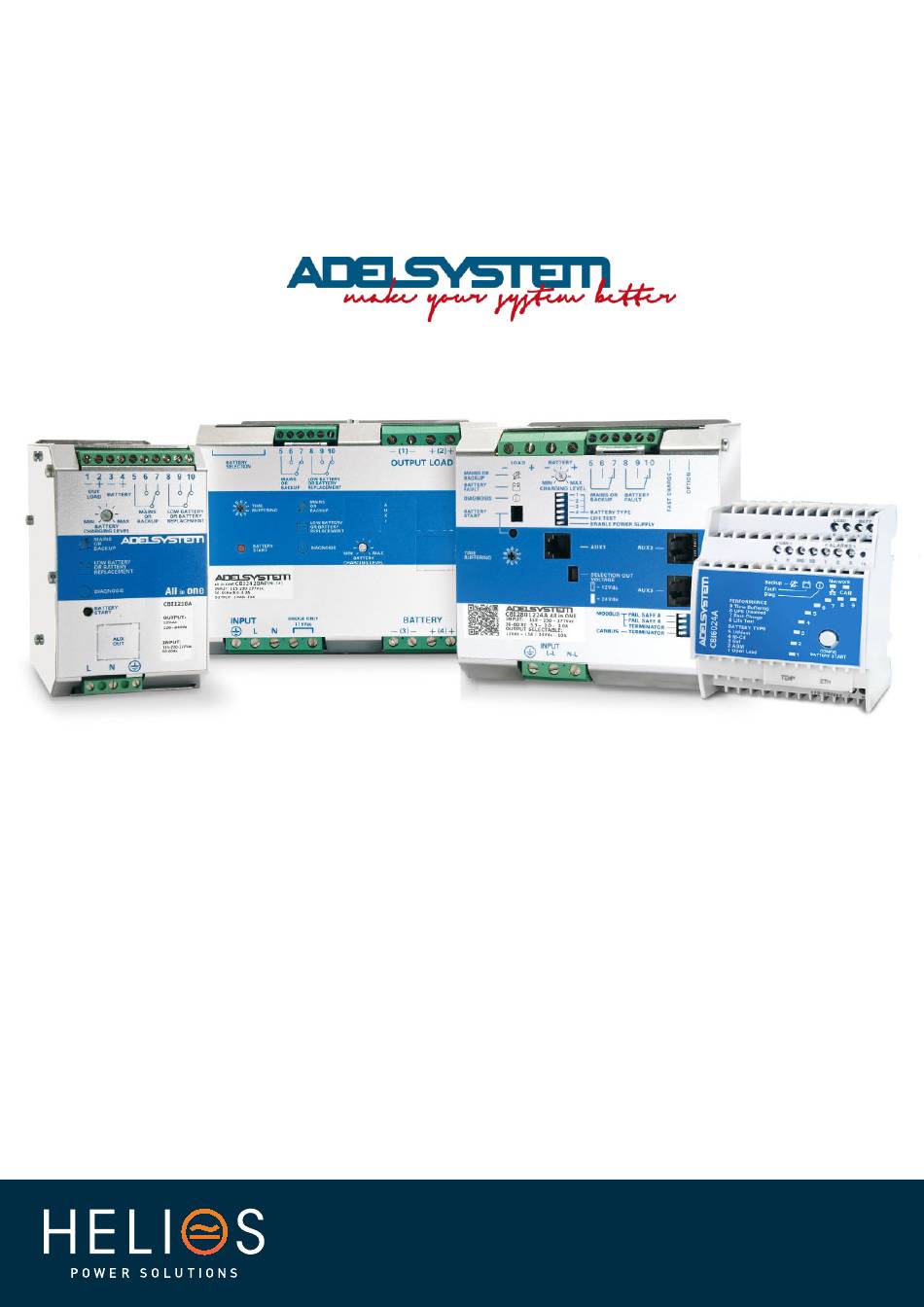

- Page 1 Instruction Manual All In One DC UPS Series Version R60-3 Specifications subject to change without notice. Australia New Zealand sales-au@heliosps.com sales-nz@heliosps.com +61 2 7200 9200 +64 9 835 0700 heliosps.com Asia Middle East sales@heliosps.asia sales@heliosps.asia +65 6871 4140 +971 4 401 8484...
-
Page 2: General Description
We are certain that it will give the utmost satisfaction and be a notable help on the job. GENERAL DESCRIPTION Thanks to “All In One” CBI series of DC-UPS, it will be possible to optimize the power management of your system with one single, extremely compact and cost-effective device, connected directly to the mains. -
Page 3: Installation Notes
• WARNING - Caution high touch current. • WARNING - Connect to earth before connecting to supply. INSTALLATION NOTES • This equipment is not suitable for use in locations where children are present. • This equipment is intended for installation in restricted access area. •... - Page 4 faulty unit; see Relay Contact Rating for any technical detail. c) When possible, connect each power supply to different phases or circuits 6.3.3 Parallel connection “Double Power” Power supply can be paralleled to increase the output power, devices can be paralleled for 1+1=2 to obtain the double power of a single unit.
-
Page 5: Lay-Out And Connections
• To Avoid deep battery discharge, the battery will supply the load until battery voltage reaches the minimum V/cell. Below this level the device automatically switches off to prevent Deep discharge and battery damage. 6.5 OUTPUT LOAD: TIME BUFFERING MODE (MAINS INPUT OFF) Some example of buffering time depending on LOAD Output in function to the Ah of the battery. - Page 6 8.2 SELECT OUTPUT VOLTAGE (ONLY SIZE4 CBI280) No.17: Caution: Switch off the system before setting the Jumper. The Jumper is detected at the device power-up only. Jumper Output Voltage Selection 24V Output Voltage No Jumper Output Voltage Selection 12V Output Voltage DRIVE AND MONITORING 9.1 FAULT - STATUS CONDITIONS 9.2 ISOLATED RELAY (SIZE:1,2,3,4):...
- Page 7 Battery not connected 2 Blink/pause Battery element in Short Circuit 3 Blink/pause Overload or short circuit on the load 4 Blink/pause Bad battery; Internal impedance Bad or Bad battery wire 5 Blink/pause connection Life test not possible 6 Blink/pause Rectifier Alarm 7 Blink/pause Boost condition;...
- Page 8 10.1.1 Battery Temperature Compensation Charge (not for LI-ion) Connecting the cable RJTEMP (supplied separately) to Auxiliary Output AUX1, the CBI will adjust the battery charging voltage in relation to the Battery temperature : Fast Charge: Open Lead, AGM, Gel Float charge: Open Lead, AGM, Gel +/- 5mV/°C x n.
- Page 9 Functional Setting Jumper Jumper Jumper Dip Switch Function Position Position Position Position (Size 1) (Size 2) (Size 3) (Size 4) Battery Life Jumper present or dip switch ON: test ON Life test enabled (not for NiCd) Jumper present: Fast Charge Fast Charge enabled.
-
Page 10: Protection Features
• Reverse Polarity check: If the battery is connected with inverted polarity, the All In One is automatically protected. • Test of battery voltage connections: Appropriate voltage check, to prevent connection of wrong battery types, above or below nominal voltage. •... - Page 11 Size3 - 4 Connector name AUX2 - AUX3 Pinout (see fig. above) A = pin 5, B = pin 4, Common = pin 3 11.2 HOW TO CONNECT THE DEVICE TO MODBUS 11.2.1 Daisy Chain general connection Diagram To connect the device to Modbus, please use AUX2 and AUX3 Port. •...
- Page 12 Fail-safe: • Fail Safe A, 560 Ohm (Pull Up) to 5 V • Fail Safe B, 560 Ohm (Pull Down) to 0 V • Terminations: 120 Ohm (between Modbus lines) • Terminations: 120 Ohm (between Can lines) 11.3 HOW TO CONFIGURE MODBUS AUX2 and AUX3 ports, are provided for the connection to an external device like: RTU, PC , DPY351.
- Page 13 14 DIN RAIL MOUNTING: All modules must have a minimum vertical and horizontal distance of 10 cm to this power supply in order to guarantee sufficient auto convection. Depending on the ambient temperature and load of the device, the temperature of the housing can become very high. TECHNICAL DATA For all technical data, please download the data sheet on the relevant Website for the specific Product.
