NOZOMI NETWORKS NS20 Quick Start Manual

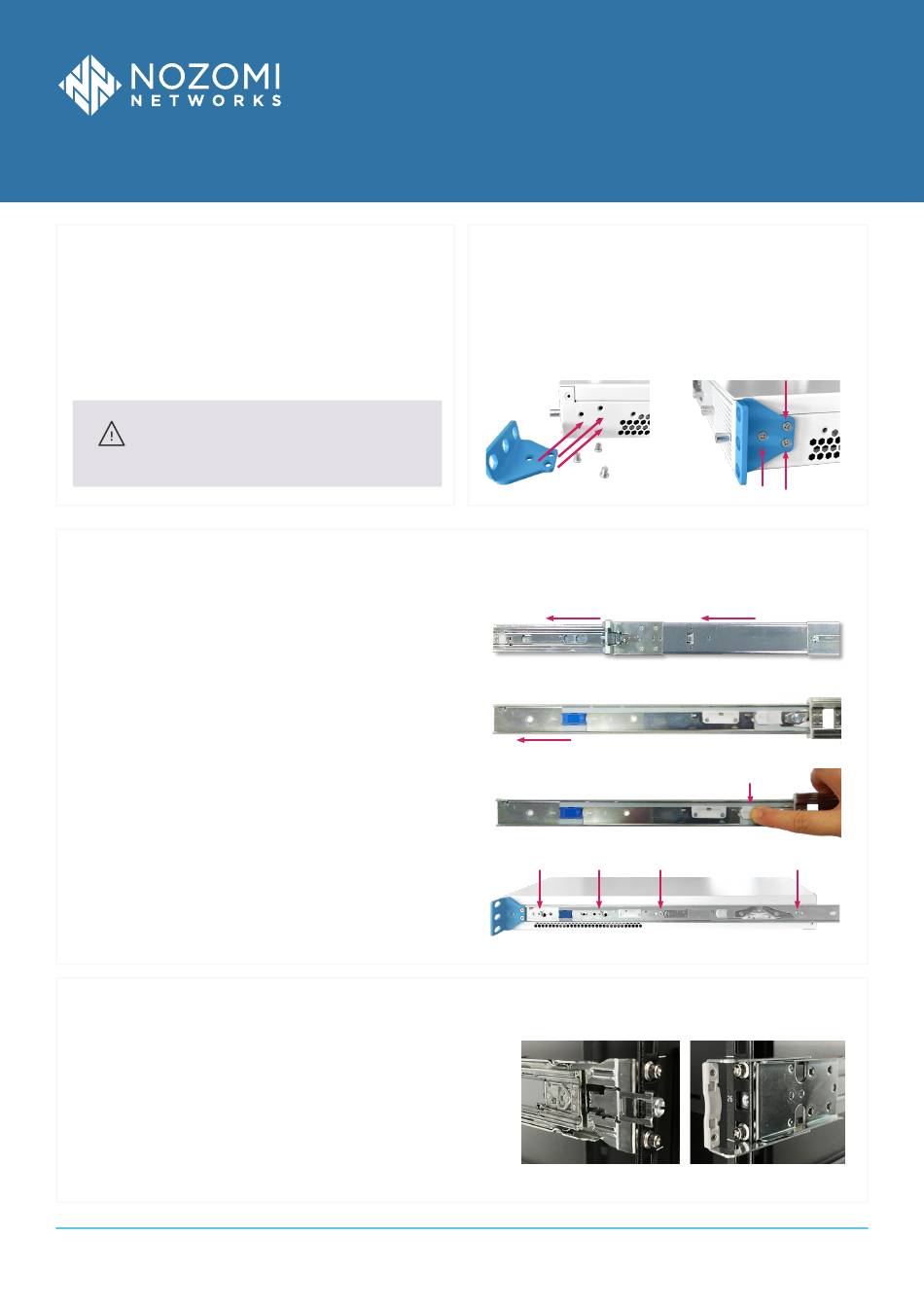

1. Unpacking the slide rail
The following parts are needed to install the rail kit:
• 1x pack of FL00IJ0-A screws (for securing the sliding rails onto
the unit), in the 'pizza box'
• 1x pack with rack mounting ears and screws, in the pizza box
• 2x Slide-Rails
• Philips screwdriver (not included)
PLEASE NOTE: If any component is missing
or damaged, please contact your dealer
immediately for assistance.
3. Attach rail brackets
For both left and right side of the appliance, proceed to:
1. Unpack a slide rail and slide the inner channel to its end.
2. Slide the rail bracket out to its end.
3. Detach the rail bracket from the channel, by locating and pushing
the (white) Release Tab on the rail bracket while sliding it out.
4. Align the rail bracket to the side of the chassis (blue tab goes
toward the front) and fix it using 4 of the provided flat-head screws.
4. Installing the slide rail assemblies
This slide-rail kit does NOT require tools to rack your appliance.
1. Identify an available rack unit and fit the front clamp into the unit's 3 holes.
Lock it by clipping the rail's front end to the post, as shown in the image.
You should hear a "click" once it is firmly attached.
2. For the rear rack installation, slide the rail to engage rail back side bolts
to two (2) holes on the same unit used on the front.
Lock it by clipping the rail's rear end to the post, as shown in the image.
You should hear a "click" once it is firmly attached.
QUICK START GUIDE
NS20 Nozomi Sensor Appliance - Rail Kit Mounting Guide
QUICK START GUIDE
NS20 Physical
Guardian Sensor
Rail Kit Mounting Guide
2. Attach ears
Unpack the light blue ears, and six (6) small bugle-headed screws.
On each side of the appliance, match screw and holes.
Attach one (1) ear to the front each side of the appliance using 3 of
the provided screws.
Front
Release Tab
Rear
1
