NOZOMI NETWORKS NG-500R Quick Start Manual

1. Unpacking the System
Inspect the chassis to see whether the appliance has been damaged
in any way. If the appliance appears to be damaged, please contact
Nozomi Networks support at: support@nozominetworks.com.
Box contents:
• Nozomi Networks NG-500R Guardian sensor
• 2x Rack mounting brackets + 8x fixing screw
• 8x M5 screws and cages for rack mounting
• 1x USB to DB9 console cable adapter
• 1x Grounding cable
• 1x RJ45 Cat6 straight cable
• 2x Power cables
• 2x 3pin Phoenix connector for power cords
• 1x 2pin Phoenix connector for relay
• 1x Power cover

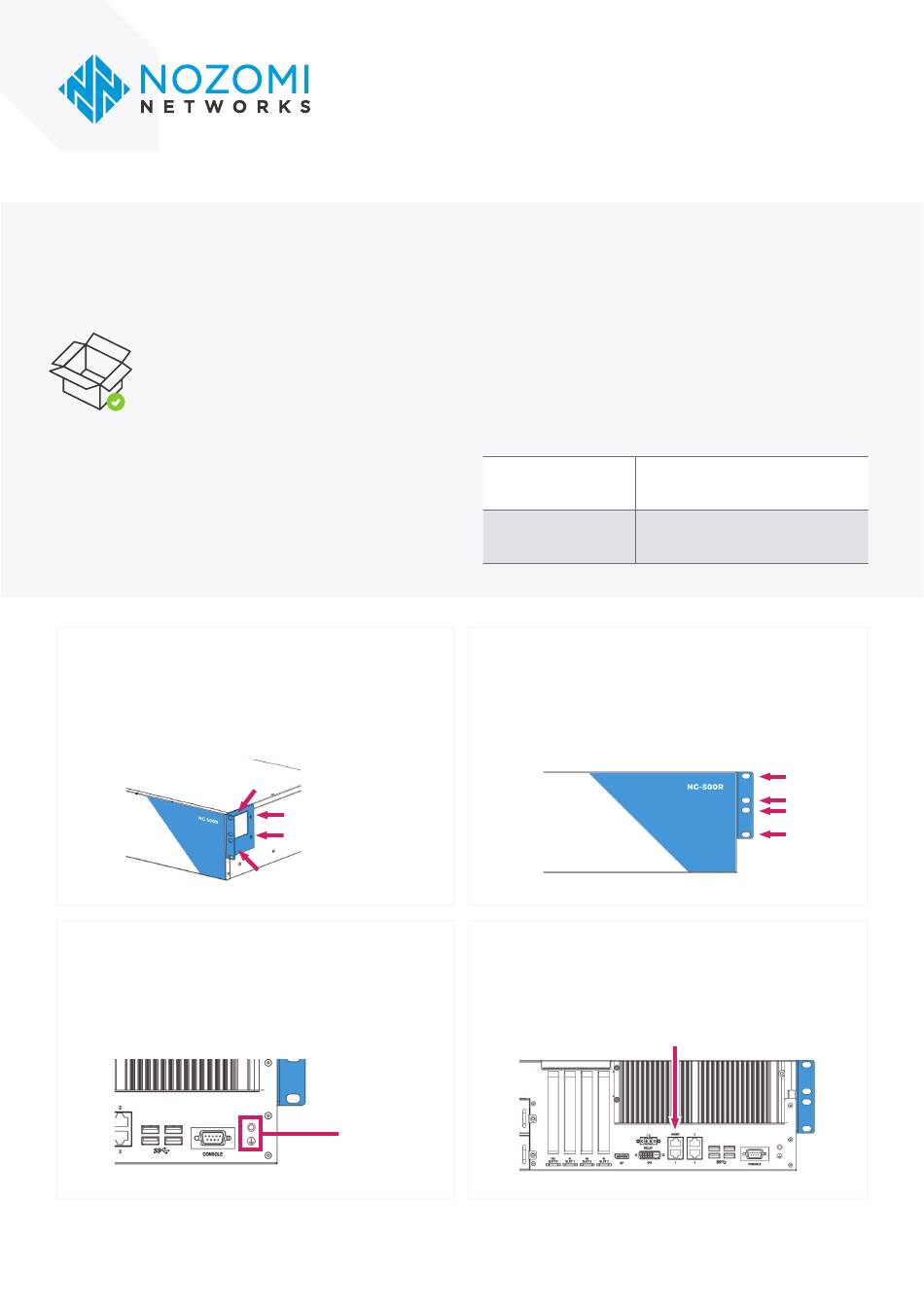

3. Unbox the appliance
Unbox the appliance. Rack mounting brackets and their
mounting screws are included in the pizza box on the side of the
package. Affix each bracket to the appliance, using four of the
provided screws as shown below:
5. Grounding
A reliable ground must be always maintained. To ensure this,
the rack itself should be grounded and the appliance chassis
should be connected for grounding to the rack via the provided
appliance grounding cable.
QUICK START GUIDE
Nozomi Networks NG-500R Guardian Sensor
2. Setup precautions and considerations
Please follow the General Safety Guidelines included in the box to
prevent potential property damage, personal injury or even death.
Furthermore, observe the following rules:
•
•
•
Bracket
screw holes
Grounding
screw
QUICK START GUIDE
Nozomi Networks NG-500R
Guardian Sensor
Getting Started
Before performing any of the following procedures, ensure that
power has been removed from both the PSUs.
Read the installation instructions before you connect the system
to its power source.
Warning: To prevent the system from overheating, do not operate it
in an area that exceeds the maximum recommended temperature:
Operating Environment
Storage Environment
4. Rack Mounting
You can now mount the appliance in a standard 19" rack. Nuts
and bolts for square holes are included in the box. Use 4 screws
for each side.
6. Connect the management port
Connect the management port (MGMT) (1) to the designated
network switch or equipment. One RJ45 cable is included in the
box for this purpose.
Temperature: -40 – 70°C (32 – 104°F)
MAX 40°C with SFP NIC
Humidity: 20 – 90 % RH
Temperature: -40 – 85°C (14 – 158°F)
Humidity: 5 – 95 % RH @ 55°C
1
