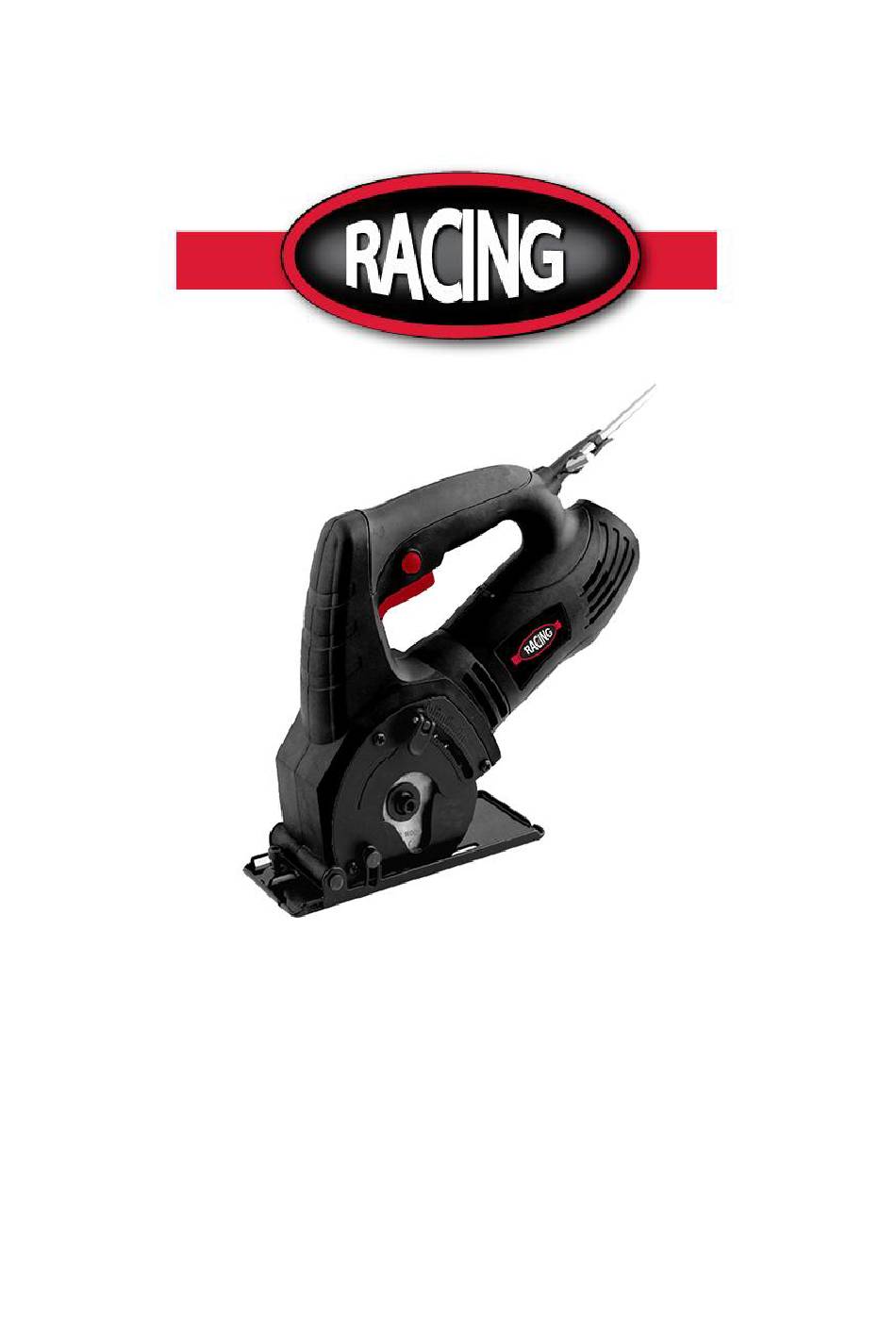

- Page 1 ORIGINAL INSTRUCTIONS >EN MINI PLUNGE SAW RACSP600 USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS INTENDED USE SAFETY INSTRUCTIONS PRODUCT DESCRIPTION SPECIFICATION OPERATION MAINTENANCE AND CARE DISPOSAL DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Intended Use
1. INTENDED USE This machine is primarily intended for the sawing, longitudinally and transversely, of solid wood, chipboard, plywood, aluminium, tiles and stone held in a fixed position. Please note that the blade pre-installed in the saw as supplied is intended for use with solid wood, chipboard, plywood, aluminium. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. - Page 4 mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
-
Page 5: Further Safety Instructions For All Saws
workpiece. c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece. d) Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece to a stable platform. - Page 6 2.4 SAFETY INSTRUCTIONS FOR PLUNGE TYPE SAWS Guard function a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position.
- Page 7 the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. e) Always use undamaged wheel flanges that are of correct diameter for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. f) Do not use worn down reinforced wheels from larger power tools.
- Page 8 Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces.
-
Page 9: Product Description
3. PRODUCT DESCRIPTION 1) switch 14) blade rotation indicator 2) unlock button 15) dust hose adaptor 3) handle 16) spindle lock 4) cord sleeve 17) guard release button 5) motor house 18) inner flange 6) cutting depth scale 19) outer flange 7) depth setting knob 20) blade screw 8) base... -
Page 10: Operation
The declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure. Warning The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed;... -
Page 11: On/Off Switch
5.3 ON/OFF SWITCH 1) Check the correct function of the base plate before plugging in the power cord. 2) Choose a corresponding saw blade and check its condition and sharpness. 3) Make sure you keep the ventilation slots clear when holding the tool. 4) Both press the main switch and safety lock switch, until the saw blade has reached maximum speed and slowly push the tool forward through the safely fixed workpiece. - Page 12 5.5 MEASURING THE CUTTING WIDTH When making cut outs, it is desirable to know exactly where the cut will start and stop to prevent unsightly over cutting. Indication numbers, which correspond to the depth setting, is marked on the cutting width indication ruler 22.
-
Page 13: Dust Extraction
1. When the beginning and the finishing line is reached, lift the tool from the work surface before switching off. 2. As the blade is a circle, the waste material will not be fully detached. The corners will thin and the back surface unimportant, the waste material can just be pushed out. -
Page 14: Maintenance And Care
6. MAINTENANCE AND CARE 6.1 OVERLOADING Never apply excessive force when cutting. Too much pressure decreases the speed of the tool, while the required power increases sharply. This leads to overloading, which can damage the motor. If the machine becomes too hot, let it idle for two minutes and then let it rest. Clean the machine with a clean cloth and brush. -
Page 15: Declaration Of Conformity
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that， Product: Mini Plunge Saw Trademark: RACING Model: RACSP600 Serial number: 20230603785-20230604384 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 16: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 17: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 18: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 19 NOTES...
- Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in China in 2023...
