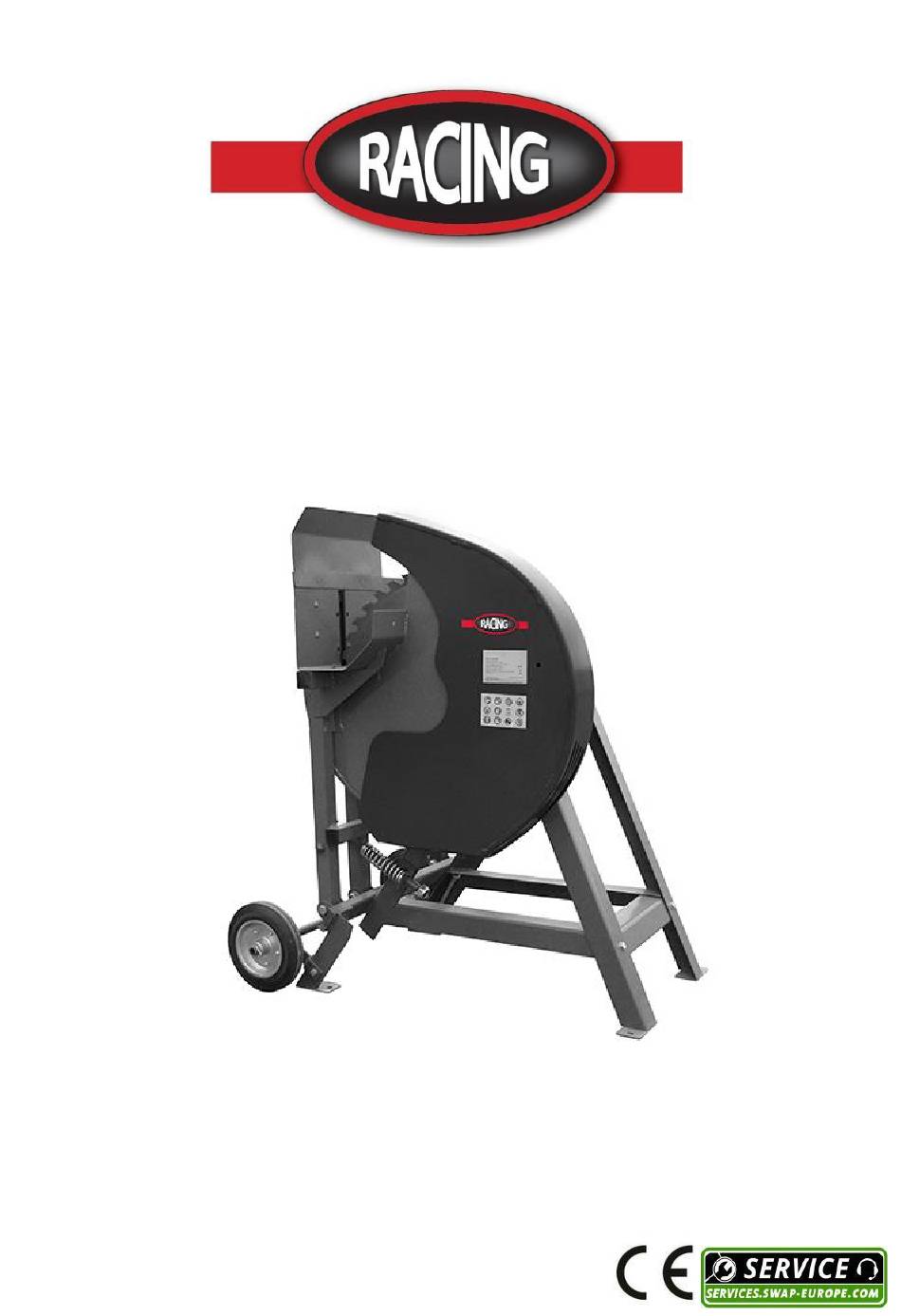

- Page 1 ORIGINAL INSTRUCTIONS ELECTRIC LOG SAW RACSBE2652 RACING 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 3: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents. -
Page 4: Special Safety Warnings
Do not use in the rain or leave outdoors while it’s raining. Keep your hands away from blade and cracks which open in the log; Always switch off the appliance, disconnect the power and wait till the machine comes to a standstill prior to maintenance, cleaning or repair work! Keep children away. -
Page 5: General Safety Warnings
Never cut several workpieces at the same time – and also no bundles containing several individual pieces. Risk of personal injury if individual pieces are caught by the saw blade uncontrolled. Never cut log containing the following: ropes cords cables wires Do not overload machine –... - Page 6 8. The wear of suitable personal protective equipment when necessary; This may include: • Hearing protection to reduce the risk of induced hearing loss; • Respiratory protection to reduce the risk of inhalation of harmful dust; • Gloves for handling saw blades (saw blades should be carried in a holder wherever practicable).
- Page 7 31. Do not use circular saw blades made of high-alloy high-speed steel Danger! Risk of electric shock! To ensure the machine remains weatherproof, before any use check to see that the switch, power cable or plug are not damaged (no cracks, etc.) Do not use the power cable for any purpose it is not intended for.
-
Page 8: Safe Working Practice
A The machine should be checked whether inner and outer blade cover、left and right side table moving cover、inner and outer flange of blade and blade are proper before operation. B Pushing the moving worktable forward and check whether left and right table moving cover and inner and outer blade touch each other so as to avoid unnecessary damage, while the log saw is working after turning-on the power. -
Page 9: Residual Risk
Wear suitable personal protective equipment when necessary; this could include; hearing protection to reduce the risk of induced hearing loss; respiratory protection to reduce the risk of inhalation of harmful dust; gloves for handling saw blades (saw blades should be carried in a ... -
Page 10: Intended Use
- Only saw blades made in conformity to EN 847-1:1997 shall be used on the machine; - The machine during indoor use shall be connected to an external chip and dust extraction system; - A Residual Current Device (RCD) should be used INTENDED USE This machine is only intended for cutting firewood as detailed in these instructions. - Page 11 Picture 1 1. Main machine 2. Wheel parts 3. operating handle 4.ruler bar 5. wood supporter 6. cover for working table 7.weight balancer 8. connect plate for working table 9. working table 2. Disassemble the spring pipe （see picture 2） to put it into the right fixer, screw it with M18 anti-loose nut (see picture 4).
- Page 12 Picture 4 3. Assemble the wheel parts. Firstly disassemble all screws and nuts on it. Then connect it with the frame and tighten all screws and nuts (see picture 5 and picture 6). Picture 5 picture 6 4. Assemble the vice working table. Firstly use four M8X15 large semicircular head square neck bolts to assemble the connect plate for vice working table on main working table , secondly use four M8X15 large semicircular head square neck bolts to assemble vice working table on...
- Page 13 Picture 7 Picture 8 5. Assemble the working table cover. Insert the rotating block on cover into the corresponding fixing block on working table and fix it with M4x8 cross countersunk head screw (see picture 9). Picture 9 6. Assemble the operating handle. Put it into the right holes on working table and tighten the rotary knobs after get a comfortable height (see picture 10) .
- Page 14 Picture 10 7. Assemble the wood supporter and ruler bar ， put them into corresponding holes（see picture 11 and picture 12）. Picture 11 picture 12...
-
Page 15: Maintenance
Sawing 1. Turn on the machine. 2. Wait until the saw blade has reached full speed. 3. Put the wood on the rocker. 4. Take hold of handle bar of the rocker with both hands and lead it evenly to the saw blade;... -
Page 16: Troubleshooting Table
Every 50 hours of operation Check all screwed connections, tighten if necessary (Rocker and rocker stop must remain movable) STORAGE Store the manual close to the machine. Always wait the appliance cool down before storage. Always store the log saw in a dry area. Wipe the log saw clean with a brush. - Page 17 ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 The undersigned, hereby certifies that the units described below ELECTRIC LOG SAW Model: RACSBE2652 S/N: is in compliance with the provisions of the following European directives: 2014/30/EU " Electromagnetic Compatibility " 2006/42/EC "Machinery"...
