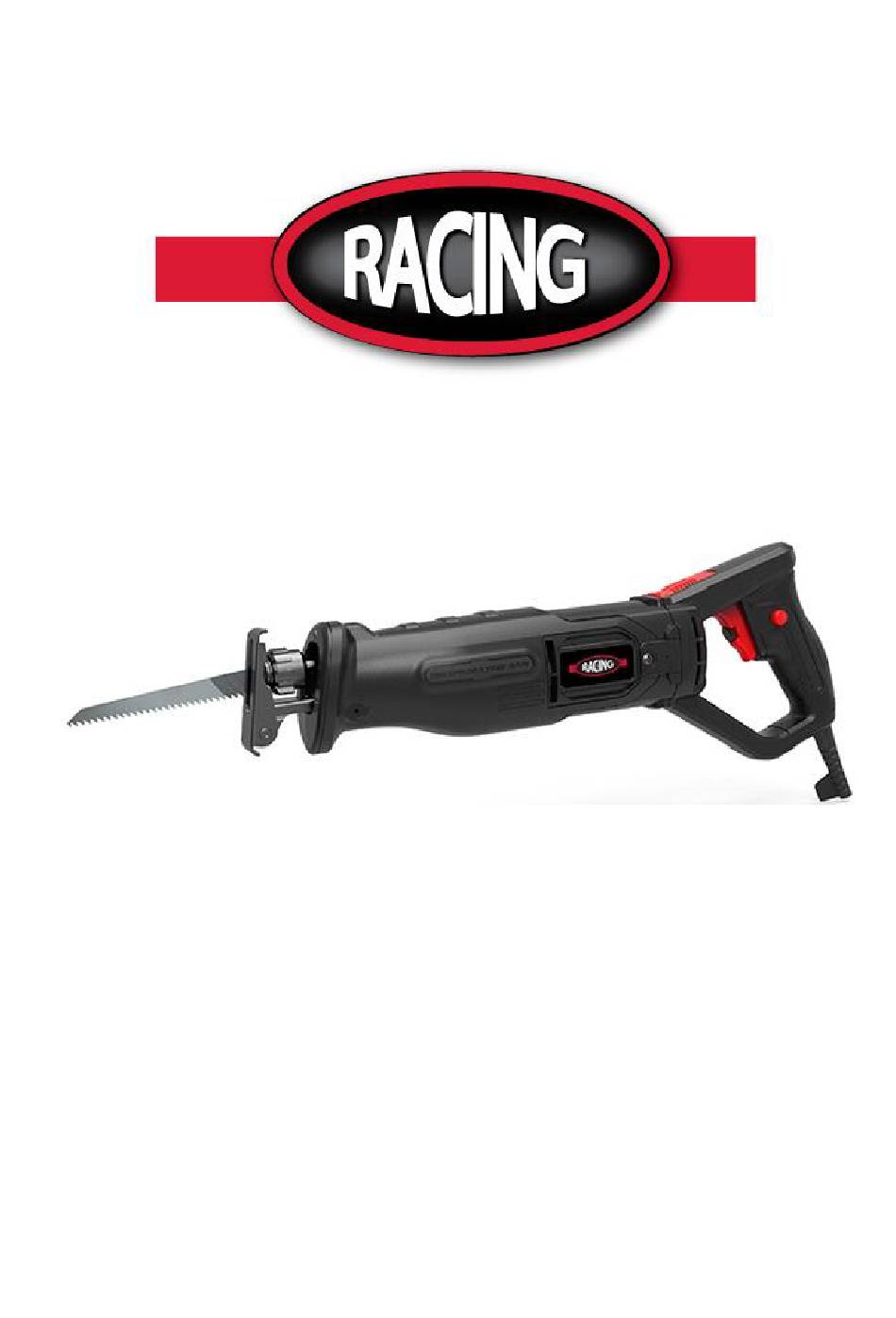

- Page 1 ORIGINAL INSTRUCTIONS >EN RECIPROCATING SAW RACSSB710 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE............................3 2. SAFETY INSTRUCTIONS........................3 3. YOUR PRODUCT........................... 6 4. OPERATION............................7 5. CLEANING AND CARE........................11 6. REPAIR AND MAINTENANCE......................11 7. STORAGE AND TRANSPORTATION..................... 11 8. DISPOSAL.............................11 9. DECLARATION OF CONFORMITY....................12 10. WARRANTY............................13 11. PRODUCT FAILURE.........................14 12. WARRANTY EXCLUSIONS......................15... -
Page 3: Intended Use
1. INTENDED USE The reciprocating saw is intended for cutting wood, metal and plastic. Following the instructions contained in this manual guarantees safe operation of the device. The device is designed for private use at home only and may not be used for professional purposes. - Page 4 with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
- Page 5 b) Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control. 2.3 EXPLANATION OF SYMBOLS General warning sign, draws the attention of any operator to general hazards.Used in combination with other warning notes or symbols, which, if not observed, may result in injuries or damage to the device.
-
Page 6: Your Product
3. YOUR PRODUCT 3.1 DESCRIPTION 1. Saw blade 7. Trigger switch lock 2. Shoe 8. Handle 3. Blade socket 9. Power cord 4. Blade clamp sleeve 10.Trigger switch 5. Housing 11.Reciprocating action speed adjustment knob 6. Handle rotation lock 12.Shoe adjustment lock 3.2 KIT CONTENTS The kit should contain the following components. -
Page 7: Operation
Attention! To keep children safe, do not leave packaging parts (plastic bags, cardboard boxes, expanded polystyrene elements etc.) freely accessible. Danger of suffocation! 3.3 TECHNICAL DATA Tension 230-240V~, 50Hz No load speed 0-2800/min Rated power 710W Stroke length 20mm Cutting capacity 150mm in wood / 10mm in metal / 18mm in Alu Sound power level : 105,1dB(A) K=5dB(A) - Page 8 Blade for cutting metal(deliver without this blade) Blade for cutting wood Blade for cutting plastic(deliver without this blade) d) Insert the blade and release the blade clamp sleeve(4). NOTE:The blade may be installed with the cutting edge directed downwards or upwards, depending on how you are going to use the saw.
- Page 9 Caution! Injury hazard! Be careful, because after the device is turned off, the blade will continue to move due to inertia. 4.3 RECIPROCATING ACTION SPEED ADJUSTMENT The reciprocating action speed may be adjusted with the reciprocating action speed adjustment knob (11). To decrease the reciprocating action speed, turn the knob up towards the "_" symbol. To increase the reciprocating action speed, turn the knob down towards the“+”...
- Page 10 4.7 CUTTING ADVICE The appropriate reciprocating action speed depends on the material and on the working conditions. It can be determined by means of a practical test. It is recommended that the reciprocating action speed be decreased at the start of cutting and whenever cutting plastics.
-
Page 11: Cleaning And Care
5. CLEANING AND CARE Proper and regular cleaning will ensure safe operation and extend the life span of the device. Warning! Before performing cleaning and maintenance operations, turn the device off and let it cool down, so as to avoid burns. Protective devices,vents and the motor housing should be free of dust or contaminants whenever possible. -
Page 12: Declaration Of Conformity
9. DECLARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Designation: Reciprocating saw Model: RACSSB710 Serial number: 20230704031-20230704530 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU... -
Page 13: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 16 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC 2023...
