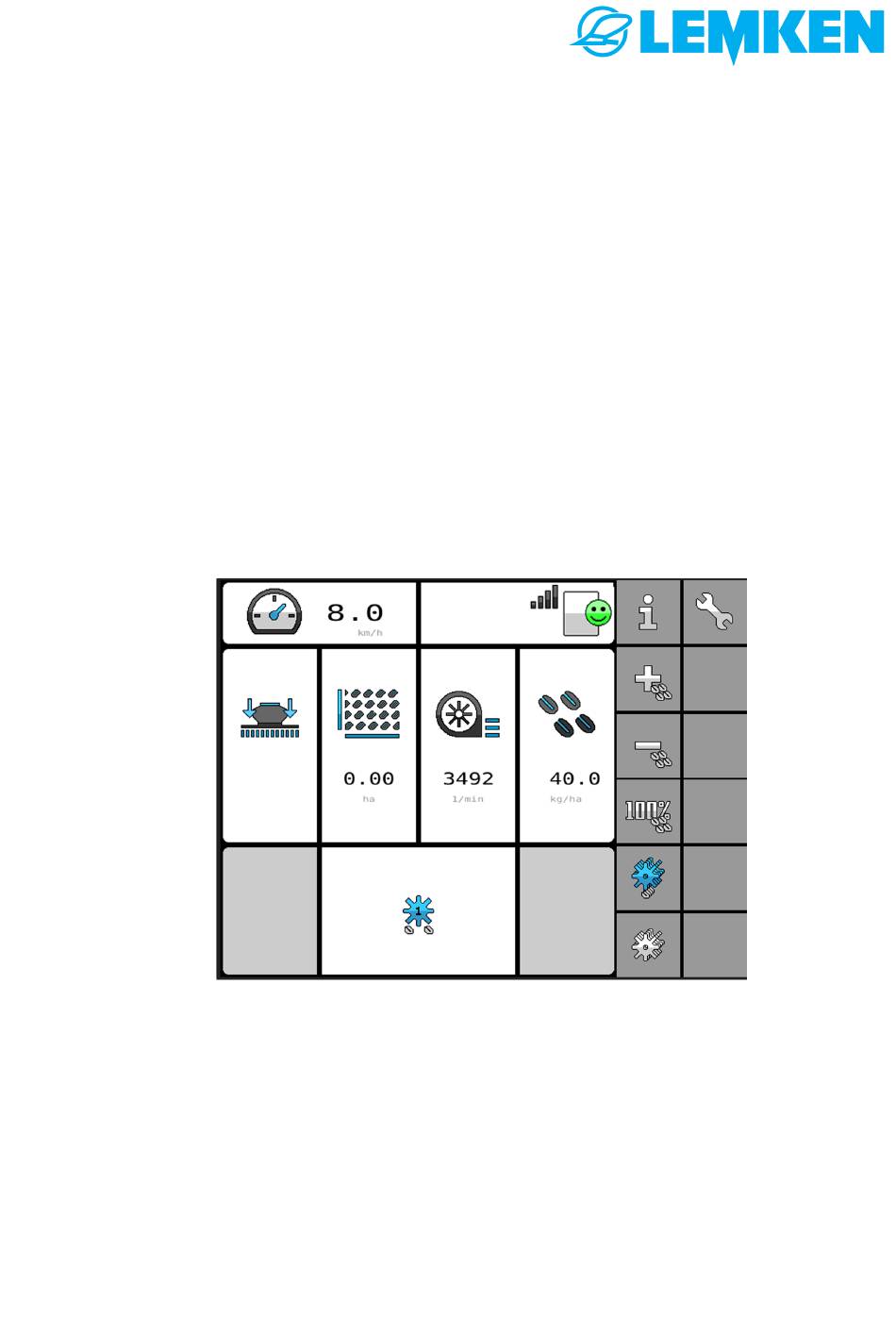

Operating instructions
Operating the control
iQblue MultiHub V1.00
70216216, 69210430, 69210427, 69210428, 69210429, 69210431, 69210432, 69210433, 69210434, 69210435, 69210436, 69210437, 69210438, 69210439, 69210453, 69210457, 69210440, 69210441, 69210442, 69210454,
69210443, 69210444, 69210445, 69210446, 69210447, 69210448, 69210449, 69210450, 69210455, 69210451, 69210456, 69210452
BA 70216216 | 69210432 en_GB | Rev__ | 2024-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iQblue MultiHub V1.00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEMKEN iQblue MultiHub V1.00

Summary of Contents for LEMKEN iQblue MultiHub V1.00

  • Page 1 Operating instructions Operating the control iQblue MultiHub V1.00 70216216, 69210430, 69210427, 69210428, 69210429, 69210431, 69210432, 69210433, 69210434, 69210435, 69210436, 69210437, 69210438, 69210439, 69210453, 69210457, 69210440, 69210441, 69210442, 69210454, 69210443, 69210444, 69210445, 69210446, 69210447, 69210448, 69210449, 69210450, 69210455, 69210451, 69210456, 69210452...
  • Page 2 Pass these instructions to all users / owners. Original instructions © 2024 | This documentation is copyright protected. The copyright remains with LEMKEN GmbH & Co. KG, Weseler Strasse 5, D-46519 Alpen. The texts, diagrams and drawings must not be duplicated, distributed or disclosed in any other way, either in...

  • Page 3: Table Of Contents

    Table of contents Table of contents About these instructions............Introduction.
  • Page 4 Table of contents Performing calibration test........... . 5.6.1 Calibration process.
  • Page 5 Table of contents ISOBUS............... . 68 8.4.1 Calling up ISOBUS menus.
  • Page 6 Table of contents BA 70216216 | 69210432 en_GB | Rev__ | 2024-07...
  • Page 7 About these instructions Introduction About these instructions Introduction Electronic control - explanation of The user can adjust, control and monitor the machine with the term electronic control. The electronic control consists of the following components: Job computer installed at the machine. ■...

  • Page 8: About These Instructions

    Clarify questions of comprehension concerning the contents of these operating instructions before starting work. To do this, contact the LEMKEN sales partner if required. Follow the work instructions in the specified sequence. Keep the instructions close to hand and available at the work‐...
  • Page 9 About these instructions Applied presentations Limitation The user must not use the control while driving on the road. The machine functions must be locked. Liability and warranty Liability and warranty are excluded if personal injury and damage to property can be traced back to improper use or non-observance of the operating instructions.
  • Page 10 About these instructions Applied presentations 1.4.2 Symbols and text markings Symbol, text marking Meaning In front of and in texts Marking for routine maintenance tasks ● Activities that demand the help of service personnel. Listing [1], Position numbers ‘Adjustments’ Example: Software element [OK] Example:...

  • Page 11: Text In Figures

    About these instructions Applied presentations 1.4.3 Text in figures Language of the menu headers The menus have headers  in the control. The menu headers in images are always shown in German or Eng‐ lish. In the image caption  , the user can read the translation in the respective language of their document.

  • Page 12: Safety

    Safety Safety Operating instructions The user must be familiar with the contents of the operating instructions for the machine in order to be able to operate the control safely. The user must be aware of the hazards at the machine. To this end, the user must be familiar with all the contents of the "Safety"...
  • Page 13 Safety Messages indicate problems The control helps the user to detect problems at the machine. To this end, certain events at the machine trigger messages in the control. These messages are displayed in the menus in the opera‐ tion terminal. The messages alert the user to problems of varying severity levels.

  • Page 14: Operating Menu

    Operation terminal variant used for controlling. ■ Each operation terminal may have a different design layout. In these operating instructions, the design layout of the LEMKEN CCI operation terminal is shown preferably in its factory setting. BA 70216216 | 69210432 en_GB | Rev__ | 2024-07...

  • Page 15: Softkeys

    Operating menu Softkeys Operating areas and design layout In the operating menu, the control elements are arranged in the following areas: View area For monitoring work ■ With quick access to the menus ■ Operating area Softkey bars for operating the machine ■...

  • Page 16: Displays

    Operating menu Displays Sowing Depending on the selected metering, the following softkeys are available for adjusting the distribution rate during sowing: Increase the distribution rate automatically via the adjusted incre‐ ment. Reduce the distribution rate automatically via the adjusted incre‐ ment.
  • Page 17 Operating menu Displays Display Contents Function Setting the working Working position Menu call: ⮫  position, page 29 Sowed area [ha] of the job Counter, page 54 Menu call: ⮫  Current speed of the fan [rpm] Monitoring: Fan, Menu call: ⮫  page 64 Distribution rate, Set distribution rate [kg/ha]...
  • Page 18 Operating menu Displays Operating states Monitoring: Hopper level is deactivated. Monitoring: Hopper level is activated. At least one hopper is empty. Monitoring: Fan speed is deactivated. Monitoring: Fan speed is activated. At least one fan speed is outside the specified limit range. Acoustic signals are switched off.
  • Page 19 Operating menu Displays Display Status of the metering units two sections ■ activated ■ fault-free ■ switched off manually ■ Speed = 0 ■ deactivated ■ activated ■ faulty ■ one section ■ activated ■ faulty ■ switched off manually ■...

  • Page 20: Basic Operation

    Basic operation Switching functions Basic operation Changing values in the settings Background In the settings, the user can change a selection or values that are displayed in white fields. The user can change the following in the settings: Selection  (in this case, speed signal) ■...

  • Page 21: Procedure In Case Of Messages

    Basic operation Procedure in case of messages Procedure in case of messages 4.3.1 Messages Background Certain events trigger messages in the control that are displayed in the menus. The messages are coloured according to their severity. Information is a message that requires a reaction. Warnings are messages after which cultivation is still possible;...

  • Page 22: Warnings

    Basic operation Procedure in case of messages How to handle information: Information can be closed in the menus. ■ Information about faulty entries: Some information is not listed in the error log. ■ Information about imminent malfunctions: Some information appears again 20 seconds after closing, while ■...

  • Page 23: Closing Messages In The Menu

    Basic operation Procedure in case of messages 4.3.5 Closing messages in the menu Procedure Press the message. The message is no longer shown in the menu. If the reason for the error message is not corrected, the message is shown again after 20 seconds.

  • Page 24: Commissioning

    Commissioning Adapting settings for operation terminal Commissioning All preparations at a glance The user can set the controls job-specifically prior to every job. In order to set the control job-specifically, the user can adjust certain settings. The following table shows the settings that the user can adapt for sowing.

  • Page 25: Selecting A Specific Operation Terminal As Favourite

    Commissioning Adapting settings for operation terminal Call up UT menu. �� The settings open. Adapt settings: Chapter 5.2.1 Selecting a specific operation terminal as ⮫  ■ favourite on page 25 Chapter 5.2.2 Adapting the presentation of the menus ⮫  ■ on the display on page 26 Fig.

  • Page 26: Adapting The Presentation Of The Menus On The Display

    Commissioning Selecting driving speed signal 5.2.2 Adapting the presentation of the menus on the display Background After the start, the menus are shown with the optimum resolution on the selected display of the operation terminal. With certain operation terminals, the menus are not adapted to the available display size.
  • Page 27 Commissioning Selecting driving speed signal The following speed signals are possible: Symbol Speed signal Comments Speed above ground Sensor of the tractor If several signals are available, the user can select a certain signal. GPS antenna Simulated signal Select for tests or if other speed signals fail. If this signal is selected, the passed or cultivated area is not recorded (counter).

  • Page 28: Resetting Counter Values And Changing View In The Operating Menu

    Commissioning Resetting counter values and changing view in the operating menu Setting up simulated driving speed If this signal is selected, the passed or cultivated area is not recorded (counter). Select a simulated driving speed  as the speed signal. Enter the simulated driving speed in the input field  0.0...99.9 [km/h] ��...

  • Page 29: Setting The Working Position

    Commissioning Setting the working position Scroll to desired counter: Job counter, page 1/4 Daily counter, page 2/4 Annual counter, page 3/4 Total counter, page 4/4 (cannot be reset) Make sure that the correct counter has been selected. Here: Distributor  Job counter  NOTICE After resetting, the user CANNOT restore the value.
  • Page 30 Commissioning Setting the working position Selecting internal lifting signal of the machine Press the field  Select the internal lifting signal from the list (already selected here). �� The display  shows the current position: Blue: Lifted Grey: Lowered �� The arrows  show the current position.

  • Page 31: Performing Calibration Test

    Commissioning Performing calibration test Performing calibration test 5.6.1 Calibration process Background In order to determine the rate of seeds or fertiliser for the distribu‐ tion, the user must carry out a calibration test. In the calibration test, the distribution is simulated for a defined period of time.
  • Page 32 Commissioning Performing calibration test If necessary, switch the agitator shaft  off or on. The seedt‐ able contains details on whether the agitator shaft should be switched on or off. �� The belt  is on the belt pulley  : The agitator shaft is rotating.
  • Page 33 Chapter 5.6.3 Setting distribution rate on page 38 ⮫  Average driving speed ■ Continue process. Select the metering wheel unit: Accept the LEMKEN presetting  ■ Select manual  . The metering units suitable for the ■ selected spreading material are available for selection.
  • Page 34 Commissioning Performing calibration test Start the filling process: At the machine: Press the calibration button ■ In the control: Press the softkey  . ■ �� In the control: The page with the following text opens. 1. Wait until all metering units have been filled. 2.
  • Page 35 Commissioning Performing calibration test 14. Terminating calibration test: Wait until the specified time has elapsed: The control ends ■ the process. At the machine: Press the calibration button. ■ In the control: Press the softkey ■ �� In the control: The following page opens. ��...
  • Page 36 Commissioning Performing calibration test In the control: If the determined weight of the spreading material deviates from the preset data: Enter the determined weight [g] in the input field  �� The counted motor impulses and the weight are used to determine and display a standard calibration value [g/ Imp] ...

  • Page 37: Setting Spreading Material Parameters

    Commissioning Performing calibration test At the machine: Close the bottom outlet using the lever. 5.6.2 Setting spreading material parameters In the setting parameters: Select the spreading material in the field  Setting up own spreading material Select. Alternatively: ⮫  Press the button  to specify the specific weight (litre weight) of the seeds or fertiliser.

  • Page 38: Setting Distribution Rate

    Commissioning Performing calibration test Setting up own spreading material The user can freely assign the memory locations 1...3 for their own spreading material. Select a free memory location. �� The settings open. Call up further setting options via the button  ��...
  • Page 39 Commissioning Performing calibration test Entering the distribution rate directly Open the distribution rate menu. Enter the distribution rate in the field  [kg/ha]. �� The value is stored in the control as a 100% value. �� The control outputs the recommended minimum and max‐ imum speed ...

  • Page 40: Changing Parameters Of The Metering Units

    The control selects the appropriate metering unit based on the selected spreading material. NOTICE The settings in the control iQblue MultiHub V1.00 must match the machine components and settings. BA 70216216 | 69210432 en_GB | Rev__ | 2024-07...
  • Page 41 Commissioning Performing calibration test If several suitable metering units are stored: Use the buttons  to select the installed metering units. ■ Use the softkey  to accept the setting and to continue. ■ �� The colour coding in the control matches the metering units on the machine.

  • Page 42: Operation

    Operation Procedure when sowing Operation Procedure when sowing Preconditions: ✓ The installed metering wheel sets match the current spreading material. ✓ The control settings are adapted for the current job. Which settings may have to be adapted for a job can be ⮫ ...

  • Page 43: Remaining Quantity Discharge

    Operation Remaining quantity discharge Turning At the end of the seeding row, completely lift the machine using the additional tractor control unit. �� The components of the machine are lifted one after the other. �� Sowing is stopped automatically. Turn. Remaining quantity discharge The hopper is discharged via the metering units.
  • Page 44 Operation Remaining quantity discharge In the control: Call up the remaining quantity discharge menu. �� At the machine: The calibration button is activated: LED lights up. �� The page with the following text opens. - After activating remaining quantity discharge, perform a new calibration test.
  • Page 45 Operation Remaining quantity discharge Start discharge: At the machine: Press the calibration button. ■ In the control: Press the softkey  . ■ �� The page with the following text opens. Remaining quantity discharge is running. - If required: Stop the process via the softkey or button. The discharge time has been preset to 999 seconds.
  • Page 46 Operation Remaining quantity discharge At the machine: Actuate the lever to close the bottom outlet. BA 70216216 | 69210432 en_GB | Rev__ | 2024-07...

  • Page 47: Troubleshooting And Error Correction

    Troubleshooting and error correction Malfunctions Troubleshooting and error correction Malfunctions Depending on the software version, messages start with L0, L4 or L5. No.           Fault description Cause Remedy L0001, Malfunction in the elec‐ Metering motor defective, Visually inspect metering ■ L4001 tronics of the metering malfunction in the elec‐...

  • Page 48: Warnings

    Troubleshooting and error correction Warnings Warnings Depending on the software version, messages start with L0, L4 or L5. No.           Fault description Cause Remedy L0302, Overtemperature Metering motor requires Clean metering unit. ■ L4302 metering motor excessive tightening torque Drive more slowly. ■...
  • Page 49 Troubleshooting and error correction Warnings No.           Fault description Cause Remedy L0307, Fan speed not reached Lower speed limit too high | Check cable form for damage. ■ L4307 Sensor sensing distance not Have the error rectified by ■ The set minimum speed observed (<...
  • Page 50 Troubleshooting and error correction Warnings No.           Fault description Cause Remedy GSA motor hardware L5452 GSA motor defective | Fault Visually inspect metering ■ error in electronics of GSA motor chamber, remove any foreign | Excessive intrinsic power objects. Hardware error at sec‐ due to blockage Clean metering unit.

  • Page 51: Notices

    Troubleshooting and error correction Notices Notices No.           Fault description Cause Remedy L5601 One half of the machine All singling units on one half Check whether the switch-off is ■ switched off manually of the machine are switched necessary. off. If required, correct. ■...

  • Page 52: Menus

    Each operation terminal may have a different design layout. In these operating instructions the layout of the control elements is displayed, which is shown in the LEMKEN CCI-1200 operation terminal with factory setting. Settings and information...

  • Page 53: Information

    Menus Information Information 8.2.1 Calling up information The user can use an overview page to call up information to mon‐ itor the machine. Call up via softkey The following information can be selected: Error log, page 53 ⮫  Counter, page 54 ⮫ ...

  • Page 54: Counter

    Menus Information Call up Access to the menu management Fig. 9: Error log Messages are designed as follows: Error symbols with magnifying glass The user can use the magnifying glass to call up explanatory texts about the messages. Information (yellow) Warning (orange) Malfunction (red) Error code with explanatory symbol display...

  • Page 55: Machine Configuration

    Menus Information Counter Cultivated area WITH the tramline area [ha] and, if necessary, the switched off half width Cultivated area WITHOUT the tramline area [ha] and, if neces‐ sary, the switched off half width Applied quantity [ kg] Operating hours of the machine [h] Total counter Reset counters Job counter, page 1/4...
  • Page 56 Menus Information Name of the machine Serial number Year of manufacture Working width [m] Hopper capacity [l] Fig. 11: Information | Machine configuration page 1/2 Section switch available? Alignment of the machine Alignment of the machine: The control is in FRONT of the machine in driving direction. The control is BEHIND the machine in driving direction.

  • Page 57: Sensors

    Menus Information 8.2.5 Sensors The menu contains information about all the sensors of the machine. The view depends on the machine configuration. Call up Access to the menu management Each sensor is shown with a symbol and a respective sensor number.

  • Page 58: Power Supply

    Menus Information Lifting signal of the machine Metering units Calibration test or remaining quantity discharge push-button Level monitoring Hopper is empty. Hopper is full. 8.2.6 Power supply The menu contains information about the available power at the job computer and the current consumption of the machine. The information is distributed to several pages.

  • Page 59: Metering Motors

    Menus Information Name of the job computer Software version of the application Internal storage Operating system version Fig. 17: Information | Software page 1/2 Hardware version Metering motor SW: Software version ■ SN: Serial number ■ Fig. 18: Information | Software page 2/2 8.2.8 Metering motors The menu contains information about the technical values of the...

  • Page 60: Settings

    Menus Settings Settings 8.3.1 Calling up settings The user can use an overview page to call up all the settings of the machine. In the settings, the user can set limit values and adjust functions of the machine. Call up via softkey Calibration test, page 60 ⮫ ...

  • Page 61: Distribution Rate

    Menus Settings Start The following setting options and displays are available: Type of distribution Weight of the distribution [kg/ha] Minimum driving speed [km/h] Maximum driving speed [km/h] Start the calibration test. After starting the calibration test, the user is guided through the calibration process on several pages.

  • Page 62: Monitoring

    Menus Settings 8.3.4 Monitoring If entered limit values are exceeded, warnings are output via an acoustic signal. Sensors trigger these signals. If one of these sensors is defective and permanently outputs an acoustic signal, this warning signal can be deactivated. The user can deactivate the warning signal in the sensor settings or on this page.
  • Page 63 Menus Settings The following setting options and displays are available: Select the speed signal for determining the driving speed. See Possible speed signals, page 63. ⮫  Depending on the selected speed signal: - Display of the TECU source name, if known - Display of the GPS source name, if known Display of the current operating speed [km/h] The speed is only shown if a signal can be processed.

  • Page 64: Monitoring: Fan

    Menus Settings 8.3.6 Monitoring: Fan In this menu, the user can adjust the warning for the fan speed. The fan generates overpressure in the system that is required for transporting the seeds. Limit values are stored in this menu to keep the system pressure at a constant level.

  • Page 65: Pre-Metering

    Menus Settings Start, stop or end discharge. ■ Change the discharge time. ■ Fig. 26: Settings | Remaining quantity discharge 8.3.8 Pre-metering In this menu, the user can set the behaviour of the pre-metering. Call up The following setting options are available: Switch automatic pre-metering on and off.

  • Page 66: Working Position

    Menus Settings The following setting option is available: If setting is possible at the operation terminal: Adjust the volume. Switch signal on or off. Fig. 28: Settings | Acoustic signal 8.3.10 Working position In this menu, the user selects a lifting signal. The status of the selected signal is shown.

  • Page 67: Sections

    Menus Settings Lifting signal of the tractor TECU Select the lifting signal: - TECU (shown here) - Internal lifting sensor Display of the current lifting value Bar chart: Blue arrow: Start value White arrow: Stop value Current position Enter the value [%] from which metering is switched on when lowering.

  • Page 68: Isobus

    Menus ISOBUS ISOBUS 8.4.1 Calling up ISOBUS menus In this menu, the user can call up all the menus for the ISOBUS settings. Call up Access to the ISOBUS menus Fig. 32: Settings | ISOBUS 8.4.2 TECU / Job computer of the tractor In this menu, the user can set up use of the tractor’s job computer.
  • Page 69 Menus ISOBUS Further information Display of the ISOBUS name (if available) Fig. 34: ISOBUS | TECU | Information Display: Source name (if available) ■ Display: Source function (if available) ■ Display of speed signals: blue = available ■ grey = unavailable ■...

  • Page 70: Ut / Universal Operation Terminals

    Menus ISOBUS 8.4.3 UT / Universal operation terminals In this menu, the user can set up use of a certain operation ter‐ minal. Call up Access to the menu management The following setting options and displays are available: Fig. 35: ISOBUS | UT Display: Name of the connected operation terminal ■...

  • Page 71: Index
