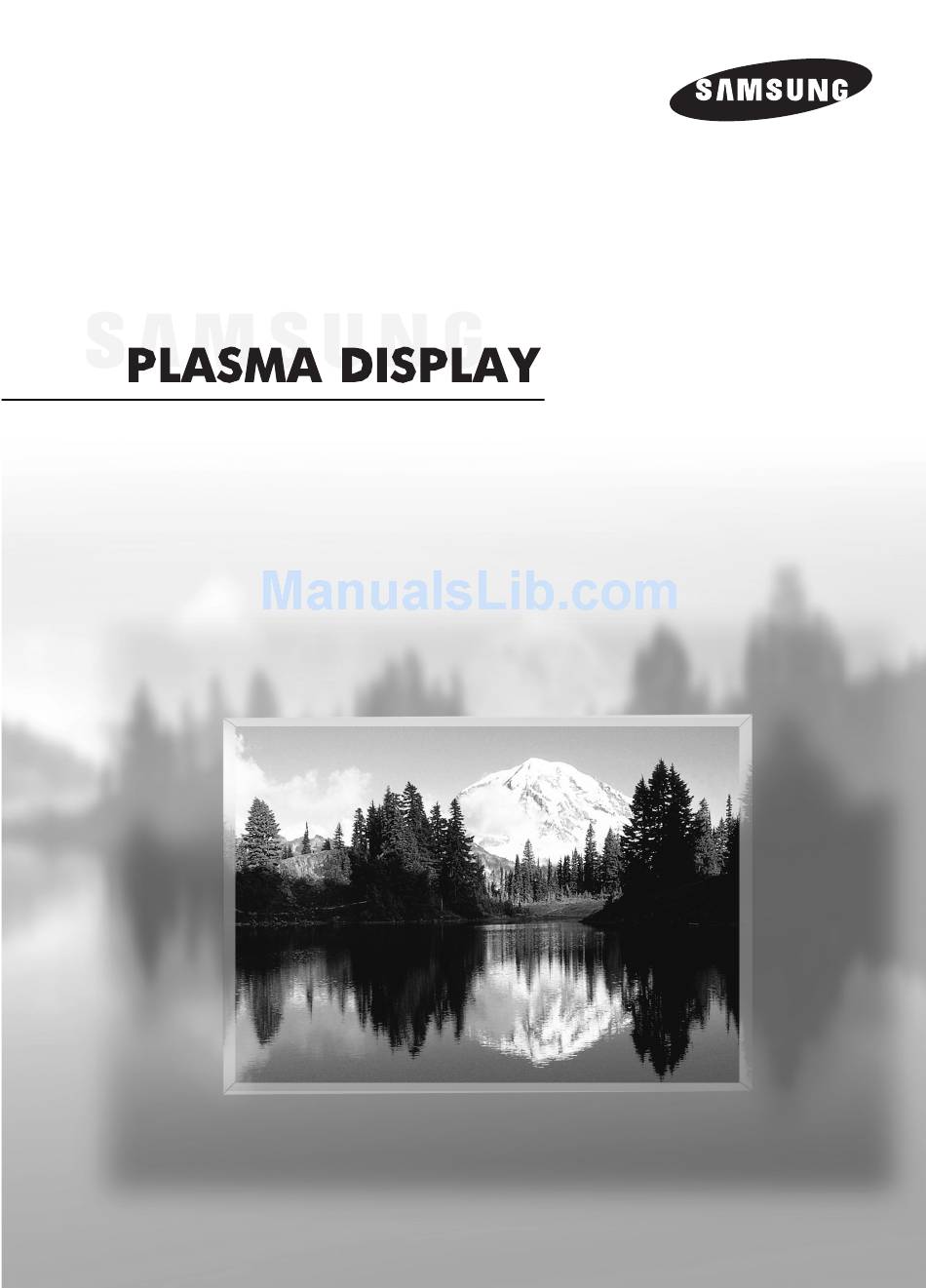

- Page 1 Owner’s Instructions PL-42P5HD PL-50P5HD This device is a Class B digital apparatus. Register your product at www.samsung.com/global/register...
- Page 2 Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty. U.S.A Only The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties.
-
Page 3: User Instructions
User Instructions Screen Image retention Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as “screen burn”. -
Page 4: Table Of Contents
Table of Contents General Information Picture Control Your New Plasma Display Panel......8 Changing the Picture Standard ....48 Remote Control Buttons ........11 Customizing the Picture Settings ....49 Wall Installation Instructions ......13 Viewing the DNIe Demonstration ....51 How to assemble the Stand-Base ....17 Changing the Screen Size ......52 Viewing the Picture-in-Picture ......54 Connections... - Page 5 Connecting a PC and Operation Appendix Connecting a PC ........86 Troubleshooting ........136 Changing the Position of the Image ....90 Care and Maintenance ......137 Picture Quality Adjustment ......91 Specifications..........138 Image Reset ..........94 Time Setting Setting the Clock ........96 Note Setting the On/Off Timer......98 •...
-
Page 7: General Information
P L A S M A D I S P L A Y P A N E L General Information Your New Plasma Display Panel ............8 Remote Control Buttons ..............11 Wall Installation Instructions ............13 How to assemble the Stand-Base............17... -
Page 8: Your New Plasma Display Panel
Your New Plasma Display Panel Front Panel Œ ´ ˇ ¨ ˆ ” ∏ Ø Œ SOURCE button ˆ (Enter) button Press to display all of the available video Press to confirm a selection. sources (TV, AV1, AV2, S-Video1, S-Video2, Ø... - Page 9 Side of the TV COMPONENT Ferrite Cores The ferrite cores are used to attenuate undesired signals. S-Video Input When connecting cables, attach one of these ferrite cores to the cable near Video Input the connector. When you connect COMPONENT Side AV (VIDEO, AUDIO), or Side AV(VIDEO, AUDIO) first bind the ferrite core Audio Input (L, R)
- Page 10 Please refer to the Anynet Owner’s Connector for service only. Instruction. This jack is for connecting to ˇ HDMI/DVI IN other Samsung Anynet-enabled devices. Connect to the HDMI jack of a device with ˝ COMPONENT IN 1, 2 HDMI output.
-
Page 11: Remote Control Buttons
Press to switch to your favorite channels. CH LIST button Displays the channel list. Ò MODE button Selects a target device to be controlled by the Samsung remote control (i.e., TV, STB, VCR, CABLE, or DVD). Ú PRE-CH button Tunes to the previous channel. - Page 12 Press to choose stereo, mono or Separate Audio Program (SAP broadcast). – SET button Used during set up of this Samsung remote control, so that it will work compatibly with other devices (VCR, Cable Box and DVD). — PIP button Activates picture in picture.
-
Page 13: Wall Installation Instructions
Installation Notes Contact a technician for installing the wall bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to perform the wall installation. This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood. -
Page 14: How To Assemble The Wall Mount Bracket
How to assemble the Wall Mount Bracket Insert and tighten the Captive Screw in the direction of the arrow. When done, mount the wall bracket on the wall. Captive Screw Wall Bracket Hinge (Left) There are two hinges (left and right). Use the correct one. - Page 15 Fixing the TV panel to the wall attachment panel bracket The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the screw are the same) Remove the 4 screws on the back of the product. Insert the screw into the plastic hanger.
-
Page 16: How To Adjust Mounting Angle
How to Adjust Mounting Angle Note : Adjust the bracket angle to -2° before installing it on the wall. Note 1. Fix the product to the wall bracket. Make sure to use the top center, and not the left or the right side of 2. -
Page 17: How To Assemble The Stand-Base
How to assemble the Stand-Base Using the 4 screws for securing the stand pegs and the monitor, firmly attach the monitor to the stand pegs. (The exterior of the set may be different than the picture.) Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury. -
Page 19: Connections
P L A S M A D I S P L A Y P A N E L Connections Connecting VHF and UHF Antennas ..........20 Connecting Cable TV..............21 Connecting a VCR................23 Connecting a Camcorder ..............24 Connecting a DVD Player (480i, 480p)..........25 Connecting a DTV Receiver (480p, 720p, 1080i) ......26 Connecting to HDMI (High Definition Multimedia Interface) (480p, 720p, 1080i) ..............27... -
Page 20: Connecting Vhf And Uhf Antennas
Connecting VHF and UHF Antennas Antennas with 75-ohm Round Leads If your antenna looks like this: it has 75-ohm round leads. Plug the antenna lead into the ANT 2 IN (AIR IN) on the TV. Use an antenna cable. (Sold Separately) -
Page 21: Connecting Cable Tv
Connecting Cable TV You can connect different cable systems to your TV, including cable without a Cable box, and cable with a Cable box that descrambles some or all channels. Cable without a Cable Box Plug the incoming cable into the ANT 1 IN (CABLE IN) on the TV. - Page 22 Cable with a Cable Box that Descrambles Some (But Not All) Channels To complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxial cables (which you can buy from your Samsung dealer or any electronics store). Find and disconnect the cable that is connected to the ANTENNA IN terminal of your Splitter.
-
Page 23: Connecting A Vcr
Connecting a VCR Connecting a VCR to the Video or S-Video/Audio jack TV Rear Panel Power cord Audio cable Video cable S-Video cable How to Connect Connect the Video/Audio cables between the VIDEO or S-VIDEO/AUDIO input jacks on the TV and VIDEO or S-VIDEO/AUDIO output jacks on the VCR. (Note: For better video, use an S-Video cable.) Note •... -
Page 24: Connecting A Camcorder
Connecting a Camcorder Viewing camcorder tapes TV Rear Panel Camcorder Power cord Audio cable Video cable S-Video cable How to Connect Connect a Video/Audio cable between the VIDEO or S-VIDEO/AUDIO input jacks on the TV and the VIDEO or S-VIDEO/AUDIO output jacks on the camcorder. (Note: For better video, use an S-VIDEO cable.) Note •... -
Page 25: Connecting A Dvd Player (480I, 480P)
Connecting a DVD Player (480i, 480p) Playing DVD TV Rear Panel DVD Player Power cord Component cable Audio cable How to Connect Connect the Y, P (COMPONENT1, 2) input jacks on the TV to the Y, P output jacks on the DVD player using a component cable. Connect the AUDIO L/R (COMPONENT1, 2) input jacks on the TV to the AUDIO output jacks on the DVD player using a audio cable. -
Page 26: Connecting A Dtv Receiver
Connecting a DTV Receiver (480p, 720p, 1080i) This TV displays the optimum picture in 720p mode. Watching DTV TV Rear Panel DTV Receiver Power cord Component cable Audio cable HDMI/DVI cable How to Connect Connect the cable or antenna to the antenna input jack on the DTV. Connect the Y, P (COMPONENT1, 2) or HDMI input jack on the TV to the Y, P DVI output jacks on the DTV receiver using a component or HDMI/DVI cable. -
Page 27: Connecting To Hdmi (High Definition Multimedia Interface) (480P, 720P, 1080I)
Connecting to HDMI (High Definition Multimedia Interface) (480p, 720p, 1080i) Watching DTV TV Rear Panel Power cord HDMI cable DTV Set-Top Box How to Connect Connect the cable or antenna to the antenna input jack on the DTV. Connect the HDMI input jack on the TV with the HDMI output jack on the DTV Set-Top Box using an HDMI cable. -
Page 28: Connecting A Digital Tv Set-Top Box
Connecting a Digital TV Set-Top Box (480p, 720p, 1080i) By inputting a high-bandwidth digital content protection High-Definition picture source to the HDMI input jack on the TV, High-Definition pictures can be displayed on the screen in their digital form. Connecting to HDMI (High Definition Multimedia Interface)/DVI Compatible TV Rear Panel Power cord DTV Set-Top Box... -
Page 29: Connecting A Digital Audio System
TV. Be certain to remove the black cover from the optical output before inserting the cable. If your system has both coaxial and optical digital audio inputs, SAMSUNG recommends you use the optical digital output on the TV. -
Page 30: Connecting To An Analog Amplifier
Connecting to an Analog Amplifier TV Rear Panel Power cord Audio cable Analog Amplifier How to Connect The “AUDIO OUT (AUDIO L/R)” terminals cannot be used for external speakers. You must hook them up to an amplifier. When an audio amplifier is connected to the “AUDIO OUT (AUDIO L/R)” terminals: Decrease the gain (volume) of the audio amplifier, turn the TV’s internal mute on and adjust the volume level with the volume control of the amplifier. -
Page 31: Operation
P L A S M A D I S P L A Y P A N E L Operation Turning the TV On and Off............32 Viewing the Menus and Displays ..........36 Memorizing the Channels ............37 Adding and Erasing Channels ............39 Setting Up Your Remote Control ............42 Viewing an External Signal Source ..........44... -
Page 32: Turning The Tv On And Off
Turning the TV On and Off Turning the TV On and Off Press the POWER button on the remote control. The TV will be turned on and you will be able to use its features. You can also use the Power button on the front of the TV. Note •... - Page 33 Press the ▲ or ▼ button to memorize the channels of Plug & Play the selected connection. Select the antennas to memorize. Press the ENTER button to select “Start”. Start Notes Cable Start Air + Cable • If the antenna is connected to ANT 1 IN (CABLE IN), Start select “Cable”...
- Page 34 Press the ENTER button. Press the ▲ or ▼ button to Plug & Play select “Yes” or “No”, then the ENTER button. Set to daylight savings time. “Select the time zone in which you live” menu is automatically displayed. Daylight Savings Time English Move Enter...
- Page 35 If you want to reset this feature... Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug & Play √ Language : English √ Time √ V-Chip √ Caption √ Menu Transparency : Medium √...
-
Page 36: Viewing The Menus And Displays
Viewing the Menus and Displays Your TV has a simple, easy-to-use menu system that appears on the TV screen. This system makes it convenient and fast to use features on the TV. Your TV also lets you display the status of many of your TV’s features. Viewing the Menus Input With the power on, press the MENU button on the... -
Page 37: Memorizing The Channels
Memorizing the Channels Your TV can memorize and store all of the available channels for both “off-air” (antenna) and cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding and deleting channels (manual). -
Page 38: Storing Channels In Memory
Storing Channels in Memory Auto Program Select the correct signal source (STD, HRC, and IRC) by pressing the ▲ or ▼ button, then press Select the cable system. the ENTER button Note • STD, HRC, and IRC identify various types of cable TV systems. -
Page 39: Adding And Erasing Channels
Adding and Erasing Channels To add channels that were not memorized (or to delete unwanted channels from memory): Channel Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then Antenna : Air √ press the ENTER button. Auto Program √... -
Page 40: Changing Channels
Changing Channels Using the Channel Buttons Press the CH or CH button to change channels. When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels.) You will not see channels that were either erased or not memorized. - Page 41 Using the “-” Button The “-” button is used to select stations that broadcast both a digital and analog signal. For example, for Channel 7-1 (digital), press “7”, then “-”, then “1”. DTV Cable 7 - 1 KYW-HD For channel 7-2 (analog), press “7”, then “-”, then “2”. DTV Cable 7 - 2 Multi...
-
Page 42: Setting Up Your Remote Control
Your TV comes equipped with a universal remote control. In addition to controlling the TV, the universal remote control can also operate a VCR, Cable box, DVD, and some Samsung Set-top boxes (even if your VCR, Cable box and DVD are made by manufacturers other than Samsung). - Page 43 Remote Control Codes VCR Codes Cable Box Codes DVD Codes...
-
Page 44: Viewing An External Signal Source
Viewing an External Signal Source Use the remote control to switch between viewing signals from connected equipment, such as VCR, DVD, Set-Top Box, and the TV source (broadcast or cable). Setting the Signal Source Input Press the MENU button. Press the ENTER button to select “Input”. Source List : TV √... -
Page 45: Assigning Names To External Input Mode
Assigning Names to External input mode Press the MENU button. Input Press the ENTER button to select “Input”. Source List : TV √ Edit Name √ Anynet √ Move Enter Return Press the ▲ or ▼ button to select “Edit Name”, then Edit Name press the ENTER button. -
Page 47: Picture Control
P L A S M A D I S P L A Y P A N E L Picture Control Changing the Picture Standard ............48 Customizing the Picture Settings ............49 Viewing the DNIe Demonstration ..........51 Changing the Screen Size ............52 Viewing the Picture-in-Picture............54 Selecting the Sound Source ............60 Setting the My Color Control Mode..........61... -
Page 48: Changing The Picture Standard
Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements. Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √... -
Page 49: Customizing The Picture Settings
Customizing the Picture Settings You can use the on-screen menus to change the “Contrast”, “Brightness”, “Sharpness”, “Color”, “Tint”, and “Color Tone” according to personal preference. You can select “Standard” which automatically recalls your personalized picture settings. Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. - Page 50 Mode Press the ENTER button to return to “Mode”. Press the ▲ or ▼ button to select “Color Tone”, then Mode : Custom √ Contrast press the ENTER button. Brightness Sharpness Color Tint G 50 R 50 Color Tone : Normal √...
-
Page 51: Viewing The Dnie Demonstration
Viewing the DNIe Demonstration This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe Demo to On, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. Picture Press the MENU button. -
Page 52: Changing The Screen Size
Changing the Screen Size Screen size selection depends on the type of video input. Press the MENU button. Press the ▲ or ▼ button to Picture select “Picture”, then press the ENTER button. Mode : Dynamic √ Size : 16:9 √... - Page 53 When you press the P.SIZE button under the cover of the remote control, the TV’s screen mode should appear in sequence. The screen displays in this order: 16:9, Panorama, Zoom1, Zoom2, 4:3. Note • If you watch a still image or the 4:3 mode for a long time (over 2 hours), an image may be burned onto the screen.
-
Page 54: Viewing The Picture-In-Picture
Viewing the Picture-in-Picture Selecting the PIP Screen Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √ Size : 16:9 √ ➤ ➤ Quick way to access the PIP mode: Simply press the “PIP” button under Digital NR : On √... -
Page 55: Selecting An External Signal
Selecting an External Signal You can use PIP to view a signal from an external source, such as a VCR. Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √... -
Page 56: Swapping The Contents Of The Pip And Main Image
Swapping the Contents of the PIP and Main Image Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √ Size : 16:9 √ Digital NR : On √... -
Page 57: Changing The Size Of The Pip Window
Changing the Size of the PIP Window Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √ Size : 16:9 √ Digital NR : On √ DNIe Demo : Off √... - Page 58 Changing the Location of the PIP Image Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √ Size : 16:9 √ Digital NR : On √ DNIe Demo : Off √...
-
Page 59: Changing The Pip Channel
Changing the PIP Channel Picture Press the MENU button. Press the ▲ or ▼ button to select “Picture”, then press the ENTER button. Mode : Dynamic √ Size : 16:9 √ Digital NR : On √ ➤ ➤ DNIe Demo : Off √... -
Page 60: Selecting The Sound Source
Selecting the Sound Source You can use this feature to hear sound from the main or sub (PIP) picture. Press the MENU button. Press the ▲ or ▼ button to Sound select “Sound”, then press the ENTER button. Mode : Custom √... -
Page 61: Setting The My Color Control Mode
Setting the My Color Control Mode My Color Control allows you to adjust colors according to your preference, by adjusting skin, sky, and grass tones using the predefined settings (Standard, Custom, Red, Green, Blue, Yellow, Pink, White) without affecting other colors on the screen. Using the My Color Control Function in the Easy Control Menu Skin, sky and grass tones are easily adjustable to suit your preferences. - Page 62 My Color Control Mode Characteristics Using My Color Control mode, you can enjoy vivid colors as shown below. Green Standard ➤ ➤ ➤ ➤ ➤ ➤ Standard Picture. Emphasizes Reds. Emphasizes Mild Greens. Blue Pink Yellow ➤ ➤ ➤ ➤ ➤...
- Page 63 My Color Control Custom Settings Users can adjust the 6 My Color Control colors (Red, Green, Blue, Yellow, Pink, and White). Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √...
- Page 64 Resetting the My Color Control Colors to the Factory Defaults To return to the factory default settings for My Color Control colors, use the Reset function. Picture Press the MENU button. Press the ▲ or ▼ button to select “Picture”, then press the ENTER button. Mode : Dynamic √...
-
Page 65: Sound Control
P L A S M A D I S P L A Y P A N E L Sound Control Customizing the Sound ..............66 Using Automatic Sound Settings ............67 Setting the TruSurround XT ............68 Choosing a Multi-Channel Sound (MTS) track - Digital......69 Choosing a Multi-Channel Sound (MTS) track - Analog ....70 Using the Auto Volume..............71 Choosing a Digital Sound Format ..........72... -
Page 66: Customizing The Sound
Customizing the Sound The sound settings can be adjusted to suit your personal preferences. (Alternatively, you can use one of the “automatic” settings. See next page.) Press the MENU button. Press the ▲ or ▼ button to select Sound “Sound”, then press the ENTER button. Mode : Custom √... -
Page 67: Using Automatic Sound Settings
Using Automatic Sound Settings Your TV has automatic sound settings (“Standard”, “Music”, “Movie”, and “Speech”) that are preset at the factory. Or, you can select “Custom,” which automatically recalls your personalized sound settings. Press the MENU button. Press the ▲ or ▼ button to Sound select “Sound”, then press the ENTER button. -
Page 68: Setting The Trusurround Xt
Setting the TruSurround XT TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. -
Page 69: Choosing A Multi-Channel Sound (Mts) Track - Digital
Choosing a Multi-Channel Sound (MTS) track - Digital The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). The availability of these additional “multitracks” depends upon the program. Sound Press the MENU button. -
Page 70: Choosing A Multi-Channel Sound (Mts) Track - Analog
Choosing a Multi-Channel Sound (MTS) track - Analog Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP. Press the MENU button. Press the ▲ or ▼ button to select Sound “Sound”, then press the ENTER button. Mode : Custom √... -
Page 71: Using The Auto Volume
Using the Auto Volume Each broadcasting station has its own signal conditions, which can make it necessary to adjust the volume every time the channel is changed. “Auto Volume” lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. -
Page 72: Choosing A Digital Sound Format
Choosing a Digital Sound Format Digital sound can be output from the rear panel connector on your TV. The digital sound outputs are connectors labeled “Optical” and “Coaxial”. After connecting a digital-audio component, you must specify the transmission format (Dolby or PCM, as appropriate to your digital audio component). -
Page 73: Setting The On/Off Melody
Setting the On/Off Melody A melody sound can be set to come on when the TV is powered On or Off. Press the MENU button. Press the ▲ or ▼ button to Sound select “Sound”, then press the ENTER button. Mode : Custom √... -
Page 74: Selecting The Internal Mute
Selecting the Internal Mute Sound output from the TV speakers is muted. Press the MENU button. Press the ▲ or ▼ button to select Sound “Sound”, then press the ENTER button. Mode : Custom √ Equalizer √ SRS TruSurround XT : Off √... -
Page 75: Channel Control
P L A S M A D I S P L A Y P A N E L Channel Control Selecting the Antenna ..............76 Selecting Your Favorite Channels ..........77 Labeling the Channels ..............78 Viewing the Channel Lists..............79 Editing the Channel Lists ..............80 Fine Tuning Analog Channels ............81 Checking the Digital-Signal Strength ..........82 LNA (Low Noise Amplifier) ............83... -
Page 76: Selecting The Antenna
Selecting the Antenna Press the MENU button. Press the ▲ or ▼ button to select Channel “Channel”, then press the ENTER button. Antenna : Air √ Auto Program √ Add / Delete √ Favorite Channels √ Name √ Fine Tune √... -
Page 77: Selecting Your Favorite Channels
Selecting Your Favorite Channels You can store your favorite channels for each available input source (such as TV and Cable box). Then, when you press the FAV.CH button on the remote control, the TV displays only the favorite channels you previously stored, allowing you to quickly and easily find frequently watched channels. To Store Your Favorite Channels: Channel Press the MENU button. -
Page 78: Labeling The Channels
Labeling the Channels Use this feature to assign an easy-to-remember label to any channel (i.e., “CBS”, “ESPN”, “PBS2”, “CNN1”, etc.) A label consists of five fields, where each field is a letter, a number or a blank. When the INFO button is pressed, the channel label will appear next to the channel number. Channel Press the MENU button. -
Page 79: Viewing The Channel Lists
Viewing the Channel Lists You can display a list of all channels or your favorite channels. Channel Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press Antenna : Air √ Auto Program √ the ENTER button. Add / Delete √... -
Page 80: Editing The Channel Lists
Editing the Channel Lists You can edit channels to be added or deleted. Channel Press the MENU button. Press the ▲ or ▼ button to select “Channel”, then press Antenna : Air √ the ENTER button. Auto Program √ Add / Delete √... -
Page 81: Fine Tuning Analog Channels
Fine Tuning Analog Channels Use fine tuning to manually adjust a particular channel for optimal reception. Press the MENU button. Press the ▲ or ▼ button to select Channel “Channel”, then press the ENTER button. Antenna : Air √ Auto Program √... -
Page 82: Checking The Digital-Signal Strength
Checking the Digital-Signal Strength Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels. -
Page 83: Lna (Low Noise Amplifier)
LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). Press the MENU button. Press the ▲ or ▼ button to select Channel “Channel”, then press the ENTER button. -
Page 85: Connecting A Pc And Operation
P L A S M A D I S P L A Y P A N E L Connecting a PC and Operation Connecting a PC................86 Changing the Position of the Image..........90 Picture Quality Adjustment ............91 Image Reset ................94... -
Page 86: Connecting A Pc
Connecting a PC Connection to a Macintosh computer may require an adapter. TV Rear Panel Power cord Audio cable PC cable Connecting a PC (15p D-SUB) to the TV Connect a PC cable between the PC Output jack on the PC and the RGB input jack (PC IN) on the TV. - Page 87 Setting up Your TV (Plug and Play) Our adoption of the new VESA Plug and Play solution eliminates complicated and time consuming setup. It allows you to install your monitor in a Plug and Play compatible system, without the usual setup hassles and confusion.
- Page 88 PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1. Right click the mouse on the Windows Desktop, then click on Properties.
- Page 89 • A “✔” mark means that this mode can be supported. Notes • The PC text quality of PL-42P5HD is optimum in XGA mode (1024 x 768@60Hz). • The PC text quality of PL-50P5HD is optimum in WXGA mode (1360 x 768@60Hz).
-
Page 90: Changing The Position Of The Image
Changing the Position of the Image After connecting the TV to your PC, adjust the position of the screen if it is not well-aligned. Preset: • Press the SOURCE button to select “PC.” Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. -
Page 91: Picture Quality Adjustment
Picture Quality Adjustment Picture Automatic Adjustment Preset: • Press the SOURCE button to select “PC”. Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. Plug & Play √ Language : English √... - Page 92 Coarse Adjustment Preset: • Press the SOURCE button to select “PC”. Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug & Play √ Language : English √ Time √ V-Chip √...
- Page 93 Fine Tuning (Fine) Preset: • Press the SOURCE button to select “PC”. Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug & Play √ Language : English √ Time √...
-
Page 94: Image Reset
Image Reset Preset: • Press the SOURCE button to select “PC”. Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button. Plug & Play √ Language : English √ Time √ V-Chip √... -
Page 95: Time Setting
P L A S M A D I S P L A Y P A N E L Time Setting Setting the Clock ...............96 Setting the On/Off Timer ............98 Setting the Sleep Timer ..............99... -
Page 96: Setting The Clock
Setting the Clock Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Option 1: Setting the Clock Manually Press the MENU button. - Page 97 Option 2: Setting the Clock Automatically The Clock can be set automatically if you are receiving a digital signal. Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press Plug & Play √ Language : English the ENTER button.
-
Page 98: Setting The On/Off Timer
Setting the On/Off Timer Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press Plug & Play √ the ENTER button. Language : English √ Time √ V-Chip √ Caption √ Menu Transparency : Medium √... -
Page 99: Setting The Sleep Timer
Setting the Sleep Timer The sleep timer automatically shuts off the TV after a preset time (from 30 to 180 minutes). Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug &... -
Page 101: Function Description
P L A S M A D I S P L A Y P A N E L Function Description Selecting a Menu Language ...........102 Digital Noise Reduction ............103 Selecting the Film Mode............104 Setting the Blue Screen ............105 Using the Color Weakness Enhancement Option ......106 Viewing Closed Captions (On-Screen Text Messages) - Analog...107 Viewing Closed Captions (On-Screen Text Messages) - Digital..108 Menu Transparency Level ............110... -
Page 102: Selecting A Menu Language
Selecting a Menu Language Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug & Play √ Language : English √ Time √ V-Chip √ Caption √ Menu Transparency : Medium √... -
Page 103: Digital Noise Reduction
Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. -
Page 104: Selecting The Film Mode
Selecting the Film Mode On: Automatically senses and processes film signals from all sources and adjusts the picture for optimum quality. Off: Switches off the Film mode. Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. -
Page 105: Setting The Blue Screen
Setting the Blue Screen If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue Screen“ mode to “Off“. Press the MENU button. -
Page 106: Using The Color Weakness Enhancement Option
Using the Color Weakness Enhancement Option This option adjusts the Red, Blue or Green color to enhance the image according to the user's particular color weakness. Press the MENU button. Press the ▲ or ▼ button to select Picture “Picture”, then press the ENTER button. Mode : Dynamic √... -
Page 107: Viewing Closed Captions (On-Screen Text Messages) - Analog
Viewing Closed Captions (On-Screen Text Messages) - Analog The Analog Caption function operates in either analog RF channel mode or external signal mode. Press the Menu button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug &... -
Page 108: Viewing Closed Captions (On-Screen Text Messages) - Digital
Viewing Closed Captions (On-Screen Text Messages) - Digital The Digital Captions function operates on digital channels. Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press Plug & Play √ Language : English the ENTER button. √... - Page 109 Press the ▲ or ▼ button to select “Size”, then press the Caption Options ENTER button. Size : Default √ Font Style : Default √ Foreground Color : Default √ Press the ▲ or ▼ button to select the desired Caption Background Color : Default √...
-
Page 110: Menu Transparency Level
Menu Transparency Level Adjusts the transparency of the menu screen. Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press Plug & Play √ the ENTER button. Language : English √ Time √ V-Chip √... -
Page 111: Using The Energy Saving Feature
Using the Energy Saving Feature This feature adjusts the screen brightness automatically depending on the surrounding lighting conditions. Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug & Play √... -
Page 112: Preventing Screen Burn-In
Preventing Screen Burn-in To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes. -
Page 113: Reducing The Effects Of Screen Burn
Reducing the Effects of Screen Burn If screen burn has occurred, you can select a white screen or signal pattern (rolling screen) to help remove screen burn artifacts. Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press Plug &... -
Page 114: Setting The Function Help
Setting the Function Help Displays help on the menu functions. Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press Plug & Play √ the ENTER button. Language : English √ Time √ V-Chip √... -
Page 115: Using The V-Chip (For Usa)
Using the V-Chip (for USA) The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed. Notes : When the V-chip feature is activated, the PIP features do not function. - Page 116 How to Enable/Disable the V-Chip Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug & Play √ Language : English √ Time √ V-Chip √ Caption √ Menu Transparency : Medium √...
- Page 117 How to Set up Restrictions using the “TV Parental Guidelines” First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating. Setup Press the MENU button.
- Page 118 TV Parental Guidelines At this point, one of the TV-Ratings is selected. Press the ENTER button. Depending on your existing Allow All setup, a symbol will be selected. Block All (Blank = Unblocked, = Blocked) While “ ” is selected, press the ENTER button to block or unblock the category.
- Page 119 How to Set up Restrictions using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).
- Page 120 How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: Enter your PIN number. Channel Is Locked by TV-PG[ S ] Use the NUMBER buttons to enter your...
-
Page 121: Using The V-Chip (For Canada)
Using the V-Chip (for Canada) The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed. Notes : When the V-chip feature is activated, the PIP features do not function. - Page 122 How to Enable/Disable the V-Chip Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button. Plug & Play √ Language : English √ Time √ V-Chip √ Caption √ Menu Transparency : Medium √...
- Page 123 How to Set up Restrictions using the “TV Parental Guidelines” First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating. Setup Press the MENU button.
- Page 124 TV Parental Guidelines At this point, one of the TV-Ratings is selected. Press the ENTER button. Depending on your existing Allow All setup, a symbol will be selected. Block All (Blank = Unblocked, = Blocked) While “ ” is selected, press the ENTER button to block or unblock the category.
- Page 125 How to Set up Restrictions using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).
- Page 126 How to Set up Restrictions using “Canadian English”: E, C, C8+, G, PG, 14+, 18+ First, set up a personal identification number (PIN), and enable the V-Chip. (refer to page 122) Press the MENU button. Press the ▲ or ▼ button to select Setup “Setup”, then press the ENTER button.
- Page 127 How to Set up Restrictions using “Canadian French”: E, G, 8 ans +, 13 ans +, 16 ans +, 18 ans + First, set up a personal identification number (PIN), and enable the V-Chip. (refer to page 122) Setup Press the MENU button. Press the ▲ or ▼ button to select “Setup”, then press the ENTER button.
- Page 128 How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: Enter your PIN number. Channel Is Locked by TV-PG[ S ] Use the NUMBER buttons to enter your...
-
Page 129: Electronic Program Guide
Electronic Program Guide Your TV has an “Electronic Program Guide” to help you navigate through all the possible viewing options. The EPG supplies information, such as program lists, start and end times of all available channels. In addition, detailed information about the program is often available in the EPG. -
Page 130: Using The Electronic Program Guide
Using the Electronic Program Guide Guide Press the MENU button. Press the ▲ or ▼ button to select “Guide”, then Mini Guide √ press the ENTER button. Full Guide √ Remind List √ Default Guide : Mini Guide √ Move Enter Return Press the ▲... -
Page 131: Viewing Information About A Single Channel
Viewing Information about a Single Channel Guide Press the MENU button. Press the ▲ or ▼ button to select “Guide”, then Mini Guide √ press the ENTER button. Full Guide √ Remind List √ Default Guide : Mini Guide √ Move Enter Return... -
Page 132: Viewing Information About Channels
Viewing Information about Channels Displays the program time and content for all channels. This function is available only when the program is digital. Press the MENU button. Guide Press the ▲ or ▼ button to select “Guide”, then Mini Guide √... -
Page 133: Remind List
Remind List Viewing the Remind List If you have made a scheduled viewing list of programs you would like to see, the channel will be automatically switched to the scheduled program at the scheduled time even if you are watching another program. -
Page 134: To View The Remind List
To view the Remind List Guide Press the MENU button. Press the ▲ or ▼ button to select “Guide”, then Mini Guide √ press the ENTER button. Full Guide √ Remind List √ Default Guide : Mini Guide √ Move Enter Return Press the ▲... -
Page 135: Appendix
P L A S M A D I S P L A Y P A N E L Appendix Troubleshooting................136 Care and Maintenance ..............137 Specifications ................138... -
Page 136: Troubleshooting
Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, then call your nearest service center. Problem Possible Solution Poor picture. Check all wire connections. No picture or sound. -
Page 137: Care And Maintenance
Care and Maintenance With proper care, your TV will give you many years of service. Please follow these guidelines to get the maximum performance from your TV. Identifying Problems • Do not put the TV near extremely hot, cold, humid or dusty places. •... -
Page 138: Specifications
Exterior design and product specifications are subject to change without prior notice to improve the performance of this product. Model PL-42P5HD PL-50P5HD 41.7 (W) x 29.1 (H) x 3.88 (D) inches (Without Stand) 48.43 (W) x 32.52 (H) x 3.72 (D) inches (Without Stand) Dimensions Display 41.7 (W) x 30.7 (H) x 13.4 (D) inches (With Stand) - Page 139 Memo...
- Page 140 BN68-00825Q-00...
