Owners Manual
RMI-48V1600W-2U
RMI-48V2400W-2U
RMI-125V1600W-2U

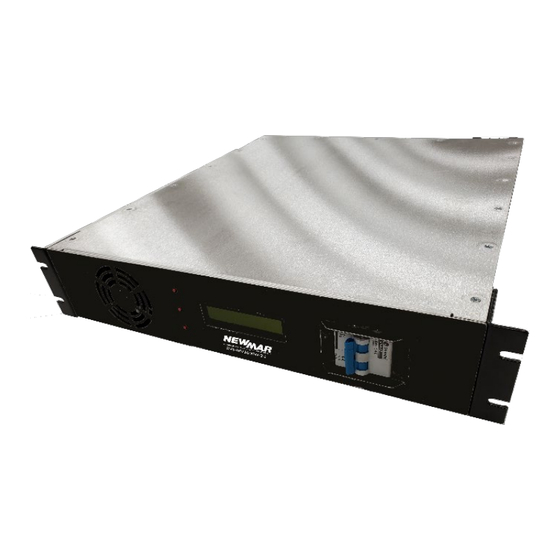

Rack Mount Inverter
© Newmar Power - The information contained herein is subject to
change without notice. Newmar shall not be liable for technical or
editorial errors or omissions contained herein. All rights reserved.
M-RMI-NEWMAR-2U REV A
Advertisement
Table of Contents
Related Manuals for NewMar RMI-48V1600W-2U
Summary of Contents for NewMar RMI-48V1600W-2U
- Page 1 RMI-48V1600W-2U RMI-48V2400W-2U RMI-125V1600W-2U Rack Mount Inverter © Newmar Power - The information contained herein is subject to change without notice. Newmar shall not be liable for technical or editorial errors or omissions contained herein. All rights reserved. M-RMI-NEWMAR-2U REV A...
-
Page 2: Table Of Contents
RACK MOUNT INVERTER GUIDE ..............................6 INSTALLATION ....................................6 OPERATION ....................................8 TROUBLESHOOTING ..................................9 COMMUNICATION PORT ................................11 RECOMMENDED COPPER WIRE SIZE FOR CURRENT CAPACITY .................... 11 LIMITED WARRANTY ................................... 13 Contact Us ....................................13 Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... -
Page 3: Description
These inverters have high nonlinear current capability (i.e. Crest Ration 3:1) and is suitable for powering inductive, capacitive, and resistive loads. Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... -
Page 4: Specifications
DC Polarity Reverse Communication RS-232 or dry contact Mechanical Dimensions (LxWxH) 488 x 430 x 89 mm (19” x 16.9” x 3.5”) 2U Weight 12.0kg (26.5 lbs.) Environmental 0-40°C(32-104°F) Temperature Relative Humidity 0-90% non-condensing Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... -
Page 5: Installation Warning
The AC output of this RACK MOUNT INVERTER cannot be synchronized with another AC source and hence, it is not suitable for paralleling. Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... - Page 6 (Connect the positive (＋) of the battery to the positive (＋) terminal of the RACK MOUNT INVERTER and the negative (－) of the battery to the negative (－) terminal of the RACK MOUNT INVERTER). If the input is connected in reverse polarity, the buzzer will alarm and auto shutdown. Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com...
-
Page 7: Rack Mount Inverter Guide
Battery Terminal Dry Contact Front View Ventilation Exit INSTALLATION 1. Unpacking and Inspection Unpack the packaging and check the package contents. The shipping package contains: • A RACK MOUNT INVERTER • A user manual Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... - Page 8 Remove metal items like rings, bracelets and watches when working with batteries. The batteries • can produce a short circuit current high enough to weld a ring or the like to metal and thus cause a severe burn. Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com...
-
Page 9: Operation
5 seconds later. 4. Display Operation Status Press “PgUp” key, to select Page 1 to 4 operation status Page 1: Output Voltage & Frequency OUTPUT VOLT: 220V FREQ:50.0HZ Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... -
Page 10: Troubleshooting
(48VDC on”, cannot power System: 42Vdc, 125VDC System: 105Vdc) Verify if DC Cable is loose. Verify if DC Voltage (48V / 125V DC) comply to the RACK MOUNT INVERTER spec. Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... - Page 11 104°F/40℃. output. insufficient air exchange. Reduce the load to reduce the heating effect. After the cause of overheating is removed and the unit cools down, it will reset automatically. Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com...
-
Page 12: Communication Port
16 AWG Up to 10 feet 16 AWG Up to 5 feet 20 AMPERES 14 AWG Up to 10 feet 14 AWG Up to 5 feet 30 AMPERES 12 AWG Up to 10 feet Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com... - Page 13 8 AWG Up to 10 feet 8 AWG Up to 5 feet 70 AMPERES 6 AWG Up to 10 feet 6 AWG Up to 5 feet 100 AMPERES 4 AWG Up to 10 feet Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com...
-
Page 14: Limited Warranty
Newmar, at its option, will repair or replace the defective product or parts thereof, which, after examination by Newmar, prove to be defective or not operational according to specifications in effect at the time of sale to the initial end user. The product that is replaced or repaired under the provisions of this warranty, will be warranted for the remainder of the original warranty period, only, and will not extend into a new three-year warranty period. - Page 15 Owners Manual Location Phone Website Email 1580 Sunflower Ave Suite 800-85403906 poweringthenetwork.com Email purchase orders to 100, Costa Mesa, CA sales@newmarpower.com Phone Email Website 1.800.854.3906 sales@newmar.com www.poweringthenetwork.com...
