FOR VIDEO DOORBELL INSTALLATION
What You Need
· Phillips-Head Screwdriver
· Power Drill (15/64" Drill Bit)
What's in the Box
Video Doorbell C31
Model: T8223
Mounting Bracket
Screw Pack
AT A GLANCE

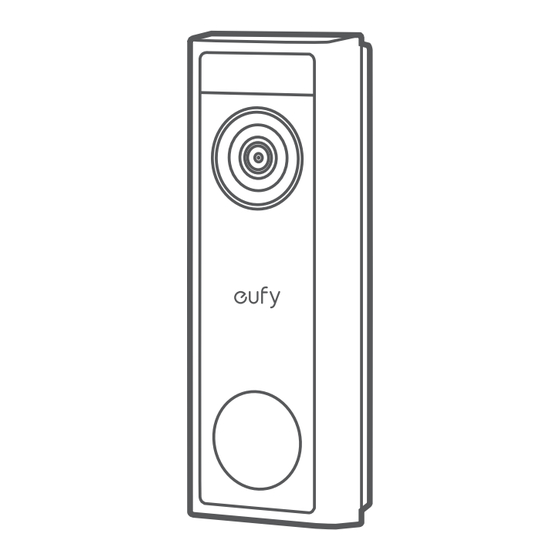

Front View
①
②
③
④
⑤
⑥
❶
Motion Sensor
❷
Camera Lens
❸
Microphone
❹
Ambient Light Sensor
❺
LED Ring / Doorbell Button
❻
Speaker
Rechargeable Battery Pack
o
15
Mounting Wedge
(Optional)
Detaching Pin
Extension Wires
Jumpers for Existing
Chime
Screw Hole
USB-C Charging Cable
Positioning Card
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EUFY C31
Summary of Contents for EUFY C31
- Page 1 FOR VIDEO DOORBELL INSTALLATION What You Need · Phillips-Head Screwdriver · Power Drill (15/64" Drill Bit) What's in the Box Video Doorbell C31 Rechargeable Battery Pack Extension Wires Jumpers for Existing Model: T8223 Chime Mounting Bracket Mounting Wedge Screw Hole...
-
Page 2: How The System Works
The video doorbell detects motion at your porch and lets you to answer the door anytime, anywhere. You can store video clips in the built-in storage of your eufy Security HomeBase 2 or S380 HomeBase (sold separately). When someone rings... -
Page 3: Charging The Battery Pack
2. Fully charge the rechargeable battery pack before installation. 3. Place the battery pack into the battery compartment. SETTING UP THE SYSTEM 1. Download and install the eufy Security app, then sign in or create an account. 2. Follow the in-app instructions to add the video doorbell. - Page 4 DETERMINING THE POWER OPTION Option 1: Battery Powered If you don't have existing doorbell wiring at your front door, use the included battery. You are free to determine the location of the doorbell, and the mounting will be easy and quick. When the battery is low, you will need to recharge it.
-
Page 5: Mount The Bracket
15° 2. Place the screw hole positioning card against the wall to mark the location. If mounting on a hard wall (brick, concrete, or stucco), use a 15/64" (5.95mm) drill bit to drill 2 holes through the screw hole positioning card. What you need: Phillips-Head Screwdriver;... -
Page 6: Recharging The Battery
Recharging the Battery 1. Insert the detaching pin into the pin hole on the top of the doorbell, then lift the top for removal. 2. Repeat steps in "CHARGING THE BATTERY PACK". You can purchase an extra battery pack for quick replacement. DOORBELL MOUNTING (Wire Powered) Check the Doorbell Wires 1. -
Page 7: Choose A Location
Choose a Location 1. Take the video doorbell to your front door and check the live view in the app. Choose a location where you can see the desired field of view. Consider the following factors: • Check if you can reuse the existing holes and anchors in the wall or door frame. •... - Page 8 15° 2. Place the screw hole positioning card against the wall to mark the location. If mounting on a hard wall (brick, concrete, or stucco), use a 15/64" (5.95mm) drill bit to drill 2 holes through the screw hole positioning card. What you need: Phillips-Head Screwdriver;...
- Page 9 1. To prevent short-circuiting, make sure the wires are not touching each other after connecting them to the terminals. 2. If the wires are too short, use the extension wires and wire nuts to make them longer. Use electrical wiring tape instead if there is no more space on the wall for wire nuts.
