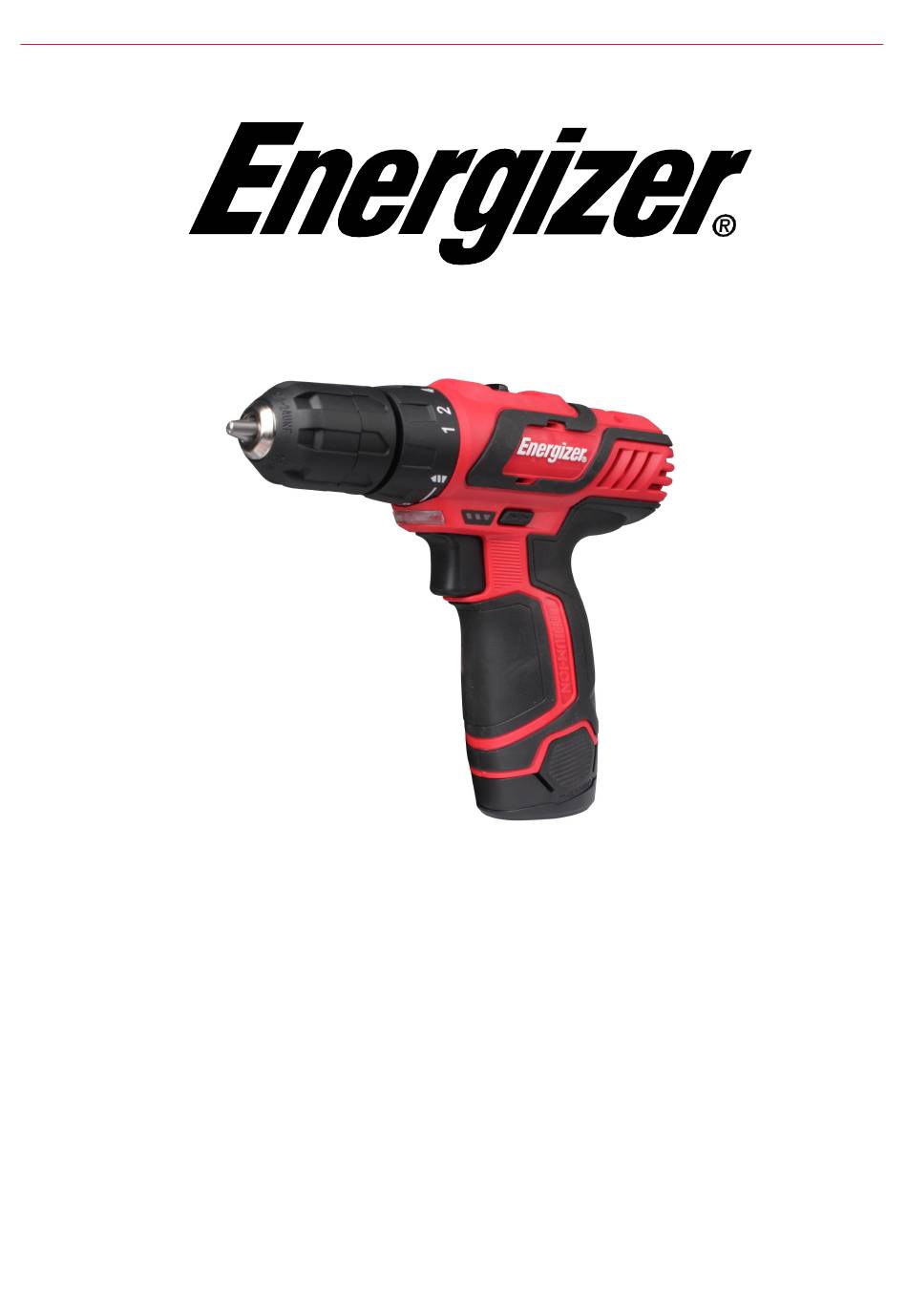

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS DRILL08CC EZPV12V USER GUIDE CAUTION: Read the instructions before using the machine!
- Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 4: Table Of Contents
CONTENTS 1. SAFETY WARNINGS 2. YOUR TOOL 3. CHARGING THE BATTERY 4. INFORMATION FOR USAGE 5. MAINTENANCE AND STORAGE 6. DISPOSAL 7. DECLARATION OF CONFORMITY 8. WARRANTY 9. PRODUCT FAILURE 10. WARRANTY EXCLUSIONS... -
Page 5: Safety Warnings
1. SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean.
- Page 7 Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist. If you lose control and have the cord wrapped around your arm or wrist it may entrap you and cause injury. Position yourself to avoid beingcaught between the tool or side handle and walls or posts. Should the bit ...
- Page 8 seek medical attention. WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame. Charge the battery packs only in the charger which accompanied your product. DO NOT splash or immerse inwater or other liquids. This maycause premature cell failure ...
- Page 9 ▪Batteries which are defective or damaged or can no longer be recharged must be disposed as a hazardous waste. Hand them over at a special collection point. Never harm our environment. Do not throw unusable storage-battery packet away into the domestic waste, into fire or into water.
- Page 10 Symbols Denotes risk of personal injury or damage to the tool. Read the instructions for use Avoid continuous sunlight Keep away from fire Do not throw it into water Battery pack is part of the recyclable resources In compliance with applicable European directives Class II The charger is only suitable for indoor use.
-
Page 11: Your Tool
2. YOUR TOOL DESCRIPTION... - Page 12 TECHNICAL SPECIFICATION Charging time 1 hour Charger model XH1350-2200WE Charger adapter input 100-240V AC50/60Hz 0.8A Charger adapter output 13.5V DC 2200mA Battery model BP08-120 Battery pack 12V DC 2000mAh Li-ion 12Vd.c. Rated voltage No Load speed 0-400/0-1400/min Max. torque 28Nm Chuck capacity Φ10mm Torque setting...
-
Page 13: Charging The Battery
3. CHARGING THE BATTERY WARNING: Place the battery pack and charger on a flat non-flammable surfaceand away from flammable material when re- charging the battery pack. Insert the cable of the charger in the charging port of the battery. Note: The battery will require 1 hour charging time after normal use. If the battery is fully run down the charging time will be 1 hour. -
Page 15: Information For Usage
4. INFORMATION FOR USAGE IMPORTANT: Before starting, inspect your drill bit to ensure there is no excessive wear and that it is sharp. Never use a drill bit if it is damaged or blunt. Check that the drill bit is correctly fitted in the chuck and is the correct type for the material you wish to drill a hole in. -
Page 16: Maintenance And Storage
Switch This feature is selected via a slide switch located above the trigger. To select the direction of rotation of the drill bit, push the knob fully to the left side for reverse rotation. To change the front rotation, push the button all the way to the right side of the handle. -
Page 17: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following tool: CORDLESS DRILL EZPV12V Serial number: 20210730840-20210731839 Is in conformity with the Directive « machine » 2006/42/CE Also in conformity with the following Directives:... -
Page 18: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 19: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
