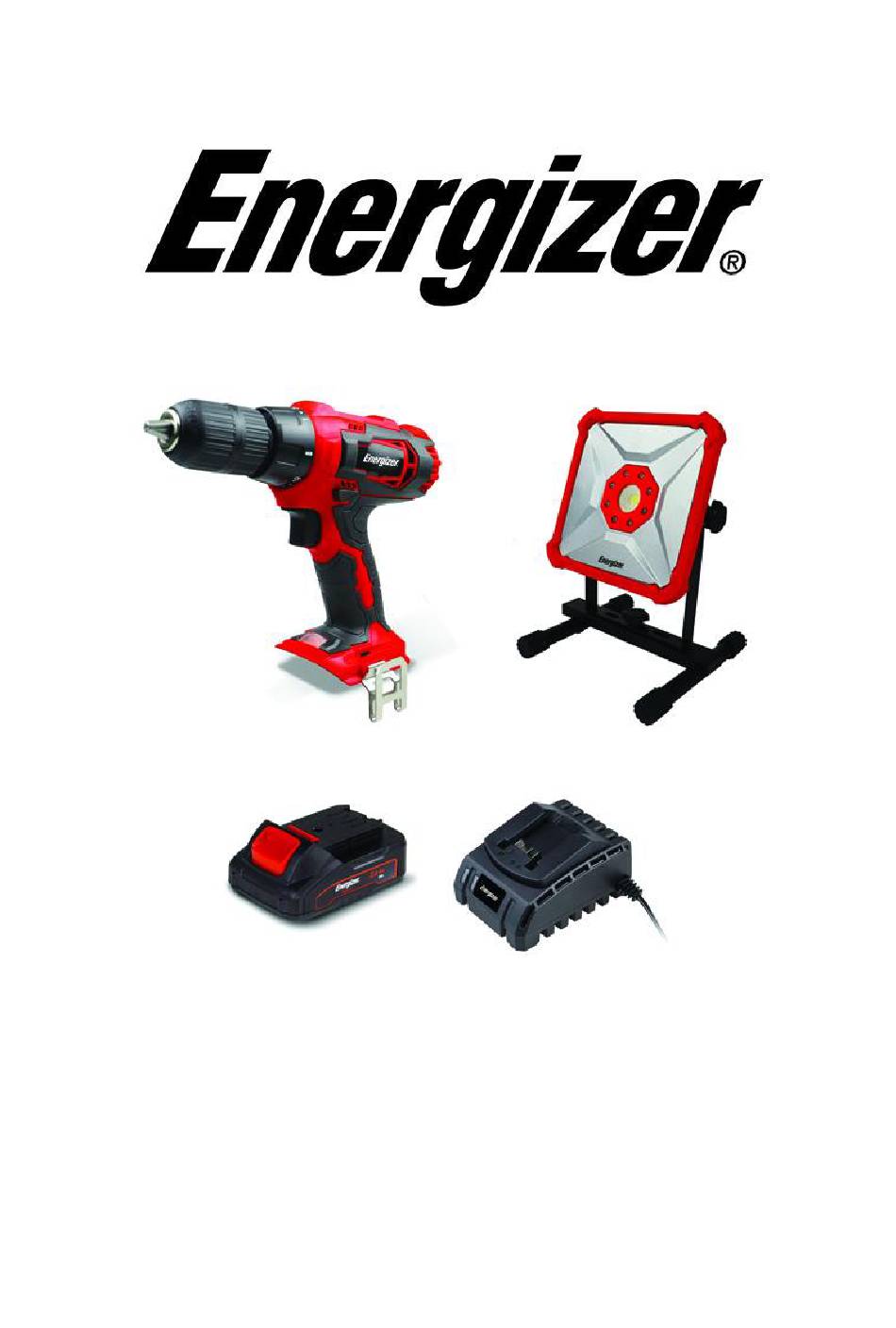

ORIGINAL INSTRUCTIONS >EN
CORDLESS DR LL
I
CORDLESS DRILL & LED WORKING LIGHT
EZPACK14
USER GUIDE
CAUTION: Read this manual before using this machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZPACK14 and is the answer not in the manual?

Questions and answers

Related Manuals for Energizer EZPACK14

Summary of Contents for Energizer EZPACK14

  • Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS DR LL CORDLESS DRILL & LED WORKING LIGHT EZPACK14 USER GUIDE CAUTION: Read this manual before using this machine!
  • Page 2 ©2023 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
  • Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!

  • Page 4: Table Of Contents

    CONTENTS CONTENTS PART 1 - FOR CORDLESS DRILL 1. INTENDED USE..............................5 2. SAFETY INSTRUCTIONS........................... 5 3. YOUR PRODUCT..............................10 4. OPERATION................................ 11 5. CLEANING AND MAINTENANCE........................14 6. TECHNICAL DETAILS............................15 7. DISPOSAL................................15 8. DECLARATION OF CONFORMITY........................ 16 PART 2 - FOR LED WORKING LIGHT 1.

  • Page 5: Part 1 - For Cordless Drill

    Part1 - CORDLESS DRILL 1. INTENDED USE The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. WARNING: For your own safety, read this manual and the general safety instructions carefully before using the appliance.
  • Page 6 your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.

  • Page 7: Drill Safety Warnings

    6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
  • Page 8 2) Charger Use the charger provided with the tool only to charge  the battery. Never attempt to charge non-rechargeable batteries.  Have defective cords replaced immediately.  Do not expose to water.  Do not open the charger.  Do not probe the charger.
  • Page 9 2.5 SYMBOLS Conforms to relevant safety standards. To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protection. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation (only for charger). Do not dispose of old appliances with domestic rubbish.

  • Page 10: Your Product

    3. YOUR PRODUCT 3.1 DESCRIPTION 1. Keyless chuck 1a. Ring A 7. LED work light 2. Torque adjustment ring 8. Battery pack release button 3. Two speed selector 9. Battery capacity indicator 4. On/off switch trigger 10. Button for battery capacity indicator 5.

  • Page 11: Operation

    2) Keyless chuck (1) Your drill has a keyless chuck that allows you to hand tighten or release drill bit in the chuck jaws. 3) Torque adjustment ring (2) The drill has a torque adjustment ring. It allows you to select the desired torque depending on the task you must perform (screwing/different types of screws into different materials).

  • Page 12: Switch Lock

    Allow the battery pack to cool completely before using it.  Store the charger and battery pack indoors, out of reach of children.  NOTE: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart.

  • Page 13: Speed Selector

    4.7 ANTICLOCKWISE ROTATION Left: To select reverse rotation, push the lever to the right side of the tool. 4.8 VARIABLE SPEED This tool has a variable speed switch that delivers higher speed and torque with increased trigger  pressure. Speed is controlled by the amount of switch trigger depression. ...

  • Page 14: Cleaning And Maintenance

    bit into the work piece, applying only enough pressure to keep the bit cutting. Do not force or apply side pressure to elongate a hole. 2) Wood drilling For maximum performance, use high speed steel bits for wood drilling. Turn the function mode selector on the drill mode .

  • Page 15: Technical Details

    13 mm, keyless Gear Train 2 Speed No Load Speed 0-400/0-1600min Torque adjustment 19+1 Positions EZPACK14 Charger type Input：220-240V~ 50-60Hz, 65W Output：21V d.c., 2.5A EZPACK14 Battery type 20V d.c. 2Ah Lithium-ion LpA =75dB(A) Uncertainty: K=5 dB(A) Sound pressure level LpA...

  • Page 16: Declaration Of Conformity

    BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that: Product: Cordless drill 20V Trade mark: ENERGIZER Model: EZPACK14 Serial number: 20230205001-20230207500 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 17: Intended Use

    Part 2 - CORDLESS LED WORKING LIGHT 1. INTENDED USE This LED light is intended for domestic use at indoor area such as workshop, garages to light the work room. This appliance is not intended for use as the household room illumination. And this appliance is not for commercial use.
  • Page 18 2.2 SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER 1) Batteries Never attempt to open for any reason.  Do not store in locations where the temperature may exceed 40°C (104°F).  Charge only at ambient temperatures between 4°C and 40°C(39.2°F and 104°F). ...

  • Page 19: Explanation Of The Symbols

    instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning  and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by ...

  • Page 20: Your Product

    Insulation Class Protection class IP20 Luminous Flux 1800 Lumen Color temperature 3000-6500K Runtime: Approx. 2 hours (2Ah battery) Weight (with battery pack 2Ah) 1.6kg EZPACK14 Charger type Input：220-240V~ 50-60Hz 65W Output：21V d.c., 2.5A EZPACK14 Battery type 20V d.c. 2Ah Lithium-ion...

  • Page 21: Before Use

    4. BEFORE USE 4.1 CHARGING THE BATTERY PACK IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. Assure that the charger you are using matches your battery pack. ...

  • Page 22: Operation

    5. OPERATION 5.1 SETTING UP Inserting the battery into the LED light until it can be felt to engage in. Place the mounting bracket (4) onto the stand (5), fix the LED light on the stand by tightening the knob screw for the stand (6).

  • Page 23: Storage

    6.1 CLEANING Do not spray the appliance with water and do not immerse it in water. Electric shock hazard! Allow the appliance to cool down before cleaning.  Clean the appliance on the outside only with a soft and dry cloth. ...

  • Page 24: Declaration Of Conformity

    BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that: Product: LED working light Trade mark: ENERGIZER Model: EZPACK14 Serial number: 20230205001-20230207500 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 25: Part 3 - For After-Sales Service

    Part 3 - AFTER-SALES SERVICE 1. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear.

  • Page 26: Product Failure

    2. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 27: Warranty Exclusions

    3. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
