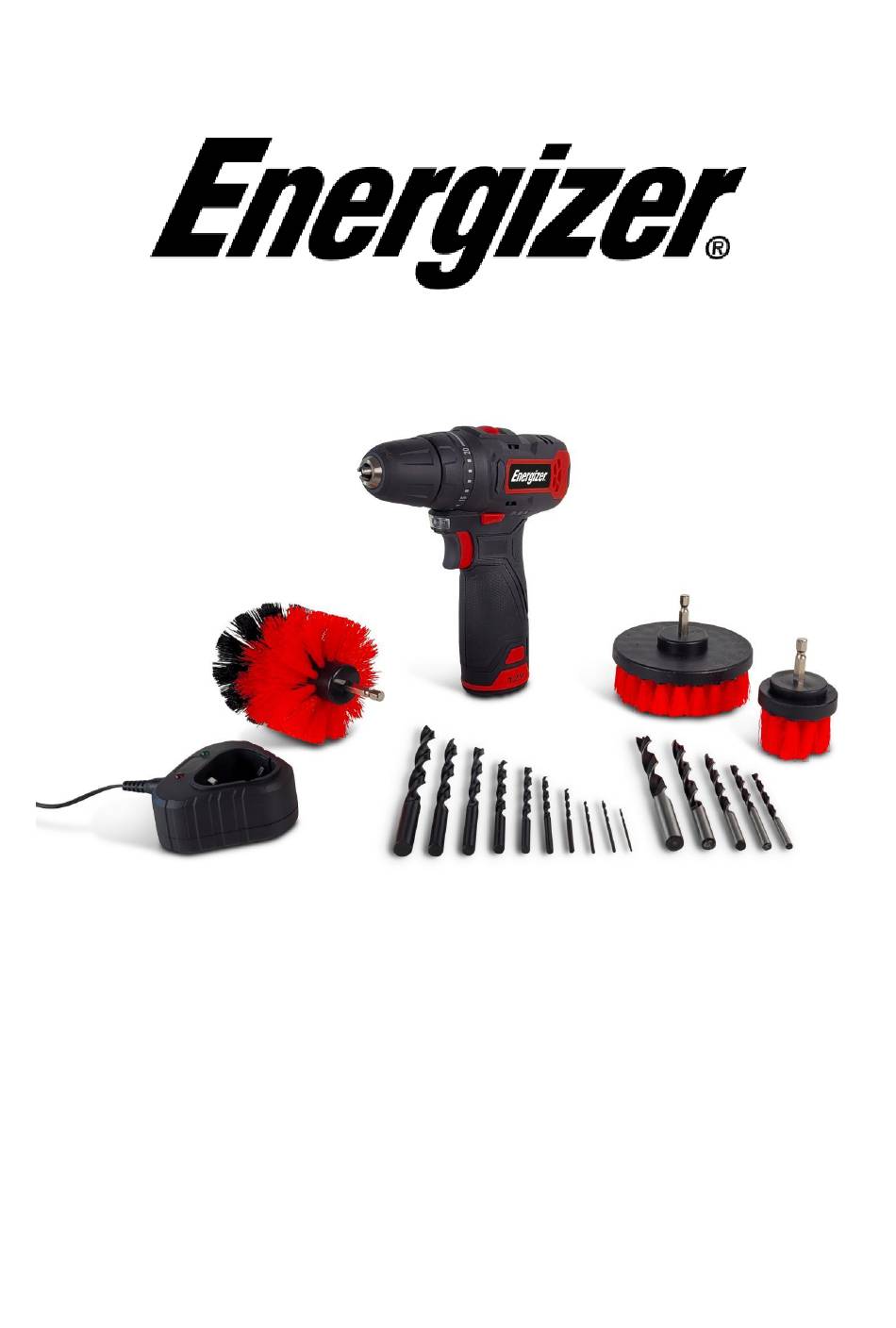

- Page 1 INSTRUCTIONS ORIGINALES >EN CORDLESS DRILL EZPV12VAC USER GUIDE CAUTION: Read this manual before using this machine!
- Page 2 ©2023 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
- Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 4: Table Of Contents
CONTENTS 1. INTENDED USE............................5 2. SAFETY INSTRCUTIONS........................5 EXPLANATION OF SYMBOLS ........................8 4. YOUR PRODUCT............................9 5. OPERATION............................10 6. MAINTENANCE AND STORAGE......................15 7. DISPOSAL............................. 21 8. DECLARATION OF CONFORMITY....................24 9. WARRANTY............................25 10. PRODUCT FAILURE......................... 26 11. WARRANTY EXCLUSIONS......................27... -
Page 5: Intended Use
1. INTENDED USE This power tool is designed for drilling as well as for tightening and loosening screws. This power tool shouldnot be used for purposes other than those described. 2. SAFETY INSTRUCTIONS 1.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. - Page 6 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
- Page 8 implant manufacturer before using this device. 1.6 SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER a) Batteries Never attempt to open for any reason. Do not store in locations where the temperature may exceed 50°C. Charge only at ambient temperatures between 5°C and 50°C ...
-
Page 9: Explanation Of Symbols
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision orinstruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. -
Page 10: Your Product
Handle Technical data Voltage 12Vd.c No load speed 0-400/0-1300min Chuck ɸ10mm EZPV12VAC Battery Charger Input: 100-240V~, 50-60Hz, 0.3A, Output: 14.4V d.c., 0. 4 A EZPV12VAC Li-ion Battery 12V d.c. 1300mAh, 15.6Wh Li-ion battery Sound power level LwA :82 dB(A) K=5dB(A) -
Page 11: Operation
tool is switched off and when it is running idle in addition to the trigger time). Wear hearing protection. 5. OPERATION 5.1 CHARGING IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. Assure that the charger (9) you use are applicable to the battery pack (8). - Page 12 - Make sure that the bit is well installed in place. Failure when installation will create accidents and injuries 5.6 REMOVING BITS - Switch off the tool and put the reverse/forward switch in the center position. - Open the chuck jaws and then pull the bit straight out. 5.7 STARTING AND STOPPING THE OPERATION - Push the forward/reverse switch at the desired position (on the left for reverse position and on the right for the forward position).
-
Page 13: Maintenance And Storage
required to drive the screw until it is properly seated. Rotate the torque collar until the desired torque setting aligns with the arrow of the drill body. When the selected torque is reached, the chuck will stop rotating. The proper setting depends on the type of material and the size of screw you are using. -
Page 14: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.503 Declares that the machinery designated below: CORDLESS DRILL EZPV12VAC Serial number: 20230304600-20230305349 Complies with the provisions of the Directive «machinery» 2006/42/CE and national lawstransposing it:... -
Page 15: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 16: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 17: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 18 NOTES...
- Page 19 NOTES...
