INSTRUCTION MANUAL

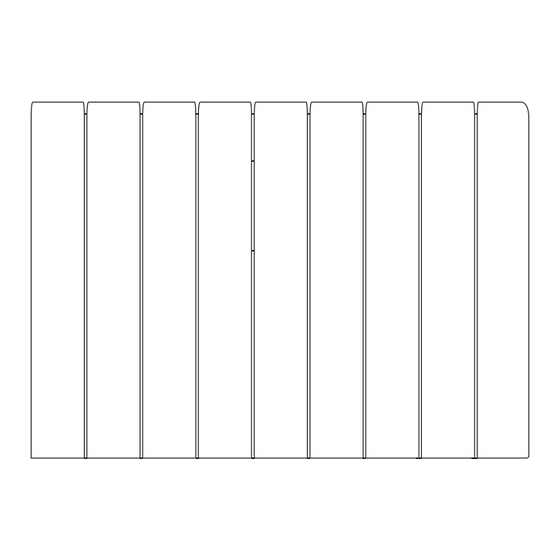

Electric Radiator
This manual is for the following models:
NDTL10W-23L
NDTL15W-23L
NDTL20W-23L
When the heater is turned on for the first time or when it has not been
used for some time, it may release a slight, harmless odour. This odour is
a normal occurrence caused by the initial heating of the internal heating
elements and will disappear with use
www.firedupcorporation.com/manual
Advertisement
Table of Contents
Related Manuals for Fired Up Corporation NDTL10W-23L
Summary of Contents for Fired Up Corporation NDTL10W-23L
- Page 1 INSTRUCTION MANUAL Electric Radiator This manual is for the following models: NDTL10W-23L NDTL15W-23L NDTL20W-23L When the heater is turned on for the first time or when it has not been used for some time, it may release a slight, harmless odour. This odour is...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions 02-03 Installation Display & Control Panel Icons Operation 05-09 Troubleshooting Care & Cleaning Specification Technical Parameters Conformity Guarantee & Contacts SAFETY INSTRUCTIONS • Read ALL the instructions before using this product. • Check that the heater and all supplied accessories are present and intact. •... -
Page 3: Installation
WARNING: In order to avoid overheating, DO NOT COVER THE HEATER • The heater must not be located immediately below a socket outlet. • Children of less than 3 years should be kept away unless continuously supervised. • Cleaning and user maintenance shall not be carried out by children without supervision. CAUTION: •... - Page 4 Drill the holes on the wall according 406mm to the distance shown (right). Take out the wall mounted brackets from the product air outlet and fix them on the wall with the 4 piece screws (ST4.9*35). Place the heater on the wall mounted bracket according to the diagram shown (right).
-
Page 5: Display & Control Panel
LCD DISPLAY & CONTROL PANEL Day Indicator Up / Increase Temperature/Time Standby Select Mode Down / Decrease Confirm ICONS Heater On Standby Comfort Mode Time Reset Indication (set the desired temperature) Comfort Mode -1°C Weekly Program (the temperature is -1°C lower than the comfort temperature) Comfort Mode -2°C WiFi Connected... -
Page 6: Temperature Setting
• Press & to select the current day. For example, if it is Wednesday you need to select 3. Press to confirm and enter hour setting. • Press & to select the current hour. Press to confirm and enter minute setting. - Page 7 Open Window Detection When you select Open Window Detection , the device will enter Comfort mode as default and detect if any windows are open or not. If the device detects an open window, the device will automatically enter Anti-Frost mode.
-
Page 8: Child Lock
Program Setting P You can set the working mode according to your life habit for 7 days / 24 hours. • Press to select P, press to confirm. Modify Program Setting P / P1 / P2 / P3 You can modify the programs when your device is working under the corresponding program. - Page 9 Fil-Pilot Wire Mode FP This product works under the control of a pilot wire control box. The icon and correspoding working mode icon will display on screen. Press to select mode. Press to confirm selection. “FIL PILOTE” ORDERS ORDERS Electrical signal COMFORT No signal = temp.
-
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION The appliance does not heat 1. Ensure that the circuit breakers are switched on the installation, or the shredder did not cut the power supply (if the installation has one. 2. Select the Comfort mode. 3. Increase the temperature setting. The device heats permanently 1. -
Page 11: Technical Parameters
TECHNICAL PARAMETERS Information requirements for electric local space heaters Value Item Symbol Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) manual heat charge control, with integrated [yes/no] Nominal heat out- 1/1.5/2 thermostat Minimum heat... -
Page 12: Conformity
This product guarantee does not affect your statutory rights. CUSTOMER HELPLINE customer.support@firedupcorporation.com +44 (0) 3300 882 069 Fired Up Corporation Ltd Fired Up Buildings HD1 3LF, UK www.firedupcorporation.com Fired Up Corporation (Ireland) Ltd...
