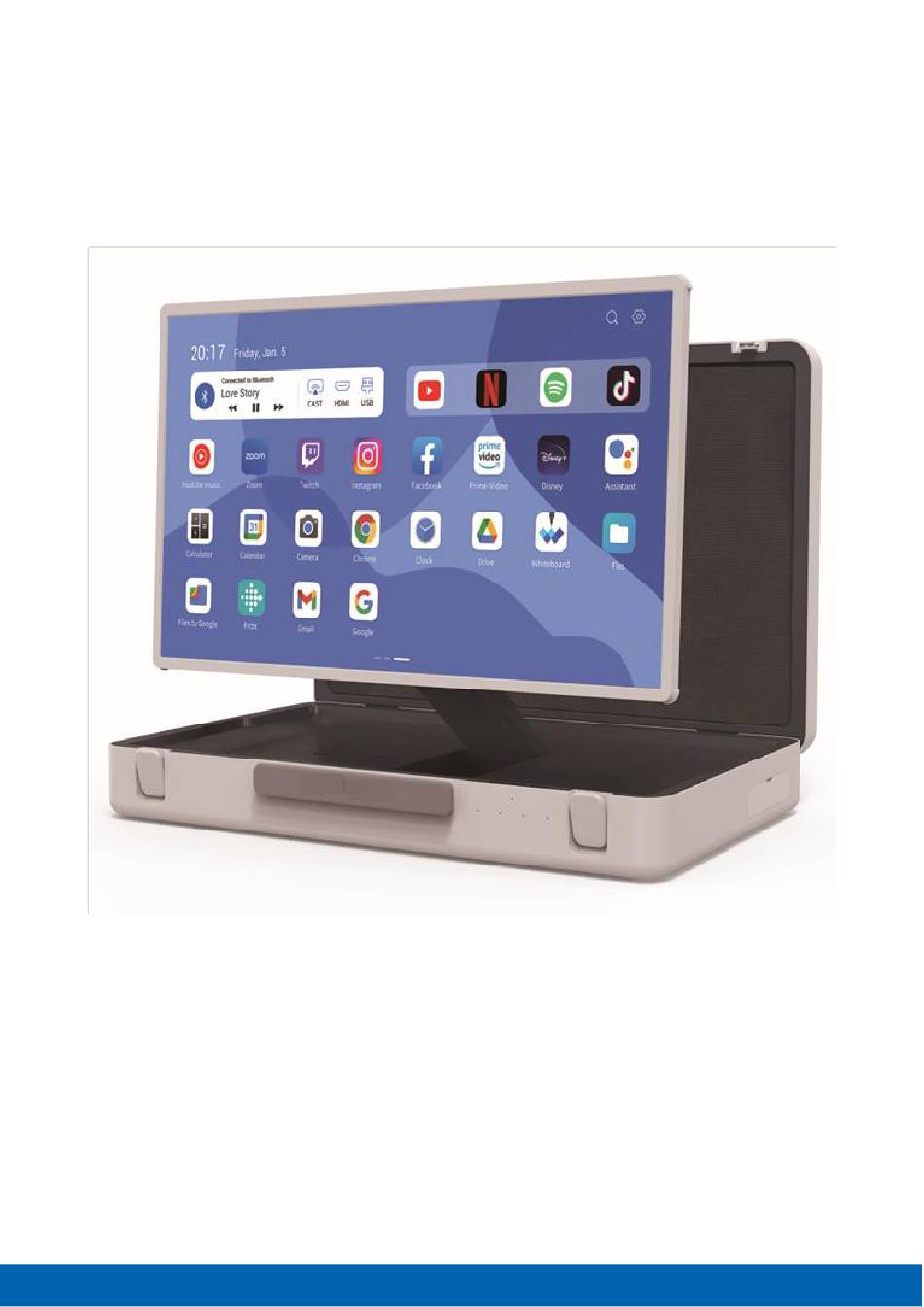

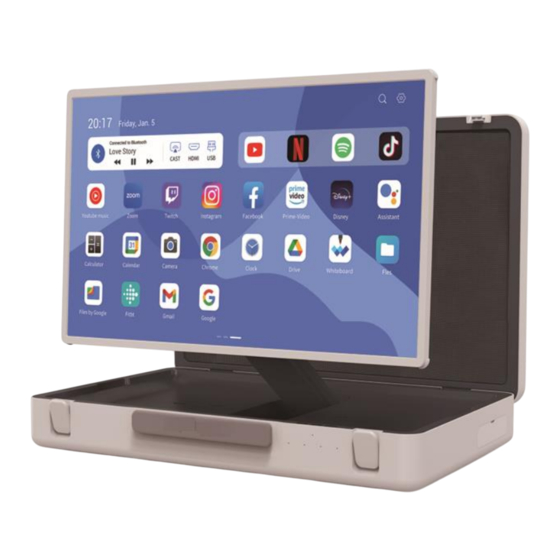

- Page 1 Quick guide ALLNET High Performance Displays Item no.: 228099 www.allnet.de...
-
Page 2: Table Of Contents
Ethernet setup ............................. 23 W-LAN setup ............................... 25 Settings Change language .......................... 26 Settings Change time zone, date and time ....................28 Display lock settings ............................ 31 Change volume setting ..........................31 Display settings ............................32 Hide navigation bar/status bar ........................33 www.allnet.de... -
Page 3: Package Contents
Update firmware: ............................39 CE ..............................40 Package contents Please check the contents of the packaging before proceeding with the commissioning of the display. • ALLNET High Performance Showcase Display • 12V power supply unit • Printed quick guide www.allnet.de... -
Page 4: General Information
General information The ALLNET High Performance Display with RK3588 is a 4K display with WiFi 6 and USB-C support and Power over Ethernet (PoE) capability. This display is designed for high-quality video and audio performance, with a resolution of up to 3840x2160 pixels and support for High Dynamic Range (HDR) content. WiFi 6 and USB-C... -
Page 5: Warnings
The signal word "WARNING" indicates a warning of possible danger to life and/or serious irreversible injuries! The signal word "CAUTION" indicates a warning of possible moderate or minor injuries! The signal word "CAUTION" indicates possible material damage. "Note" indicates useful or important information about the product. www.allnet.de... -
Page 6: Guidelines And Standards
• RoHS Directive 2011/65/EU. ALLNET Computersysteme GmbH hereby declares that the ALLNET PoE Displays is in compliance with the essential requirements and other relevant provisions of the following Directives and Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: http://ce.allnet.de and at the end of the instructions. -
Page 7: Disposal Of The Packaging
Permanently installed appliance batteries or rechargeable batteries may remain in the appliance when disposed of via the collection point. www.allnet.de... -
Page 8: General Security
• Do not pull the plug-in power supply unit out of the socket by the cable. • The appliance remains connected to the mains even when it is switched off. Unplug www.allnet.de... -
Page 9: Safety Instructions For Setting Up The Appliance
Do not use the appliance in a damp environment or near gas flames, hotplates or other hot objects. • Keep the appliance dry. • Protect the device from the effects of weather such as wind, rain, humidity and moisture. www.allnet.de... -
Page 10: Safety Instructions For Repair And Maintenance
Do not use liquid cleaners or cleaning sprays. The appliance may only be cleaned with a damp cloth. • It is prohibited to make modifications to the appliance. • Damaged devices or damaged accessories may no longer be used. www.allnet.de... -
Page 11: Intended Use
The appliance is designed for use in enclosed spaces and must be protected from excessive dust, extreme temperatures, moisture and condensation. The environmental requirements are specified as follows: Operating conditions: Temperature 0° - +40° Humidity 20% - 80% non-condensing Storage conditions: Temperature 0° - +60° Humidity 10% - 90% non-condensing www.allnet.de... -
Page 12: Technical Details
Microphone cancellation G-sensor Support 90 degrees Other Camera Power Language Multi-language Certificates CE/FCC Power Type Adapter Input Voltage DC 12V/4A Power consumption ≤25W -20℃---60℃ Storage Temperature Working Surrounding 0℃---50℃ 10~90%RH Working Temperature Accessories Adapter Adapter,12V/4A Working User manual Surrounding www.allnet.de... - Page 13 Type 100-240Vac Input voltage 50/60Hz Input frequency 1.5A Input current strength Output voltage Output current Output power 87,40% Average efficiency in operation 75,59% Efficiency at low load (10 %) 0.1W Max Power consumption at no load Energy efficiency class www.allnet.de...
-
Page 14: Operation
Operation Connect the tablet to the power supply. The tablet starts automatically. The device has a switch on the case lid which switches the device off as soon as the case is closed. www.allnet.de... -
Page 15: Function Of The Hardware Buttons
Function of the hardware buttons www.allnet.de... -
Page 16: Information On The Built-In Battery
Information on the built-in battery www.allnet.de... -
Page 17: Using The Remote Control
You can now adjust the content using the slider. Automatic start of an application You can use this function to start an app automatically. To do this, please go to Settings/Apps & notifications. There, click on Show all apps. www.allnet.de... - Page 18 Now select the desired app and press and hold on it until the following pop-up window appears for confirmation. www.allnet.de...
- Page 19 Confirm with Ok. When restarting, the application starts automatically. www.allnet.de...
-
Page 20: Fixing An App
You can find a professional kiosk app in the Playstore under "Ekiosk Browser". Go to Settings/Security and click on "Advanced" Screen lock. There, please go to the item "Screen fixation/App pinning" and click on it. You can now switch on the main switch. www.allnet.de... - Page 21 As an option, you can also install a security feature that locks the tablet when the app is closed. www.allnet.de...
- Page 22 You will find the most recently opened apps under the square in the navigation bar. Click on the middle icon at the top of the app you want to use. This screen fixation is no longer active after a restart and the fixation procedure must be carried out again. www.allnet.de...
-
Page 23: Ethernet Setup
Ethernet setup Open the " Settings" Select "Network&Internet", then click on "More" Please click on "Ethernet If the switch is not activated, please press it. www.allnet.de... - Page 24 Under "Ethernet Ip mode" you can select DHCP or Static Ip. www.allnet.de...
-
Page 25: W-Lan Setup
Once the connection has been successfully established, the tablet automatically connects to the network if it is within range. You can set up a static network connection under IP Setting. By clicking on "static", you can set up the IP address, gateway and DNS server. www.allnet.de... -
Page 26: Settings Change Language
Settings Change language Open the "Settings" app Under "System", select "Language & input", then click on Language and select the desired language www.allnet.de... - Page 27 Activate the language by dragging the language upwards on the right-hand edge. www.allnet.de...
-
Page 28: Settings Change Time Zone, Date And Time
Change time zone, date and time settings Open the "Settings" app and select "System". Select the "Date and time" menu item from the "System" menu item. www.allnet.de... - Page 29 You can either obtain the appropriate time zone automatically via the network or change it manually via the "Select time zone" item. www.allnet.de...
- Page 30 www.allnet.de...
-
Page 31: Display Lock Settings
Under "Device security/display lock" you can then assign a PIN to unlock the tablet. volume Change setting Open the "Settings" app Select the "Sounds" menu item from the "Device" menu item. Here you can set the volume for media playback, alarm clock and notifications. www.allnet.de... -
Page 32: Display Settings
Display settings Open the "Settings" app Select "Display", then click on Brightness level, now you can adjust the brightness continuously. In addition to the brightness, you can also change the background or select a screen saver. www.allnet.de... -
Page 33: Hide Navigation Bar/Status Bar
Open the "Settings" app Select "Display", then switch off "Show NavigationBar/ or Phone StatusBar". You can also operate the tablet with a mouse and keyboard. The left button is the "mouse click", the right mouse button is the "back" button www.allnet.de... -
Page 34: Settings "Switch Display Off Automatically
Open the Play Store app and log in with your Google account details to install the apps you want. If you do not yet have an account, you can create a new account directly via the app. If you have a www.allnet.de... - Page 35 This app can also be downloaded from external download sites such as APK Mirror. Please note that downloading from external sites can be risky. We assume no liability for this! www.allnet.de...
-
Page 36: Exit App
Exit app Click on the rectangular icon in the bottom navigation bar. You will then be shown all active apps, which you can then close as required. www.allnet.de... -
Page 37: Split Screen Function
These must be opened beforehand so that you can select them. Create screenshot Under Settings you will find the item "Screenshot". Click to open a settings window. You can activate the function in the navigation bar here. www.allnet.de... - Page 38 www.allnet.de...
-
Page 39: Update Firmware
To flash the firmware, you need the AndroidTool_Release v5.1.1. Please write to our support team to obtain the firmware and the download link, support@allnet.de. Here are the individual steps: 1. install the "Release_DriverAssitant" driver. - Page 40 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL-SDxxRK3588A12x/xG conforms to the Council Directives of 2014/53/EU. This equipment meets the following conformance...
