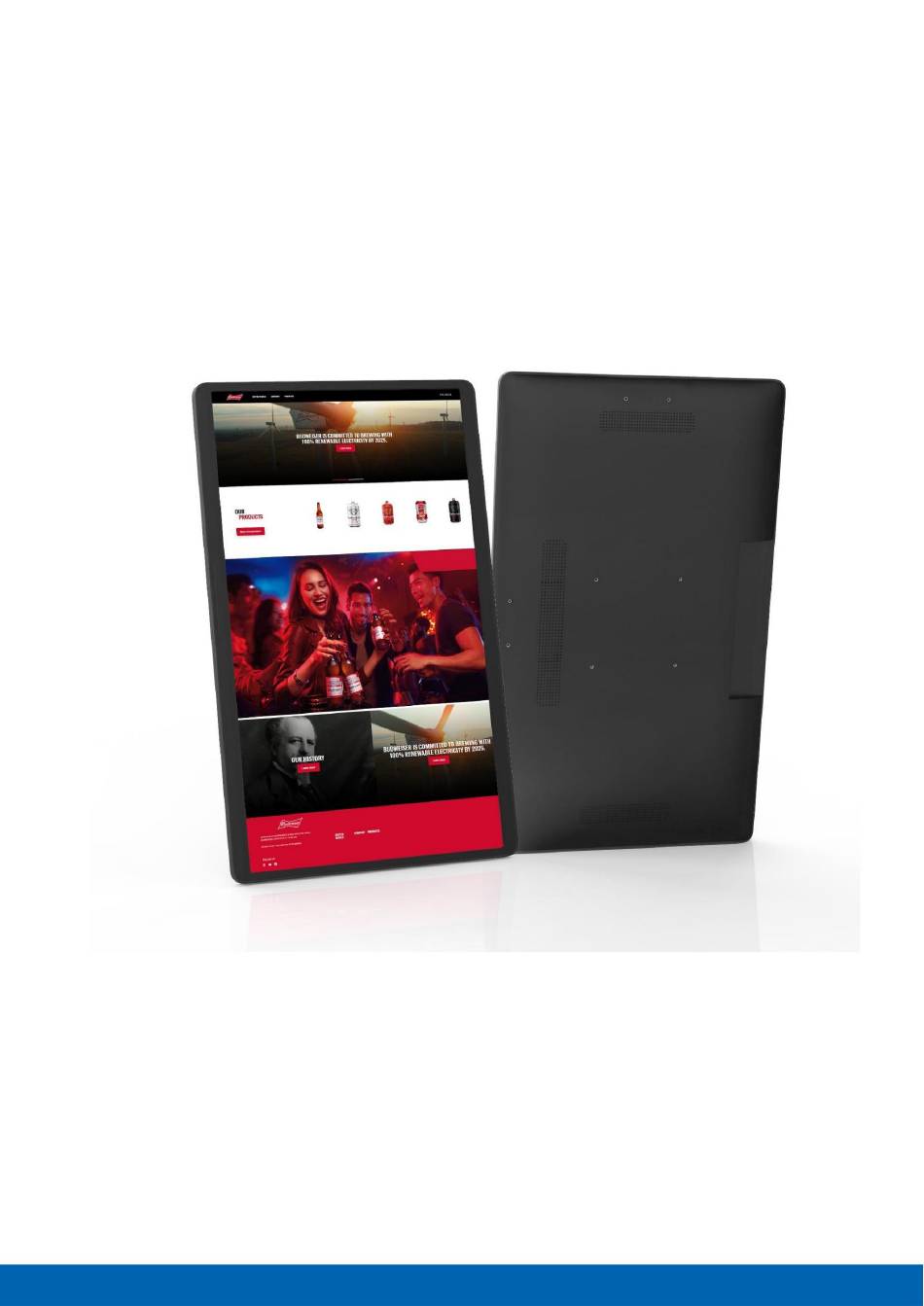

- Page 1 Machine Translated by Google quick start Guide ALLNET High Performance Displays Art.Nr.: 210868,210871,210867,210869,212864,212865,212866 www.allnet.de...
-
Page 2: Table Of Contents
Fixing an APP............................22 Setup Ethernet ..........................25 Wi-Fi setup............................27 Settings Change language ........................28 Settings Change time zone, date and time....................30 Screen lock settings........................33 Changing the volume setting........................33 www.allnet.de... -
Page 3: Differences In Display Sizes
For the 24 and 32 inches there is a matching stand with charging function for the battery in a matching color. The 24 inch stand is not compatible with the 32 inch! POE: Due to performance and size, only the 14, 16 and 21 inch displays can support Power over Ethernet. www.allnet.de... -
Page 4: Contents
• 14/16/21 inches with NFC reader General The ALLNET High Performance Display with RK3588 is a 4K display with WiFi 6 and USB-C support and Power over Ethernet (PoE) capability. This display is designed for high-quality video and audio performance, with a resolution of up to 3840x2160 pixels and support for HDR content (High Dynamic Range). -
Page 5: Warnings
The signal word “WARNING” indicates a warning of possible danger to life and/or serious irreversible injuries! The signal word “CAUTION” indicates a warning of possible medium and/or light hazards Injuries! The signal word “ATTENTION” indicates possible material damage. “Note” indicates useful or important information about the product. www.allnet.de... -
Page 6: Guidelines And Standards
• Radio Equipment Directive 2014/53/EU • Eco-Design Directive 2009/125/EC • RoHS Directive 2011/65/EU. ALLNET Computersysteme GmbH hereby declares that the ALLNET PoE displays are in accordance with the basic requirements and the other relevant Provisions of the following directives and Directive 2014/53/EU. -
Page 7: Disposal Of Packaging
Dispose of them in your local area or in stores so that they can be disposed of in an environmentally friendly manner can be supplied. Permanently installed device batteries or accumulators may be disposed of at the collection point device remain. www.allnet.de... -
Page 8: Safety Instructions For Handling The Plug-In Power Supply
Do not pull the power adapter out of the socket by the cable. • The device remains connected to the power grid even when it is switched off. Pull the power adapter out of the socket if the device is used for a longer period of time www.allnet.de... -
Page 9: Safety Instructions For Setting Up The Device
Do not expose the device and the remote control to direct sunlight. This impairs the function and could lead to damage • Do not use the device in a damp environment or near Gas flames, stove tops or other hot objects. www.allnet.de... -
Page 10: Safety Instructions For Repairs And Maintenance
Do not use liquid cleaners or cleaning sprays. The device may only be cleaned with a damp cloth. • It is forbidden to make any modifications to the device. • Damaged devices or damaged accessories may no longer be used become. www.allnet.de... -
Page 11: Intended Use
The device is designed for use indoors and must be used before excessive dust, extreme temperatures, moisture and condensation. The environmental requirements are specified as follows: Operating conditions: Temperature 0° to +40° Humidity 20% - 80% non-condensing Storage conditions: Temperature 0° to +60° Humidity 10% - 90% non-condensing www.allnet.de... -
Page 12: Technical Details
Built in dual Microphone , Support noise reduction and echo cancellation Microphone G-sensor Support 90 degrees Other Camera Power Language Multi-language Certificates CE/FCC Power Type Adapter DC 12V/4A Input Voltage ÿ25W Power consumption -20ÿ---60ÿ Storage Temperature Working 0ÿ---50ÿ 10~90%RH Surrounding Working Temperature Accessories Adapter Adapter,12V/4A User manual Working Surrounding www.allnet.de... - Page 13 Shenzhen, Guangdong, PR China FJ-SW20261203000 Type 100-240Vac Input voltage 50/60Hz Input frequency 1.5A Input current Output voltage Output current Output power 87,40% Average operational efficiency 75,59% Light load efficiency (10%) 0.1W Max Power consumption at no load Energy efficiency class www.allnet.de...
-
Page 14: Dimensions
Machine Translated by Google Dimensions 14 inch tablet www.allnet.de... -
Page 15: Tablet 16 Inch
Machine Translated by Google 16 inch tablet www.allnet.de... -
Page 16: Tablet 21 Inch
Machine Translated by Google Tablet 21 inches www.allnet.de... -
Page 17: Tablet 24 Inch
Machine Translated by Google Tablet 24 inches www.allnet.de... -
Page 18: Tablet 32 Inch
Machine Translated by Google Tablet 32 inches www.allnet.de... -
Page 19: Service
Connect the tablet to power. The tablet starts automatically. Display Rotation The display can be used horizontally and vertically. To do this, please go to Display/screen rotation settings. In the pop-up, select the degree of rotation. The tablet will now restart in the set mode Modus. www.allnet.de... -
Page 20: Application
Settings display/display size. You can now use the slider to adjust the content. Automatic start of an application With this function you can have an app start automatically. For this please go to Settings/Apps & Notification. There click on show all apps. www.allnet.de... - Page 21 Machine Translated by Google Now select the app you want and press and hold until the following pop-up window appears Confirmation appears. Confirm with OK. When restarting, the application starts automatically. www.allnet.de...
-
Page 22: Fixing An App
The APP can still be used by a key combination can be ended. You can find a professional kiosk APP in the Playstore at “Ekiosk Browser”. Go to Settings/Security and click “Advanced” Screen fixation. There please go to “Screen pinning/app pinning” and click on it. www.allnet.de... - Page 23 Machine Translated by Google Now you can turn on the main switch. As an option, you can also install security that locks the tablet when the app is closed. www.allnet.de...
- Page 24 You can find the most recently opened apps under the square in the navigation bar. Click the middle icon on the app you want to use at the top. This screen pinning will no longer be active after a reboot and the pinning procedure will need to be performed again. www.allnet.de...
-
Page 25: Setup Ethernet
Machine Translated by Google Setup Ethernet Open " Settings" Select “Network & Internet”, then click “More” Please click on “Ethernet”. If the switch is not activated, please press it. www.allnet.de... - Page 26 Machine Translated by Google Under “Ethernet Ip mode” you can select DHCP or Static Ip. www.allnet.de...
-
Page 27: Wi-Fi Setup
After the connection has been successfully established, the tablet automatically connects to the network, when it is within range. You can set up a static network connection under IP Setting. By clicking on “static” allows you to set up the IP address, gateway and DNS server. www.allnet.de... -
Page 28: Settings Change Language
Machine Translated by Google Settings Change language Open the Settings app Under “System”, then select “Language & input”, then click Language and select the desired language www.allnet.de... - Page 29 Machine Translated by Google You activate the language by pulling the language up on the right edge. www.allnet.de...
-
Page 30: Settings Change Time Zone, Date And Time
Machine Translated by Google Change settings time zone, date and time Open the “Settings” app and select “System”. Select the “Date and Time” menu item from the “System” menu item. www.allnet.de... - Page 31 Machine Translated by Google You can obtain the appropriate time zone either automatically via the network or manually change using the “Select time zone” item. www.allnet.de...
- Page 32 Machine Translated by Google www.allnet.de...
-
Page 33: Screen Lock Settings
Under “Device security/display lock” you can then, among other things, enter a PIN to unlock the tablet. Change the volume setting Open the Settings app Select the “Sounds” menu item from the “Device” menu item. Here you can adjust the volume for Set media playback, alarms and notifications. www.allnet.de... -
Page 34: Settings Display
Machine Translated by Google Settings display Open the Settings app Select “Display”, then click on brightness level, now you can adjust the brightness adjust continuously. In addition to the brightness, you can also change or set the background Select screen saver. www.allnet.de... - Page 35 Open the Settings app Select “Display”, then switch “Show NavigationBar/ or Phone StatusBar” off. You can also operate the tablet with a mouse and keyboard. The left button is the “Mouse click”, the right mouse button is the “Back” button www.allnet.de...
- Page 36 “Automatically turn off display” settings Open the Settings app Select “Display”, then click on Advanced/Sleep, now you can Set the display's switch-off time. By activating the menu item “Never” the screen remains continuously active until the tablet is switched off. www.allnet.de...
-
Page 37: Play Store
This app can too from ext. Download sites such as APK Mirror. Please note that the Download from ext. Pages can be risky. We assume no liability for this! www.allnet.de... - Page 38 Machine Translated by Google Quit app Click on the rectangular icon in the bottom navigation bar. Get it afterwards All active apps are displayed, which you can then close if you wish. www.allnet.de...
-
Page 39: Split Screen Function
These must be opened beforehand so that you can select them. Take a screenshot Under Settings you will find the item “Screenshot”. When you click, a settings window opens. Here you can switch on the function in the navigation bar. www.allnet.de... - Page 40 Machine Translated by Google www.allnet.de...
-
Page 41: Update Firmware
This can lead to errors in the recognition of the tablet. To flash the firmware you need AndroidTool_Release v5.1.1. Please write our support to receive the firmware and the download link, support@allnet.de. Here are the individual steps: 1. Install the “Release_DriverAssitant” driver. -
Page 42: This
The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL-SDxxRK3588A12x/xG conforms to the Council Directives of 2014/53/EU. This equipment meets the following conformance standards:...
