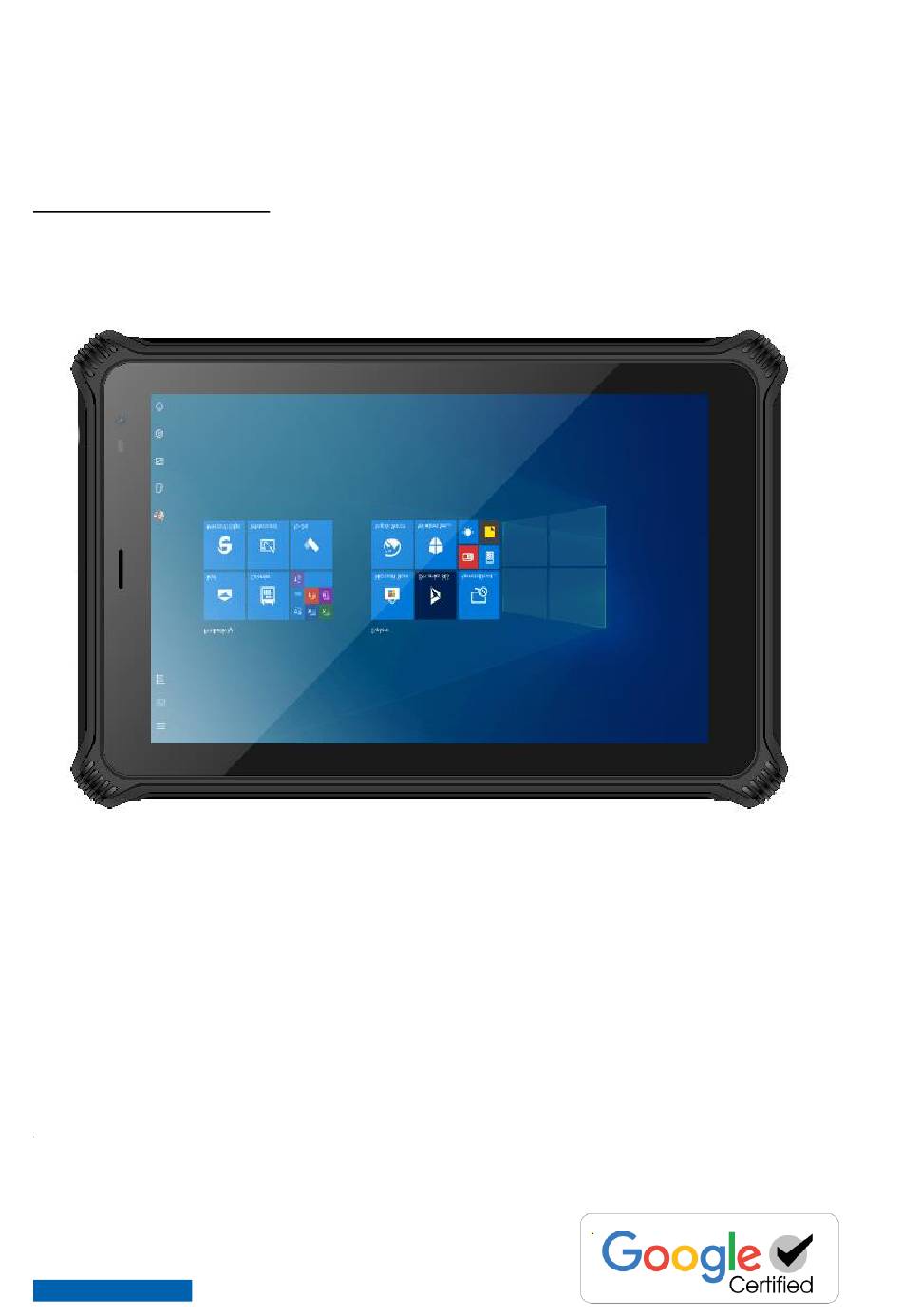

- Page 1 Quick guide ALLNET Rugged Tablet for Win/Linux ProductNo.: 227930, 227222 www.allnet.de...
-
Page 2: Table Of Contents
Install SIM card or TF card ________________________________________________________ 16 Other functions ________________________________________________________________ 17 Connect the HD monitor ______________________________________________________________ 17 Use of NFC/RFID reader (optional ) ______________________________________________________ 18 Scanner (optional ) _____________________________________________________________ 18 Service ___________________________________________________ Fehler! Textmarke nicht definiert. CE _______________________________________________________ Fehler! Textmarke nicht definiert. www.allnet.de... -
Page 3: Package Contents
Package contents Please check the contents of the packaging before proceeding with the commissioning of the display. • ALLNET PoE display with stand • 12V power supply unit • Printed quick guide General information The device is a display that can be operated with Android or Linux. Power is supplied via a power supply unit or PoE (power via network cable). -
Page 4: Warnings
The signal word "WARNING" indicates a warning of possible danger to life and/or serious irreversible injuries! The signal word "CAUTION" indicates a warning of possible moderate or minor injuries! The signal word "CAUTION" indicates possible material damage. "Note" indicates useful or important information about the product. www.allnet.de... -
Page 5: Guidelines And Standards
Radio Equipment Directive 2014/53/EU Eco-Design Directive 2009/125/EC RoHS Directive 2011/65/EU. Hereby, ALLNET Computersysteme GmbH declares that the ALLNET PoE Displays are in compliance with the essential requirements and other relevant provisions of the following directives and Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: http://ce.allnet.de and at the end of the instructions. -
Page 6: Disposal Of The Packaging
Permanently installed appliance batteries or rechargeable batteries may remain in the appliance when disposed of via the collection point. www.allnet.de... -
Page 7: General Security
Do not pull the plug-in power supply unit out of the socket by the cable. The appliance remains connected to the mains even when it is switched off. Unplug the mains adapter from the socket if the appliance is to be used for a longer period of time. www.allnet.de... - Page 8 Do not expose the device and the remote control to direct sunlight. This impairs the function and could lead to damage Do not use the appliance in a damp environment or near gas flames, hotplates or other hot objects. www.allnet.de...
- Page 9 Do not use liquid cleaners or cleaning sprays. The appliance may only be cleaned with a damp cloth. It is prohibited to make modifications to the appliance. Damaged devices or damaged accessories may no longer be used. www.allnet.de...
-
Page 10: Intended Use
The device is designed for use in enclosed spaces and must be protected from excessive dust, extreme temperatures, moisture and condensation. The environmental requirements are specified as follows: Operating conditions: Temperature 0° - +60° Humidity 20% - 80% non-condensing Storage conditions: Temperature 0° - +60° Humidity 10% - 90% non-condensing www.allnet.de... -
Page 11: Technical Details
USB3.0 Host/ USB OTG (Upgrade)/ SD Card Power supply unit: 12V/3A Operating temperature: -10°C ~ 50°C Operating humidity: 10% ~ 90% (non-condensing) Storage temperature: -30°C ~ 80 °C Storage humidity: 10% ~ 90% (non-condensing) Labeling: Ce/RoHS Dimensions 275*179.2*21.8 mm www.allnet.de... - Page 12 Certificate Dimensions Weight Dimension (W x H x D) 275*179.2*21.8 mm Weight 2.2 KG Color Black Accessories Accessory Hand strap, 12V/3A power adapter Optional Accessory Docking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Type-C OTG cable www.allnet.de...
-
Page 13: Product Appearance
9. On/off button 10. Volume+ 11. Volume - 12. User-defined keys 13. TF card slot and SIM card slot 14. Dual airline connector, reserved for extensions 15. Serial RS232 interface ( 10-inch products only ) 16. RJ45, 100 Gigabit Ethernet port www.allnet.de... -
Page 14: Front Components
2 The connection is only visible when the protective cover is open. Keep the cover completely closed when the port or device is not in use to make it water and dust proof. (If the cover has a latch, please ensure that it is locked). www.allnet.de... -
Page 15: Battery
It is recommended to keep the operating temperature of the battery at -10 °C to 50 °C (14 °F to 122 °F). ⑦ Do not store the device for longer than six months without charging it. www.allnet.de... -
Page 16: Mains Adapter
80% of the total capacity. At high temperatures, a charge of 80 % corresponds to a fully charged battery. ④ Once the battery is full, do not disconnect and connect the mains adapter immediately as the battery may be damaged. Install SIM card or TF card www.allnet.de... -
Page 17: Other Functions
If you want to use a larger screen and get a higher resolution, you can connect an external monitor to the HDMI port of your rugged tablet. HD (High-Definition Multimedia Interface) is a high-definition audio/video interface that transmits uncompressed digital data in a high-definition format. www.allnet.de... -
Page 18: Use Of Nfc/Rfid Reader (Optional )
Note: If the barcode to be scanned is reflective (e.g. paper with glossy foil), it may be necessary to rotate the barcode Tilt by +5° to avoid reflections. If scanning is successful, the system beeps, the scanning beam goes out and the decoded barcode data is entered automatically www.allnet.de... - Page 19 www.allnet.de...
