AT&T Bell System Plant Series Reference

BELL SYSTEM PRACTICES
Plant Series
SECTION 502-707-101
Issue 1, March 1970
AT&TCo Standard
REFERENCE
2751-TYPE TELEPHONE SETS
GROMMET ASSY
UPPER HALF P-4 4E 501
LOWER HALF P-44E502
···········
···········
mnmm~m
NOTE
LINE KEY
P-25EB03
CARD
RETAINER
RINGER
CONTROL
KNOB
EXCLUSION OR HOLD KEY
KNOB IS LOCATED BELOW
LINE SWITCH ACTUATOR

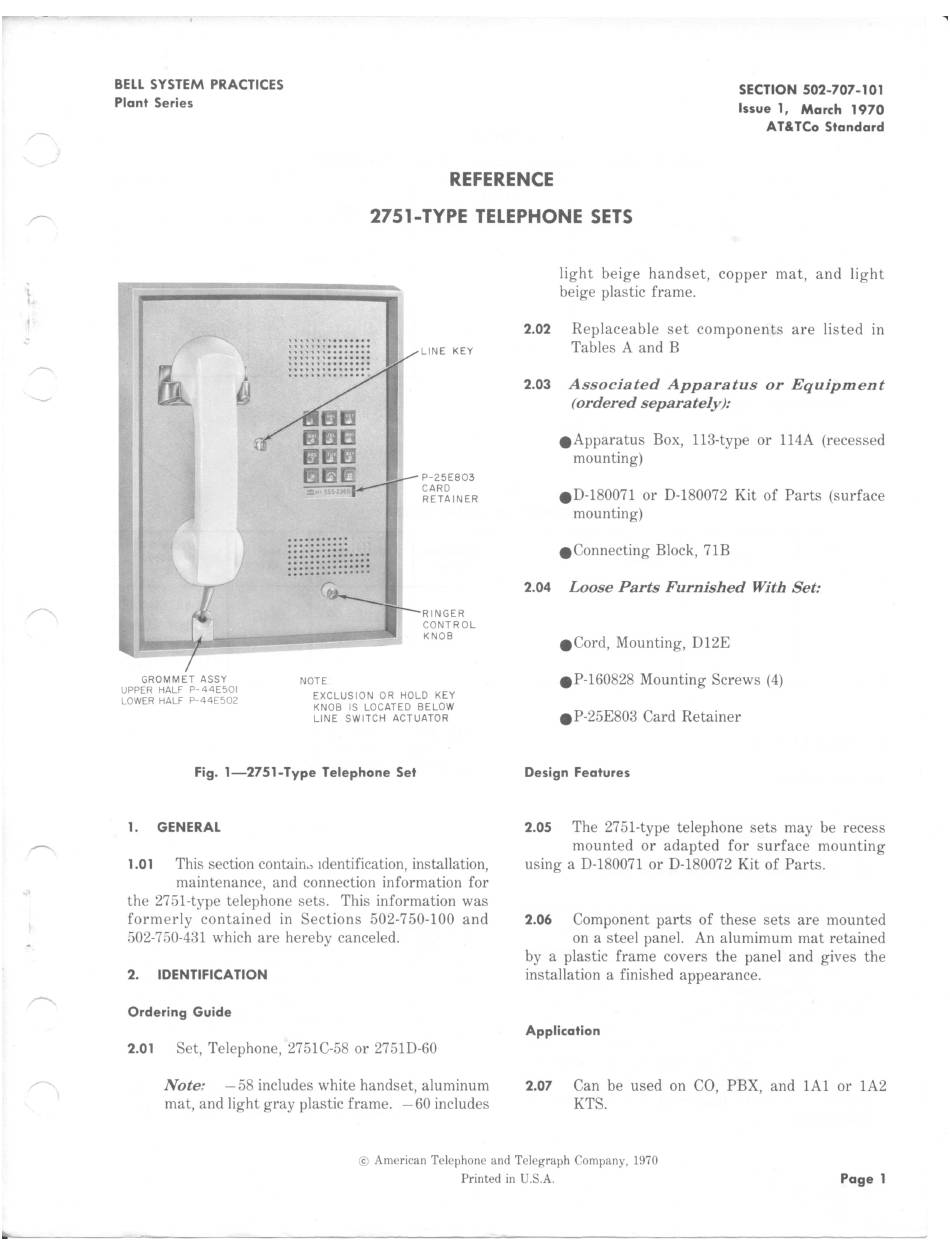

Fig. 1-2751-Type Telephone Set
1. GENERAL
1.01
This section contain.., identification, installation,
maintenance, and connection information for
the 2751-type telephone sets. This information was
formerly contained in Sections 502-750-100 and
502-750-431 which are hereby canceled.
2. IDENTIFICATION
Ordering Guide
2.01
Set, Telephone, 2751C-58 or 2751D-60
Note: -58 includes white handset, aluminum
mat, and light gray plastic frame. -60 includes
light beige handset, copper mat, and light
beige plastic frame.
2.02
Replaceable set components are listed m
Tables A and B
2.03
Associated Apparatus or Equipment
(ordered separately):
2.04
eApparatus Box, 113-type or 114A (recessed
mounting)
eD-180071 or D-180072 Kit of Parts (surface
mounting)
e Connecting Block, 71B
Loose Parts Furnished With Set:
eCord, Mounting, D12E
eP-160828 Mounting Screws (4)
eP-25E803 Card Retainer
Design Features
2.05
The 2751-type telephone sets may be recess
mounted or adapted for surface mounting
using a D-180071 or D-180072 Kit of Parts.
2.06
Component parts of these sets are mounted
on a steel panel. An alumimum mat retained
by a plastic frame covers the panel and gives the
installation a finished appearance.
Application
2.07
Can be used on CO, PBX, and 1A1 or 1A2
KTS.
@
American Telephone and Telegraph Company, 1970
Printed in U.S.A.
Page 1
