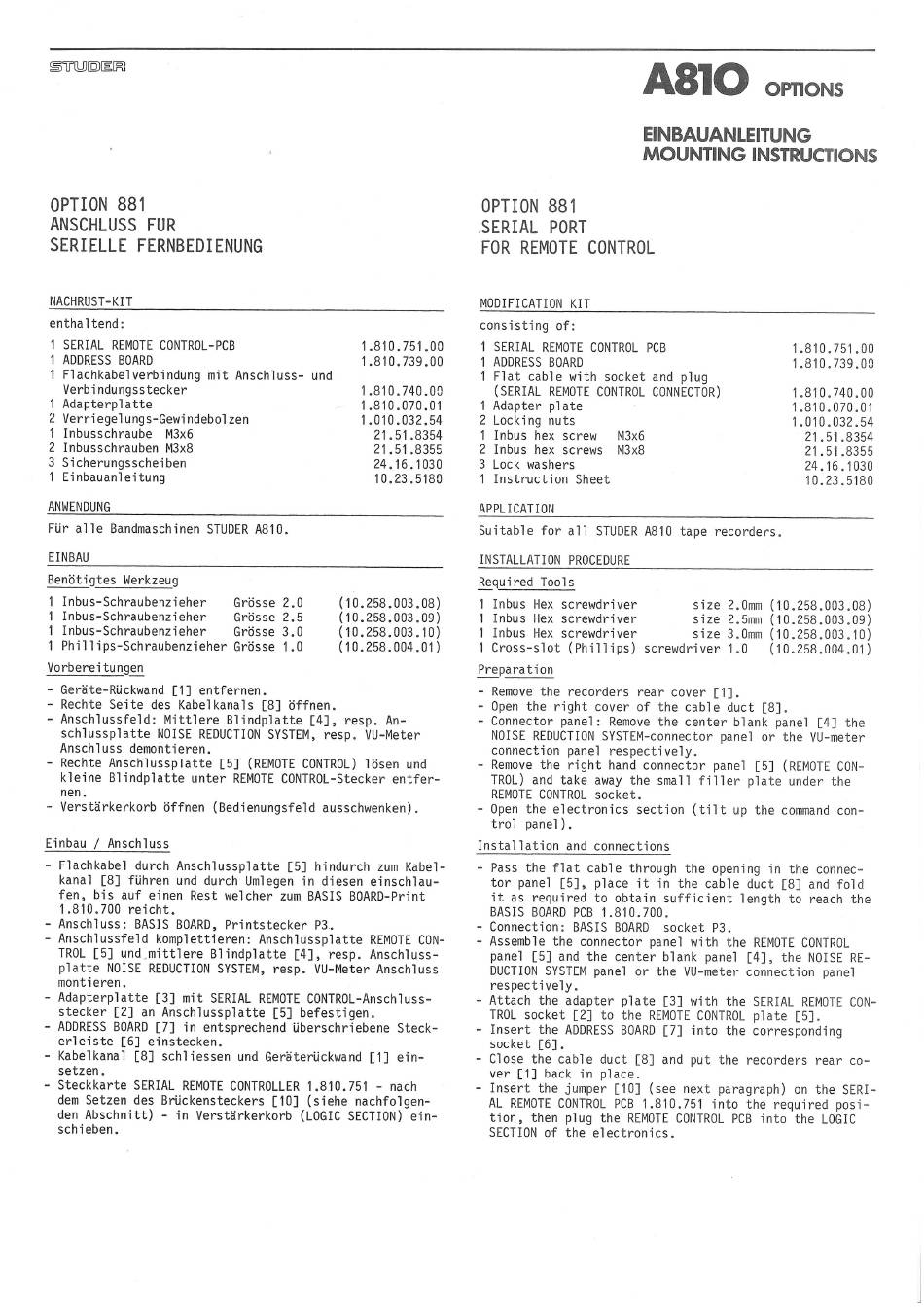

Studer 881 Mounting Instructions

§§TTEDEDE§EB
OPTION 881
ANSCHLUSS FUR
SERIELLE FERNBEDIENUNG
NACHRUST-KIT
enthaItend:
A810 OPTIONS
EINBAUANLEITUNG
MOUNTING INSTRUCTIONS
OPTION 881
,SERIAL PORT
FOR REMOTE CONTROL
MODIFICATION KIT
consisting of:
SERIAL REMOTE CONTROL-PCB 1.810.751.00 1 SERIAL REMOTE CONTROL PCB 1.810.751.00
1 ADDRESS BOARD 1.810.739.00 1 ADDRESS BOARD 1.810.739.00
1 FIachkabererbindung mit Anschluss- und 1 FIat cabIe with socket and plug
Verbindungsstecker 1.810.740.00 (SERIAL REMOTE CONTROL CONNECTOR) 1.810.740.00
1 Adapterplatte 1.810.070.01 1 Adapter pIate ~ 1.810.070.01
2 VerriegeIungs-Gewindebolzen 1.010.032.54 2 Locking nuts 1.010.032.54
1 Inbusschraube M3x6 21.51.8354 1 Inbus hex screw M3x6 21.51.8354
2 Inbusschrauben M3x8 21.51.8355 2 Inbus hex screws M3x8 21.51.8355
3 Sicherungsscheiben 24.16.1030 3 Lock washers 24.16.1030
1 Einbauanleitung 10.23.5180 1 Instruction Sheet 10.23.5180
ANNENDUNG APPLICATION
FUr alIe Bandmaschinen STUDER A810.
EINBAU
Benotigtes Nerkzeug
1 Inbus-Schraubenzieher Grbsse 2.0 (10.258.003.08)
1 Inbus-Schraubenzieher Grbsse 2.5 (10.258.003.09)
1 Inbus-Schraubenzieher Grbsse 3.0 (10.258.003.10)
1 PhilIips—Schraubenzieher Grbsse 1.0 (10.258.004.01)
Vorbereitunggn
- Gerate—RUckwand [1] entfernen.
— Rechte Seite des Kabelkanals [8] bffnen.
- Anschlussfeld: Mittlere Blindplatte [4], resp. An-
scthssplatte NOISE REDUCTION SYSTEM, resp. VU-Meter
Anscthss demontieren.
- Rechte Anschlussplatte [5] (REMOTE CONTROL) Ibsen und
kIeine Blindplatte unter REMOTE CONTROL-Stecker entfer-
nen.
- Verstarkerkorb bffnen (BedienungsfeId ausschwenken).
Einbau / Anscthss
- FIachkabeI durch AnschlusspIatte [5] hindurch zum KabeI—
kanaI [8] fUhren und durch UmIegen in diesen einschIau-
fen, bis auf einen Rest weIcher zum BASIS BOARD—Print
1.810.700 reicht.
- Anschluss: BASIS BOARD, Printstecker P3.
- Anscthssfeld komplettieren: Anschlussplatte REMOTE CON-
TROL [5] und mittIere BIindeatte [4], resp. Anschluss-
pIatte NOISE REDUCTION SYSTEM, resp. VU-Meter Anschluss
montieren.
- Adapterplatte [3] mit SERIAL REMOTE CONTROL—Anschluss-
stecker [2] an Anschlussplatte [5] befestigen.
- ADDRESS BOARD [7] in entsprechend Uberschriebene Steck—
erleiste [6] einstecken.
- KabeIkanal [8] schIiessen und GeraterUckwand [1] ein-
setzen.
- Steckkarte SERIAL REMOTE CONTROLLER 1.810.751 - nach
dem Setzen des BrUckensteckers [10] (siehe nachfolgen—
den Abschnitt) - in Verstarkerkorb (LOGIC SECTION) ein-
schieben.
SuitabIe for all STUDER A810 tape recorders.
INSTALLATION PROCEDURE
Required Tools
1 Inbus Hex screwdriver size 2.0mm (10.258.003.08)
1 Inbus Hex screwdriver size 2.5mm (10.258.003.09)
1 Inbus Hex screwdriver size 3.0mm (10.258.003.10)
1 Cross-sIot (PhilIips) screwdriver 1.0 (10.258.004.01)
Preparation
- Remove the recorders rear cover [1].
Open the right cover of the cable duct [8].
- Connector panel: Remove the center blank panel [4] the
NOISE REDUCTION SYSTEM-connector panel or the VU-meter
connection panel respectively.
— Remove the right hand connector panel [5] (REMOTE CON—
TROL) and take away the small fiIler pIate under the
REMOTE CONTROL socket.
Open the electronics section (tilt up the command con—
trol panel).
InstaIlation and connections
— Pass the fIat cable through the opening in the connec-
tor panel [5], place it in the cable duct [8] and foId
it as required to obtain sufficient length to reach the
BASIS BOARD PCB 1.810.700.
— Connection: BASIS BOARD socket P3.
AssembIe the connector panel with the REMOTE CONTROL
paneI [5] and the center bIank panel [4], the NOISE RE-
DUCTION SYSTEM paneI or the VU-meter connection paneI
respectively.
- Attach the adapter plate [3] with the SERIAL REMOTE CON—
TROL socket [2] to the REMOTE CONTROL pIate [5].
Insert the ADDRESS BOARD [7] into the corresponding
socket [6].
- Close the cable duct [8] and put the recorders rear co—
ver [1] back in place.
- Insert the jumper [10] (see next paragraph) on the SERI—
AL REMOTE CONTROL PCB 1.810.751 into the required posi-
tion, then plug the REMOTE CONTROL PCB into the LOGIC
SECTION of the electronics.
