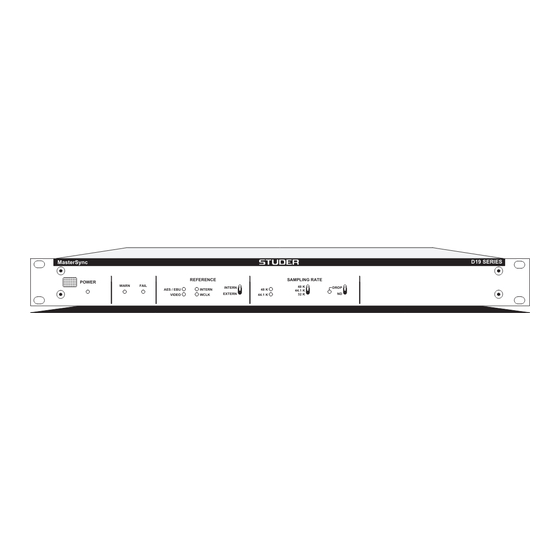

Studer D19 MasterSync
Sync Generator/Distributor
MasterSync
POWER
WARN
FAIL
REFERENCE
SAMPLING RATE
INTERN
AES / EBU
INTERN
48 K
44.1 K
EXTERN
VIDEO
WCLK
44.1 K
48 K
DROP
ND
32 K
Operating Instructions
D19 SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D19 MasterSync and is the answer not in the manual?

Questions and answers

Summary of Contents for Studer D19 MasterSync

  • Page 1 Studer D19 MasterSync Sync Generator/Distributor MasterSync D19 SERIES REFERENCE SAMPLING RATE POWER WARN FAIL 48 K INTERN DROP AES / EBU INTERN 48 K 44.1 K EXTERN VIDEO WCLK 44.1 K 32 K Operating Instructions...
  • Page 2 Copyright by STUDER Professional Audio AG STUDER Professional Audio AG Printed in Switzerland Order no. 10.27.4501 (Ed. 0900) Technical Documentation Althardstrasse 30 Subject to change CH-8105 Regensdorf - Switzerland STUDER is a registered trade mark of STUDER Professional Audio AG, Regensdorf...
  • Page 3 SAFETY / SECURITE / SICHERHEIT To reduce the risk of electric shock, do not remove covers (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. Afin de prévenir un choc électrique, ne pas enlever les couvercles (où l’arrière) de l’appareil. Il ne se trouve à l’intérieur aucune pièce pouvant être réparée par l’usager.
  • Page 4 SAFETY / SECURITE / SICHERHEIT FIRST AID PREMIERS SECOURS ERSTE HILFE (in case of electric shock) (en cas d'électrocution) (bei Stromunfällen) 1. Separate the person as quickly as 1. Si la personne est dans l'impos- 1. Bei einem Stromunfall die be- possible from the electric power sibilité...
  • Page 5 SICHERHEIT / SAFETY Installation Installation Vor der Installation des Gerätes müssen die hier aufge- Before you install the equipment, please read and adhere führten und auch die weiter in dieser Anleitung mit to the following recommendations and all sections of bezeichneten Hinweise gelesen und während der these instructions marked with Installation und des Betriebes beachtet werden.
  • Page 6 SICHERHEIT / SAFETY Zugentlastung für den Netzanschluss Mains connector strain relief Zum Verankern von Steckverbindungen ohne mechani- For anchoring connectors without a mechanical lock (e.g. sche Verriegelung (z.B. IEC-Kaltgerätedosen) empfehlen IEC mains connectors), we recommend the following wir die folgende Anordnung: arrangement: Vorgehen: Der mitgelieferte Kabelhalter ist selbstkle- Procedure: The cable clamp shipped with your unit is...
  • Page 7 Abschnitten beschrieben. Umgebungstemperatur Ambient temperature Geräte und Systeme von Studer sind allgemein für einen Um- Units and systems by Studer are generally designed for an gebungstemperaturbereich (d.h. Temperatur der eintretenden ambient temperature range (i.e. temperature of the incoming Kühlluft) von +5...+40 °C ausgelegt.
  • Page 8 UMGEBUNGSBEDINGUNGEN / AMBIENT CONDITIONS Vor der Inbetriebnahme muss das System auf allfällige interne Before putting into operation, the system must be checked for Betauung oder Eisbildung überprüft werden. Nur bei sehr internal formation of condensation or ice. Only with a minute leichter Eisbildung kann mit direkter Verdunstung (Sublimati- formation of ice, direct evaporation (sublimation) may be ex- on) gerechnet werden;...
  • Page 9: Maintenance And Repair

    WARTUNG / MAINTENANCE Wartung und Reparatur Maintenance and Repair Durch Entfernen von Gehäuseteilen, Abschirmungen etc. The removal of housing parts, shields, etc. exposes ener- werden stromführende Teile freigelegt. Deshalb müssen gized parts. For this reason the following precautions u.a. die folgenden Grundsätze beachtet werden: should be observed: Eingriffe in das Gerät dürfen nur von Fachpersonal unter Maintenance should only be performed by trained per-...
  • Page 10 WARTUNG / MAINTENANCE Elektrostatische Entladung (ESD) Electrostatic Discharge (ESD) bei Wartung und Reparatur during Maintenance and Repair Observe precautions for handling devices sensitive to ATTENTION: electrostatic discharge! ATTENTION: Respecter les précautions d’usage concernant la mani- pulation de composants sensibles à l’électricité statique! ACHTUNG: Vorsichtsmassnahmen bei Handhabung elektrostatisch entladungsgefährdeter Bauelemente beachten!
  • Page 11 Lötverbindungen in der Abbildung weiter unten. Bei Studer werden keine handelsüblichen SMD-Teile Studer does not keep any commercially available SMDs bewirtschaftet. Für Reparaturen sind die notwendigen in stock. For repair the corresponding devices should be Bauteile lokal zu beschaffen. Die Spezifikationen von purchased locally.
  • Page 12: Electromagnetic Compatibility

    EMV / EMC Störstrahlung und Störfestigkeit Electromagnetic Compatibility Das Gerät entspricht den Schutzanforderungen auf dem The equipment conforms to the protection requirements relevant to electromagnetic phenomena that are listed in Gebiet elektromagnetischer Phänomene, wie u.a. in den Richtlinien 89/336/EWG und FCC, Part 15, aufgeführt: the guidelines 89/336/EC and FCC, part 15.
  • Page 13: Ce Declaration Of Conformity

    CH-8105 Regensdorf, CH-8105 Regensdorf, erklärt in eigener Verantwortung, dass das Produkt declares under his sole responsibility that the product Studer D19 MasterSync, Sync Generator/Distributor, Studer D19 MasterSync, Sync Generator/Distributor, (ab Serie-Nr. 1001), (on from serial No. 1001), auf das sich diese Erklärung bezieht, entsprechend den Be- to which this declaration relates, according to following stimmungen der EU-Richtlinien und Ergänzungen...
  • Page 15: Table Of Contents

    D19 MasterSync CONTENTS Come In! .............E 1/1 Basic Information ............E 1/1 General ..............E 1/2 1.2.1 Scope of Delivery ............. E 1/2 1.2.2 Options ................E 1/2 1.2.3 Block Diagrams ..............E 1/3 Safety and Connections ..........E 1/5 1.3.1...
  • Page 16 D19 MasterSync E 0/2 Contents Date printed: 13.09.00...
  • Page 17: Come In

    D19 MasterSync COME IN! We are happy to welcome you in the circle of the Studer D19 Master- Sync's users, and we felicitate you on your selection. Thanks to Studer's experience collected during more than 40 years of business in the pro- fessional audio products field, you may expect that the performance of your new unit will fulfill your highest demands.
  • Page 18: General

    (SFC) can be inserted into the signal path (with internal jumpers); the redundancy inputs always have SFCs in their signal path. General 1.2.1 Scope of Delivery The D19 MasterSync (Order No. 60.681.010.00) is shipped with an IEC 320/C13 socket, a hex-socket screwdriver (2.5 mm), and this op- erating manual. 1.2.2 Options Redundancy Input Option: For watching the AES/EBU inputs 1...4...
  • Page 19: Block Diagrams

    D19 MasterSync 1.2.3 Block Diagrams Distributor: Redundancy port AES IN 1 AES OUT 1...4 AES IN 2 AES OUT 5...8 AES IN 3 AES OUT 9...12 AES IN 4 AES OUT 13...16 AES/EBU from generator Distribution mode: 1 to 16...
  • Page 20 D19 MasterSync Redundancy Input Option: AES OUT AES IN TRANS SYNC IN SYNC on/off SYNC IN (jumpers) AES IN (redundant) TRANS ERROR MADI Word Clock Extractor Option: MADI IN TAXI MADI OUT CTRL TRANS WCLK E 1/4 Come in! Date printed: 13.09.00...
  • Page 21: Safety And Connections

    D19 MasterSync Safety and Connections 1.3.1 Utilization for the Purpose Intended The Studer D19 MasterSync is designed for professional use. It is pre- sumed that the unit is operated only by trained personnel; servicing must be performed by qualified experts.
  • Page 22: Connector Field

    D19 MasterSync 1.3.3 Connector Field [11] [10] Mains~ 100 – 240 V AES OUT 1-4 AES OUT 5-8 AES IN 1-4 ALARM REDUNDANCY LINK AES IN AUX 1-4 AES OUT 9-12 AES OUT 13-16 DISTR MODE WCLK OUT WCLK IN...
  • Page 23: Technical Specifications

    D19 MasterSync Technical Specifications (preliminary, subject to change without notice) 1.4.1 General Inputs: AES/EBU: Impedance 110 typ. Sensitivity min. 0.2 V Sampling rate 28...55 kHz according to AES3 1992 Word clock: Impedance: hi-Z or 75 , selectable with internal jumper; TTL level...
  • Page 24: Mechanical Data

    D19 MasterSync 1.4.6 Mechanical Data Weight: approx. 5 kg Dimensions [mm]: 44.2 44.1 K 32 K approx. 8 (Rubber feet) 482.4 E 1/8 Come in! Date printed: 13.09.00...
  • Page 25: Operation

    D19 MasterSync OPERATION Operating Elements [1] POWER Recessed pushbutton for switching the unit on or off; the associated LED is illuminated when the unit is switched on. [2] WARN This LED is illuminated if an internal supply has a malfunction, pro- vided two units are linked or a second power supply unit is installed.
  • Page 26: Connectors, Pin Assignments

    D19 MasterSync Connectors, Pin Assignments 2.2.1 AES/EBU SYNC IN (XLR-3f) Signal Ground Input + Input – Chassis 2.2.2 AES/EBU OUT (XLR-3m) Signal Ground Output + Output – Chassis 2.2.3 4 AES/EBU IN (15-pin D-type, f) Pin Signal AES 1a AES 1b...
  • Page 27: Aes/Ebu Out

    D19 MasterSync 2.2.4 4 × 4 AES/EBU OUT (4 × 15-pin D-type, m) Signal Signal Signal Signal (Out 1...4) (Out 5...8) (Out 9...12) (Out 13...16) AES 1a AES 5a AES 9a AES 13a AES 1b AES 5b AES 9b AES 13b...
  • Page 28: Aes/Ebu Redundancy In (Optional)

    D19 MasterSync 2.2.6 4 AES/EBU REDUNDANCY IN (optional) (15-pin D-type, f) (Pin assignment is identical with the one of the standard 4 AES/ EBU IN connector) Pin Signal AES 1a AES 1b Screen Screen AES 2a AES 2b AES 3a...
  • Page 29: Dip Switch And Jumpers

    D19 MasterSync DIP SWITCH AND JUMPERS DIP Switch Settings The DIP switch is located at the rear of the unit and is accessed through a hole in the rear panel. The switches are numbered 1...8 from the left to the right.
  • Page 30: Internal Jumpers

    D19 MasterSync Internal Jumpers Caution: All internal adjustments as well as repair work on this product must be performed by a trained technician – no user-serviceable parts inside! Factory setting: In all drawings below, the default jumper settings are marked in black.
  • Page 31 D19 MasterSync This pin array is used for installing the Redundancy option. If no Redundancy option is installed, the following pins must be con- nected with jumpers: P43-P47, P42-P45, P48-P50, and P49-P51 (de- fault setting). This jumper is used if the MADI word clock extractor option is in- stalled;...
  • Page 32 D19 MasterSync E 3/4 DIP switch and jumpers Date printed: 13.09.00...
  • Page 33: Applications

    The D19 MasterSync is used in these environments and gives an addi- tional benefit: As the 16 outputs of a D19 MasterSync can be configured in such a way that they can distribute different signals, it is possible to use eight...
  • Page 34: Madi Sync Extractor (Optional)

    MADI option D19 MasterSync With the MADI sync extractor option, the D19 MasterSync generates a sync signal from an optical fibre MADI signal, thus synchronizing all remote inputs to the main system. E 4/2 Applications Date printed: 13.09.00...
