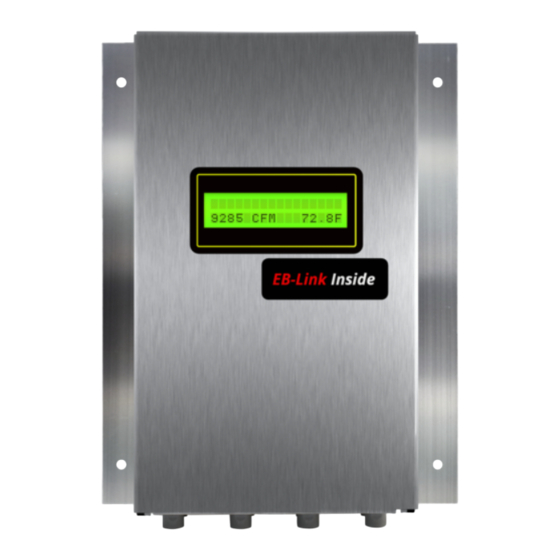

Advantage IV (A4) GTF108e-F STARTUP GUIDE
N1 N2
Top Row
Bottom Row
A1
L2
A2
A3 L1
C
SW1
TX
RX
TYPE B
TYPE C
GTF108e-F Parameters - Factory Defaults and Optional Settings/Ranges
Description Parameter Default
System of Units SYS
Airflow Calculation Method AIRFLOW
Altitude (for actual flow correction) ALT
Low Limit Airflow Cutoff LLIMIT
Area AREA
AO1, AO2 and AO3 Type AOUT
AO1 Assignment AO1 ASGN
AO1 Unit of Measure AO1 UM
AO1 Minimum Scale Reading
AO1 MS
AO1 Full Scale Reading AO1 FS
AO2 Assignment (/SI and /DI) AO2 ASGN
AO2 Assignment (/An) AO2 ASGN
AO2 Unit of Measure AO2 UM
AO2 Minimum Scale Reading AO2 MS
AO2 Full Scale Reading AO2 FS
AO3 Assignment AO3 ASGN
Lon Network xif File Link https://ebtron.com/wp-content/uploads/software/EBTRON_108e.xif
Refer to the O&M Manual for more information and/or additional parameter defaults, settings and ranges.
STARTUP INSTRUCTIONS:
1. Verify that the sensor probes are properly installed and secured in the fan inlet(s).
Improperly installed probes will compromise the installed accuracy of the device and degrade system
performance.
2. Verify that the transmitter is installed and wired in accordance with the GTF108e-F Wiring Guide
provided with the transmitter and power is provided to the transmitter.
3. Make sure the ductwork is clean and free of debris prior to fan startup.
4. Move the power switch to the "ON" position. Power-up faults, if detected, are displayed on the LCD.
If any power up faults are detected, resolve all conflicts or contact EBTRON customer service at
WINK
1-800-232-8766 before proceeding..
ACT
If extension cables have been added, the extension cable length must be entered into the transmitter.
Refer to the Operations and Maintenance Manual for more information.
5. The transmitter is fully functional as a factory calibrated airflow and temperature measurement device
in I-P units (ft, FPM, CFM °F). Airflow (CFM) and temperature (°F) are displayed on the LCD.
Airflow is displayed in FPM in lieu of CFM because the exact area where the fan inlet probes are
located is not known until installation is complete.
If SI units are required, refer to the Operations and Maintenance Manual.
The factory default airflow output is set to actual airflow (FPM, CFM). If standard (mass) airflow
(SFPM, SCFM) is required, refer to the Operations and Maintenance Manual.
6. Verify that the location (if provided) on the hang-tag matches the actual location where sensor probes
are installed to optimize implementation of the EB-Link Reader. The NAME parameter stored in
transmitter will match the location on the hang-tag or will default to transmitter serial number if no
location was provided or location does not match on all sensor probes. If the location does not match
or is blank on hang-tag and requires entry, modify the NAME parameter in the transmitter.
Optional Settings/Ranges
I-P (US customary) SI (metric)
ACT (actual)
STD (standard mass flow)
0
0 to 20000 [0 to 6000]
0 FPM
0 to 500 FPM [0.0 to 2.5 m/s]
{Null} requires entry 0.00 to 9999.99 [0.000 to 999.999]
4-20mA
0-10V, 0-5 V
AF (Airflow) None
FPM [m/s] CFM [L/s]
0
None
10000 [50.0]
100 to 15000 [0.5 to 75.0]
TEMP (Temperature)
ALRM (Alarm) or TRBL (System Trouble)
TEMP (Temperature)
ALRM, FA (Fan Alarm) or TRBL
F [C]
None
-20 [-30] -50 to 160 [-50 to 70]
160 [70]
-50 to 160 [-50 to 70]
N/A
N/A
Startup_GTF108e-F_r1b Page 1 of 2
Units
ft [m]
sq ft [sq m]
FPM [m/s]
FPM [m/s]
°F [°C]
°F [°C]
°F [°C]
